ASTM B117 Salt Spray Test Chamber Powder Coating Salt Fog Test Chamber
1 Set
MOQ
800~8000USD
Price
ASTM B117 Salt Spray Test Chamber Powder Coating Salt Fog Test Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-609
High Light:

salt spray test machine

,

salt fog test chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Inner Size: Any Size Can Be Customized
Voltage: 220V
Uses: Salt Spray Test For Powder Coating
Standard Capacity: 108L/270L/600L/1440L Or Custom Made
Spray Quantity: 1.0~2.0ml/80cm2/h
PH: 6.5~7.2 3.0~3.2
Product Description

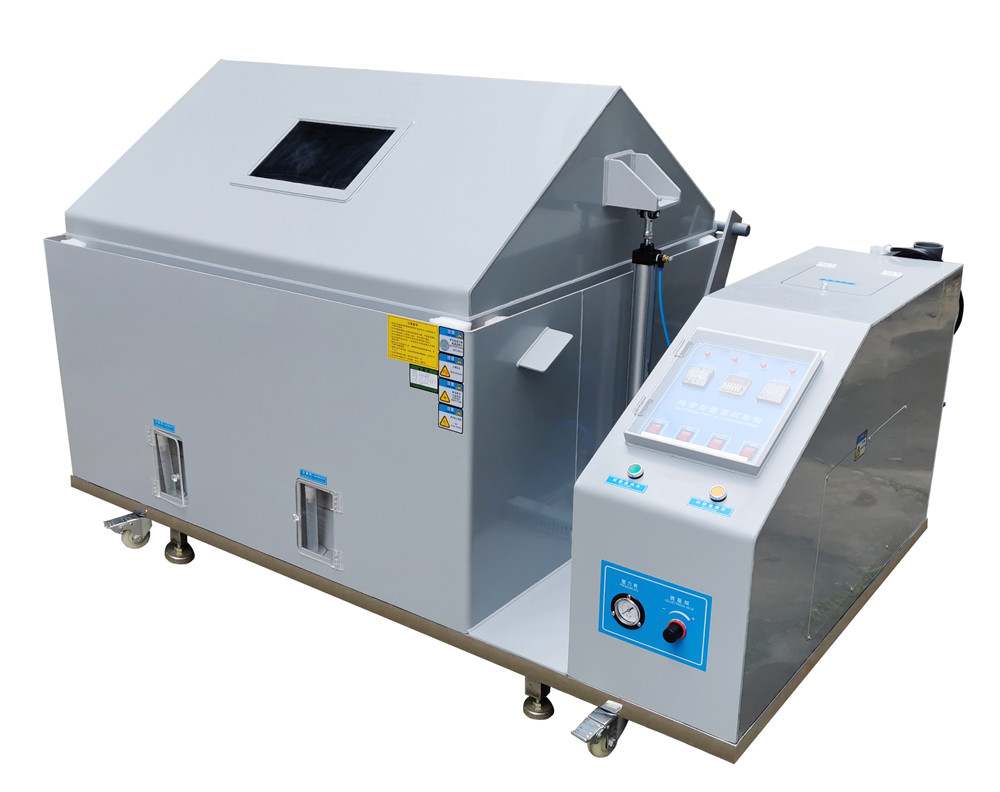

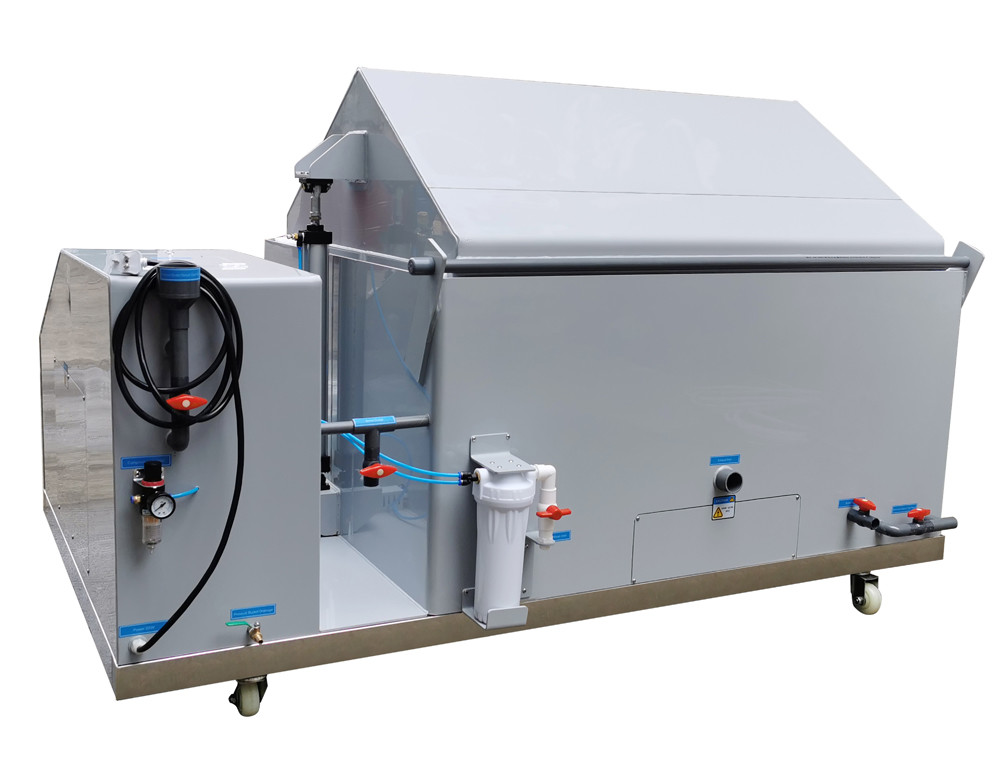

ASTM B117 All Size Can Customize Salt Spray Test For Powder Coating Salt Spray Test Machine



        ASTM B117 All Size Can Customize Salt Spray Test For Powder Coating Salt Spray Test Machine is specifically designed for materials surface corrosion resistance testing, these materials are treated in kinds of paint, coating, plating, antirust oil treated, etc.; widely used in metal, electro, electronic, chemical, automotive, aviation, aerospace, telecommunications and other industries. Carrying out corrosion testing for the products of materials and coating, so as to analyze and evaluate the samples’ performance under specific environmental conditions of marine environment.



Standards:

CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400,Z-2371,ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423,GJB 150.







Specifications:

Model LY-609-60 LY-609-90 LY-609-120 LY-609-200
Design Standards GB/T 10587-2006,GB/T 10125一1997,JIS-D0201,H8502,H8610,K5400,Z2371
Test chamber capacity (L) 108L 270L 600L 1440L



Temperature

Test chamber NSS.ACSS 35℃±1℃/CASS 50℃±1℃
Air cylinder NSS.ACSS 47℃±1℃/CASS 63℃±1℃

Test chamber size

L×W×D(cm)

60*45*40



90*60*50



120*100*50



200*120*60



Max volum of test liquid (L) 15 25 40 40
Volume L×W×D(cm) 107*60*118 141*88*128 190*130*140 270*150*150
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A

Features:
1.With auto & manual water supply system, auto water supplement when with low water level, ensure the testing continuously.
2.Temperature controller with digital control, P.I.D. Control with accuracy of 0.1℃.
3.Double over-temperature protection, alarm when with low water level, ensures operating safety.
5. High precise glass nozzle control the salt mist, mist spray out uniformity through conical diffuser and free falling on the specimen, ensure with no crystallization salt blocking.


ASTM B117 Salt Spray Test Chamber Powder Coating Salt Fog Test Chamber 0



FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Programmable High Frequency Vibration Table Temperature Humidity Combined Test Machine. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine

4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.

5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
