LIYI PH Testing Salt Spray Test Chamber Digital Microcomputer Controller

1 Set
MOQ
800~8000USD
Price
LIYI PH Testing Salt Spray Test Chamber Digital Microcomputer Controller
Features Gallery Product Description Request A Quote
Features
Specifications
Power: AC220V 50Hz
Warranty: 1 Year
Test Chamber Temperature: NSS.ACSS 35°C±1°C/CASS 50±1°C
Color: Requirement
Standard Capacity: 108L/270L/600L/1440L Or Custom Made
Spray Quantity: 1.0~2.0ml/80cm2/h
PH: 6.5~7.2 3.0~3.2
High Light:

salt spray test machine

,

cyclic corrosion chamber

Basic Infomation
Place of Origin: China
Brand Name: Liyi
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Product Description

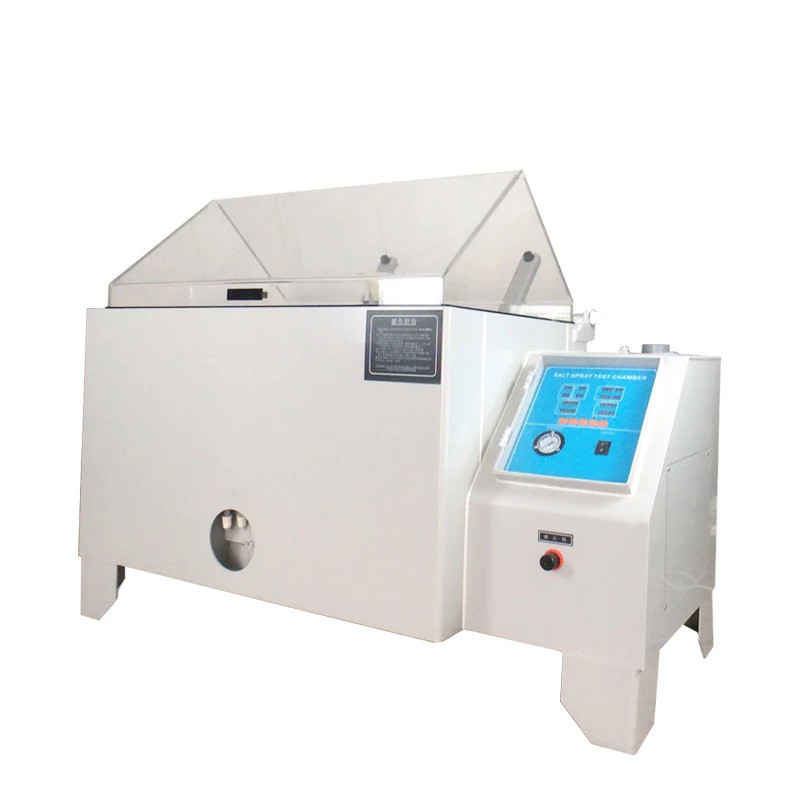

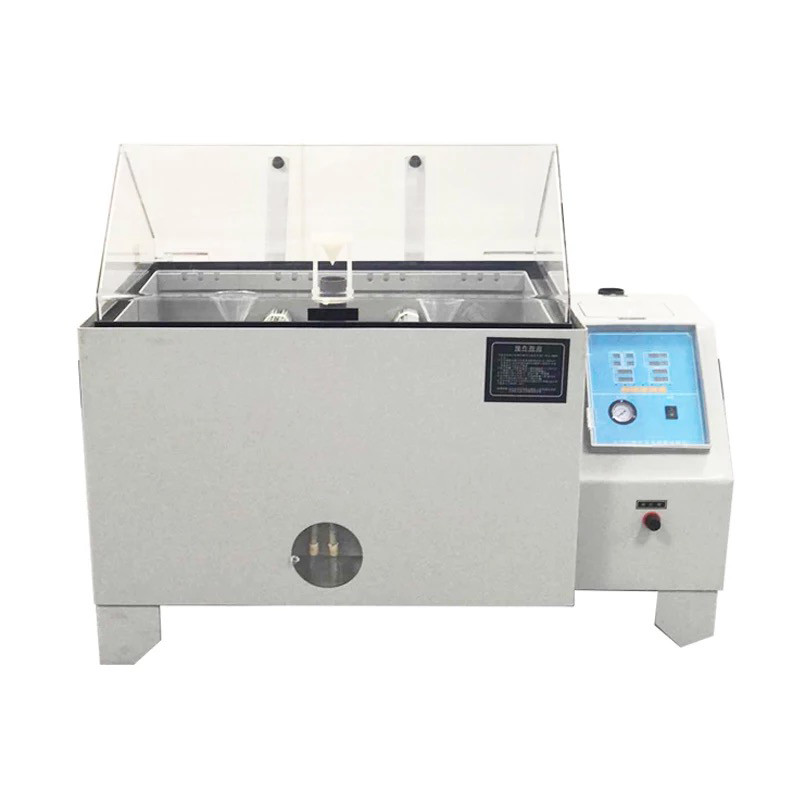

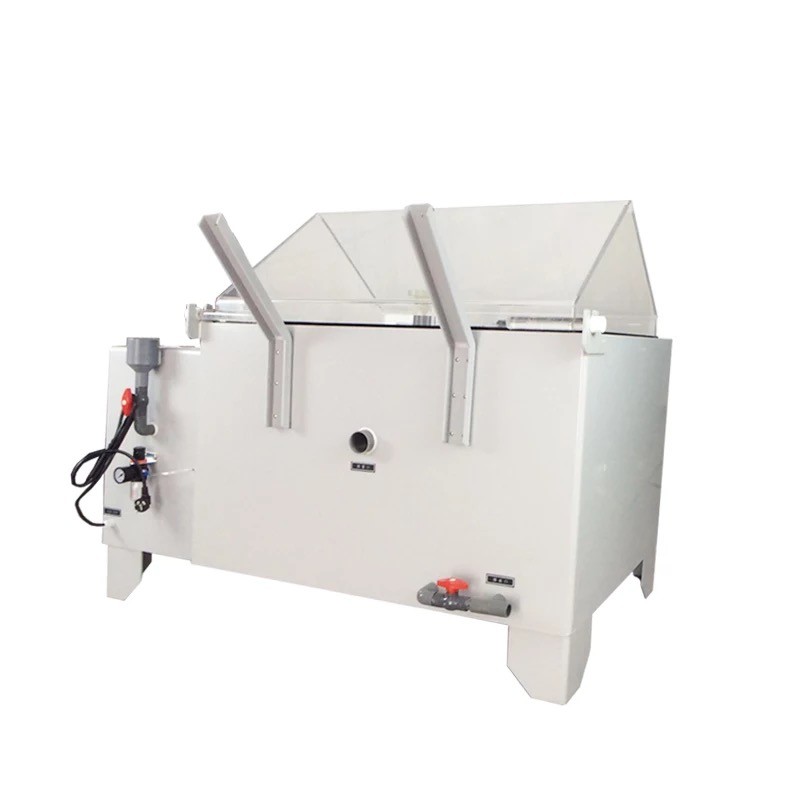

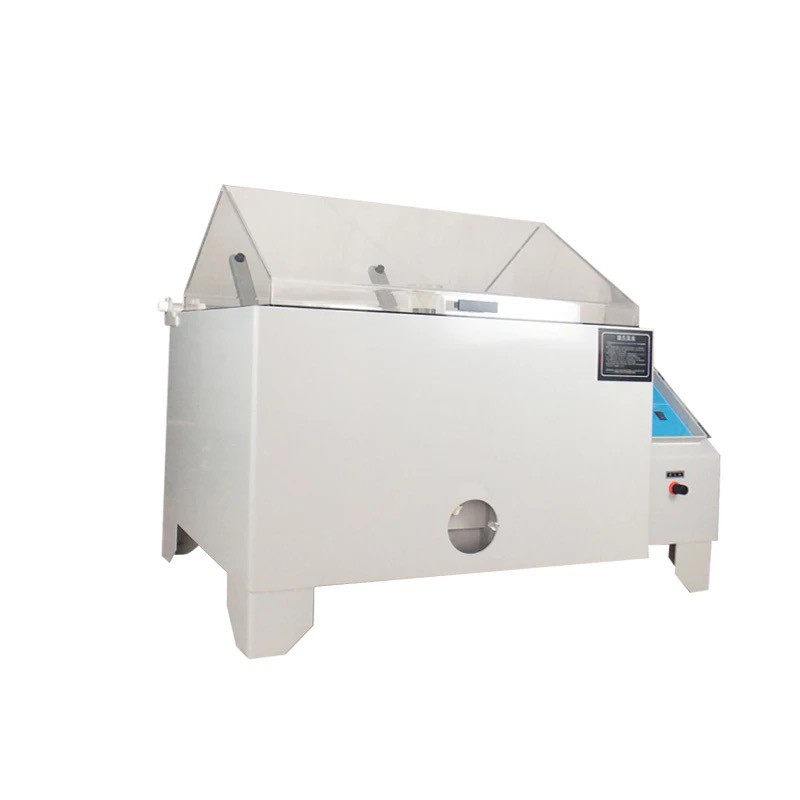

LIYI PH Testing Salt Spray Test Chamber Digital Microcomputer Controller



Salt Spray Testing Machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.





Characteristics:

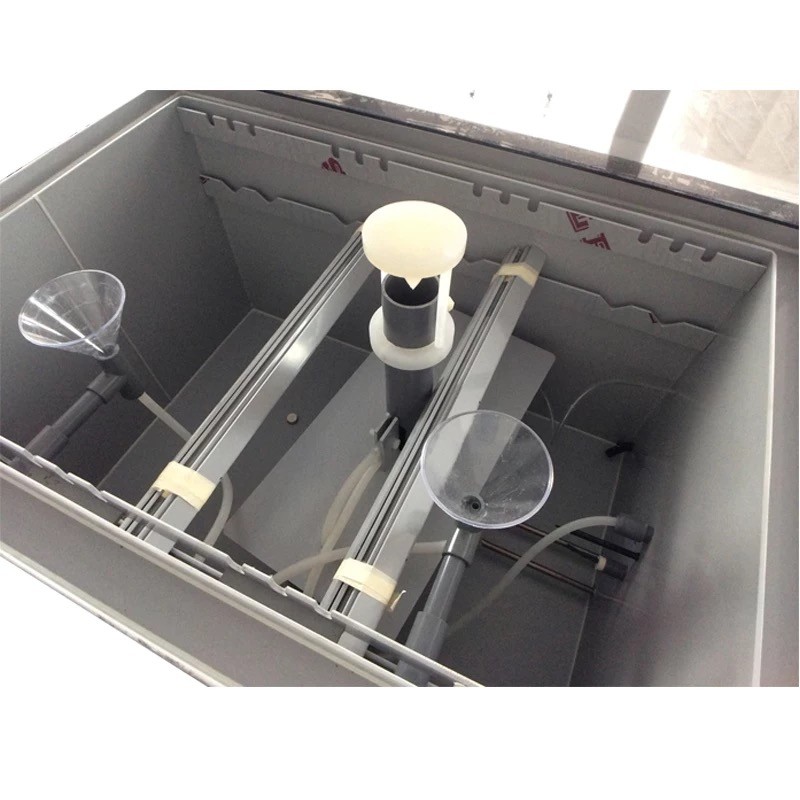

1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.

2. Controller is digital type microcomputer which delivers precision temparature.

3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.

4. Test specifications are accept worldwild.



specification:

Model LY-609-60 LY-609-90 LY-609-120 LY-609-200
Design Standards GB/T 10587-2006,GB/T 10125一1997,JIS-D0201,H8502,H8610,K5400,Z2371
Test chamber capacity (L) 108L 270L 600L 1440L



Temperature

Test chamber NSS.ACSS 35℃±1℃/CASS 50℃±1℃
Air cylinder NSS.ACSS 47℃±1℃/CASS 63℃±1℃

Test chamber size

L×W×D(cm)

60*45*40



90*60*50



120*100*50



200*120*60



Max volum of test liquid (L) 15 25 40 40
Volume L×W×D(cm) 107*60*118 141*88*128 190*130*140 270*150*150
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A



LIYI PH Testing Salt Spray Test Chamber Digital Microcomputer Controller 0LIYI PH Testing Salt Spray Test Chamber Digital Microcomputer Controller 1

Our service:

During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
