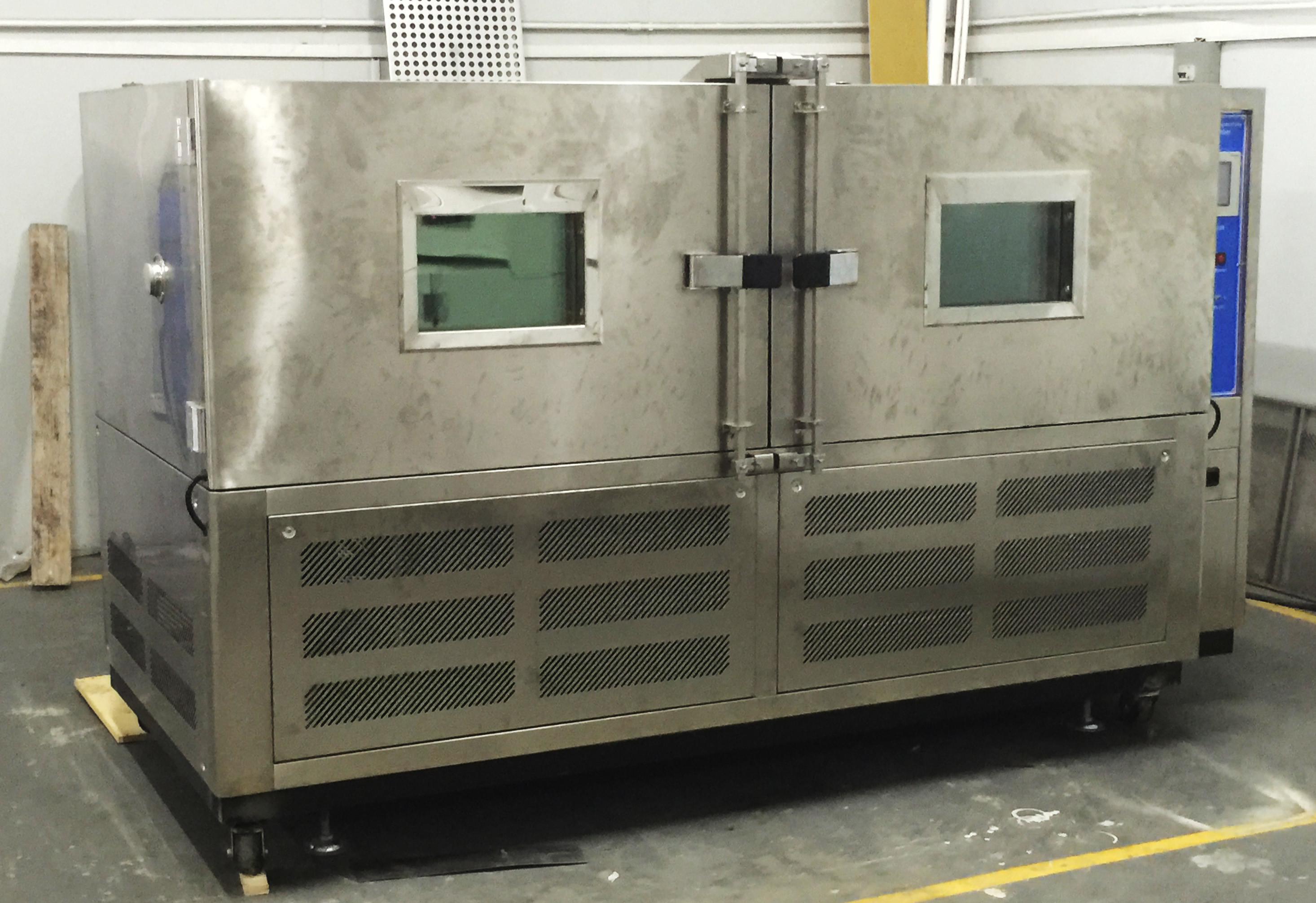

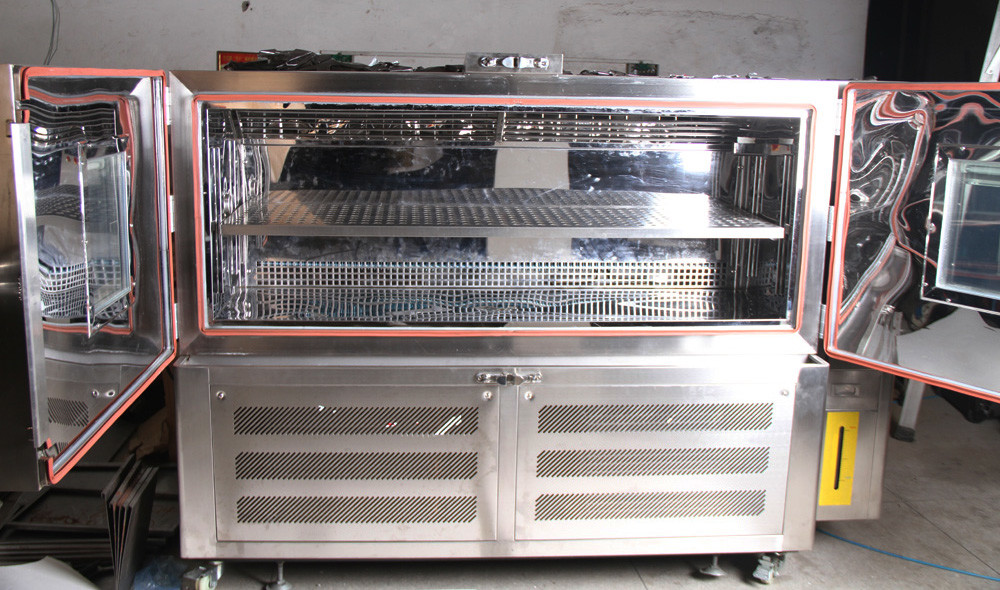

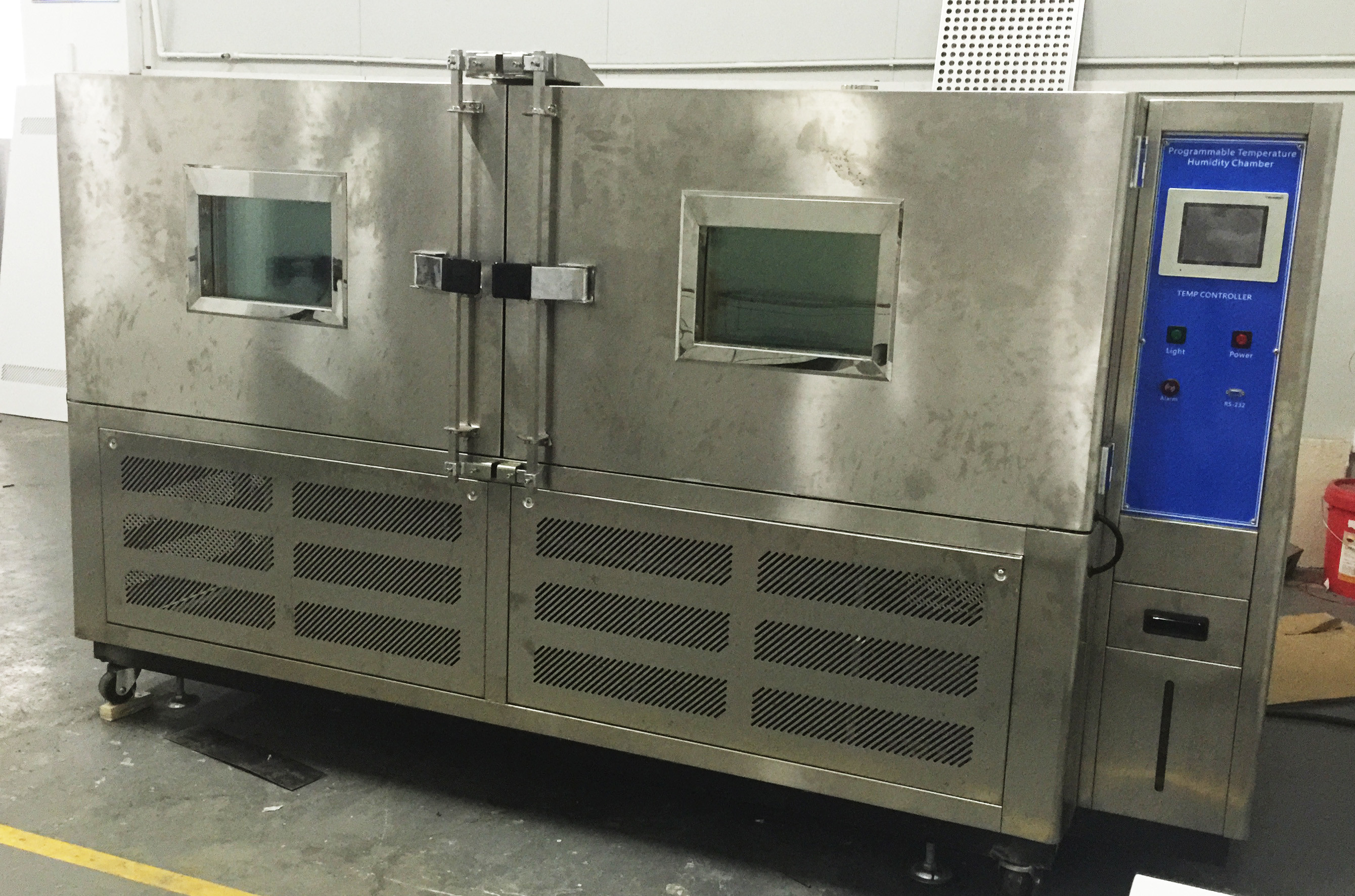

LIYI -60℃ To +150℃ Temperature Humidity Test Chamber 1.5m Length LED Lamps
LED Lamps Specialized 1.5m Length -60℃ to +150℃ Temperature Humidity Environmental Test Chambers Manufacturers is widely used in aviation, aerospace, information, electronics, instrumentation and other industries for the accelerated heat and humidity test of electrical products, materials, parts, equipment, etc. Damp heat test chamber, constant temperature and humidity chamber to evaluate the performance of the sample under given environmental conditions.
Function:
1. To simulate test environment with different temperature and humidity.
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Specifications:
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | LY-21000 | |
| Inner size W×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | |
| External size W×H×D(cm) | 92×138×108 | 102×146×116 | 102×162×126 | 113×172×148 | 150×186×139 | 158×188×168 | |
| Volume(L) | 80 L | 150L | 225L | 408L | 800L | 1000L | |
| Temp & Humi Control Range |
Temp range: A:-20℃～150℃ B: -40℃～150℃ C: -60℃～150℃ D: -70℃～150℃ Humi range: RH20%-98% |
||||||
| Heating & cooling speed | 1.5℃/min (can customize from 1-20℃/min) | ||||||
| Fluctuation | ±0.5℃；±2.5%RH | ||||||
| Deviation | ±0.5℃-±2℃；±3%RH(＜75%RH); ±5%RH(≥75%RH) | ||||||
| Controller | TEMI880, 990, 1500 or customize brands and models | ||||||
| Refrigerator | Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor) | ||||||
| Refrigerants | Dupont(R23+R404) | ||||||
| Test hole | *50mm, 100mm or customize | ||||||
| Power | 1φ 220V AC±10% 50Hz | 3φ 380V AC±10% 50Hz | |||||
Features:
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintaineance.
Our Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:temperature and humidity control box stability chambers
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:temperature and humidity control box stability chambers
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
