LAB Used Temperature Humidity Test Chamber Electronics Environment And Vibration Test
1 Set
MOQ
50000~500000USD
Price
LAB Used Temperature Humidity Test Chamber Electronics Environment And Vibration Test
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-21000THV
High Light:

temperature humidity test chamber

,

constant temperature humidity chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 45-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Specifications
Chamber Size: 500L, Any Size Can Be Customized
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C/-70°C~+180°C
Humidity Range: 20%~98% / 5%~98%
Vibration Frequency Range: 2~3000 Hz
Cooling Method: Water Cooled
Inner Material: 304 Stainless Steel
Vibration Table: Custom According To The Products Size
Product Description

LAB Used Temperature Humidity Test Chamber , Environment And Vibration Test Chamber For Electronics

Application Field
          The LAB Used Temperature Humidity Test Chamber , Environment And Vibration Test Chamber For Electronics is widely used in scientific research, research institutes, quality inspection institutes and other industries to do warm and humid heat tests of electronic and electrical products, materials, parts, equipment, etc., alternating heat test and constant temperature test, etc. Also could do high and low temperature routine tests, low temperature storage, in order to evaluate the performance of the sample under given environmental conditions.Apply to aerospace, aviation, electronics, automotive, battery and other products and quality inspection institutes, research institutes, universities and other test units, providing virtual space to simulate the real environment, verify

Standard Compliance:
1. IEC68-2-1 (GB2423.1-2008)
2. IEC68-2-2 (GB2423.2-2008)
3. IEC68-2-3 (GB2423.3-2006)
4. IEC68-2-30 (GB2423.4-2008)
5. IEC68-2-14 (GB2423.22-2008)
6. MIL-STD-810D (GJB150.3A-2009)
7. MIL-STD-810D (GJB150.4A-2009)
8. MIL-STD-810D (GJB150.9A-2009)

Vibration table configuration:
1. Air-cooling series electrical vibration system
2. Water-cooling series electrical cooling system
3. Digital random vibration controller
4. Digital sine vibration controller

Moving method:
1. High low temperature (damp heat) test chamber with slide rail
2. Match with vibration table via moving high low temperature (damp heat) test chamber on slide rail
3. Vibration table with slide rail
4. Match with high low temperature (damp heat)test chamber via vibration table moving on slide rail .

Connection Method:
1. Adopt connecting shaft connection method (match with vertical vibration)
2. Vibration table get into the chamber via connecting shaft ,match with the test chamber to reach combined testing effects .
3. Vertical, horizontal combined vibration ,can customize design


Chamber specification:

Model LY-2408THV LY-2800THV LY-21000THV
Internal Dimension 600x850x800 1000x1000x800 1000x1000x1000
W x H x D(mm)
External Dimension 850x1650x1500 mm 1250x1750x1600 1250x1750x1800
W x H x D(mm)
Temp. Range B:-20~150℃ C:-40~150℃ D:-70~150℃
Humidity Range 20-98%RH
Temp. Fluctuation ≤±0.5℃
Temp. Deviation ≤±2℃
Temp. Uniformity ≤±2℃
Humidity Fluctuation ≤±2.5%RH
Humidity Deviation Temperature 75%RH: ≤+2,-3%RH;Humidity 75%RH: ≤±5%RH

Vibration system:
Exciting force

Sin: 2200Kg.f peak
Random: 2000Kg.f rms

Frequency Range Vertical table: 2Hz~3000Hz
Rated acceleration 100G(980 m/s2)
Rated speed 2m/s
Rated displacement 50.8 mm p-p
Maximum load 400kg
Equivalent mass of moving parts Vertical table: 20kg
Vibration isolation frequency 2.5 Hz
Moving coil diameter Ф320 mm
Mounting hole position 17×M10



Features:

1. Temperature Humidity Vibration Combined Test Chamber Temperature rise or cooling capacity can be designed as high as 40C/min temperature change rate
2. Temperature Humidity Vibration Combined Test Chamber Specially designed dry air equipment, to protect the sample surface condense during the testing
3. Modern design, latest modular creation technology ,perfect control power.
4. Color screen 32 bit control system, Ethernet E management , USB data storage function, APP mobile platform management
5. Programmable load power 4 ON/OFF output control, to protect the products safety
6. Unique air circulation system
7. Equipped with equipment overload, overheat, abnormal power supply, overpressure, fault detection, etc. protective measures
8. Test procedure has humanized design, like intelligent power off reset, automatic memory continued and automatic origin starting function, etc.
9. Independent product have anti condensation function and over temperature, calm, smoke protection function
10. Auto return to room temperature setting
11. Diagnostic system for information on operating times and possible failures.
12. The device can expand the remote service function and provide the machine using a mathematical disc
13. Multi-language selection: Chinese, English, Russian, Korean, Japanese

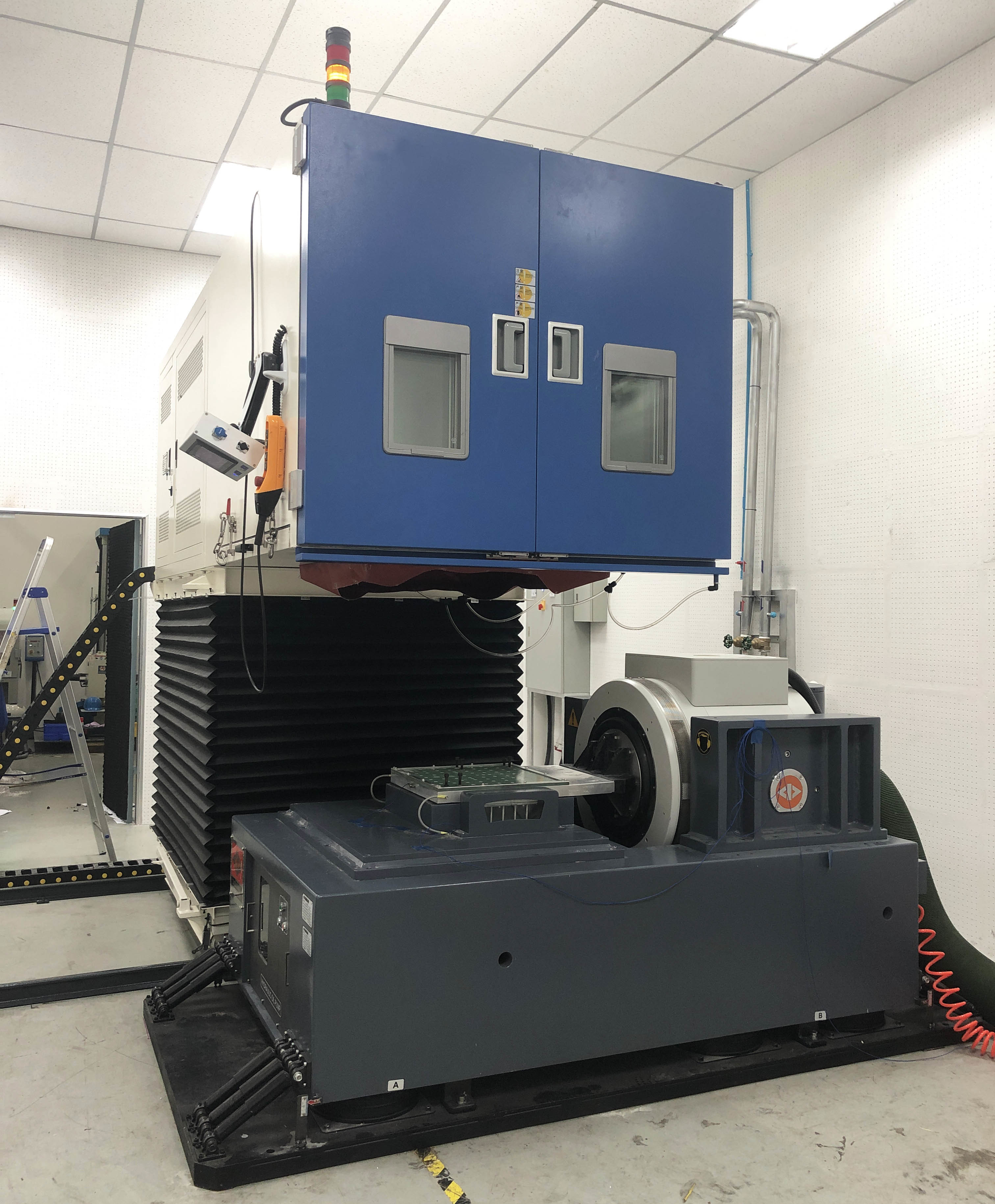

LAB Used Temperature Humidity Test Chamber Electronics Environment And Vibration Test 0LAB Used Temperature Humidity Test Chamber Electronics Environment And Vibration Test 1

FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Programmable High Frequency Vibration Table Temperature Humidity Combined Test Machine. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine

4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.

5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
