LIYI Electronic Industry Salt Mist Testing Equipment Solid Mechanical Structure

1 Set
MOQ
800~8000USD
Price
LIYI Electronic Industry Salt Mist Testing Equipment  Solid Mechanical Structure
Features Gallery Product Description Request A Quote
Features
Specifications
Inner Size: Any Size Can Be Customized
Voltage: 220V
Warranty: 1 Year
Standard Capacity: 108L/270L/600L/1440L Or Custom Made
Spray Quantity: 1.0~2.0ml/80cm2/h
PH: 6.5~7.2 3.0~3.2
High Light:

salt spray test machine

,

cyclic corrosion chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-609
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

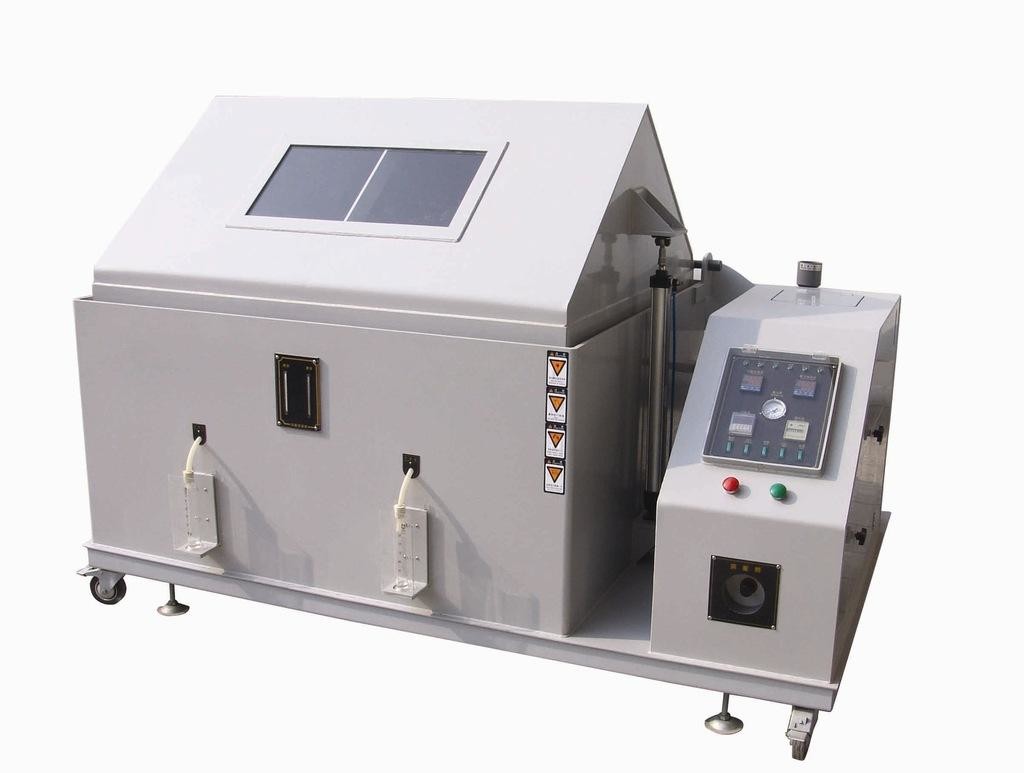

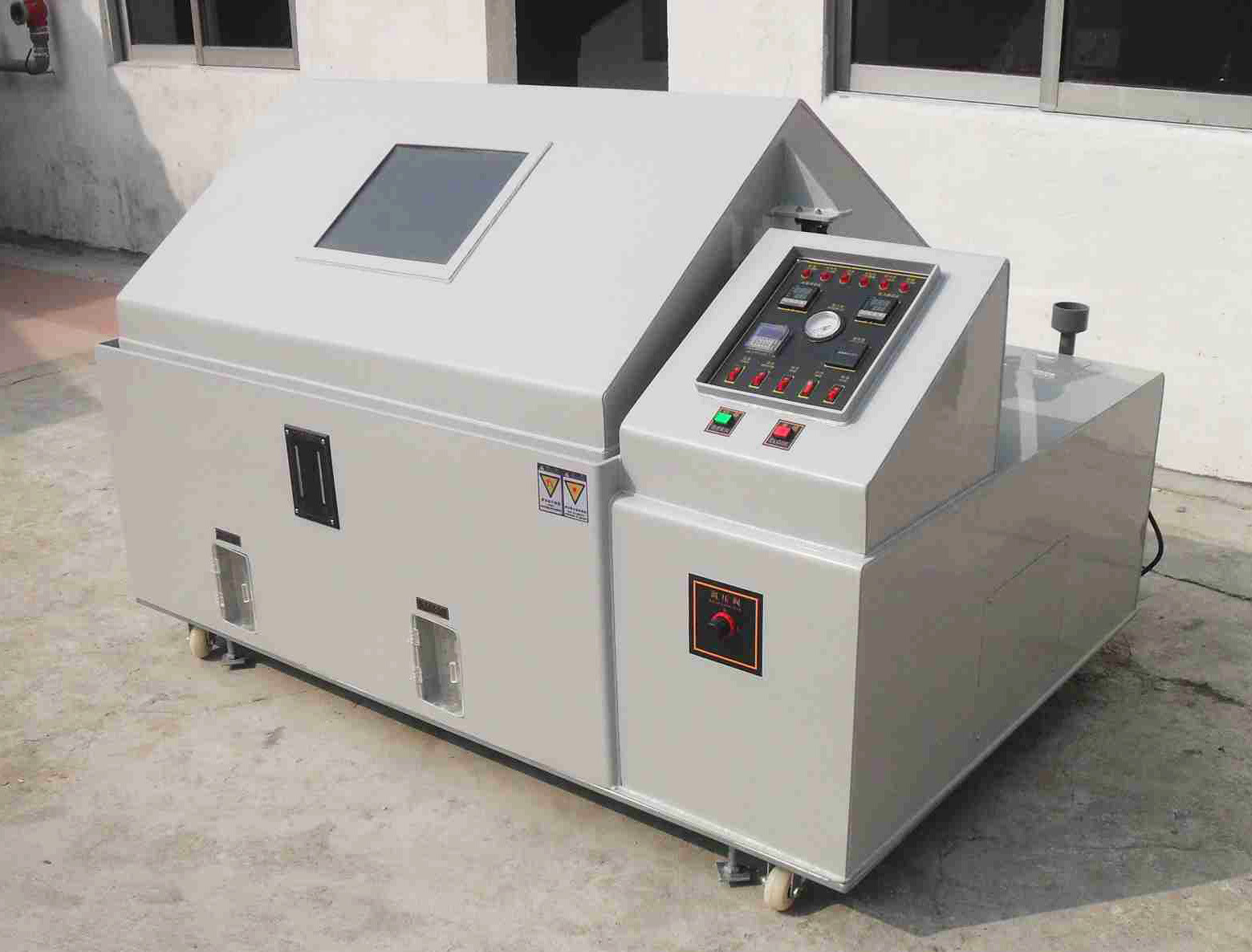

LIYI Electronic Industry Salt Mist Testing Equipment Solid Mechanical Structure



      Electronic Industry Salt Mist Testing Equipment Salt Fog Test Chamber Salt Spray Corrosion Cabinet  is specifically designed for materials surface corrosion resistance testing, these materials are treated in kinds of paint, coating, plating, antirust oil treated, etc.; widely used in metal, electro, electronic, chemical, automotive, aviation, aerospace, telecommunications and other industries. Carrying out corrosion testing for the products of materials and coating, so as to analyze and evaluate the samples’ performance under specific environmental conditions of marine environment.



Standards:
GB/T 2423.17-1993 salt spray test
GB/T 2423.18-2000 salt spray test
GB/T 10125-1997 salt spray test
ASTM.B117-97 salt spray test
JIS H8502 salt spray test
IEC68-2-11 salt spray test
IEC68-2-52 1996 salt spray test
GB.10587-89 salt spray test
CNS.4158 salt spray test
CNS.4159 CASS Accelerated acetic acid copper salt spray test
GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test



Features:
1 Entire PP&PVC solid mechanical structure, resistance to hydrochloric acid, heat resistance and never aging, suitable for salt fog copper acetate, etc.
2 Patent nozzle and conical diffusion device makes the fall fog rapidly and evenly. With manual level automatic control mode, the biggest setting time can reach 9990 hours.
3 Have automatic demist device, can clear observe tested products after the experience is finished.
4 Three complete temperature control systems(Saturated air temperature, the temperature in the cabinet, the test liquid temperature) ensure the consistency and standards of the test.



LIYI Electronic Industry Salt Mist Testing Equipment  Solid Mechanical Structure 0



Specifications:



Model LY-609-60 LY-609-90 LY-609-120 LY-609-200
Design Standards GB/T 10587-2006,GB/T 10125一1997,JIS-D0201,H8502,H8610,K5400,Z2371
Test chamber capacity (L) 108L 270L 600L 1440L



Temperature

Test chamber NSS.ACSS 35℃±1℃/CASS 50℃±1℃
Air cylinder NSS.ACSS 47℃±1℃/CASS 63℃±1℃

Test chamber size

L×W×D(cm)

60*45*40



90*60*50



120*100*50



200*120*60



Max volum of test liquid (L) 15 25 40 40
Volume L×W×D(cm) 107*60*118 141*88*128 190*130*140 270*150*150
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A



LIYI Electronic Industry Salt Mist Testing Equipment  Solid Mechanical Structure 1LIYI Electronic Industry Salt Mist Testing Equipment  Solid Mechanical Structure 2



Our service:

During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.

LIYI Electronic Industry Salt Mist Testing Equipment  Solid Mechanical Structure 3
