LIYI IEX60068 Cyclic Corrosion Chamber Temperature Humidity Test Chamber

1 Set
MOQ
10000~80000USD
Price
LIYI IEX60068 Cyclic Corrosion Chamber Temperature Humidity Test Chamber
Features Gallery Product Description Request A Quote
Features
Specifications
Inner Size: Any Size Can Be Customized
Voltage: 220V Or 380V
Warranty: 1 Year
Standards: ISO14993-2001
Temperature Range: 10℃~90℃
Humidity Range: 30%RH~98%RH
High Light:

salt fog test chamber

,

cyclic corrosion chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-609
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

LIYI IEX60068 Cyclic Corrosion Chamber Temperature Humidity Test Chamber



         IEX60068 Salt Spray Environmental Temperature Humidity Control Salt Spray Tester Cyclic Corrosion Chamber determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.

        IEX60068 Salt Spray Environmental Temperature Humidity Control Salt Spray Tester Cyclic Corrosion Chamber is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.



Features:

1. Colour Touch Screen Programming Controller
2. Special design according to customer needs
3. PT100 temperature and humidity sensor with high accuracy and low maintenance
4. Manual and automatic water filling according to different installation places of customers, easy to use
5. The temperature control chamber and the test chamber are independent, and the middle is connected by the throttle control. The structure is perfect and the maintenance is more convenient.
6. Energy-saving design, controlled separately according to different test
7. Can automatically do Salt spray neutral test, corrosion resistance test, drying test, wet test, static test, salt spray, dry-wet, static mixing test.
8. It can be manually sprayed, manual defrosting, automatic spraying, continuous spraying, and regular spray.
9. The automatic circulation test of salt spray, humidity and heat and drying can be realized without moving the product, which is convenient to use.
10. Long-term stable operation.





Advantages:

● Heater strip housed in base of chamber, effectively & evenly heating, Easy to exchange.

● Brine in high uniformity, not easy to caking, not blocking atomizer system
● Quartz nozzle, high temperature resistant, no blocking, easy to clean.



Specifications:

Name
Salt Spray Environmental Cyclic Corrosion Test Machine Salt Spray Tester Cyclic Corrosion Chamber
Model
LY-609-010
LY-609-016
LY-609-020
Internal dimensions (mm)
800*1450*680
1000*1600*800
1000*2000*900
Overall dimensions (mm)
1400*2500*1720
1600*2650*1840
1600*3050*1940
Temperature range
10℃ ~90℃
Humidity range
30% ~ 98% RH
Temperature tolerance
+/- 2.0 ℃
Humidity tolerance
+2%,-3%
Salt concentration tolerance
±1%
Spray deposition
1~2ml / 80cm2 · h
Controller
Programmable color LCD touch screen controller
Temperature sensor
PT100Ω / MV A-class
Humidity sensor
Dry and wet bulb sensor
Heater
Nichrome heater
Cooling system
Mechanical compression refrigeration system
Refrigerating unit
French TECUMSEH compressor
Humidifier
External isolation, stainless steel surface evaporation humidifier
Air circulation
Centrifugal wind fan
Salt fog collected
Fog collector and fog measure cylinder
salt water filtration
Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating
Saturated air barrel
Spraying system
Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material
Glass fiber reinforced plastics
Standard configuration
sample holder / Fog collectors / measure cylinder
Power Supply
AC 380V 50HZ
Test standard
IEC60068-2-52, IEC61701-2, ASTM G85,ISO 7253

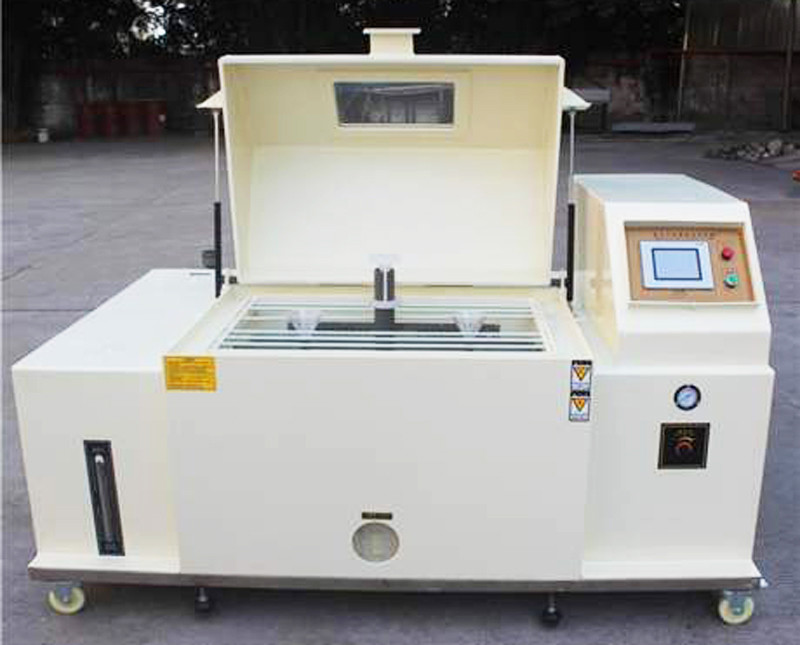

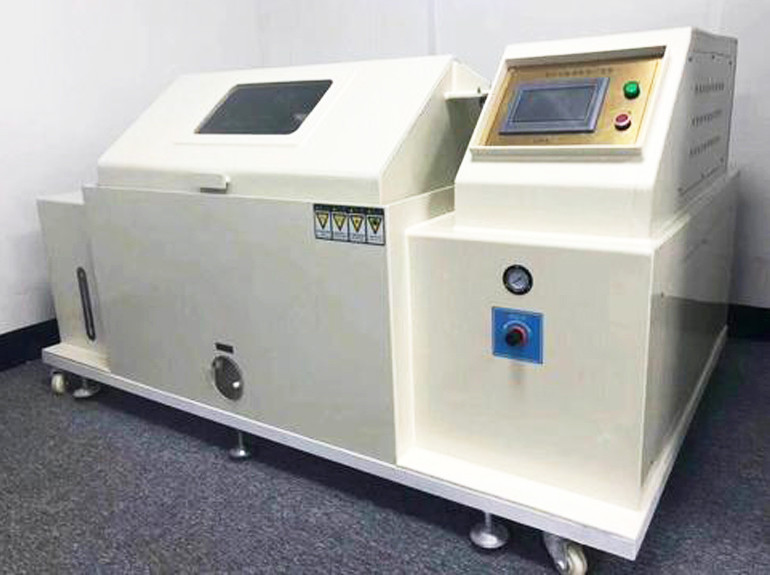

LIYI IEX60068 Cyclic Corrosion Chamber Temperature Humidity Test Chamber 0LIYI IEX60068 Cyclic Corrosion Chamber Temperature Humidity Test Chamber 1
