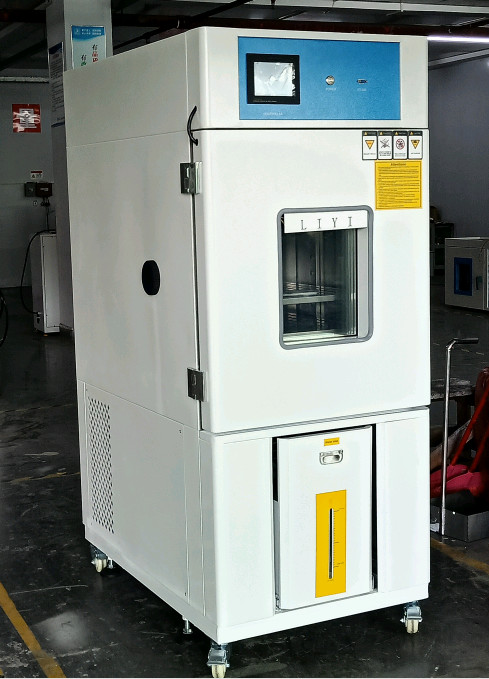

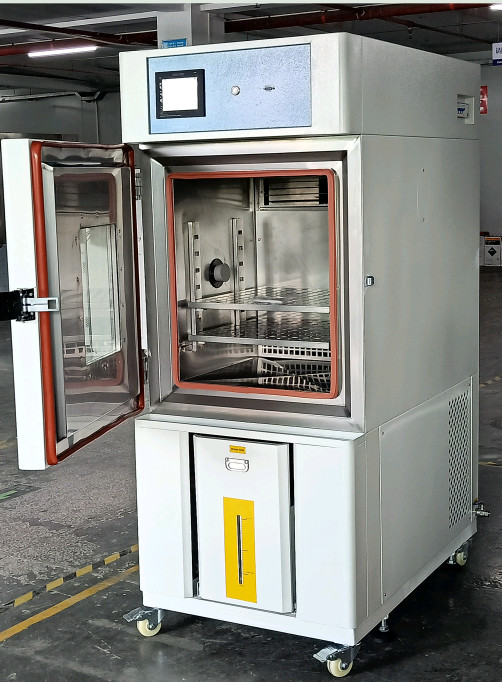

220V 50Hz 150L Temperature Humidity Test Chamber
1 Set
MOQ
3400~20000USD
Price
220V 50Hz 150L Temperature Humidity Test Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE ISO
High Light:

150L Temperature Humidity Test Chamber

,

220V Temperature Humidity Test Chamber

,

50Hz Environmental Test Chambers

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Product Name: Temperature Environmental Testing Equipment
Power: Electronic
Material: #SUS 304 Stainless Steel
Humidity Control Range: RH20%-98% (can Be Customized)
Condensing Way: Air-cooling
Temp&Humi Fluctuation: ±0.5℃;±2.5%RH
Controller Resolution: ±0.3℃;±2.5%RH
Touch Screen: French Tecumseh
Product Description

220v 50hz 150l Temperature Humidity Test Chamber 150 Degree





Description



The constant temperature and humidity test box adopts high stability platinum PT-100 temperature measuring resistance body, LCD Chinese and English touch/touch screen, with multiple PID control functions, equipped with RS-232C/485C and computer interface control, which can be simulated Different environmental conditions such as high temperature and high humidity/high temperature and low humidity/low temperature and high humidity/high temperature/low temperature are also equipped with a highly accurate programming control and fixed-point control system that is easy to operate and learn to provide the best test performance.





Safety Device



1. Non- fuse-switch(compressor overload,

2. Refrigerant high low voltage,

3. Over-humidity and temperature protection,

4. Protection switch,fuse stoppage warning system



Application:

The Temperature Humidity Test Chamber can keep the temperature and humidity setup by users.Its' value can be alternative changed through the software.The device is application to test and confirm the property of heat-resisting,cold-resisting,drying-resisting,humidity-resisting.,etc.It is widely used in the field of electron,electric equipment,communication,instrument,car,plastic,metal,food,chemical,building materials,medical,spaceflight.,etc.

Standards:

GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc



Specification:



Model LY-280 LY-2150 LY-2225 LY-2408 LY-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 60×85×80 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%

Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C ±2.5%RH
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Water Supplying Way Automatic cycling water supply
Standard Accessories

1 Observe window(double-deck cavity toughened glass),

1 50mm test hole in the left,

1 PL inner chamber lamp,

2 clapboards,

1 bag of wet and dry bulb,

3 fuses,

1 power line.







1_05



During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
