220V SS304 Temperature Test Chamber For Testing Material Heat
1 Set
MOQ
6000~10000USD
Price
220V SS304 Temperature Test Chamber For Testing Material Heat
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-CY150
High Light:

SS304 Temperature Test Chamber

,

220V Temperature Test Chamber

,

OEM Temperature Control Chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Product Name: Temperature Humidity Incubator
Application: Instrument And Other Industry
Material: 304# Stainless Steel
Inner Size: 500*600*500mm
Controller: Touch Screen Programmable
OEM: Offered
Voltage: 220V Or 380V
Warranty: 12 Months
Product Description

304 SS 220v Temperature Test Chamber For Testing Material Heat​



Temperature Test Chamber Description

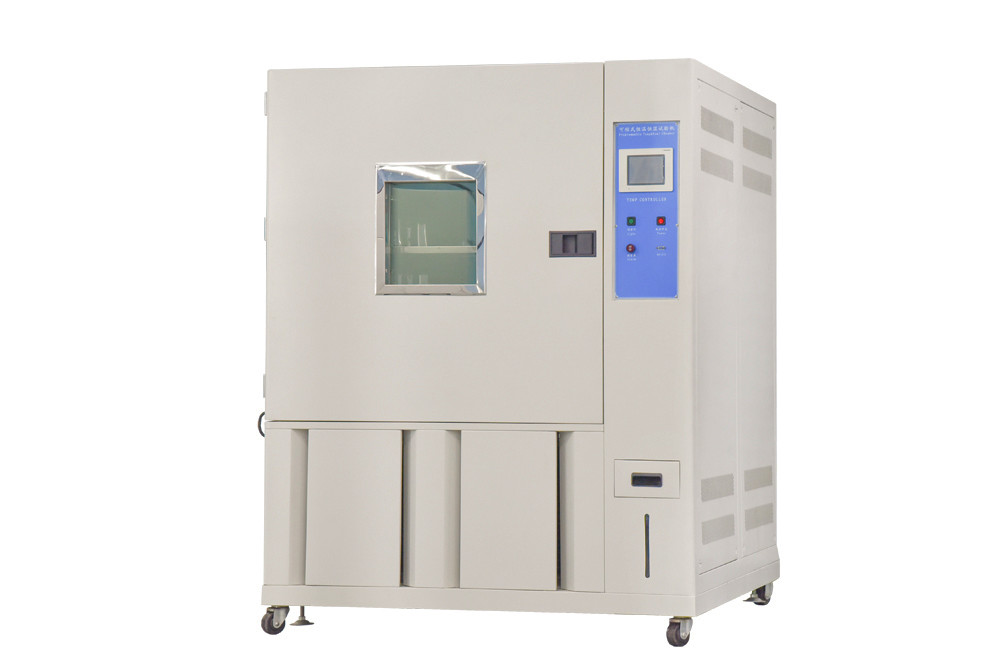

1. The enclosure of the environmental test chamber is formed by CNC machine tools, with a beautiful appearance, and a non-reactional handle, which is easy to operate.
2. The inner tank of the environmental test box is made of imported high-grade stainless steel (SUS304) mirror panel, and the outer tank of the box is sprayed with A3 steel plate, which increases the appearance and cleanliness.
3. The water supply tank of the environmental test box is placed in the lower right part of the control box and has automatic protection against water shortage, which is more convenient for the operator to replenish water.

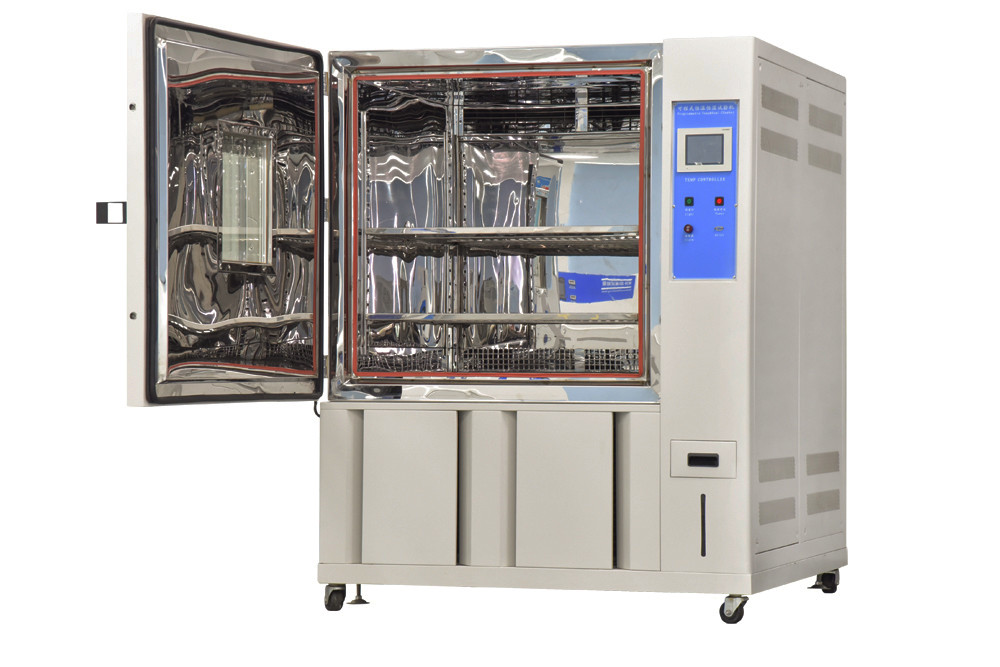

4. The large observation window with illuminator keeps the inside of the box bright, and uses the built-in tempered glass in the heating body to clearly observe the situation inside the box at any time



Main specifications:



System Balanced temperature&humidity control system
Temp.range -20℃ ~ +150℃;-40℃ ~ +150℃;-70℃ ~ +150℃(Rapid temperature,linearity,nonlinearity is optional)
Humidity range 20~98% R.H
Temp.fluctuation +-0.5℃
Humidity fluctuation +-2.5%R.H
Temperature deviation +-2.0℃
Humidity deviation >75%RH(+2,-3%RH),<75%RH(±5%RH)
Heat up time -20℃ to +150℃ about 45 minutes;-40℃ to +150℃ about 60 minutes; -70℃ to +150℃ about 75 minutes
Cooling time +20℃ to -20℃ about 40 minutes; +20℃ to -40℃ about 60 minutes;+20℃ to -70℃ about 85 minutes
Internal dimension W 30 40 40 50 50 50 60 68 100 100
H 30 40 50 50 50 60 75 80 100 100
D 25 40 40 40 48 50 50 75 80 100
External dimension W 50 60 60 70 70 70 80 88 120 120
H 125 140 155 155 155 161 171 176 195 195
D 90 110 110 115 123 125 125 150 155 175
Interior material SUS#304 stainless steel plate
Exterior material Backed painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane foam + glass fiber
Refrigeration system Air cooling(water cooling type is option)
Single section/cascade type,hermetic/semitight compressor,CFC free refrigerant
Controller Color LCD screen in English,program communicating function
Ambient temp. 5℃ to 35℃
Power AC380+-10% 50HZ 3 phase 4 wires + Ground wires





220V SS304 Temperature Test Chamber For Testing Material Heat 0



220V SS304 Temperature Test Chamber For Testing Material Heat 1



220V SS304 Temperature Test Chamber For Testing Material Heat 2





Customer Support Services


1. Installation
2. Training (Training customer employees)
3. Calibration
4. Preventative maintenance
5. Replacement parts
6. Assistance via phone or internet
7. On-site diagnosis and repair/online diagnosis and repair
