Walk In Environmental Chambers , SS -40d To 150d Temperature And Humidity Chamber
1Set
MOQ
50000~200000USD
Price
Walk In Environmental Chambers , SS -40d To 150d Temperature And Humidity Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-WR10
High Light:

SS Walk In environmental chambers

,

-40d environmental chambers

,

150d temperature and humidity chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Specifications
Inner Size: AB Chamber Different Size, All Customize
Voltage: 380V
Temperature Range: -40~+150°C(both Chamber)
Delivery: Full Set Delivery
Controller: Touch Screen Programmable
Compressor: Scroll Compressor
Humidity Range: 10%~98%
Material: All Stainless Steel
Power: 220V/380V
Product Description

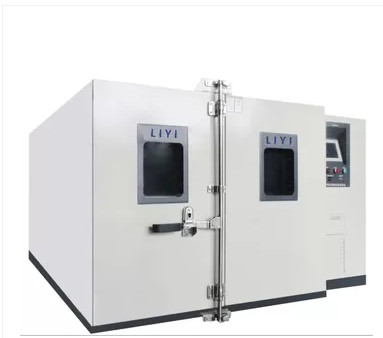

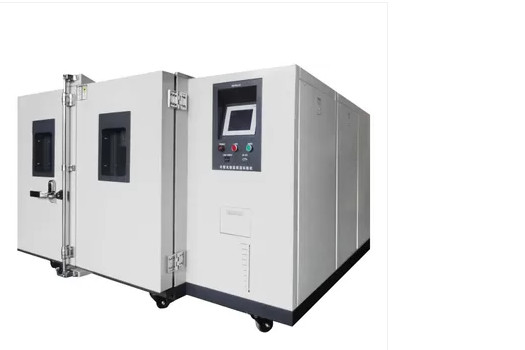

Walk in Constant Temperature And Humidity Environmental Test Chamber Dry And Humidity Resistance All Stainless Steel





Customize Low Humidity and Temperature Cycling Car Lamp Defog Chamber Walk In Environment Chamber



This chamber is customized specially used for car lamp lens testing with chamber A and chamber B separate temperature and humidity control. It can also combined use as a big temperature humidity chamber.

Inner chamber with IR lamp and air blasting fan.



Customize Low Humidity and Temperature Cycling Car Lamp Defog Chamber Walk In Environment Chamber is suitable for the whole machine or large parts of low temperature, high temperature, high and low temperature change, constant time heat, high and low temperature alternating moisture and heat test...

The size and function of the studio can be customized according to user requirements. Pieced box body, beautiful and generous shape; Scientific airway design can meet the needs of different customers.



Characteristics:

1. The chamber is assembled with self-made storeroom boards. The dimension and shape of it can be changed freely. It is assembled on site and can be transported, carries and relocated conveniently. The special silicon rubber imported from Japan is utilized as the base material for sealing and contracting for the assemble seams. The self-made storeroom boards employ the design and processing technology of frame structure, setting steel plates into the frame as inner part and outer covering and foaming into a whole body that boasts the distinctive features of high tightness, perfect sealing, wide range of temperature and humidity resisting, good warmness reserving and long life etc. of the industry.

2. Non-frosting operation and automatic defrosting loop, continuous operation in low humidity and temperature.

3. The 7〃large color control screen comprehensively displays the operating states.

4. The precooling and preheating temperature are set automatically based on reset time. The operating state of the chamber can be adjusted to its best, which can save up to 50% of energy compared with the old model.

5. It is characterized by low error, high wind speed and uniform exposure of samples.

6. With the low noise design, the level of noise is controlled under 72db.



Specifications:

1.1 Temperature range -40 to +150℃
1.2 Temp Deviation ≦ ± 2.0℃
1.3 Temp Fluctuation ±0.5℃
1.4 Temp Uniformity ±2.0℃
1.5 Heating up& cooling down rate

Heating up rate: RT ↑ +110℃ about 30min (no-load)

Cooling rate: +110℃ down to RT about 60min (no-load, )

2Humidity
2.Humidity control range 10%R.H~98%R.H
Humidity deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

Humidity uniformity ±3.0%RH(No load)
Humidity fluctuation ±2.0%RH


Temperature and humidity performance test is in accordance with the relevant provisions of the



IEC60068 -3 standard measurement; sensor placed in the unit outlet.

  • Chamber size
All customize
  • Door
Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.
4.Observation window With observation window(according to design), multi-hollow electric insulation coated glass prevent condensation effectively
5.Lighting device LED Lighting device *1 located on observation window
6. Heating

High quality nickel-chromium alloy wire electric heaters,

Non-contact control mode(SSR)

7. Humidifier

Water basin heating and humidification method;

Stainless steel sheathed heater;

Heater control: no-contact control (SSR);

Water level control device, heater anti-dry device.

8. Water outlet hole Available for drain the condensate water
9. Cable port

Φ50mm*1 located on each side of chamber, with rubber

stopper and stainless steel cover

10. Shelf for samples No
11. Mobile Casters Mobile Casters with foot cups
  • Electronic control cabinet
Total power circuit breakers, over-temperature protectors
  • Supply system
Pump to enhance automatic water supply
  • Floor load-bearing
≧1000kg




Car Lamp Defog Low Humidity And Temperature Cycling Chamber Scroll Compressor 0Car Lamp Defog Low Humidity And Temperature Cycling Chamber Scroll Compressor 1



During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
