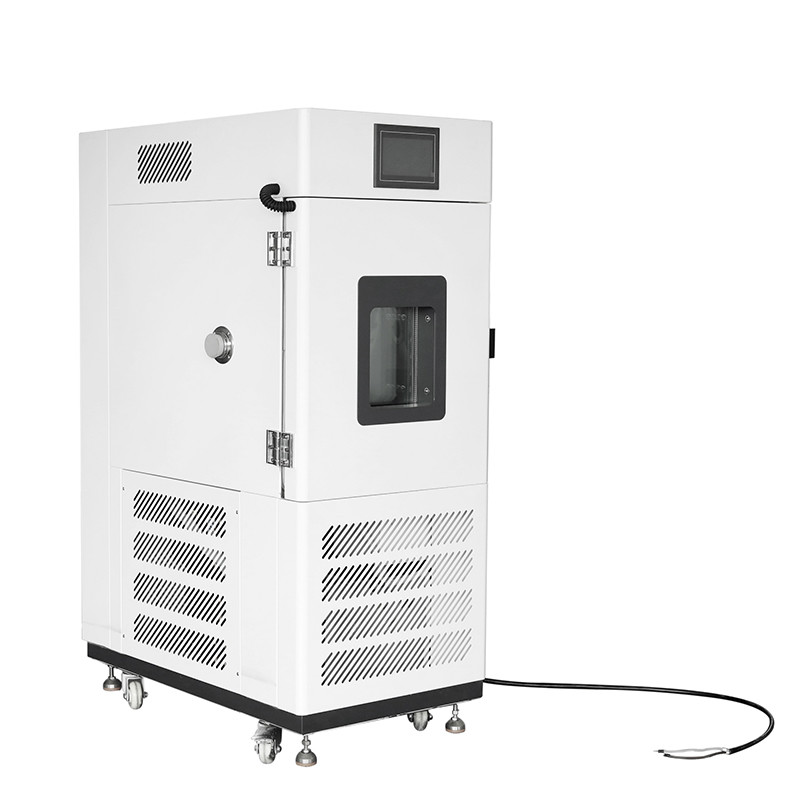

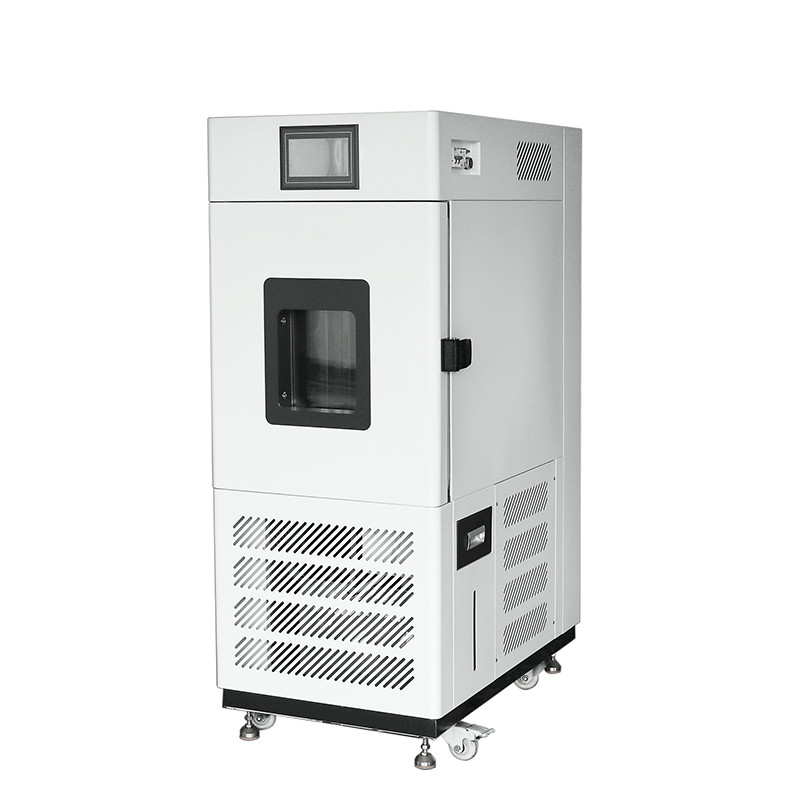

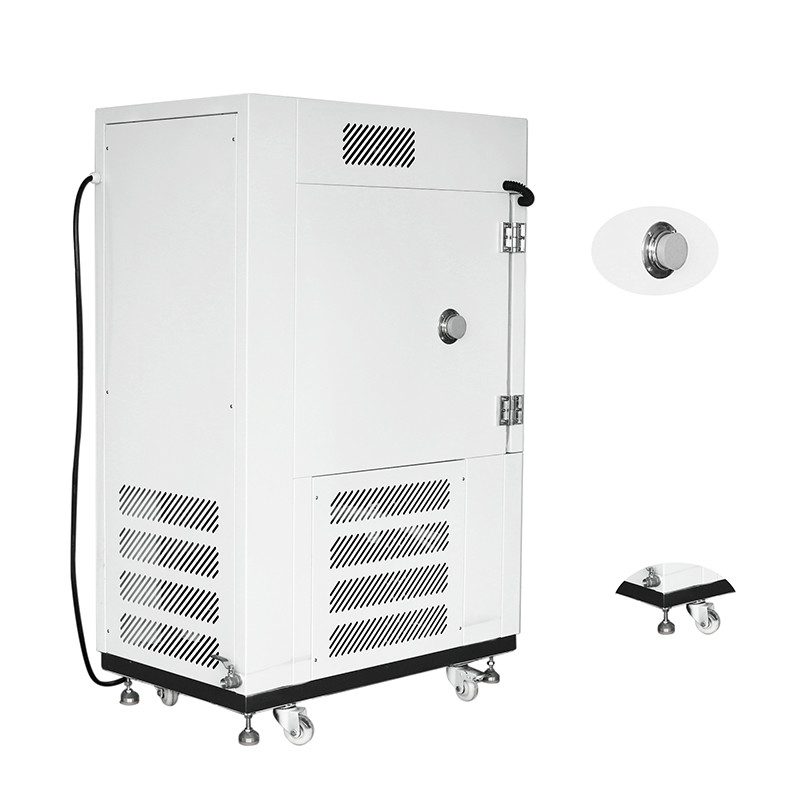

LIYI CE Laboratory Temperature And Humidity Test Chamber Controlled Environment Chamber
CE Marked 80L Laboratory Temperature and Humidity Test Chamber / Environmental Test Chambers is widely used in aviation, aerospace, information, electronics, instrumentation and other industries for the accelerated heat and humidity test of electrical products, materials, parts, equipment, etc. Damp heat test chamber, constant temperature and humidity chamber to evaluate the performance of the sample under given environmental conditions.
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
|Inner size W×H×D(cm)
|External size W×H×D(cm)
|Temp & Humi Control Range
Temp range: A:-20℃～150℃ B: -40℃～150℃ C: -60℃～150℃ D: -70℃～150℃
Humi range: RH20%-98%
|Heating & cooling speed
||1.5℃/min (can customize from 1-20℃/min)
||TEMI880, 990, 1500 or customize brands and models
||Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor)
||*50mm, 100mm or customize
||1φ 220V AC±10% 50Hz
||3φ 380V AC±10% 50Hz
- Shorten Product Development Period
- Increase Customers' Confidence and Loyalty
- Ensure Product Quality & Reliability
- Forecast Life Expectancy
- Reduce Costs
- Increase Profitability
- Reduce After Sales Service
Environmental Test Chambers (ETC) are mainly and widely used for various types of testing such as prototype evaluation, research & development testing, production quality control testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.
Standard configuration :
● Stainless steel exterior
● Energy-efficient refrigeration with exclusive electronic expansion valve system
● Specialized humidity generation and control
● Unique thermal break construction for extreme testing

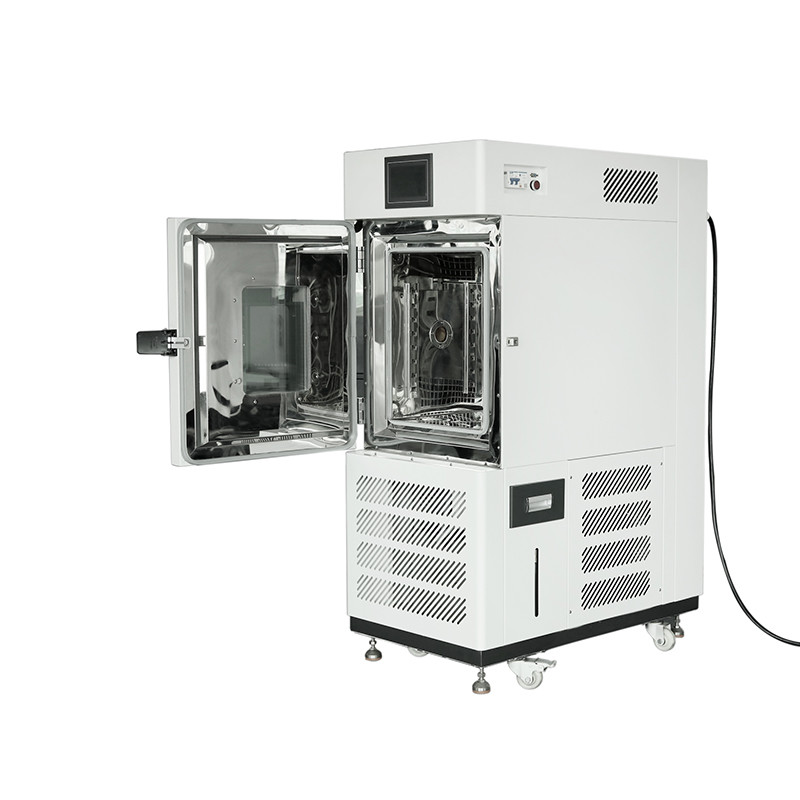

● Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m

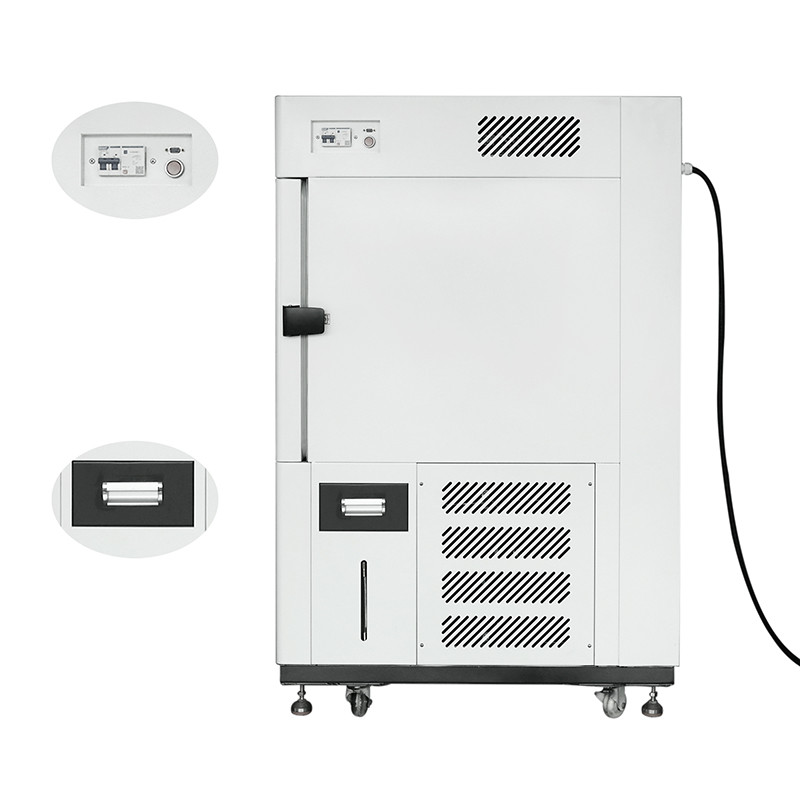

● No fuse breaker, overpressure, overheat and over current protection for compressor, Over temperature protection, overload protection of the blower, dry heat protection
Optional accessories :
● Cable Port: Φ100mm cable port is available
● Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
● Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
● Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
We offer below business term:
|Accepted Delivery Terms:
||FOB, CFR, CIF, EXW, DDP
|Accepted Payment Currency:
||USD, EUR, HKD, CNY
|Accepted Payment Type:
||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
