450C Industrial Drying Oven 100kg Heavy Load Trays High Heat Oven
1 Set
MOQ
3000~20000USD
Price
450C Industrial Drying Oven 100kg Heavy Load Trays High Heat Oven
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-6100
High Light:

450C high heat oven

,

450C Industrial Drying Oven

,

100kg Industrial Drying Oven

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-40 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 316# Stainless Steel
Inner Size: 1000*1000*1000mm
Max Temperature: RT~450C
Inner Structure: Customize Trays
Controller: Programmable Touch Screen Controller
Color: White (can Customize)
OEM: Offered
Heater: Electrical Heater
Voltage: 3 Phase 380V
Warranty: 1 Year
Product Description

1000L 316 Stainless Steel Material High Temperature Oven with Heavy Load Trays 100kg



Product description:

      1000L 316 Stainless Steel Material High Temperature Oven with Heavy Load Trays 100kg can provide a stable testing space for pre-heating, drying, changes about physics and chemistry testing. It adopts precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution. It is applicable to a variety of products, materials, electric, instruments, meters, components, electronics, electricians and automobiles, aviations, plastics, machinery, chemicals, foods, chemicals, hardware tools for doing drying test and various constant adaptive tests at an constant temperature condition.



Touch screen controller:

* High precision (0.1%), high performance
* Support multi-input (T / C, RTD, DCV)
* Multi-output and simultaneous output (Max 4 points)
* Parameter operation is simple, the text can be set
* Supports suppression of Overshoot function
* Alarm output 1 point
* Operation display of auxiliary output status
* Input adjustment function for each zone (Max 4 Zone)
* Control the heating and cooling functions
* PID automatic adjustment function (AT Gain)
* Supports multiple communication protocols (Modbus, etc.)



Customize parts:

1. Outer material stainless steel.
2. Temperature recorder.
3. PLC touch screen programmable controller
4. Automatic door switch.
5. Inner cart or stainless stell plate and layers.
6. External painted color.
7. Cable hole.
Other required parts.



Air supply system:
1.Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then inhalt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2.The motor is imported from Taiwan witch have long axis and can endure high temperature.
3.The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.





Specifications:

Model

Inner Size

W*H*D(cm)



External Size

W*H*D(cm)



Temperature

Range(°C)

Heating

up

Time

Accuracy

(°C)

Uniformity

(°C)

Power

Rate of

work

(kw)

LY-645 45×40×40 66×92×55



(A-D)

A:200°C

B:300°C

C:400°C

D:500°C





RT~100°C

About 10min

±0.3 ±1%

220V

Or

380V

3.5
LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16

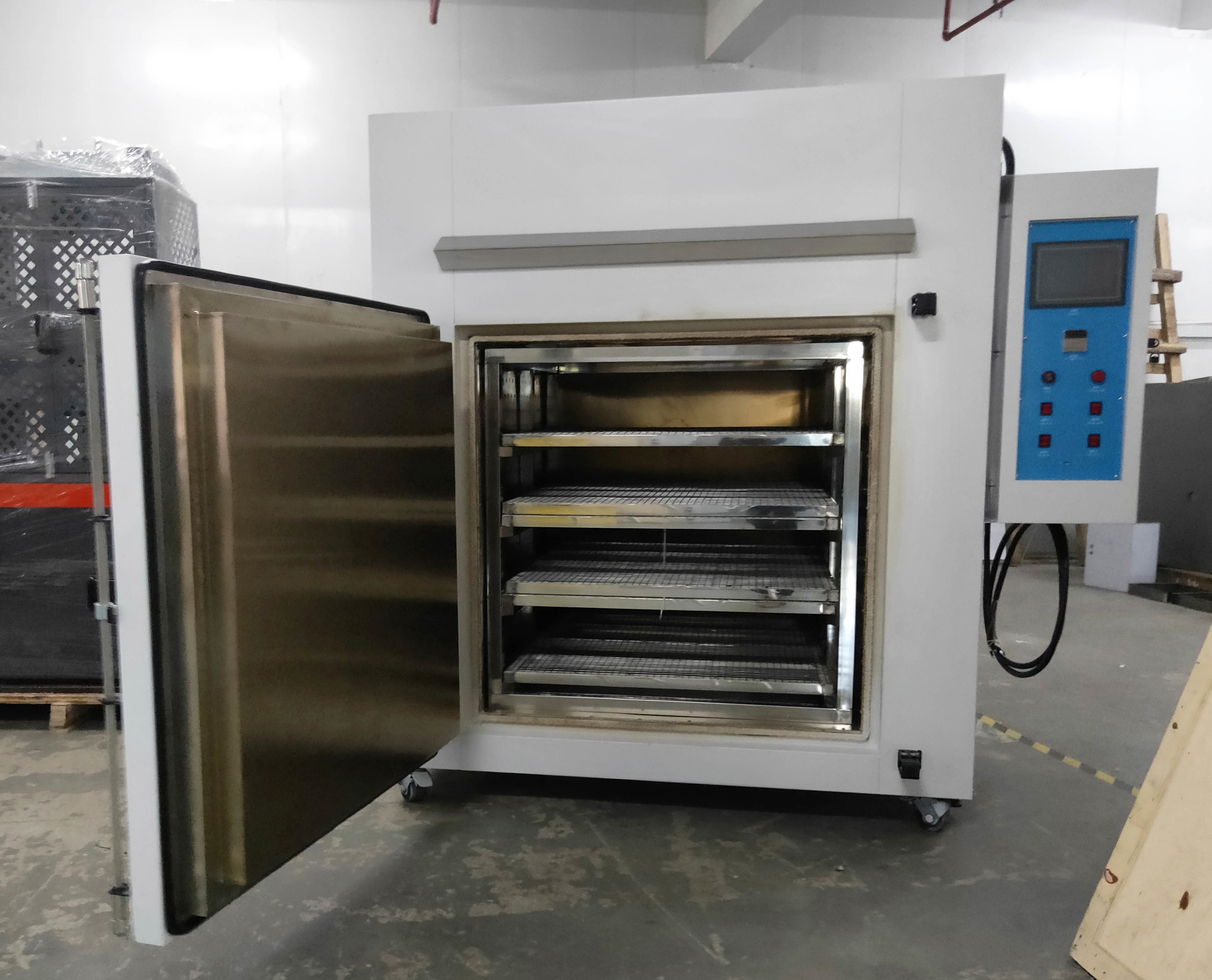

450C Industrial Drying Oven 100kg Heavy Load Trays High Heat Oven 0

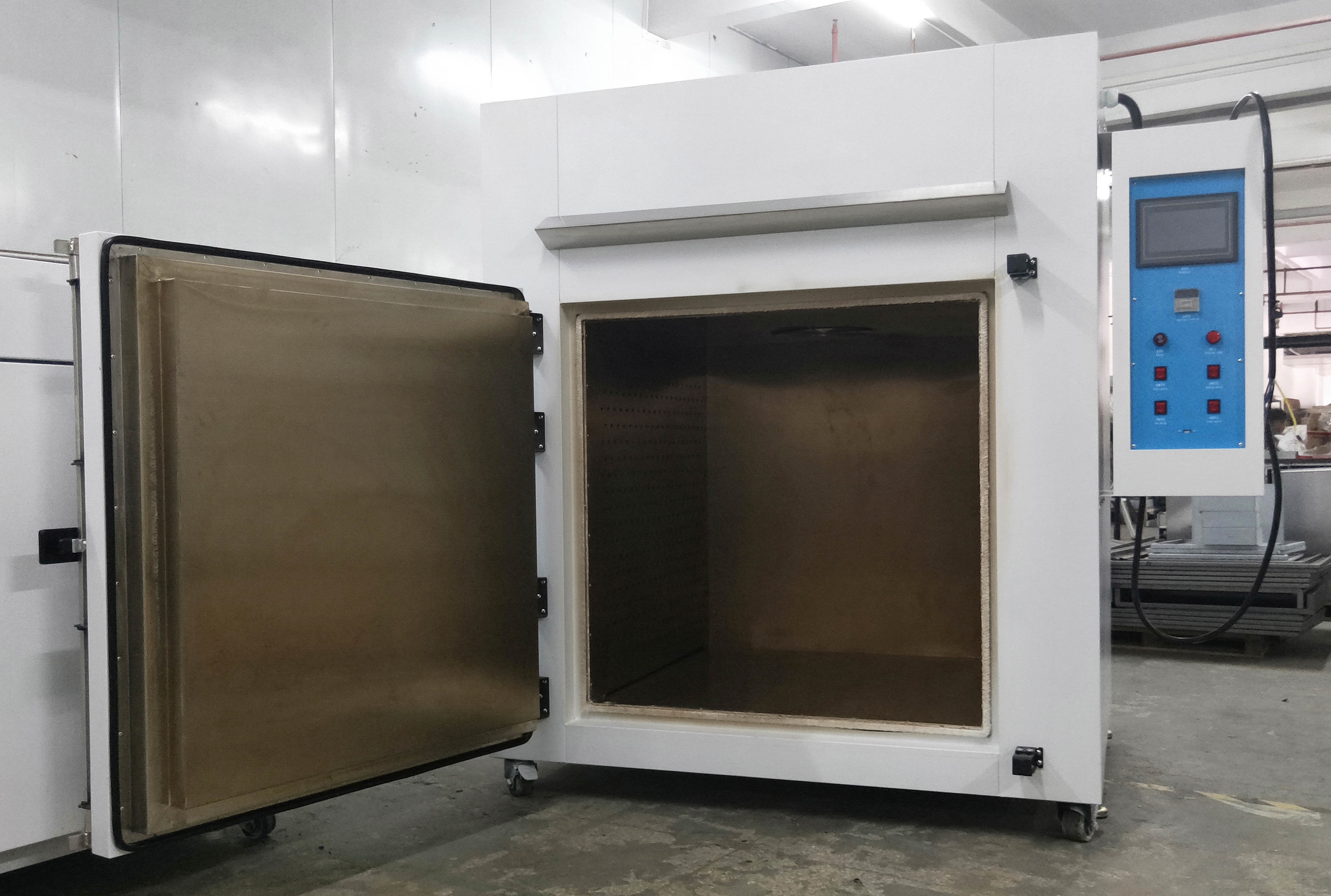

450C Industrial Drying Oven 100kg Heavy Load Trays High Heat Oven 1

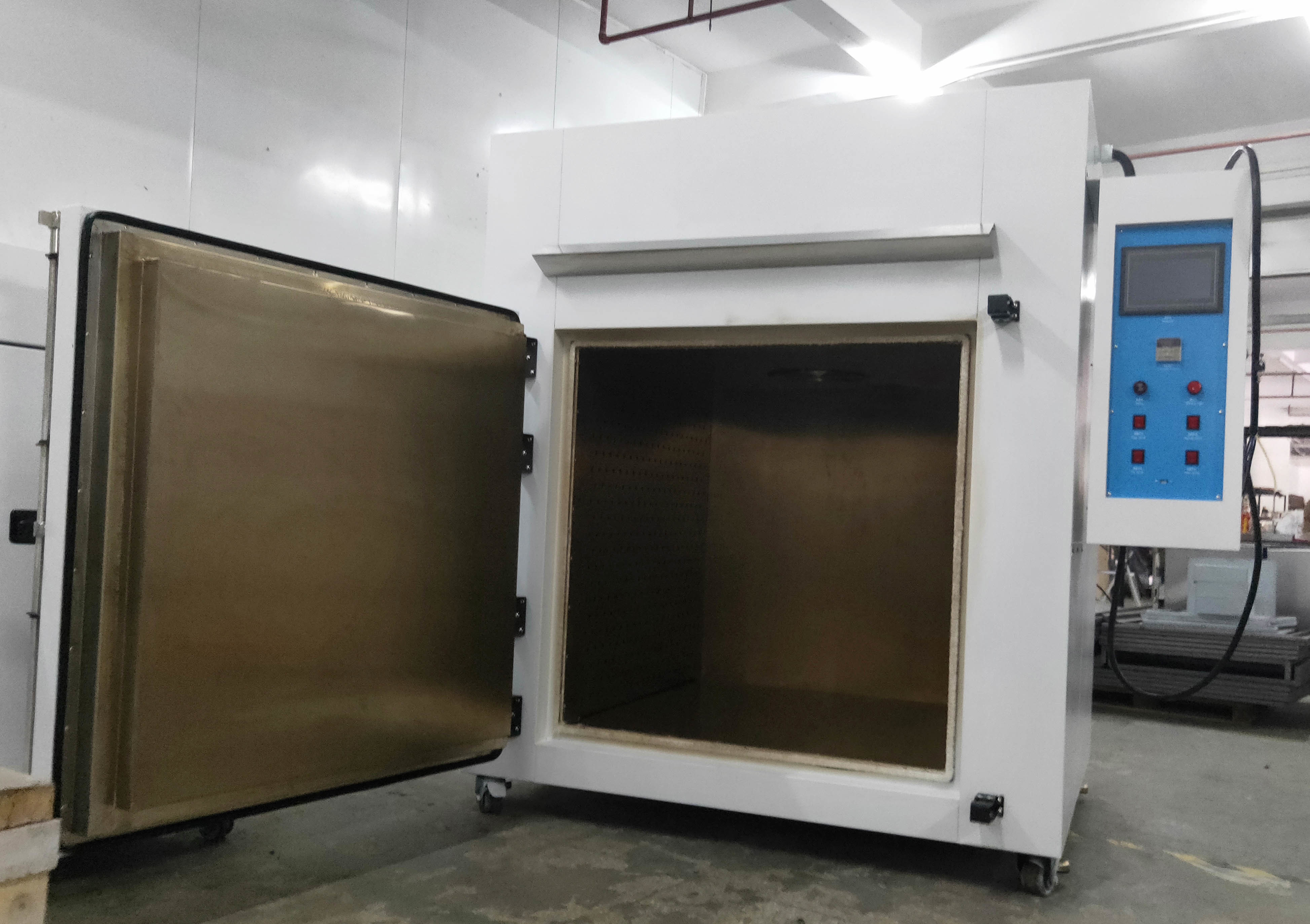

450C Industrial Drying Oven 100kg Heavy Load Trays High Heat Oven 2

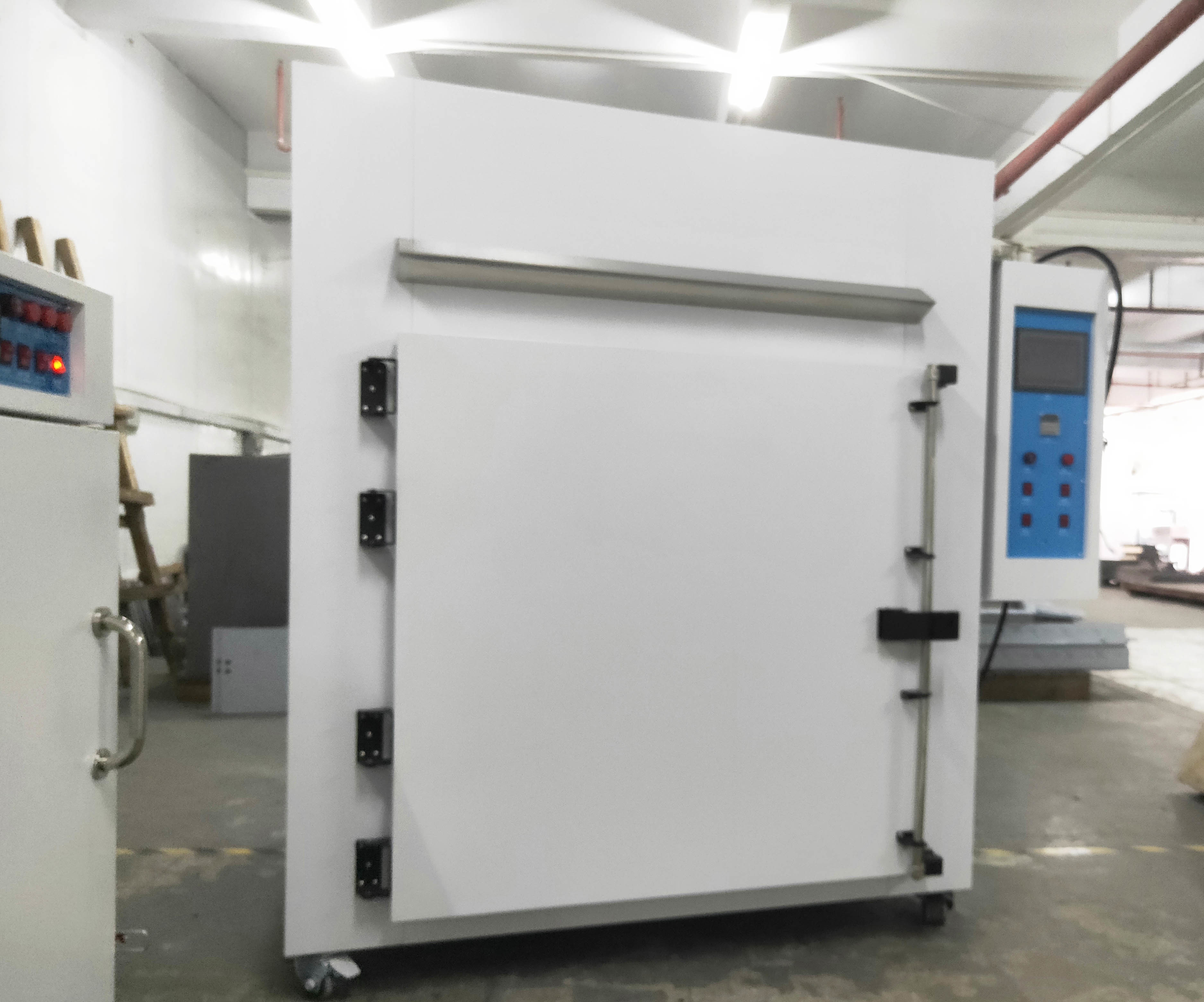

450C Industrial Drying Oven 100kg Heavy Load Trays High Heat Oven 3



450C Industrial Drying Oven 100kg Heavy Load Trays High Heat Oven 4





Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
