LIYI High Precision Industrial Drying Oven 600 Degree PID And SSR Control

1 Set
MOQ
1000~20000USD
Price
LIYI High Precision Industrial Drying Oven 600 Degree PID And SSR Control
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 316# Stainless Steel
Inner Size: 500*600*500mm
Max Temperature: RT~600℃
Inner Structure: 2 Shelves (can Customize)
Controller: PID
Heater: Electrical Heater
Voltage: 3 Phase 380V
Warranty: 1 Year
High Light:

600Degree Industrial Drying Oven

,

600Degree hot air circulation drying oven

,

SSR Control Industrial Drying Oven

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-660
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-40 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

LIYI High Precision Industrial Drying Oven 600 Degree PID And SSR Control



Product description:

      600℃ High Precision Hot Air Circulation High Temperature Curing Oven PID + SSR Control can provide a stable testing space for pre-heating, drying, changes about physics and chemistry testing. It adopts precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution. It is applicable to a variety of products, materials, electric, instruments, meters, components, electronics, electricians and automobiles, aviations, plastics, machinery, chemicals, foods, chemicals, hardware tools for doing drying test and various constant adaptive tests at an constant temperature condition.



Characteristic:
1. The controller is located on the right part of the machine together with luxury stainless steel handle and explosion-proof lock .
2. Internal material is 304 SUS mirror stainless steel.All the internal material is low polluted and all internal barrels use argon arc welding.
3. External material is SECC steel plate witch is fine powder baking finished.
4. Heat preservation material for the imported high-density glass rock wool with perfect thermal insulation, maximize temperature heat preservation,use silica ge whitch can long time be under the high temperature of 500 degrees or above.



Customize parts:

1. Outer material stainless steel.
2. Temperature recorder.
3. PLC touch screen programmable controller
4. Automatic door switch.
5. Inner cart or stainless stell plate and layers.
6. External painted color.
7. Cable hole.
Other required parts.



LIYI High Precision Industrial Drying Oven 600 Degree PID And SSR Control 0



Specifications:

Model

Inner Size

W*H*D(cm)



External Size

W*H*D(cm)



Temperature

Range(°C)

Heating

up

Time

Accuracy

(°C)

Uniformity

(°C)

Power

Rate of

work

(kw)

LY-645 45×40×40 66×92×55



(A-D)

A:200°C

B:300°C

C:400°C

D:500°C





RT~100°C

About 10min

±0.3 ±1%

220V

Or

380V

3.5
LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16

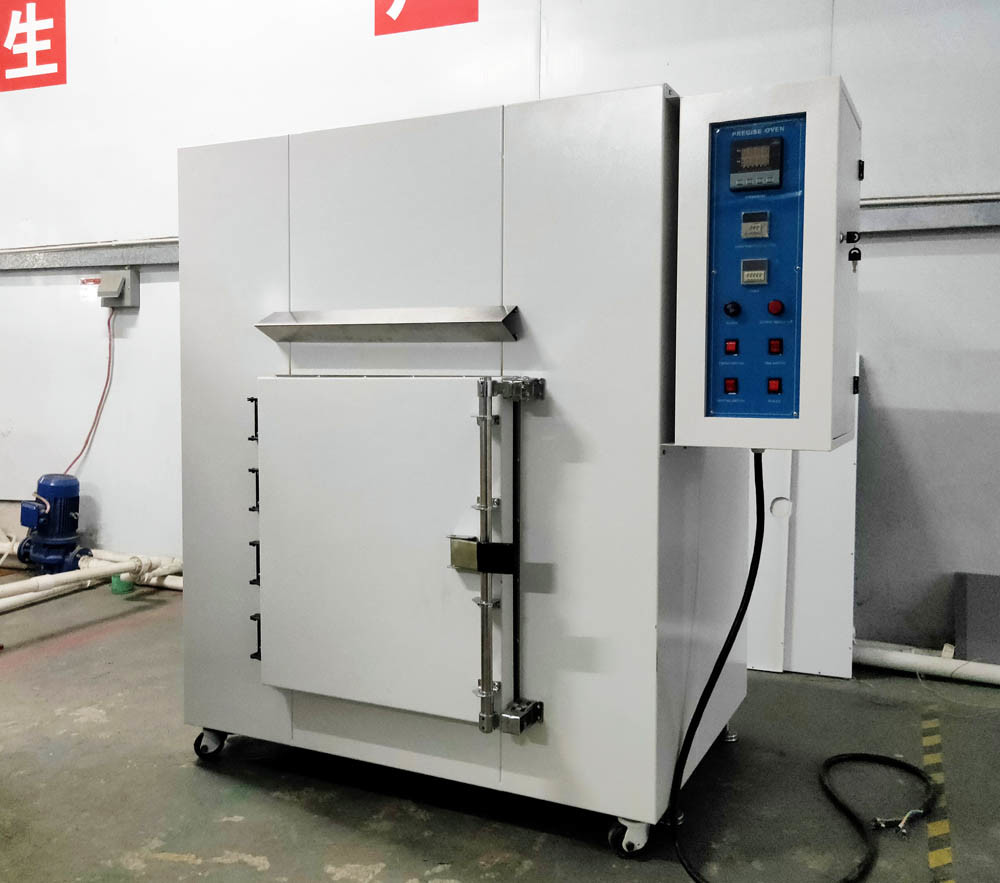

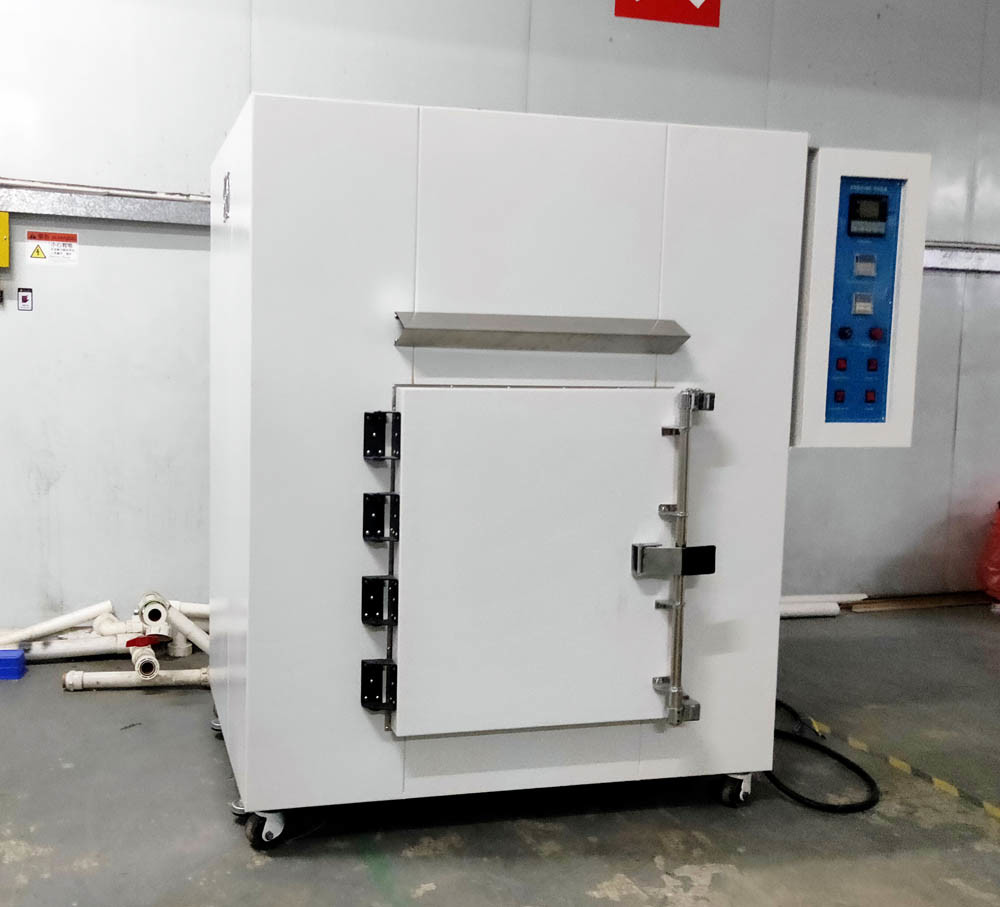

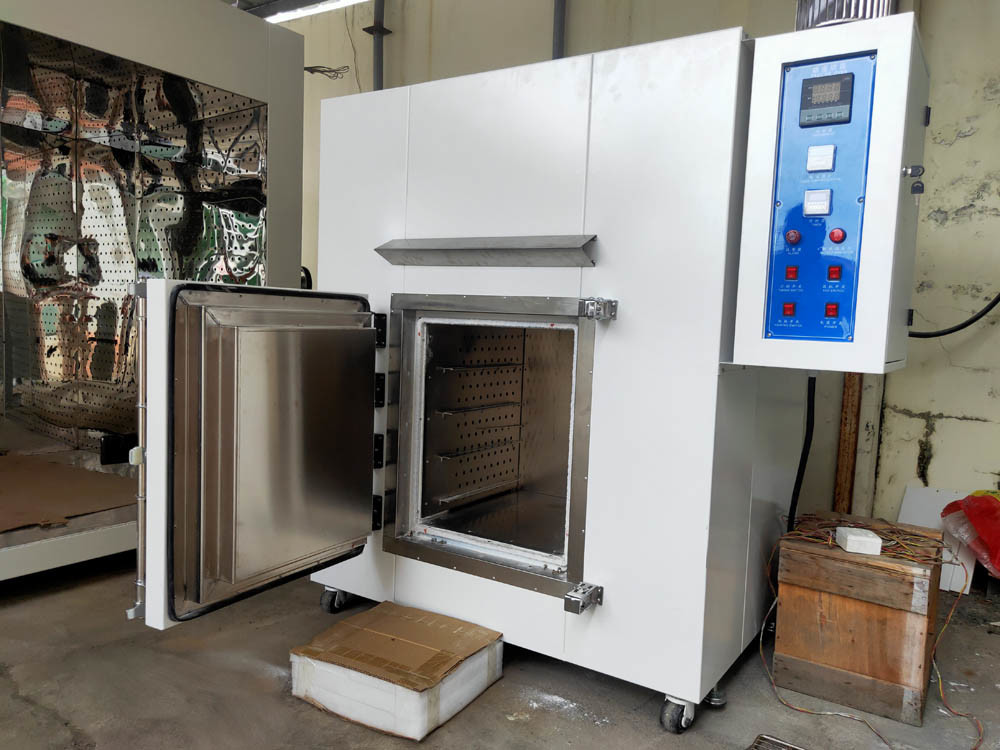

LIYI High Precision Industrial Drying Oven 600 Degree PID And SSR Control 1LIYI High Precision Industrial Drying Oven 600 Degree PID And SSR Control 2LIYI High Precision Industrial Drying Oven 600 Degree PID And SSR Control 3



LIYI High Precision Industrial Drying Oven 600 Degree PID And SSR Control 4



Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
