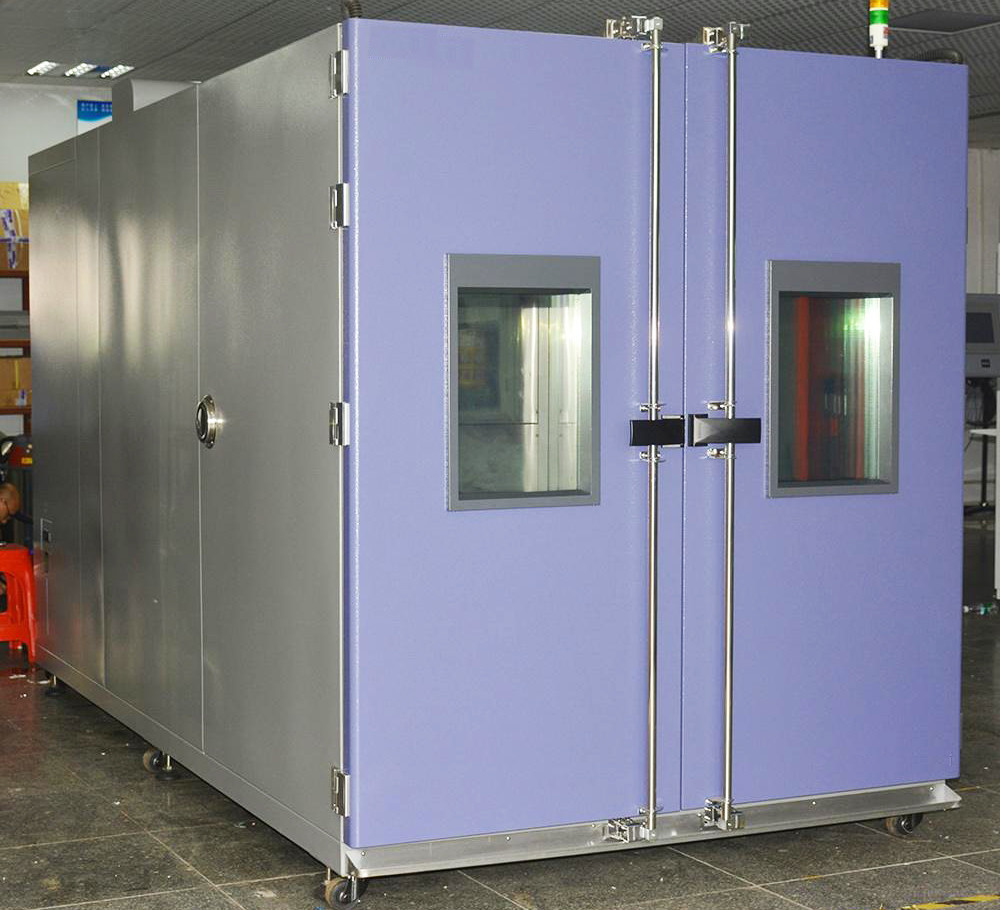

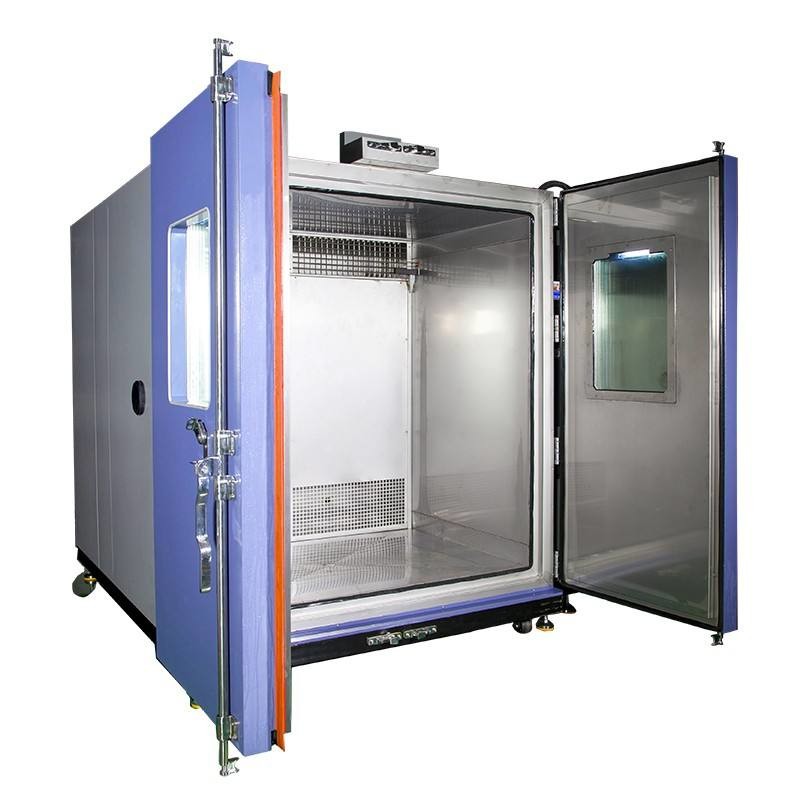

LIYI Programmable Environmental Test Chamber 8m3 Double Door With Glass Window
8m3 Double Door Programmable Temperature Humidity Controlled Environmental Testing Chamber with Glass Window is widely used in aviation, aerospace, information, electronics, instrumentation and other industries for the accelerated heat and humidity test of electrical products, materials, parts, equipment, etc. Damp heat test chamber, constant temperature and humidity chamber to evaluate the performance of the sample under given environmental conditions.
Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Specifications:
| Performance | Temperature control accuracy | ±2.0°C | ||||||
| Temperature uniformity | ±1.5°C | |||||||
| Temperature resolution | 0.01°C | |||||||
| Heat-up Time | -70~-150°C<60min; -40~-150°C < 50min; +20~-150°C < 35min | |||||||
| Cool-down Time | +20~-70°C < 70min; +20~-40°C < 55min; +20~-20°C < 35min | |||||||
| Material | Exterior chamber material | Stainless steel plate+Powder Coated | ||||||
| Interior chamber material | SUS#304 stainless steel plate | |||||||
| Insulation | PU & Fiberglass wool | |||||||
| System | Wind Circulation | Sirocco fan | ||||||
| Heating system | SUS#304 stainless steel high-speed heater | |||||||
| Cooling | Imported compressor, finned type evaporator, air-cooling condenser | |||||||
| Other Components | Vacuum glass inspection window, cable port(60mm), control status indicator lights, chamber lamp,loading shelves (2pcs for free) | |||||||
| Safety Devices | Overheating circuit-breaker,compressor overload protection,control system overload protection, humidifying system overheating protection,breakdown indicator light | |||||||
| Power supply | AC 3 phase 380V 60/50Hz | |||||||
Features:
1.High temperature,low temperature and constant temperature and humidify can be independently operate, to conform to different testing requirements.
2.control temperature&humidity well-distributed, precisely and steady.
3. Specialized humidity generation and control.
4. Scientific of air convection system can ensure the uniform distribution of air in the cabinet.
Standard configuration :
● Stainless steel exterior
● Energy-efficient refrigeration with exclusive electronic expansion valve system
● Specialized humidity generation and control
● Unique thermal break construction for extreme testing
● Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
● No fuse breaker, overpressure, overheat and over current protection for compressor, Over temperature protection, overload protection of the blower, dry heat protection
Optional accessories :
● Cable Port: Φ100mm cable port is available
● Shelves
● Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
● Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
● Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
● Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
