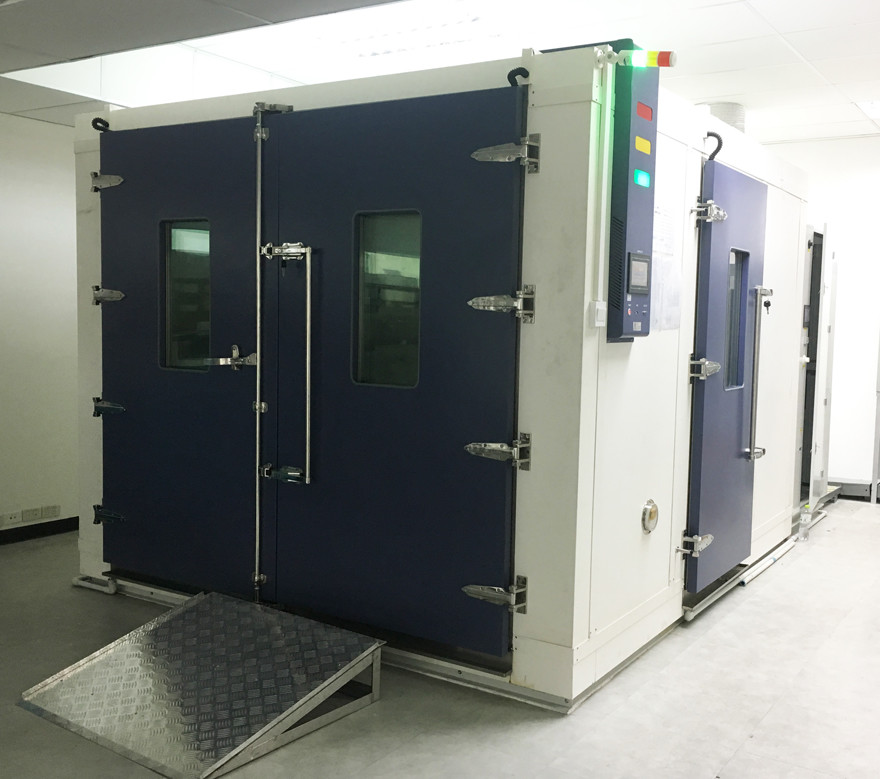

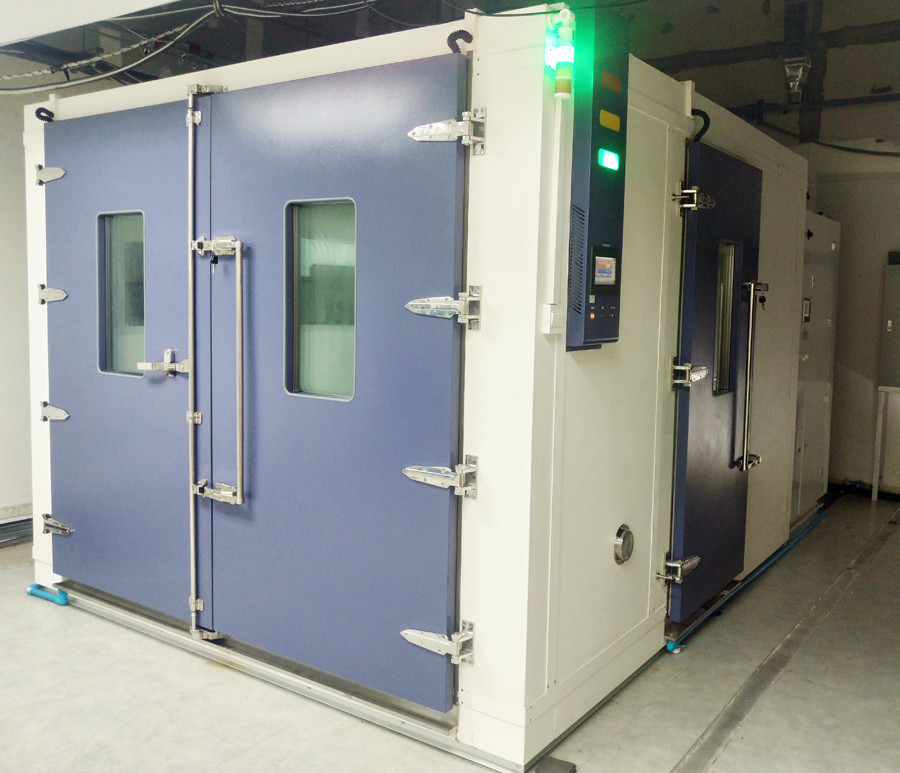

LIYI Walk In ESS Chamber Semi Hermetic Compressor Temperature And Humidity Chamber
Application:
Walk In Temperature And Climate Test ESS Chamber For Rapid Temperature Changing Tests is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Standards that can follow:
1. GB11158 temperature Chambers technical conditions
2. GB10589-89 Chambers cryogenic technology
3. GB10592-89 Chambers technology high and low temperature conditions
4. GB/T2423.1-2001 hypothermia Chambers Test Method
5. GB/T2423.2-2001 temperature changes Test Method
6. GB/T2423.3-93 hot and humid Chambers Test Method
7. GB/T2423.4-93 alternating temperature testing machine
8. GB/T2423.22-2001 temperature testing method
9. IEC60068-2-1.1990 low temperature Chambers Test Method
10. IEC60068-2-2.1974 high temperature Chambers Test Method
11. GJB150.3 High Temperature Test
12. GJB150.4 Low Temperature Test
13. GJB150.9 Damp Heat Test
Specifications:
| Model | LY-WR10ES |
| Working Chamber Volume(L) | 8000L |
| Temp Rate of Change( ºC /Min) | 5 ºC /Min (10 ºC /Min and 15 ºC /Min optional) |
| Temperature Range | -50 ºC～+150 ºC( Rapid Temp Change -40 ºC～+85 ºC) |
| Humidity Constancy | ±0.5 ºC |
| Temp Constancy | ±3.0 ºC |
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
| Interior Material | Stainless Steel Plate(SUS 304) |
| Insulation Material | Rigid Polyurethane Foam |
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
| Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water Cooled |
| Control system | Balanced Temperature & Humidity Control System(BTC type) |
| Heater | Iron-chrome wire heater |
| Blower | Centrifugal Blower |
| Observation Window | Glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch screen programmable controller |
| Ambient Temp. | +5ºC~+35ºC |
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |
Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
