LIYI Auto Parts Environmental Test Chamber Combined Laboratory Temperature Humidity Chamber
1 Set
LIYI Auto Parts Environmental Test Chamber Combined Laboratory Temperature Humidity Chamber
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-21000THV
High Light:

constant temperature humidity chamber


climatic test chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 45-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Chamber Size: 1000L, Any Size Can Be Customized
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C/-70°C~150°C
Humidity Range: 20%~98% / 5%~98%
Vibration Frequency Range: 2~3000 Hz
Application: Auto Parts
Product Description

LIYI Auto Parts Environmental Test Chamber Combined Laboratory Temperature Humidity Chamber
     Auto Parts Testing Chamber Temperature Humidity Vibration Combined Laboratory Combined Test Equipment is widely applied for electronic and electric products, automotive parts ,components and materials by high low constant temperature ,temperature change, shock, damp heat vibration etc combined environment simulation reliability test.
     With high precision perfect external design, external with double sides cold rolled plate electrostatic powder coated material, internal with SUS#304 high temperature resistant stainless steel. Insulation material adopt fire resistant high strength PU polyurethane foaming thermal insulating material. More than 20% energy saving is achieved &thanks to the introducing of Japan & German advanced refrigerator control technology. Control system and control circuit components all introduced with famous brand.
Standard Compliance:
1. IEC68-2-1 (GB2423.1-2008)
2. IEC68-2-2 (GB2423.2-2008)
3. IEC68-2-3 (GB2423.3-2006)
4. IEC68-2-30 (GB2423.4-2008)
5. IEC68-2-14 (GB2423.22-2008)
6. MIL-STD-810D (GJB150.3A-2009)
7. MIL-STD-810D (GJB150.4A-2009)
8. MIL-STD-810D (GJB150.9A-2009)
Vibration table configuration:
1. Air-cooling series electrical vibration system
2. Water-cooling series electrical cooling system
3. Digital random vibration controller
4. Digital sine vibration controller
Moving method:
1. High low temperature (damp heat) test chamber with slide rail
2. Match with vibration table via moving high low temperature (damp heat) test chamber on slide rail
3. Vibration table with slide rail
4. Match with high low temperature (damp heat)test chamber via vibration table moving on slide rail .
Connection Method:
1. Adopt connecting shaft connection method (match with vertical vibration)
2. Vibration table get into the chamber via connecting shaft ,match with the test chamber to reach combined testing effects .
3. Vertical, horizontal combined vibration ,can customize design
Chamber specification:

Internal Dimension600x850x8001000x1000x8001000x1000x1000
W x H x D(mm)
External Dimension850x1650x1500 mm1250x1750x16001250x1750x1800
W x H x D(mm)
Temp. RangeB:-20~150℃ C:-40~150℃ D:-70~150℃
Humidity Range20-98%RH
Temp. Fluctuation≤±0.5℃
Temp. Deviation≤±2℃
Temp. Uniformity≤±2℃
Humidity Fluctuation≤±2.5%RH
Humidity DeviationTemperature 75%RH: ≤+2,-3%RH;Humidity 75%RH: ≤±5%RH
Vibration system:
Exciting force

Sin: 2200Kg.f peak
Random: 2000Kg.f rms

Frequency RangeVertical table: 2Hz~3000Hz
Rated acceleration100G(980 m/s2)
Rated speed2m/s
Rated displacement50.8 mm p-p
Maximum load400kg
Equivalent mass of moving partsVertical table: 20kg
Vibration isolation frequency2.5 Hz
Moving coil diameterФ320 mm
Mounting hole position17×M10

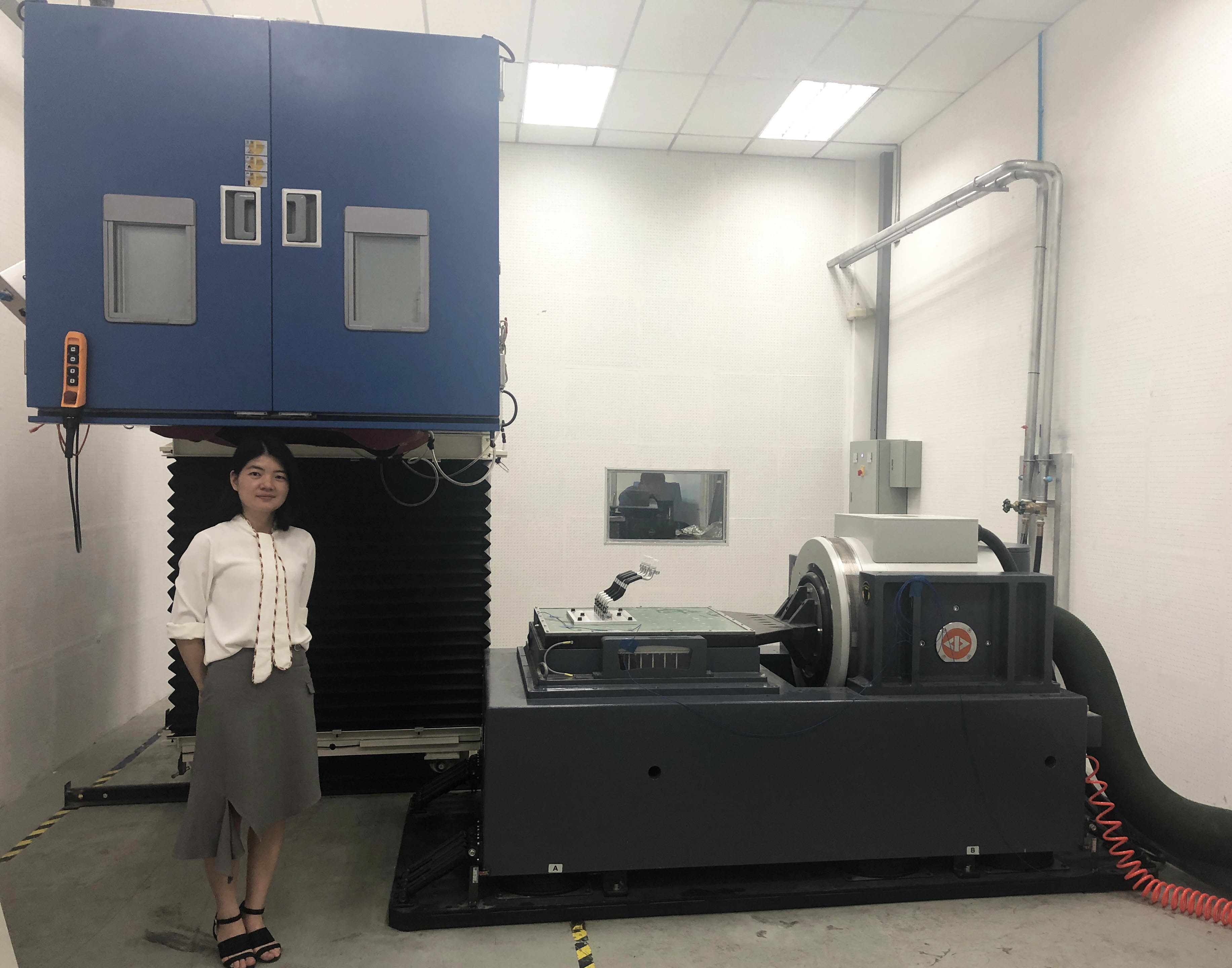

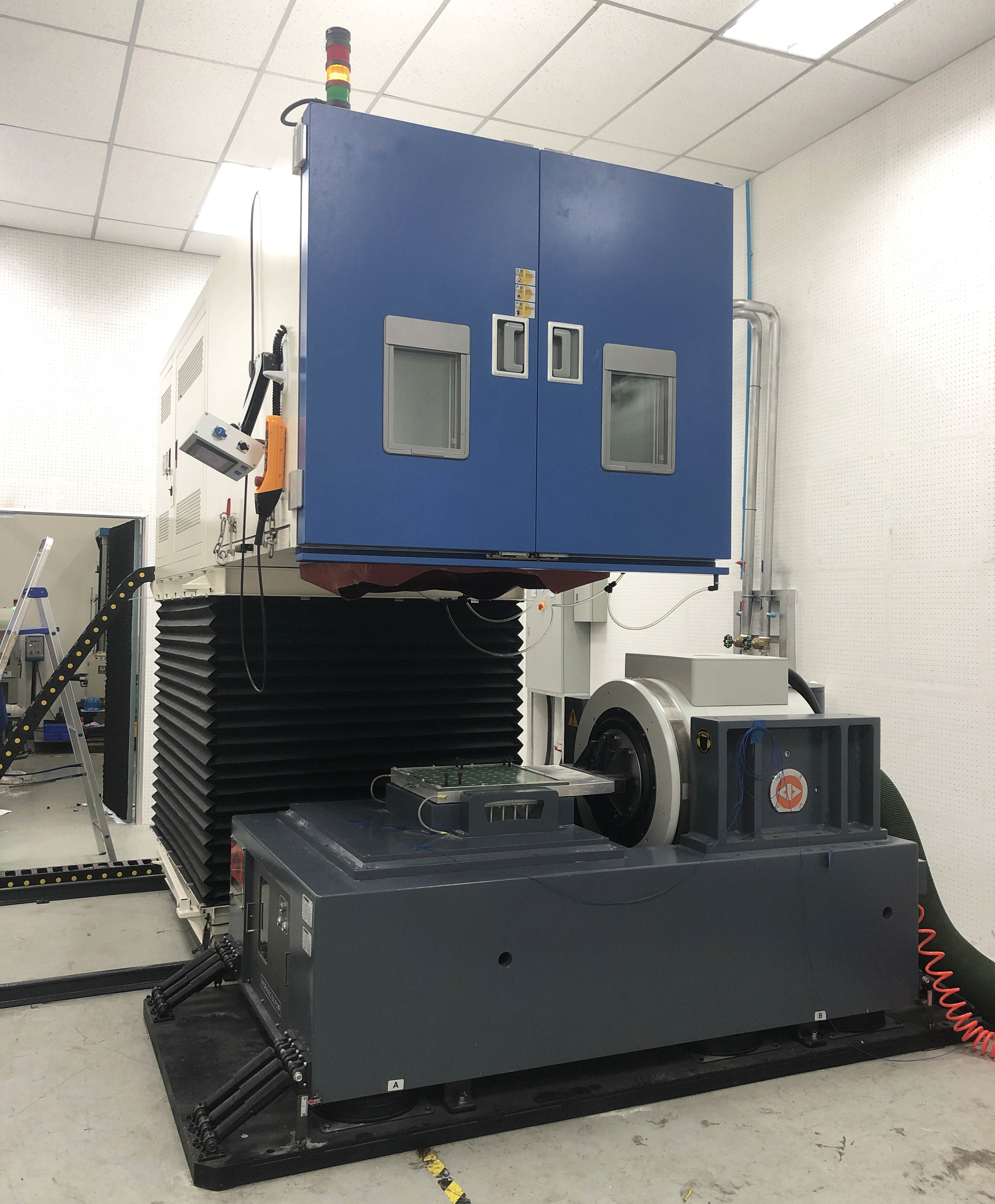

LIYI Auto Parts Environmental Test Chamber Combined Laboratory Temperature Humidity Chamber 0LIYI Auto Parts Environmental Test Chamber Combined Laboratory Temperature Humidity Chamber 1
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Programmable High Frequency Vibration Table Temperature Humidity Combined Test Machine. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine

4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.

5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
