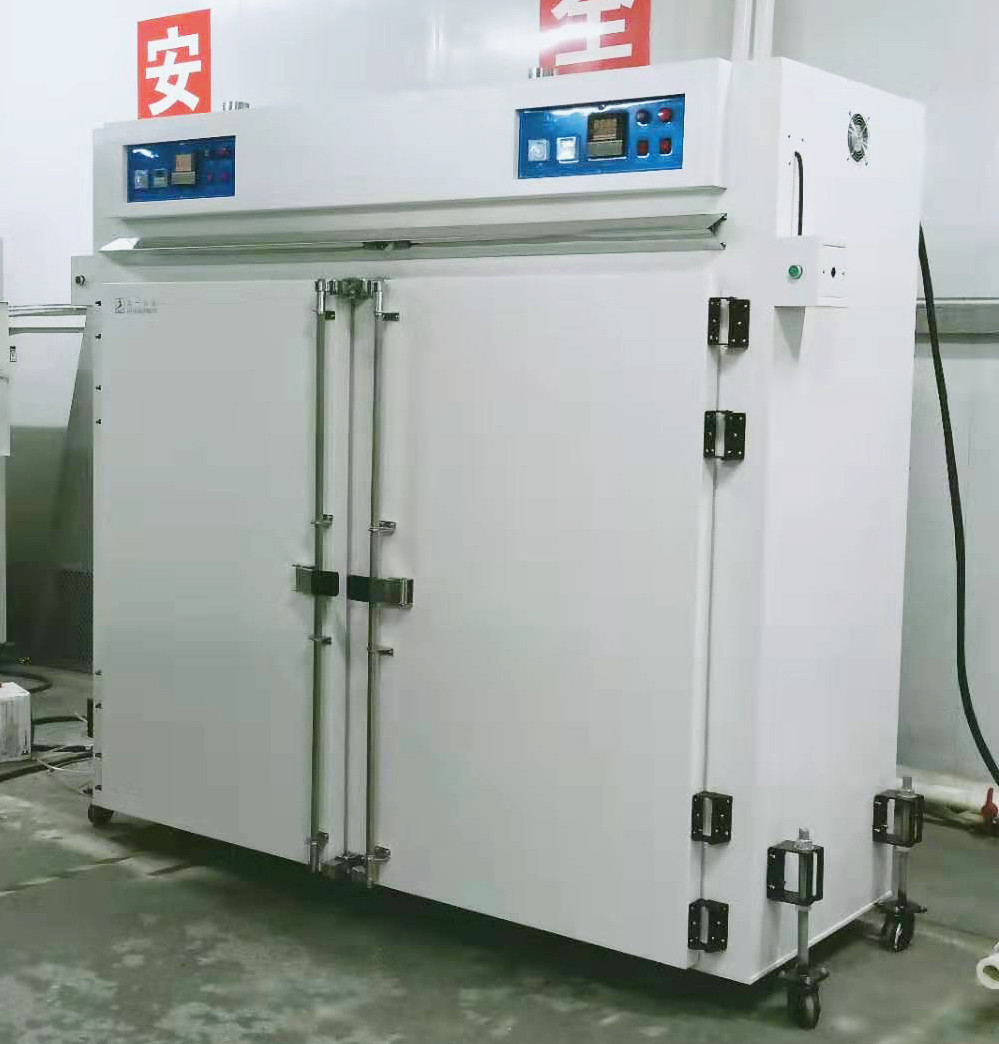

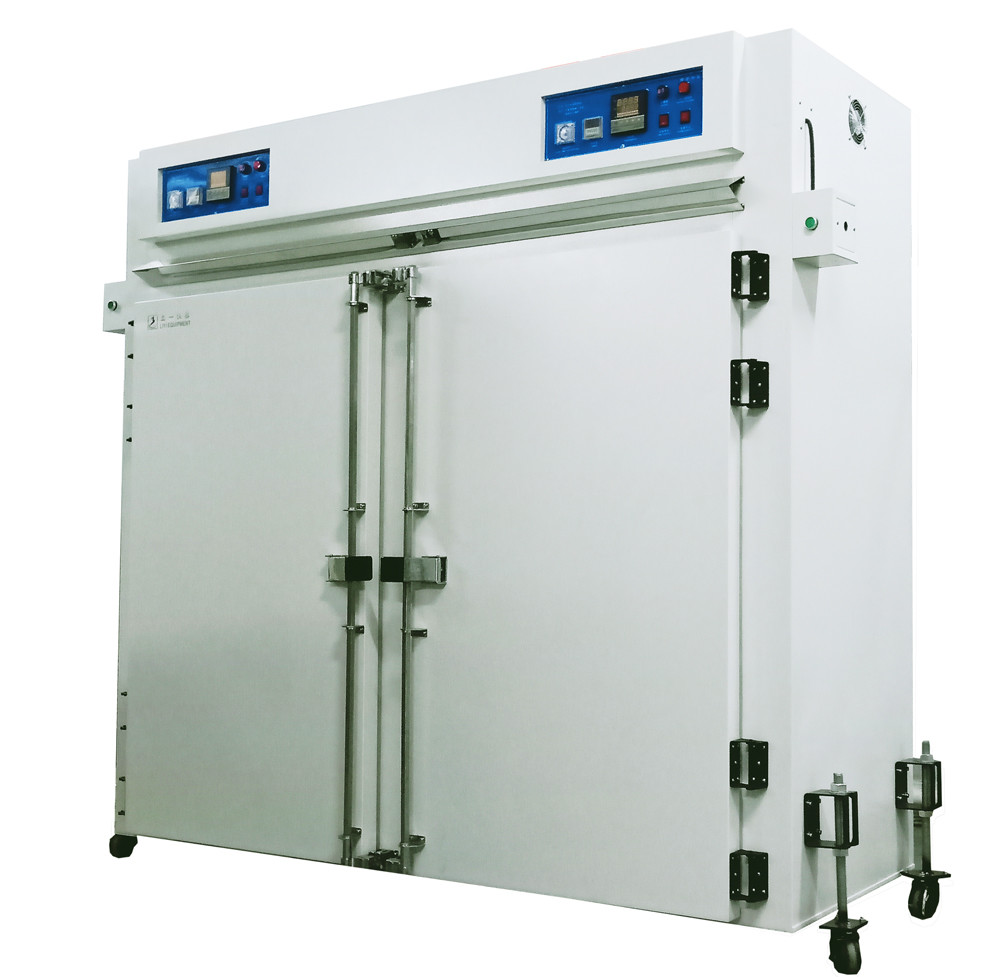

White High Temperature Laboratory Oven Circulation Fan Touch Screen Controller
1 Set
MOQ
3000~10000USD
Price
White High Temperature Laboratory Oven Circulation Fan Touch Screen Controller
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-6180
High Light:

high heat oven

,

electric blast drying oven

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-40 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304# Stainless Steel
Inner Size: Any Size Can Be Customized
Max Temperature: RT~300C
Heating Method: Electric Heater
Air Cycle Mode: Centrifugal Fan Forced Air Circulation
Color: White (can Customize)
Controller: PID Digital Controller
Voltage: 3 Phase 380V 50HZ
Product Description

250 Degree High Temperature Explosion-proof Oven with Circulation Fan



Product Overview
      250 Degree High Temperature Explosion-proof Oven with Circulation Fan is able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods.



Product Application
       Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc.





Characteristics:

1. Automatic temperature control with digital thermal-sensor
2. Excellent thermal insulation property of ovens wall, lower energy consumption,
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating



High temperature control accuracy:
     Using SUS304 stainless steel heater as the heating element, the intelligent temperature controller collects the temperature value in the test chamber in real time, compares it with the temperature setting value on the controller, and controls the on-off time of the SSR through PID calculation.
    In this way, the output heat of the heater is controlled. At the same time, the forced hot air circulation mode is adopted to achieve the purpose of operating the temperature inside the box according to the setting program.



Operating mode:Fixed value operation



Safety device:
Leakage protection switch: The circuit breaker with leakage, short circuit and overcurrent protection is activated to effectively protect all electrical components;
Over-temperature protector: independent over-temperature protector, when the temperature is abnormally too high, the heater power supply is disconnected;
Safety device: grounding protection, heater short circuit protection, motor overload protection;





Specifications:

Model

Inner Size

W*H*D(cm)



External Size

W*H*D(cm)



Temperature

Range(°C)

Heating

up

Time

Accuracy

(°C)

Uniformity

(°C)

Power

Rate of

work

(kw)

LY-645 45×40×40 66×92×55



(A-D)

A:200°C

B:300°C

C:400°C

D:500°C





RT~100°C

About 10min

±0.3 ±1%

220V

Or

380V

3.5
LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16



Air supply system:
1. Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then inhalt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2. The motor is imported from Taiwan witch have long axis and can endure high temperature.
3. The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.



Material of Construction:
(1) Interior material is SUS#304 stainless steel
(2) Exterior material is paint coated steel plate
(3) Insulation Material of imported fire-proof rock wool
(4) Heating Medium: electric heating tube



White High Temperature Laboratory Oven Circulation Fan Touch Screen Controller 0



Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
