Explosion Proof High Temperature Oven 250 Degree With Smoke Exhaust Fan
1 Set
MOQ
2000~10000USD
Price
Explosion Proof High Temperature Oven 250 Degree With Smoke Exhaust Fan
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-6180F
High Light:

high heat oven

,

electric blast drying oven

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304# Stainless Steel
Inner Size: Customize Size
Max Temperature: RT~250C
Inner Structure: Bottom Plate Strength For More Than 1t Load
Controller: Touch Screen Programmable Controller
Heater: Electrical Heater
Voltage: 3 Phase 380V
Warranty: 1 Year
Product Description

250 Degree High Temperature Explosion Proof Oven with Smoke Exhaust Fan



      250 Degree High Temperature Explosion Proof Oven with Smoke Exhaust Fan is to make use of the electric as heat source,through heating the air by heat exchange and adopting the axial fan as the driving power,the moisture content of hot air materials is reducing so as to realize the purpose of drying.



Main Features:
1. Adopts microcomputer electronic data control, precise and reliable.
2.Attached with the observation window, it was convenient for users.
3.Heating by compulsory circulating ventilation, temperature rising fast and uniform distribution.
4.Easy to set the temperature and operate.
5. Explosion proof design with smoke exhaust fan on the top.

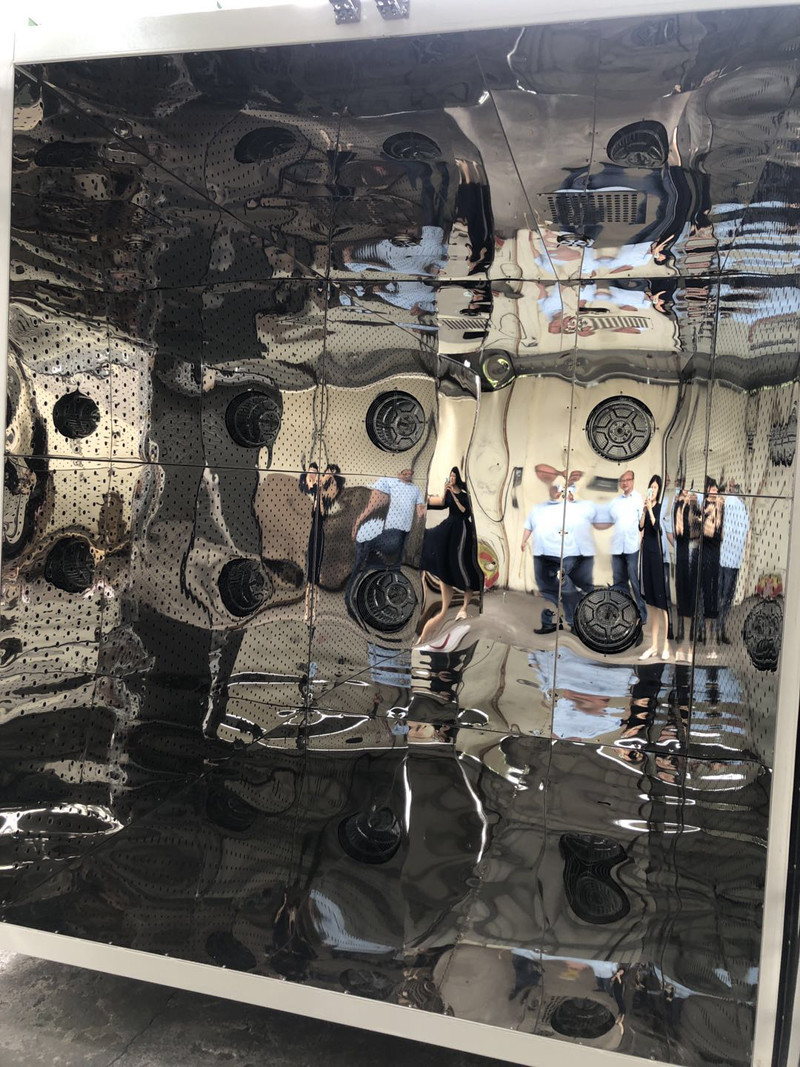

6. Inner material 304 stainless steel mirror type. easy to clean and long liftime.



Application:
     The 250 Degree High Temperature Explosion Proof Oven with Smoke Exhaust Fan is mainly used for drying, dehydration, baking, tempering, preheating, shaping, curing and so on. Food: vegetables, fruits, flower tea, meat, seafood, aquatic products, spices, grains, nuts, milk powder, pasta, starch, feed, oats, silkworm chrysalis, sugar block vitamins, protein, agricultural and sideline products deep processing, etc Pharmacy: API, Chinese herbal pieces, herbal medicine, extract, powder, granule, granule, yeast, animal glue, microorganism, lipase, protease, biological products, drug packaging bottle, etc Chemical industry: pigment, dye, resin, fertilizer, curing agent, catalyst, silica, calcium carbonate, ceramic raw materials, battery raw materials, plastic products, propylene fiber, activated carbon, synthetic rubber, other chemical raw materials, etc Industry: wood drying, motor baking, electronic component baking, electroplating product baking, glassware baking, multi silicon material baking, hardware parts preheating and tempering, paint barrel preheating, rubber secondary vulcanization setting, paint film curing, etc;





Specifications:

Model

Inner Size

W*H*D(cm)



External Size

W*H*D(cm)



Temperature

Range(°C)

Heating

up

Time

Accuracy

(°C)

Uniformity

(°C)

Power

Rate of

work

(kw)

LY-645 45×40×40 66×92×55



(A-D)

A:200°C

B:300°C

C:400°C

D:500°C





RT~100°C

About 10min

±0.3 ±1%

220V

Or

380V

3.5
LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16



Temperature range
Room temperature+10~200℃(300℃)
Perform-ance
Temp.& humi fluctuation
±0.3℃
Temp.& humi uniformity
±1%℃
Temperature resolution
0.1℃
Heat up time
30min
Material
Exterior chamber material
Cold-rolled steel+Powder coating
Interior chamber material
SUS#304 Stainless steel plate
(Use SUS#201 when max.temp.is below 200℃)
Insulation
PU&fiberglass
System
Wind circulation
Cooling fan
Heating system
SUS#Stainless steel high-speed heater
Controller
PID or PLC optional
Other components
Cable port(dia.50mm),control status indicator,loading shelf(2pcs,position-adjustable)
Safety devices
Over-heat protection circuit breaker,overload protection,overload indicator
Power supply
AC 3phase380V 60/50Hz
Customization
Non-standard or special requirements are all welcome

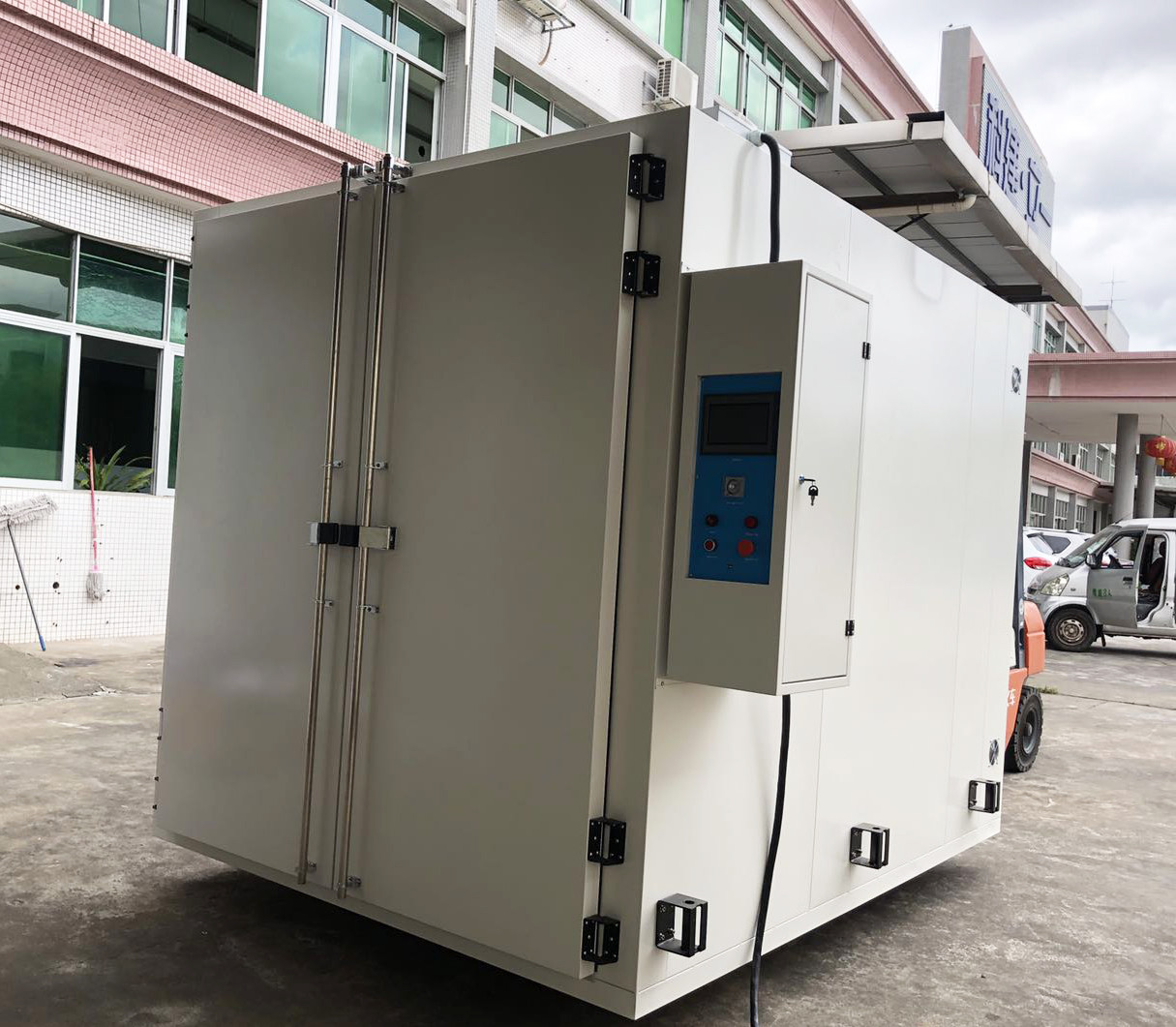

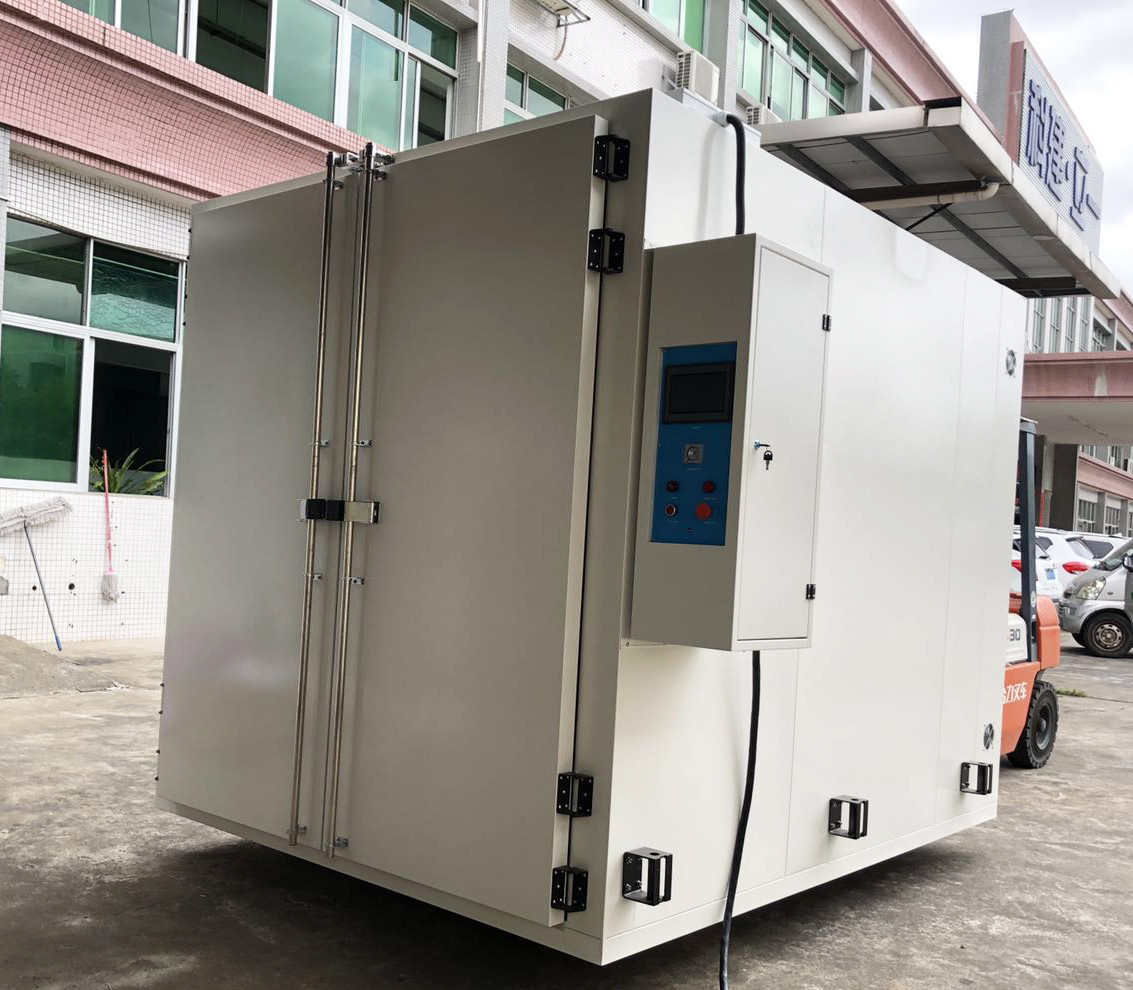

Explosion Proof High Temperature Oven 250 Degree With Smoke Exhaust Fan 0Explosion Proof High Temperature Oven 250 Degree With Smoke Exhaust Fan 1

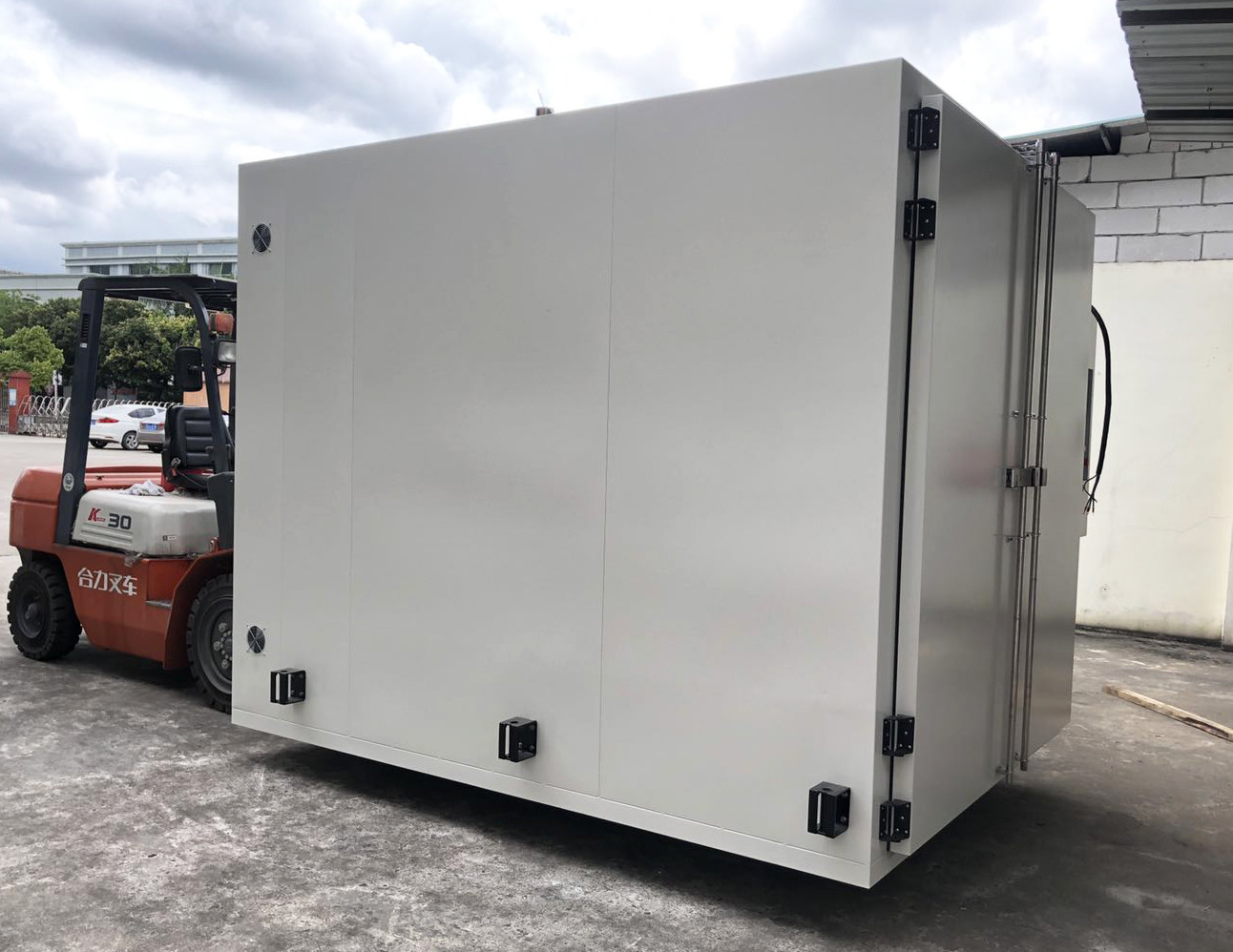

Explosion Proof High Temperature Oven 250 Degree With Smoke Exhaust Fan 2
