LIYI 400 Degree Electric Hot Air Circulation Drying Oven Powder Coating Surface Treatment

1 Set
MOQ
3000~30000USD
Price
LIYI 400 Degree Electric Hot Air Circulation Drying Oven Powder Coating Surface Treatment
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 316# Stainless Steel
Inner Size: 1400*1200*600mm
Max Temperature: RT~450C
Inner Structure: Customize Trays
Controller: Programmable Touch Screen Controller
Color: White (can Customize)
OEM: Offered
Heater: Electrical Heater
Voltage: 3 Phase 380V
Warranty: 1 Year
High Light:

high heat oven

,

hot air circulation drying oven

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-6140
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-40 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

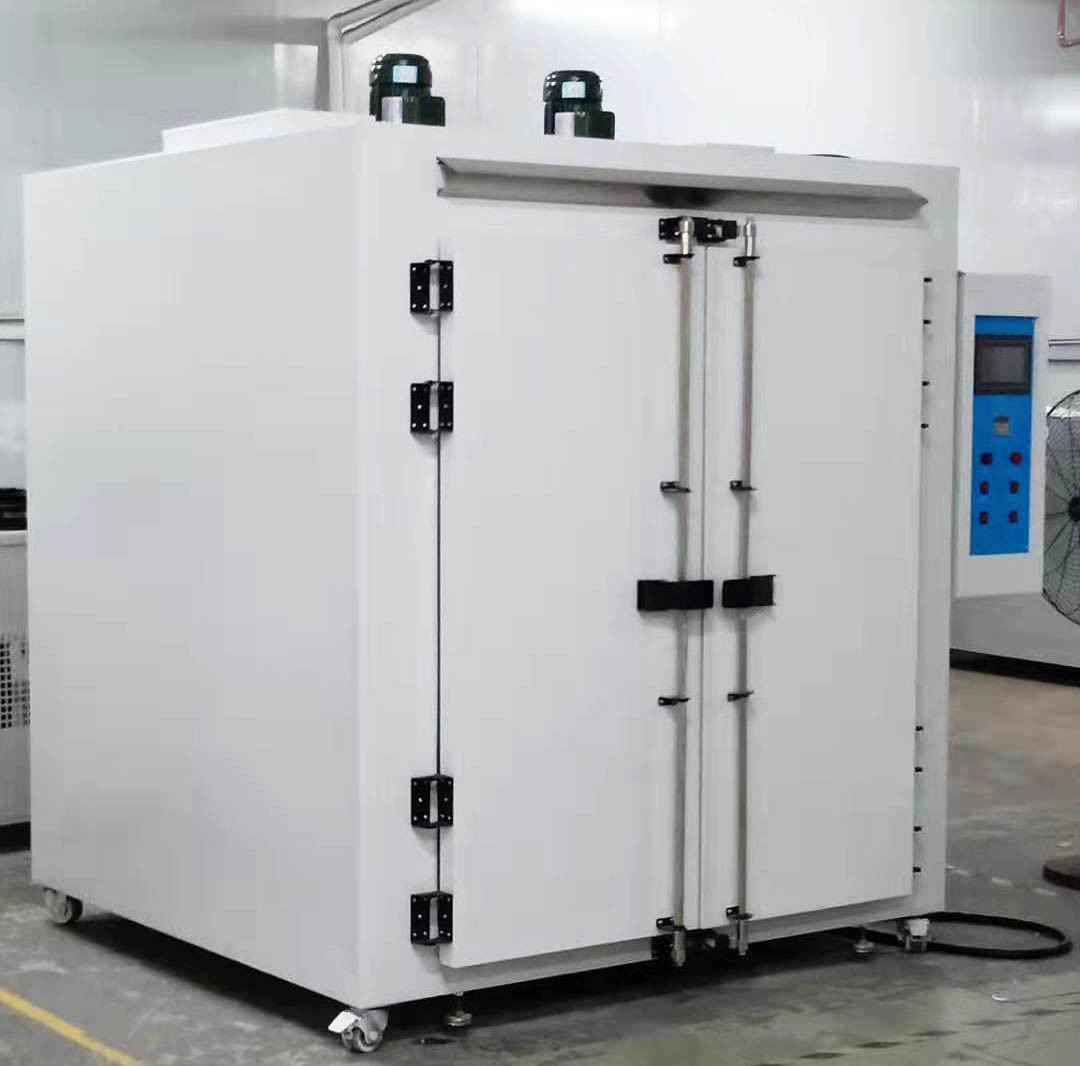

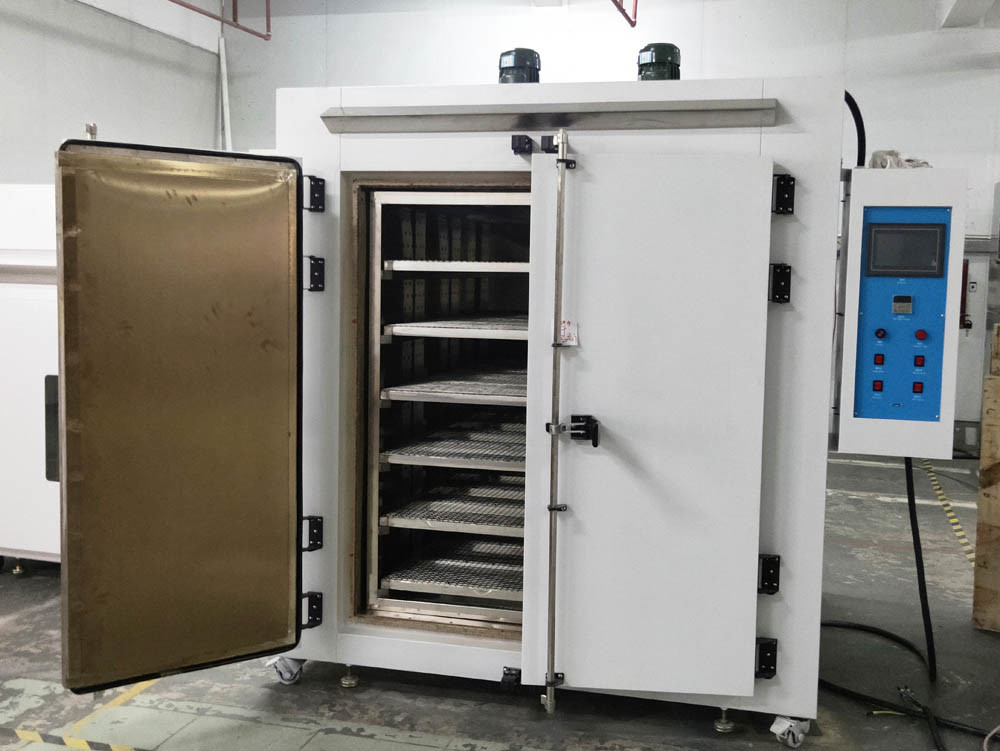

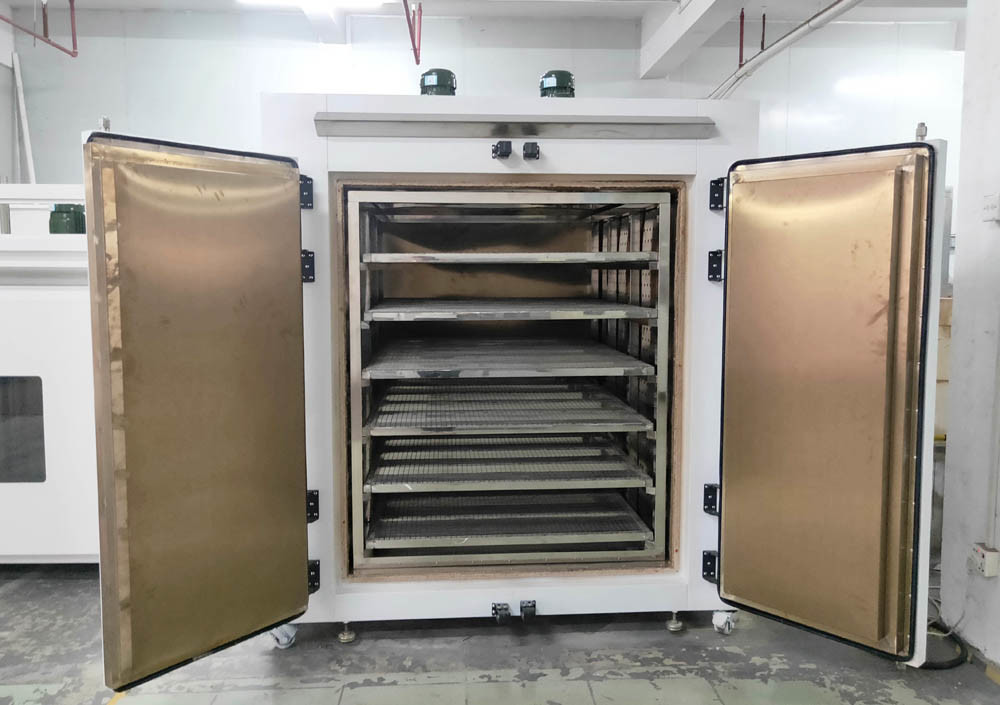

LIYI 400 Degree Electric Hot Air Circulation Drying Oven Powder Coating Surface Treatment



       400 Degree Electric Hot Wind Cycle Electric Powder Coating Drying Oven Surface Treatment Oven is to make use of the electric as heat source,through heating the air by heat exchange and adopting the axial fan as the driving power,the moisture content of hot air materials is reducing so as to realize the purpose of drying.


Main Feature:
1. Adopts microcomputer electronic data control, precise and reliable.
2.Attached with the observation window, it was convenient for users.
3.Heating by compulsory circulating ventilation, temperature rising fast and uniform distribution.
4.Easy to set the temperature and operate.
5. Attached with 2 sets of moveable dis to be adjusted height at random.


Application:
       400 Degree Electric Hot Wind Cycle Electric Powder Coating Drying Oven Surface Treatment Oven is suitable for the aviation, aerospace, military, electronics, petroleum, chemical industry, telecommunications, medical pharmaceutical, scientific research and other industries, also it can be used for items, such as drying, baking, heat treatment, and insulation test.



Touch screen controller:

* High precision (0.1%), high performance
* Support multi-input (T / C, RTD, DCV)
* Multi-output and simultaneous output (Max 4 points)
* Parameter operation is simple, the text can be set
* Supports suppression of Overshoot function
* Alarm output 1 point
* Operation display of auxiliary output status
* Input adjustment function for each zone (Max 4 Zone)
* Control the heating and cooling functions
* PID automatic adjustment function (AT Gain)
* Supports multiple communication protocols (Modbus, etc.)







Specifications:

Model

Inner Size

W*H*D(cm)



External Size

W*H*D(cm)



Temperature

Range(°C)

Heating

up

Time

Accuracy

(°C)

Uniformity

(°C)

Power

Rate of

work

(kw)

LY-645 45×40×40 66×92×55



(A-D)

A:200°C

B:300°C

C:400°C

D:500°C





RT~100°C

About 10min

±0.3 ±1%

220V

Or

380V

3.5
LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16







LIYI 400 Degree Electric Hot Air Circulation Drying Oven Powder Coating Surface Treatment 0



LIYI 400 Degree Electric Hot Air Circulation Drying Oven Powder Coating Surface Treatment 1





Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
