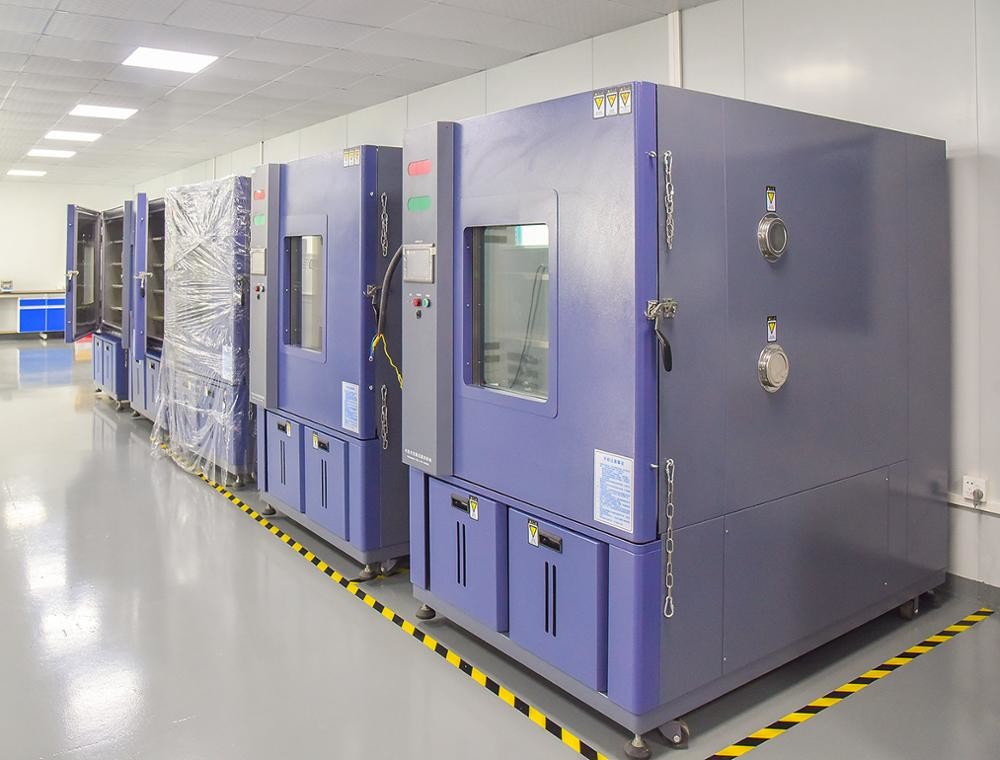

LIYI 150C Explosion Proof Test Chamber , 800L Environmental Test Systems
LIYI , a 18 years of professional High and Low Temperature Explosion-proof Test Chamber,Explosion-proof High and Low Temperature Test Chamber,Battery Explosion-proof High and Low Temperature Test Chamber,Explosion proofing High and Low Temperature Test Chamber,Battery Explosion proofing High and Low Temperature Test Chamber manufacturers
Providing virtual space to simulate the real environment, to verify the product inspection and R & D results for aerospace, aviation, electronics, automobile, battery and other products and quality inspection institutes, research institutes, colleges and universities and other experimental units. the test chamber is to shorten the development period. An indispensable right-hand man to improve product quality and reliability.
Battery Test Chambers can be used for safety testing for compliance with the UN Recommendations on the Transport of Dangerous Goods needed for lithium-ion batteries.
Battery Cell Temperature Explosion-proof Test Chamber Battery Environmental Test Systems can be used for safety testing for compliance with the UN Recommendations on the Transport of Dangerous Goods needed for lithium-ion batteries.
Proven test technology in all dimensions:Cells,Modules,Battery packs,Complete drive units,Battery Management System (BMS).
1. Battery Cell Temperature Explosion-proof Test Chamber Battery Environmental Test Systems is composed of the chamber, refrigeration systems, heating systems, air circulation system and control system.

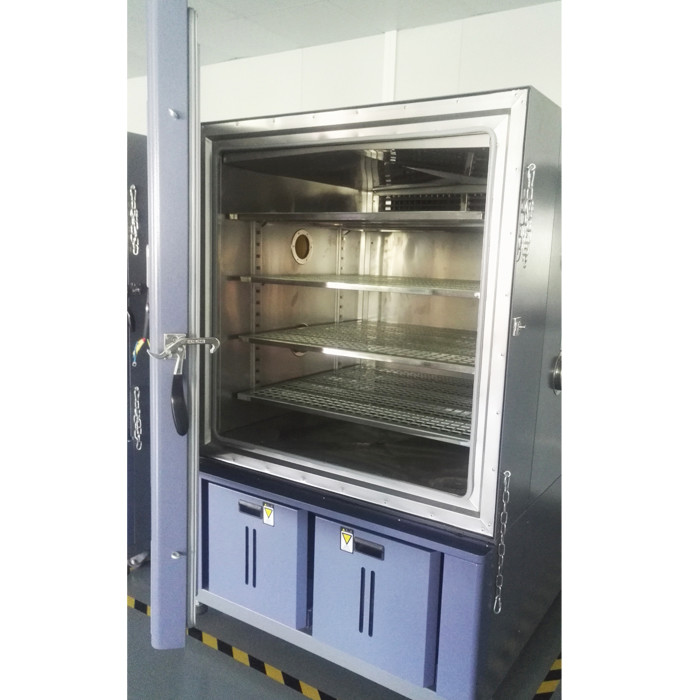

2. The Battery Cell Temperature Explosion-proof Test Chamber Battery Environmental Test Systems is made of high quality SUS#304 stainless steel material,the outer shell adopts A3 steel plate,surface electrostatic spraying.
3. Insulation system uses superfine fiberglass wool or polyurethane foam so as to ensure the temperature of inside chamber.
4. Temperature and humidity control adopts Korean import TEMI500 programmable touch screen temperature and humidity controller, with automatic calculation of PID function.
5. Adopts steam humidifying method, automatic water circulation loop,with functions of automatic filling water.
6. Refrigeration system adopts original France "Tecumseh" refrigeration unit and full sets of refrigeration parts.
7. Input mode PT100 sensor.
8. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
9. Powerful multi-wing type air circulation which can ensure even temperature distribution inside the working chamber.
10. With larger transparent viewing window and lighting inside to observe the test.
11. Door seal adopts silicone rubber material which can avoid aging and hardening in high and low temperature conditions.
12. Standard configuration with one test hole on the left side of the chamber for easy testing operation and temperature measurement.
13. With various of safety protection device such as leakage and outage protection,compressor overpressure protection,overload fusing protection,audio signal alarm.
|Volume (V)||80 L||150L||225L||408L||800L|
|Temp and Hum Range||
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C
|Deviation||±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)|
|Wind Cycling Way||Centrifugal fan-broadband type forced air circulation|
|Refrigeration Way||Single stage compression refrigeration|
|Refrigerants||R4O4A USA DuPont environmental protection refrigerant(R23+R404)|
|Condensing Way||Air-cooled or water-cooled|
|Water Supplying Way||Automatic cycling water supply|
1 Observe window(double-deck cavity toughened glass),
1 50mm test hole in the left,
1 PL inner chamber lamp,
1 bag of wet and dry bulb,
1 power line.
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3) Order process:
We offer below business term:
|Accepted Delivery Terms:||FOB, CFR, CIF, EXW, DDP|
|Accepted Payment Currency:||USD, EUR, HKD, CNY|
|Accepted Payment Type:||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow|
|Nearest Port:||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired|
4) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
