Product Description

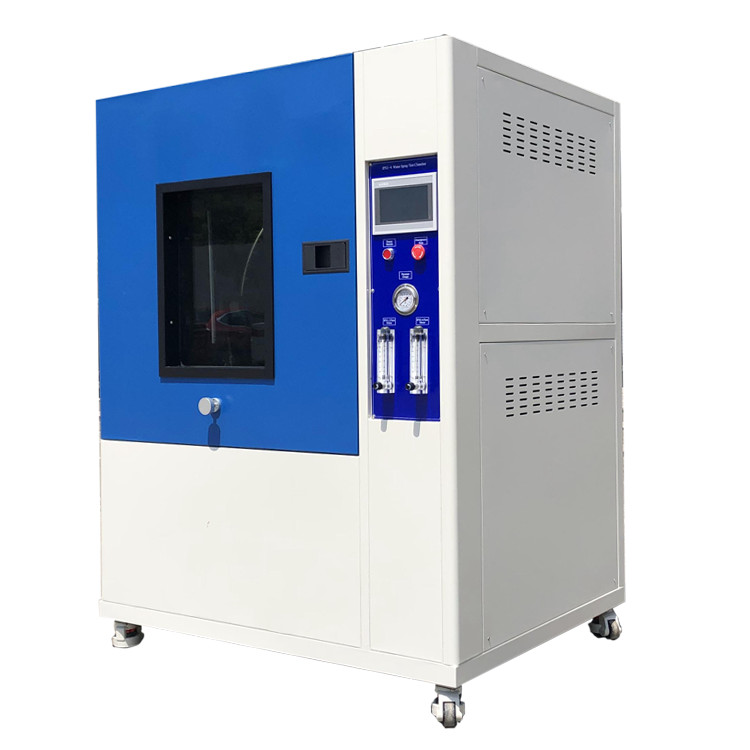

This Rain Simulation Environmental Water Spray Machine Test Chamber used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
· Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.
· The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.

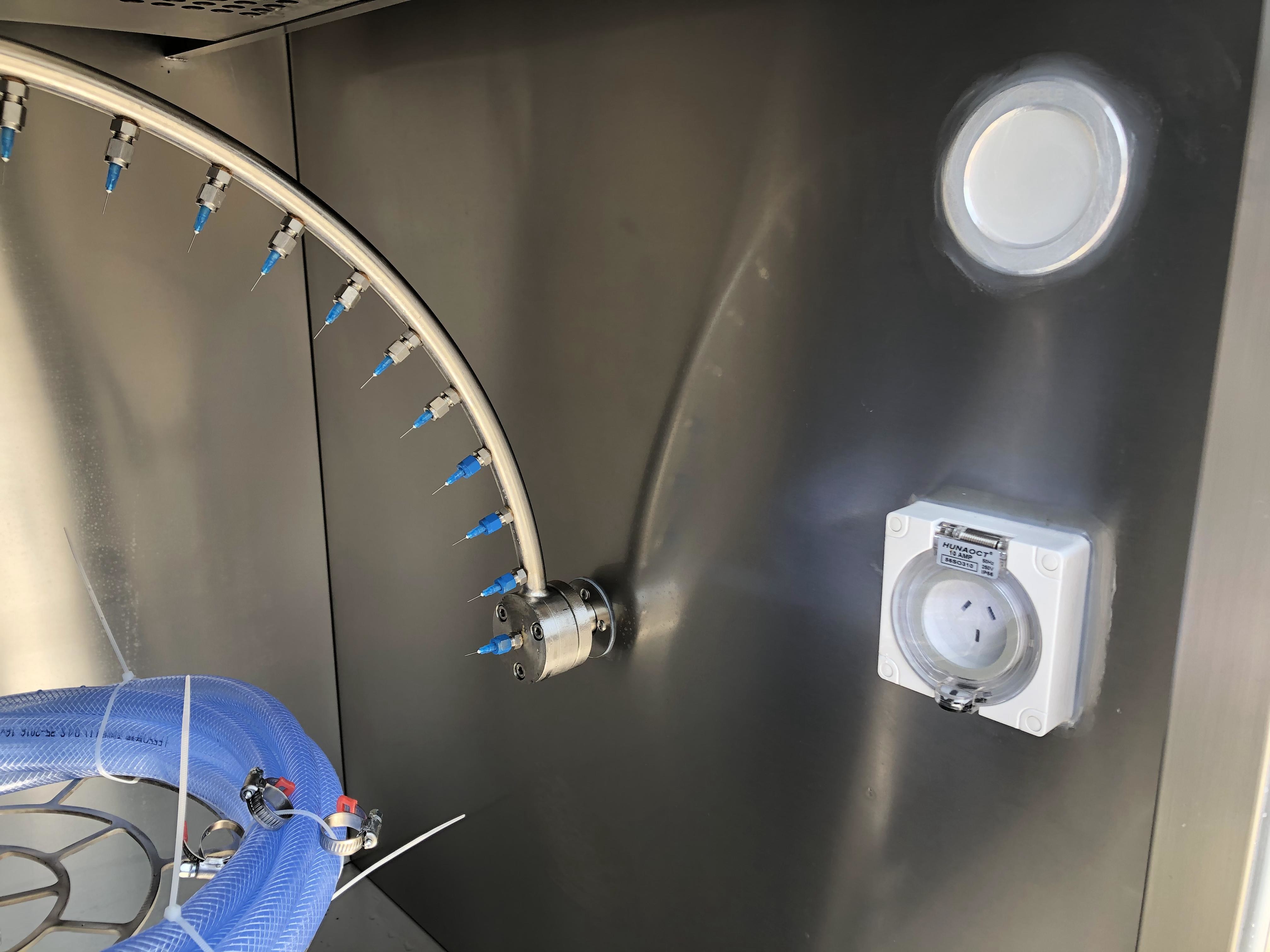

· Swing pipe standard configuration: R400mm and R500mm two types. Swing pipe inner diameter:Φ15mm. holes and make the water spray to the center. The water pressure of the device entrance is equal to 10m water level, spraying water pressure is 80-100kpa.
· Water spraying pipe swing angle: 120º,180º,360º, Vertical sides: 60º,90º,175º. Complete a swing(2*120º) time is 4S. Complete a swing(2*360º) time is 12S.

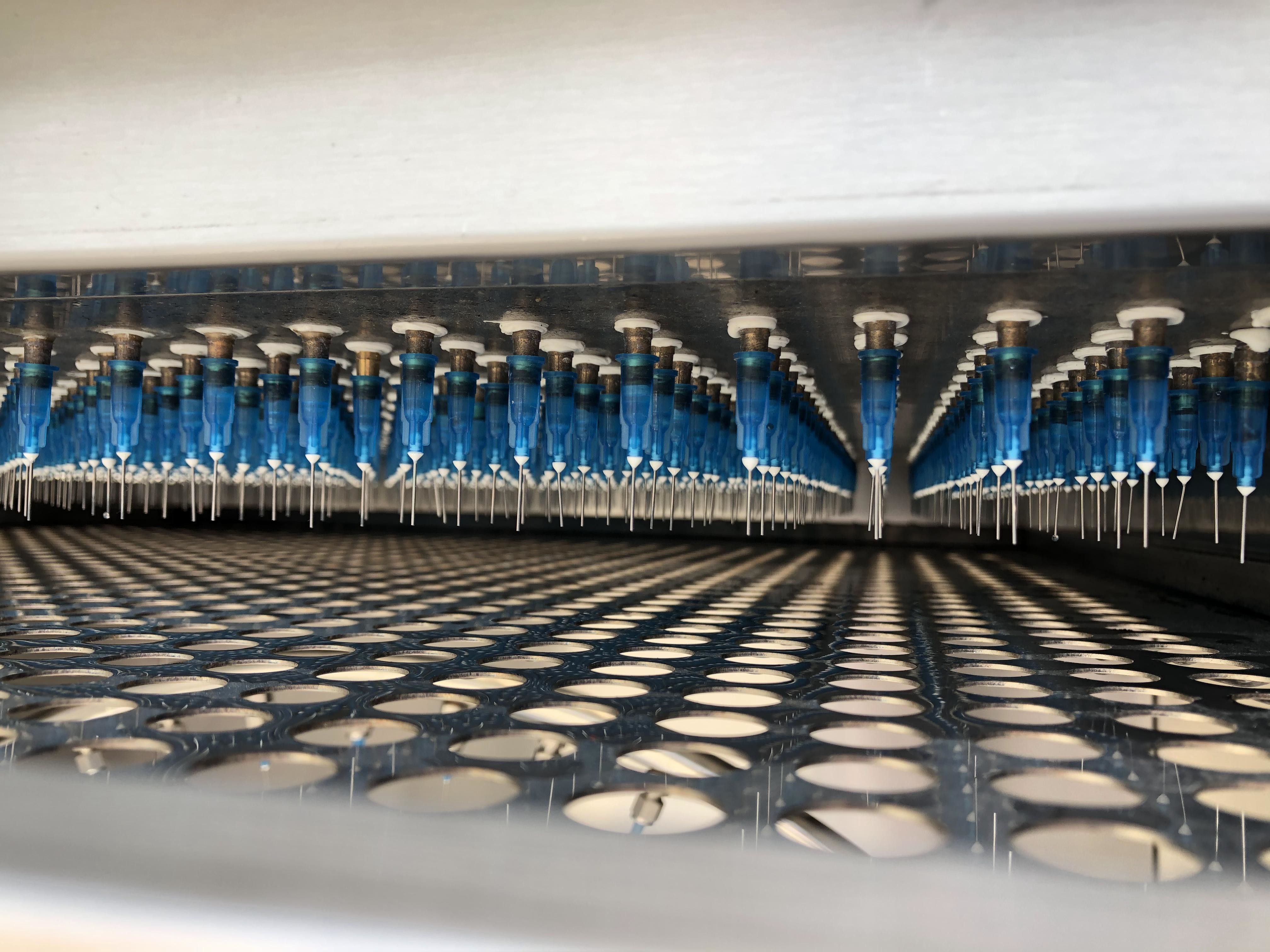

· Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe Angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
· Use Mitsubishi PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
· Servo drive mechanism, guarantee the pendulum pipe Angle of precision, the overall pendulum tube structure for hang a wall.
Specifications
| Swiping pipe radius | R400mm |
| Test chamber size | 1000*1000*1000mm |
| Overoll size | 1300mm*1100mm*1750mm |
| Sample shelf size | D400mm |
| Working power | AC220V 50HZ |
Main configuration:
| No. | Main parts name | Brand/Origin/Specifications | Quantity |
| Controlling system(Main parts) | |||
| 1 | Main frame | Aluminum frame,transparent density board | 1group |
| 3 | PLC processor | Mitsubishi, Japan | 1group |
| 4 | Communication module | Mitsubishi, Japan | 1group |
| 5 | Controlling panel (English interface) | WEINVIEW, Taiwan | 1group |
| 6 | Transducer | 0.75KW/220V | 1group |
| Water line(Main parts) | |||
| 1 | Glass float flowmeter | Range 7L/min | 1pcs |
| 2 | Precision pressure gauge | 0.4MPa | 1pcs |
| 3 | Electric contact pressure sensor | 0-0.8MPa | 1group |
| Other parts | |||
| 1 | Turntable | Stainless steel |
1group |
