LIYI Customizable Hot Air Industrial Drying Oven For Electrode Paint

1 set
MOQ
1,580.00 - 4,580.00 USD
Price
LIYI Customizable Hot Air Industrial Drying Oven For Electrode Paint
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 220v/380v
Power: 3-75kw
Warranty: 1 Year
Heating Method: Electric Heating
Material: SUS304
Outside Material: SECC Steel,fine Powder Coating Treatment
Inner Material: SUS#304 Stainless Steel
Temperature Range: Up To 800℃
Accuracy: 0.3℃
Heating System: PID+S.S.R.
High Light:

LIYI Industrial Drying Oven

,

Electrode Paint Industrial Drying Oven

,

LIYI hot air circulating drying oven

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: ISO
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-40 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per months
Product Description
LIYI Customizable Hot Air Industrial Drying Oven For Electrode Paint
Products Description
With many year's experiences, we design, manufacturer and trade good quality industrial cabinet batch ovens with affordable prices. Our industrial ovens are designed to heat up to 800 ℃ and are used for a wide variety of heat processes including drying, curing, aging, annealing, stress relieving, bonding, tempering, pre-heating and forming. Batch ovens are essentially heated boxes with insulated doors that process products one at a time or in groups.

Standard batch ovens are offered in many sizes, with multiple options available upon request. And we also supply custom engineered batch ovens.
Product Paramenters
Standard Models (Temperature Range RT~500℃)can be customized up tp 800

Model
Inner Size
(W*H*D)cm
External Size
(W*H*D)

Heating up Time

Accuracy


Uniformity
Rate of
work
(kw)
LY-645
45×40×40
66×92×55




RT~100°C

About 10min





±0.3°C





±1% °C
3.5
LY-660
50×60×50
70×125×65
4.5
LY-690
60×90×50
80×156×65
5.5
LY-6100
80×100×60
108×174×73
8
LY-6120
90×120×60
130×193×86
10
LY-6140
140×120×60
200×186×90
12
LY-6160
160×140×80
230×206×110
14
LY-ODM
Details Images
Instructions

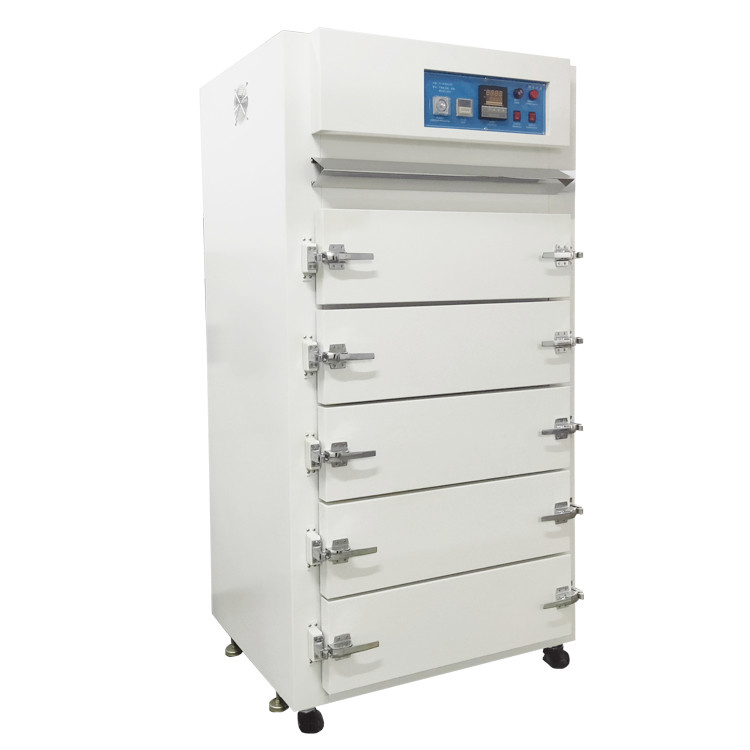

LIYI Customizable Hot Air Industrial Drying Oven For Electrode Paint 0

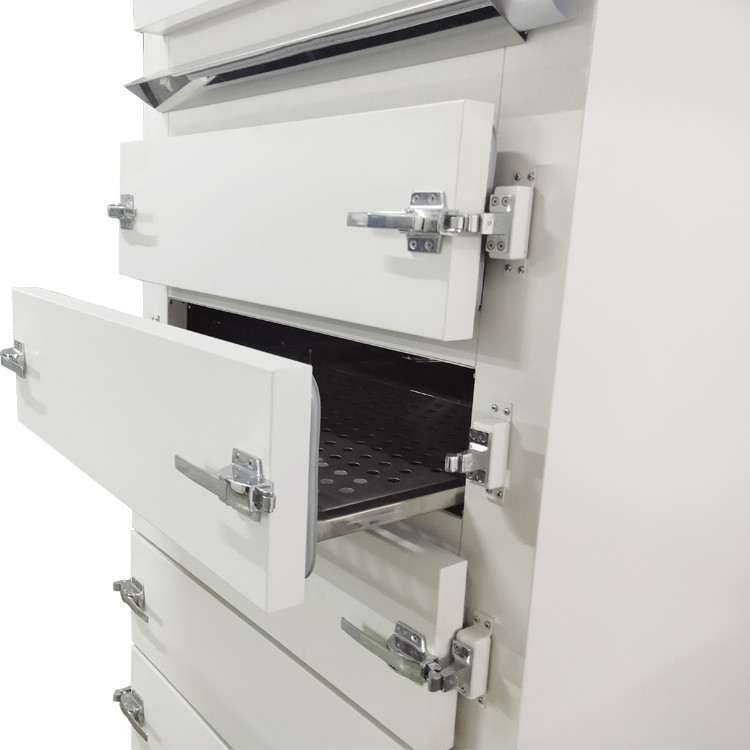

LIYI Customizable Hot Air Industrial Drying Oven For Electrode Paint 1
LIYI Customizable Hot Air Industrial Drying Oven For Electrode Paint 2
LIYI Customizable Hot Air Industrial Drying Oven For Electrode Paint 3
LIYI Customizable Hot Air Industrial Drying Oven For Electrode Paint 4
