Liyi Dupont Altitude Environmental Test Chamber For Constant Humidity
1 set
MOQ
3,580.00 - 6,680.00 USD
Price
Liyi Dupont Altitude Environmental Test Chamber For Constant Humidity
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: ISO
High Light:

Dupont Altitude Environmental Test Chamber

,

Liyi Environmental Test Chamber

,

Liyi altitude chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-40 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per months
Specifications
Warranty: 12 Months, 12 Months
Customized Support: OEM, ODM
Power: Electronic, 220V/380V
Color: Customize
Humidity Range: 20%~98%
Refrigerater: French Tecumseh
Fluctuation: ±0.5°C ±2.5%RH
Controller Accuracy: ±0.3°C ±2.5%RH
Rifrigerate: Dopunt
Temperature Range: -70 ~+150
Product Description

Liyi Altitude Constant And Humidity Machine Climate Test Cabinet Damp Heat Testing Mini Temperature Chamber

Product Description
Temperature & humidity test chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Liyi Temperature Humidity Test Equipment is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
Specifications
Model
LY-270
Inner Size (W*H*D)
40×70×40cm
Volume (V)
112L

Temperature and Humidity Range
A:-20°C~150°C B: -40°C~150°C
C: -60°C~150°C D: -70°C~150°C
RH20%-98%
Deviation
±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
Fluctuation
±0.5°C ±2.5%RH
Controller Analytical Accuracy
±0.3°C ±2.5%RH
Refrigerator
French Tecumseh
Refrigerants
R4O4A USA DuPont environmental
protection refrigerant(R23+R404)
Condensing Way
Air-cooled or water-cooled
Heater
Nickel chrome heating wire heater
Humidifier
Semi-closed steam and wet
Water Supplying Way
Automatic cycling water supply
Wind Cycling Way
Centrifugal fan-broadband type forced air circulation
Details Images

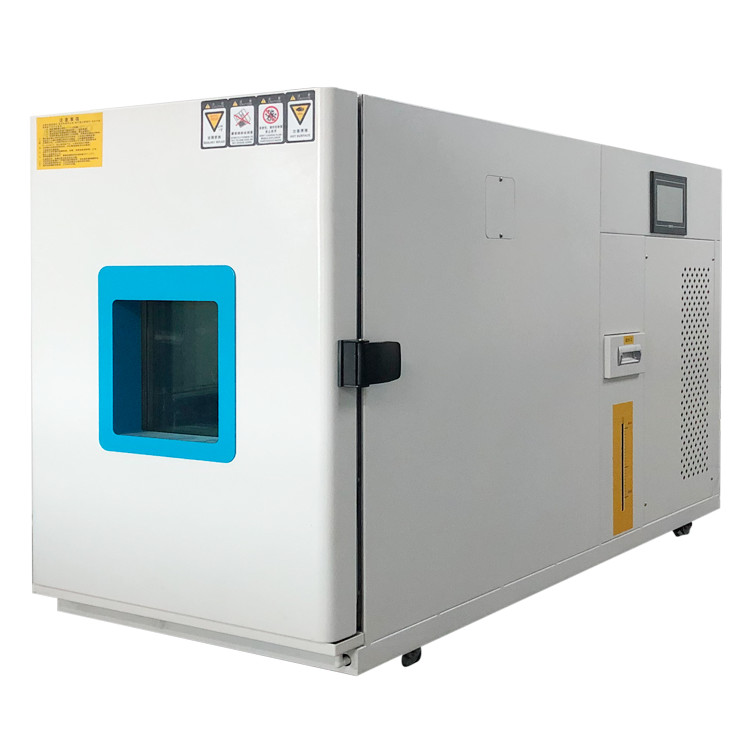

Liyi Dupont Altitude Environmental Test Chamber For Constant Humidity 0

1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature & humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.

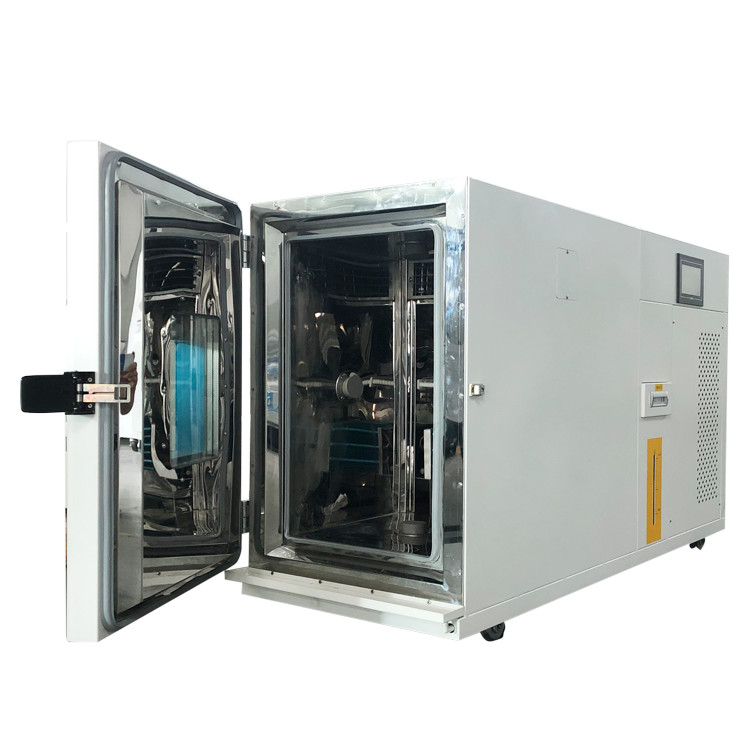

Liyi Dupont Altitude Environmental Test Chamber For Constant Humidity 1
Machine equipped with 7 inches of Touch Screen Controller, it's programmable. The system can run maximum 120 programs, 999 units.
Liyi Dupont Altitude Environmental Test Chamber For Constant Humidity 2
Observing Window has three layers, it's input with LED light for observing the situation in the test chamber.

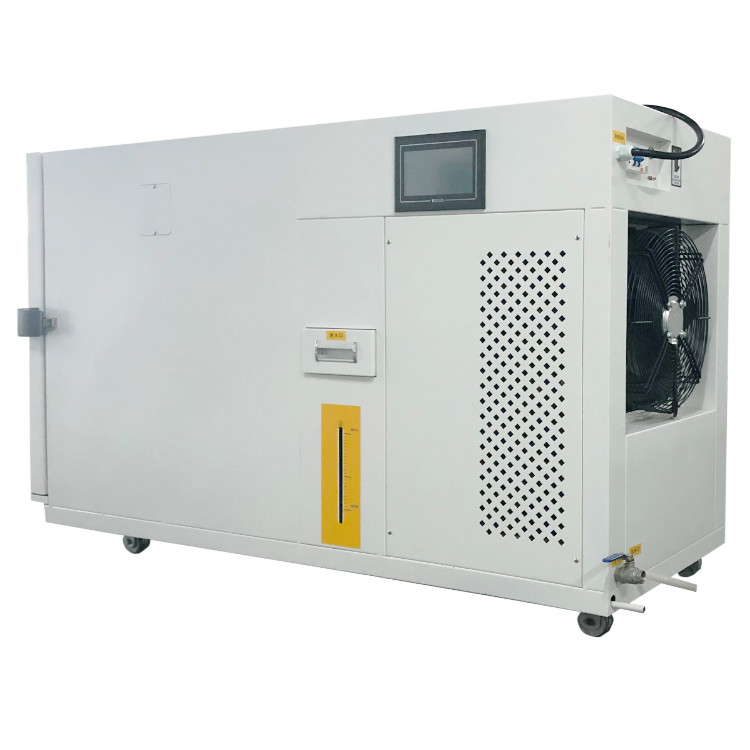

Liyi Dupont Altitude Environmental Test Chamber For Constant Humidity 3
Machine equipped with French Tecumseh Refrigerator, every one has it own particular Code. And it's imported from Frence. Everyone has its particular code which can check online.Liyi Dupont Altitude Environmental Test Chamber For Constant Humidity 4
