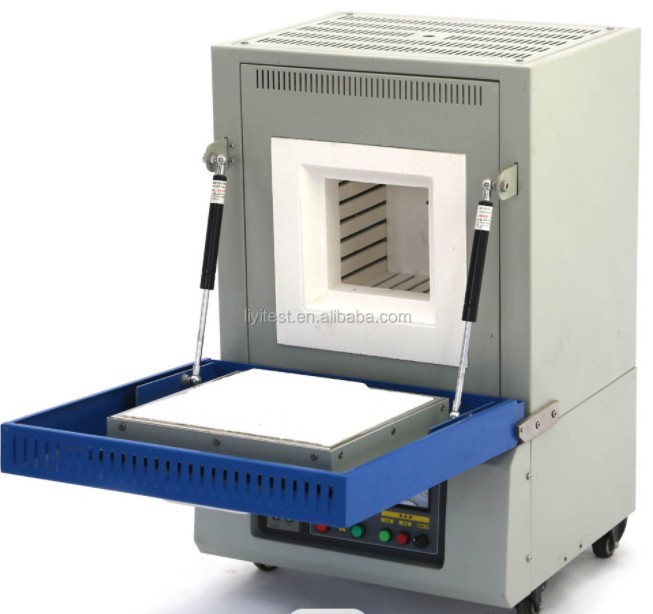

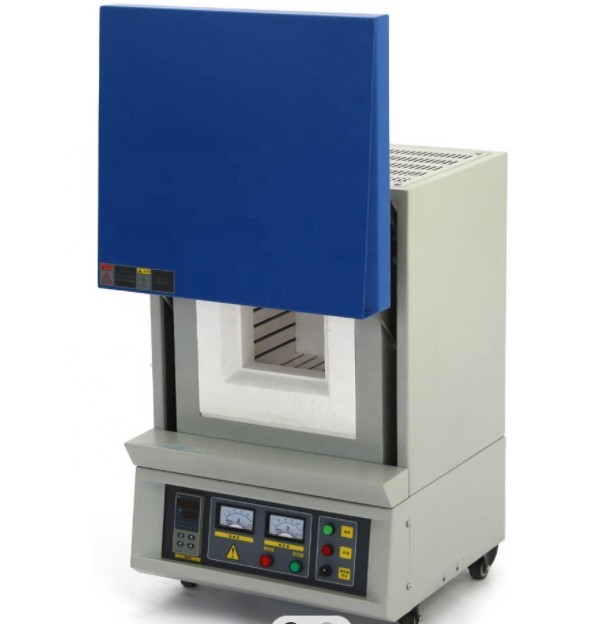

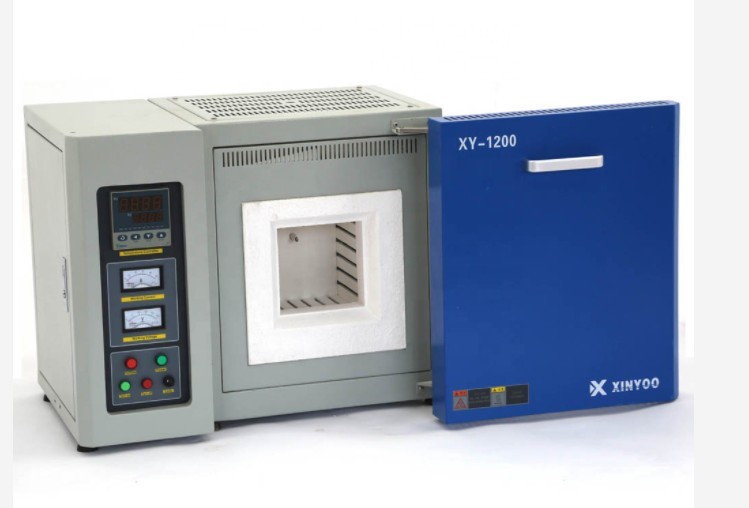

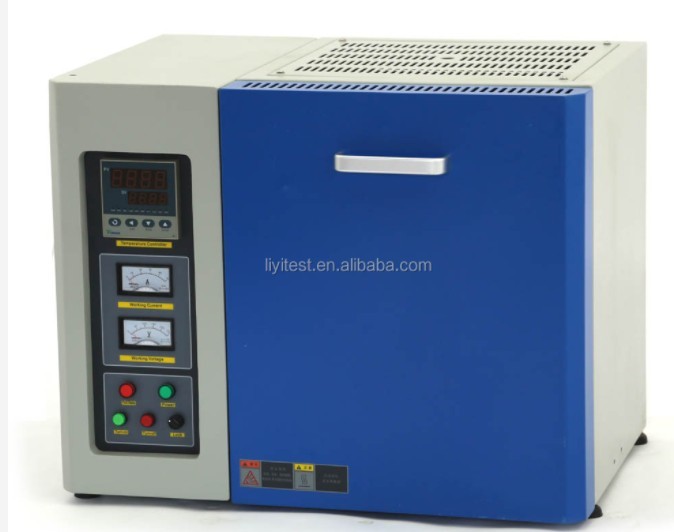

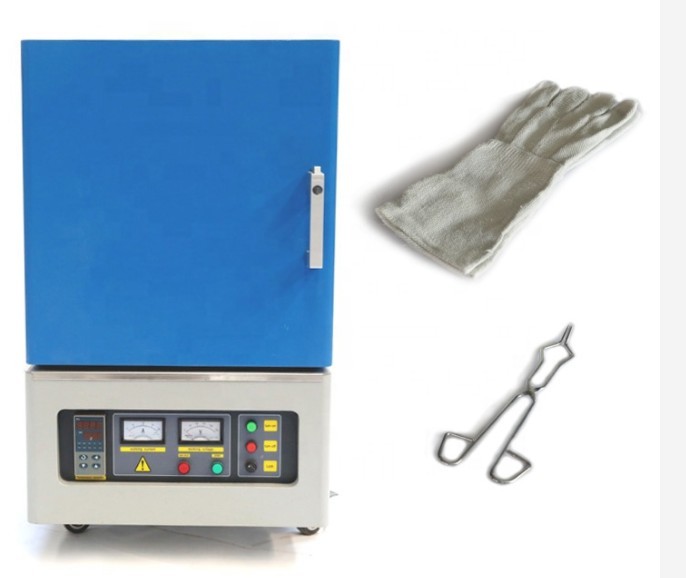

LIYI 1200 Degree Ceramic Laboratory Inert Gas Muffle Furnace Chamber
This furnace for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing,ect.
Characteristics:
1. The furnace mantle adopts unique design of double-deck structure with High quality cold-rolled steel plate, The paint is baked at high temperature, it can be used for a long time.
2. Equipped with air-cooling system, the furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, etc.
3.The inner box adopts integral seal, valve control are equipped with intake valve, exhaust valve, vacuum valve, it can be filled with nitrogen, argon and other inert gas.
4.The imported ceramic alumina poly-crystalline mullite fiber material in furnace is constructed by special technology, which is more energy efficient than traditional electric furnace.
5.The control system adopts the technology of artificial intelligence of microcomputer, which has the functions of PID regulation, fuzzy control, self-tuning, 50 segment programming, and it can program all kinds of programs of temperature rising, constant temperature, cooling temperature, and high precision of temperature control.
6. Modularized thyristor crystal control, phase shift trigger; The heating element is made by imported high quality silicon molybdenum rod.
7. The protection device adopts independent over temperature protection, overcurrent, leakage, short circuit protection
| Model | LY-16-17TP | LY-16-18TP | LY-16-19TP |
| Furnace size(W*H*D)mm | 150*150*80 | 200*150*150 | 300*200*200 |
| Outer size(W*H*D)mm | 735*750*1200 | 700*670*930 | 750*660*1020 |
| Weight(Kg) | 155 | 190 | 300 |
| power rating | 3KW | 5KW | 9KW |
| Power | 220V 50/60HZ | ||
| Temperature control precision | ±1℃ | ||
| end-use temperature | maximum temperature 1800℃ | ||
| heating rate | 0--30℃/min(recommended less than 20℃/min) | ||
| Thermocouple | Type B | ||
| heating element | Silicon molybdenum rod | ||
| Display mode | Color LED display | ||
| gasket ring | Fluorine ring | ||
| Measuring mode | mechanical pressure gauge | ||
| Furnace material | High alumina polycrystalline ceramic fiber | ||
| Furnace structure | double-layer forced air-cooling structure | ||
