LIYI ISO179 2000 Plastic Notch Charpy Pendulum Impact Tester Price

$1,000.00 - $2,000.00/Set
LIYI ISO179 2000 Plastic Notch Charpy Pendulum Impact Tester Price
Features Gallery Product Description Request A Quote
Impact Speed: 3.8 M/s
Accuracy:: ± 0.1%
Support Span: 62 Mm
Power Supply: 220V 50Hz / 380V 60hZ
Keyword:: Charpy Impact Tester For Plastic
Standard: ASTM ISO EN JS
Certificate:: CE ISO
Standard:: ASTM ISO EN JS
High Light:

LIYI 98% Environmental Test Chamber


LIYI 10% Environmental Test Chamber


LIYI Industry Electric Drying Oven

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: ISO
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 10-15 work days
Payment Terms: T/T
Product Description

LIYI ISO179 2000 Plastic Notch Charpy Pendulum Impact Tester Price


Product Description

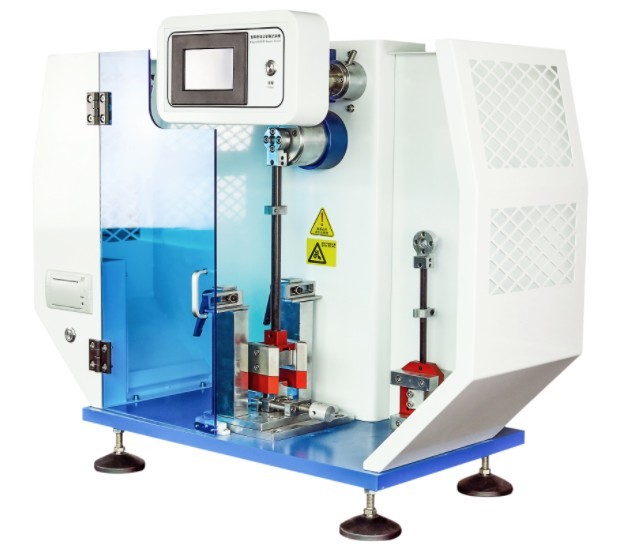

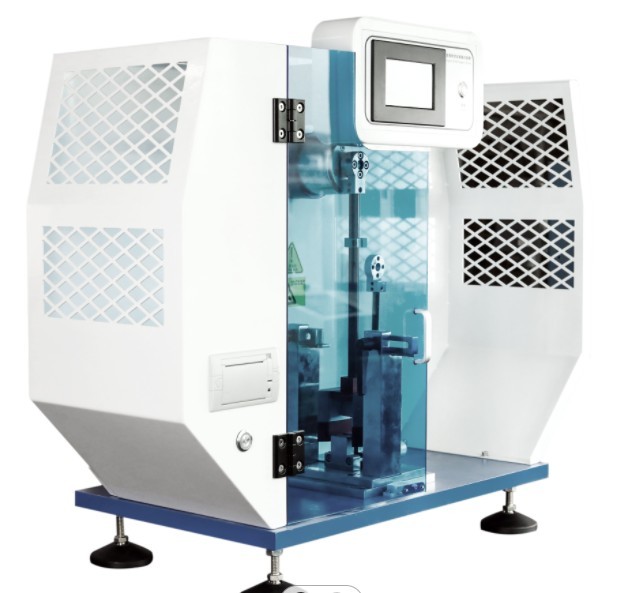

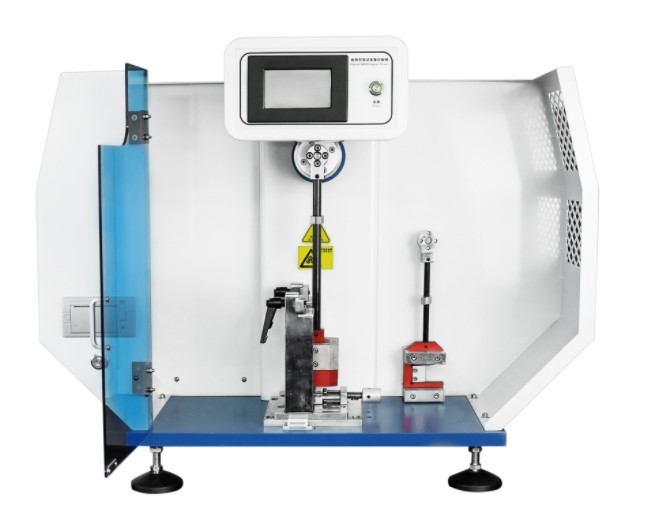

This kind of digital charpy impact tester is mainly used to measure the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.


Performance standards:

ISO179—2000 Determination of Plastics - Hard Materials Charpy Impact Strength

GB/T1043—2008 Rigid Plastic Charpy Impact Test Method

JB/T8762—1998 Plastics Charpy Impact Testing Machine

GB/T 18743-2002 Charpy Impact Test Method for Fluid Transport Via Thermoplastic Pipe (Suitable for pipe pieces)


Product Characteristic:

A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;

B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.

C. High-resolution digital encoders, higher and more stable angle measurement accuracy;

D. Aerodynamic impact hammer and imported ball bearings greatly reduce mechanical friction losses

E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;

F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.

G. Built-in mini printer to print the test data.

Item Charpy Impact Izod Impact
Pendulum energy 1J, 2J, 4J, 5J 1J, 2.75J, 5.5J
Pendulum angle 150°
Blade angle 30°
Blade front angle
Blade back angle 10°
Impact speed 2.9m/s 3.5m/s
Impact center distance 221mm 335mm
Blade filleted radius R=2mm±0.5mm R=0.8mm±0.2mm


Energy loss

0.5J ≤4.0J

1.0J ≤2.0J

2.0J ≤1.0J


2.75J ≤0.06J

5.5J ≤0.12J


Pendulum torque


Pd2J=1.07180Nm Pd4J=2.14359Nm Pd5J=2.67949Nm



Print out Capacity. Angle, energy, etc.
Power supply AC220V±10% 50HZ
