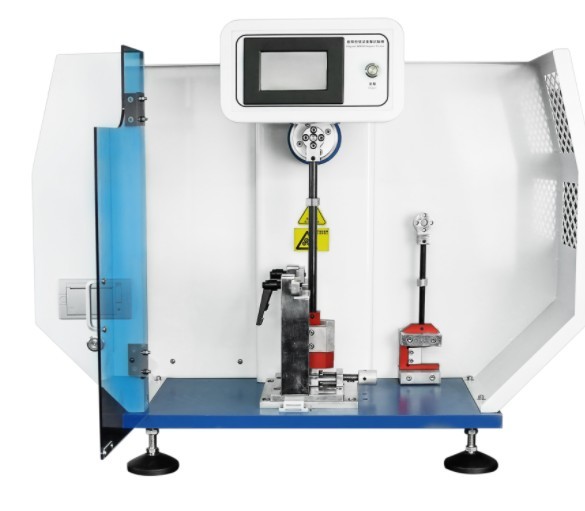

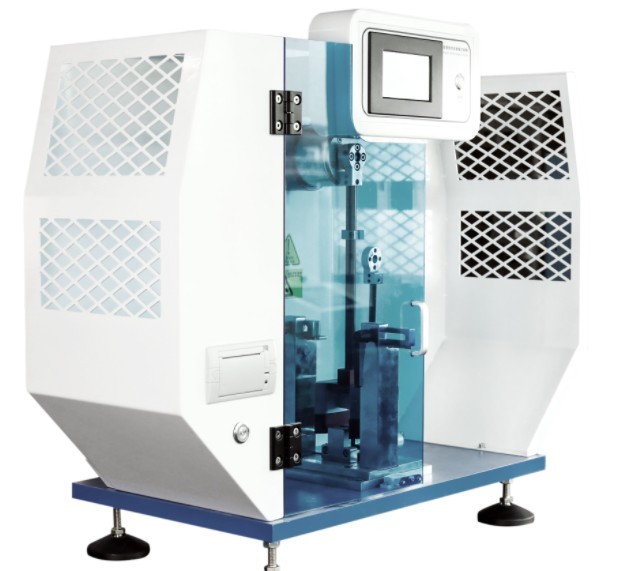

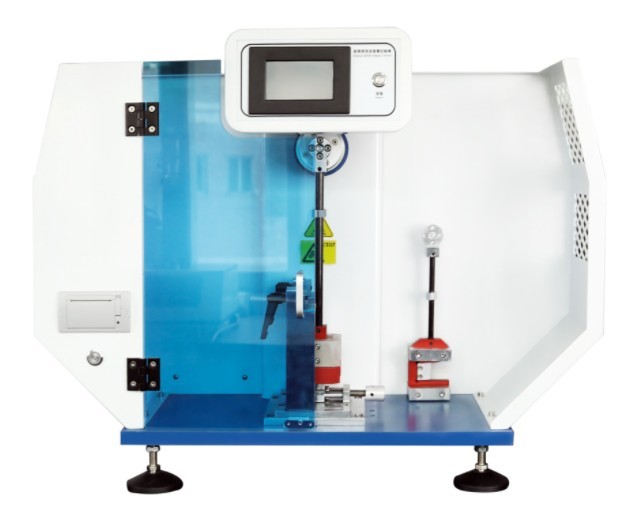

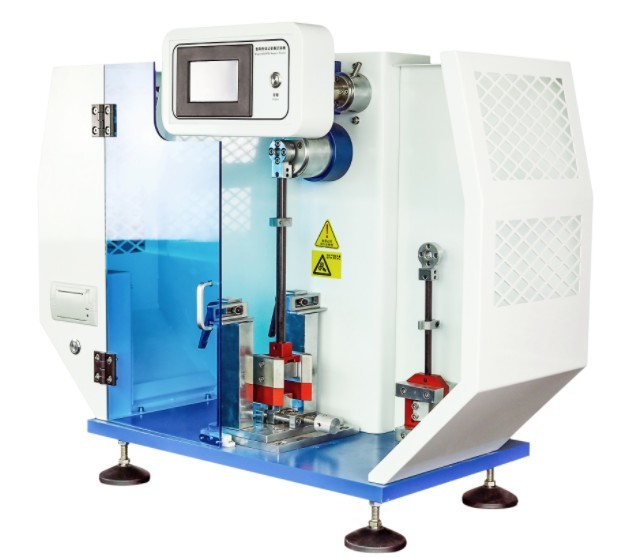

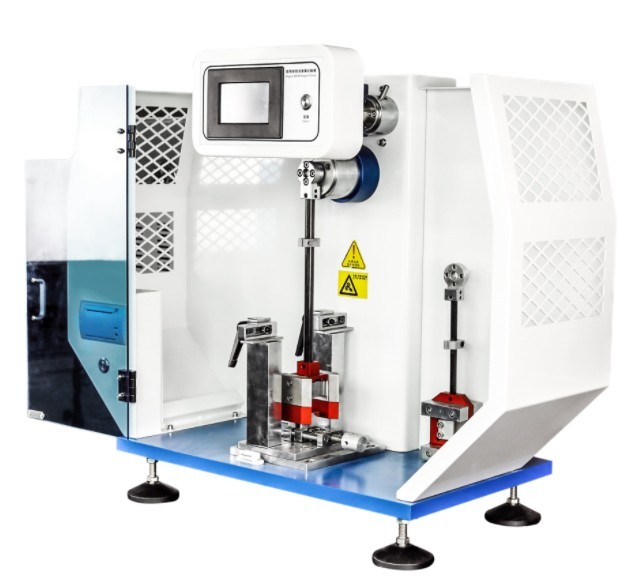

LIYI Strength Charpy Test Equipment Price Pendulum Chary Impact Testing Machine
This kind of digital charpy impact tester is mainly used to measure the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.
Performance standards:
ISO179—2000 Determination of Plastics - Hard Materials Charpy Impact Strength
GB/T1043—2008 Rigid Plastic Charpy Impact Test Method
JB/T8762—1998 Plastics Charpy Impact Testing Machine
GB/T 18743-2002 Charpy Impact Test Method for Fluid Transport Via Thermoplastic Pipe (Suitable for pipe pieces)
| Item | Charpy Impact | Izod Impact |
| Pendulum energy | 1J, 2J, 4J, 5J | 1J, 2.75J, 5.5J |
| Pendulum angle | 150° | |
| Blade angle | 30° | |
| Blade front angle | 5° | |
| Blade back angle | 10° | |
| Impact speed | 2.9m/s | 3.5m/s |
| Impact center distance | 221mm | 335mm |
| Blade filleted radius | R=2mm±0.5mm | R=0.8mm±0.2mm |
|
Energy loss |
0.5J ≤4.0J 1.0J ≤2.0J 2.0J ≤1.0J ≥4.0J≤0.5J |
2.75J ≤0.06J 5.5J ≤0.12J |
|
Pendulum torque |
Pd1J=0.53590Nm Pd2J=1.07180Nm Pd4J=2.14359Nm Pd5J=2.67949Nm |
Pd2.75J=1.47372Nm Pd5.5J=2.94744Nm |
| Print out | Capacity. Angle, energy, etc. | |
| Power supply | AC220V±10% 50HZ | |
