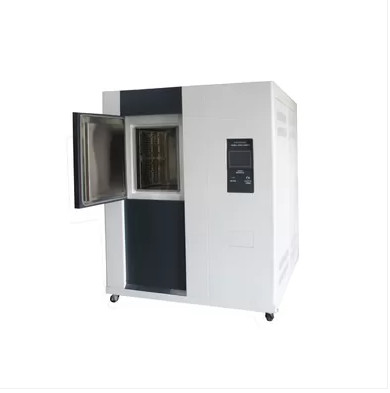

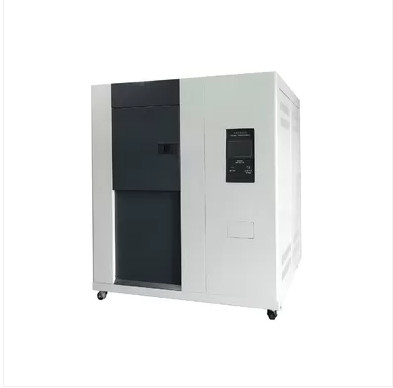

LIYI Single Door Thermal Shock Test Equipment Touch Screen Thermal Shock Chamber
Single Door Stainless Steel Plate 3-Zone Thermal Shock Chamber Thermal Test Equipment is metal, plastic, rubber, electronics and other industries necessary testing equipment. For the continuous exposure to extremely high temperature, very low temperature environment, instant exposure of the material structure or composite material tolerance, can be detected in the shortest possible time due to thermal expansion and contraction caused by chemical or physical damage.
Single Door Stainless Steel Plate 3-Zone Thermal Shock Chamber Thermal Test Equipment meets today's environmental stress screening requirements and is proven in installations around the world. It's an economical way to achieve ESS or thermal shocks for rapid component temperature changes.
The thermal shock chamber of this type is provided with three dampers, i.e., one for opening or closing the gas outlet and intake of the high-temperature air conditioning unit, another for the air outlet and inlet of the outside air supplying unit, and another for the gas outlet and intake of the low-temperature air conditioning unit.
1. Aluminum sheet is used to verify the load capacity of the machine.
2. Can execute low temperature 0 degree impact and save electricity.
3. Can perform tin whisker test for lead-free process
4. At the end of the test, the product to be tested automatically returns to normal temperature to avoid frosting.
|1. High Temp.chamber||+20℃ ～ +180℃|
|2. High temp.chamber heat up time||+20℃ ～ +180℃ 56min no load|
|3. Low Temp.chamber||-10℃ ～ -65℃|
|4. Low Temp.chamber pull down time||-10℃ ～ -65℃ 57min no load|
|6. Humidity constancy||±0.5℃|
|1. Chamber size||W 400 × H 500 × D 400 mm (can customize)|
|2. Exterior size||About W 1700 × H 1820 × D 1850 mm|
|3. Chamber Structure||Have independent product test area, high temperature regenerative zone, low temperature storage area|
|4. Interior material||Stainless Steel Plate(SUS 304#)|
|5. Exterior material||Steel Paint|
|6. Insulation material||
High Temp.chamber:24k Glass fibre wool
Low Temp.chamber:PU Foam+Glass fibre wool
|7. Heater||Open wire electric heater|
8. Supply air
b.Stainless steel plate lengthened axle
|9. Chamber Door||
a. Plane embedded handle
b. Back button: SUS 304#
c. Silicone foam strip
Germany Bock Semi-hermetic compressor or
Germany Semi-hermetic compressor
|2. Refrigerant||R404A/R23 ,safe and no ozone damage|
|3. Condenser||Shell and tube condenser ( water cooled )|
|4. Evaporator||High efficiency fin type auto load adjusted evaporator, no frost for long time operation.|
|5. Other Accessories||
High-precision expansion valve, oil separator, desiccant, etc. components
are imported using internationally renowned brands
Automatic adjustment of energy consumption output of the
|7. Refrigeration Technology||
Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.
water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.
Since the cold chamber need huge cooling capacity for shocking, the chamber’s cooling mode is often designed as air-cooled or water-cooled.
Air-cooled type need installation environment:
The room must be equipped with exhauster and air conditioner to make sure heat dissipation timely.
It’s applied to small power products and cool areas.
Water-cooled type need installation conditions:
The customer must prepare water pipe and water tower (located outside) accordingly.
The water must be pure, or it will block the pipes and result in some maintenance trouble with time going.
It’s often applied to large system with the features of better heat dissipation, longer service time, low noise but slightly higher price if count the fee of water tower and water pipes.
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
We offer below business term:
|Accepted Delivery Terms:||FOB, CFR, CIF, EXW, DDP|
|Accepted Payment Currency:||USD, EUR, HKD, CNY|
|Accepted Payment Type:||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow|
|Nearest Port:||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired|
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
