Composite Salt Spray Test Machine PID / LCD Touch Screen 220V 50HZ
1 Set
Composite Salt Spray Test Machine PID / LCD Touch Screen 220V 50HZ
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-609
High Light:

220V Salt Spray Test Machine


LCD Touch Screen Salt Spray Test Machine


PID Salt Spray Test Chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Design Standard: CNS3627,3885,4159,7669,8886/ JIS D-0201/ ISO3768/ ASTM B-117
Test Chamber Volume: 108L/270L/600L/700L/1000L Or Custom Made
Spray Quantity: 1.0~2.0ml/ 80cm2/h
PH: 6.5~7.2/ 3.0~3.2
Power: 220V 50HZ
Test Chamber Temperature: NSS.ACSS 35°C±1°C/ CASS 50°C±1°C
Saturated Air Cylinder Temperature: NSS.ACSS 47°C±1°C/ CASS 63°C±1°C
Controller: PID Or LCD Touch Screen
Keyword: Salt Spray Test Machine
Standard: ASTM ISO EN JS
Product Description

Liyi Salt Spray Composite Test Chamber Price Salt Spray Test Machine


Liyi salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.

Liyi salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.


1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.

2. Controller is digital type microcomputer which delivers precision temparature.

3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.

4. Test specifications are accept worldwild.






Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Design standard

GB/T 10587-2006, GB/T 10125-1997,

JIS-D0201, H8502, H8610, K5400, Z2371

Test chamber capacity(L) 108L 270L 600L 750L 1000L



Test chamber NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Saturated air cylinder NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Test chamber size


60*45*40 90*60*50 1200*1000*500 1500*1000*500 2000*1000*500
Max capacity of test liquid(L) 15 25 40 40 40
Power AC220V,10A AC220V,15A AC220V, 30A AC220V, 30A

AC220V, 30A

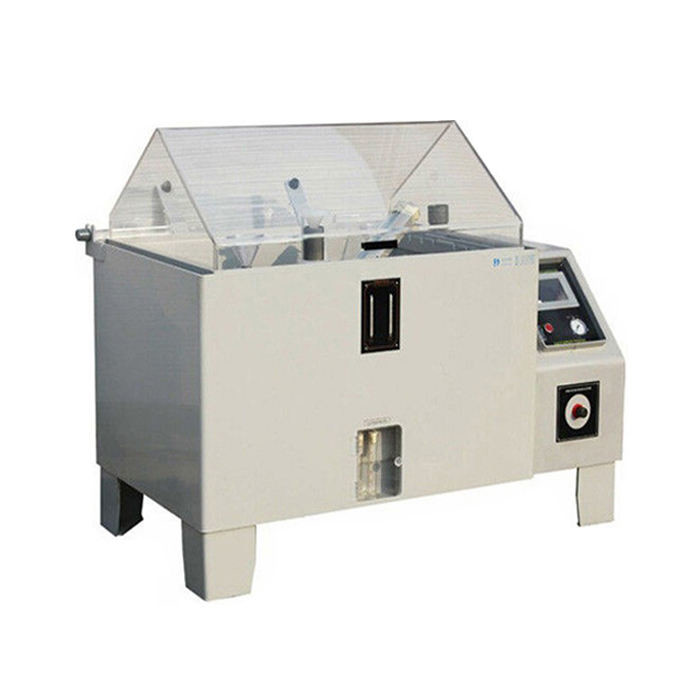

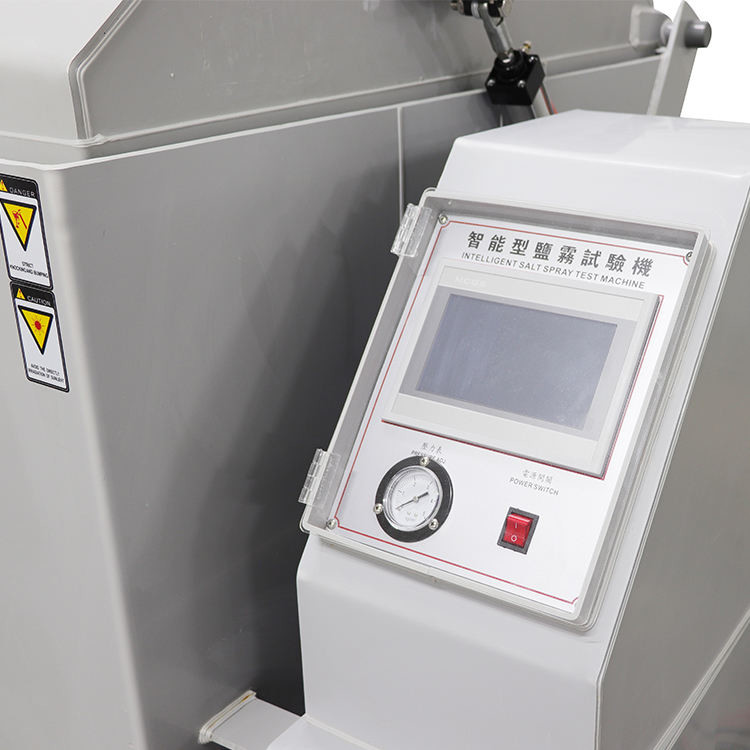

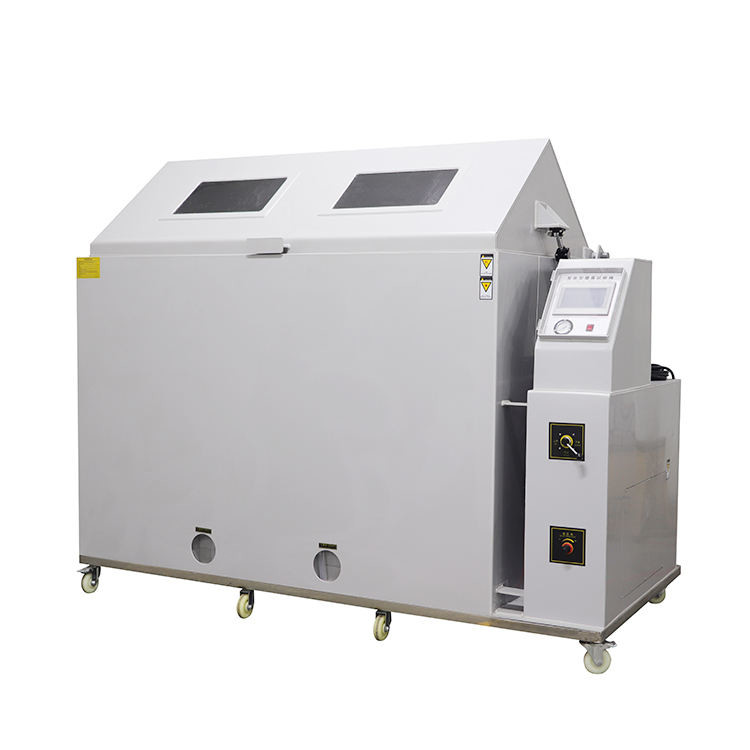

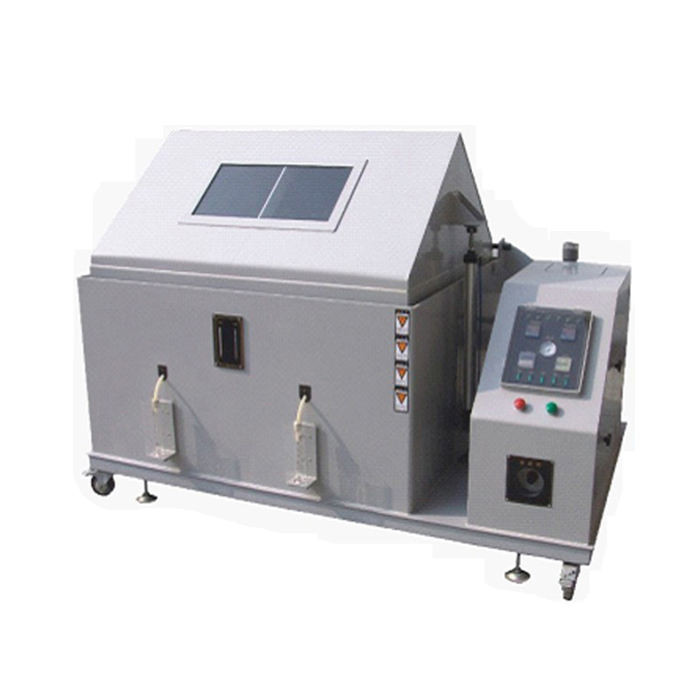

Composite Salt Spray Test Machine PID / LCD Touch Screen 220V 50HZ 0Composite Salt Spray Test Machine PID / LCD Touch Screen 220V 50HZ 1Composite Salt Spray Test Machine PID / LCD Touch Screen 220V 50HZ 2Composite Salt Spray Test Machine PID / LCD Touch Screen 220V 50HZ 3


Our service:

During the whole business process, we offer Consultative Selling service.


1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.

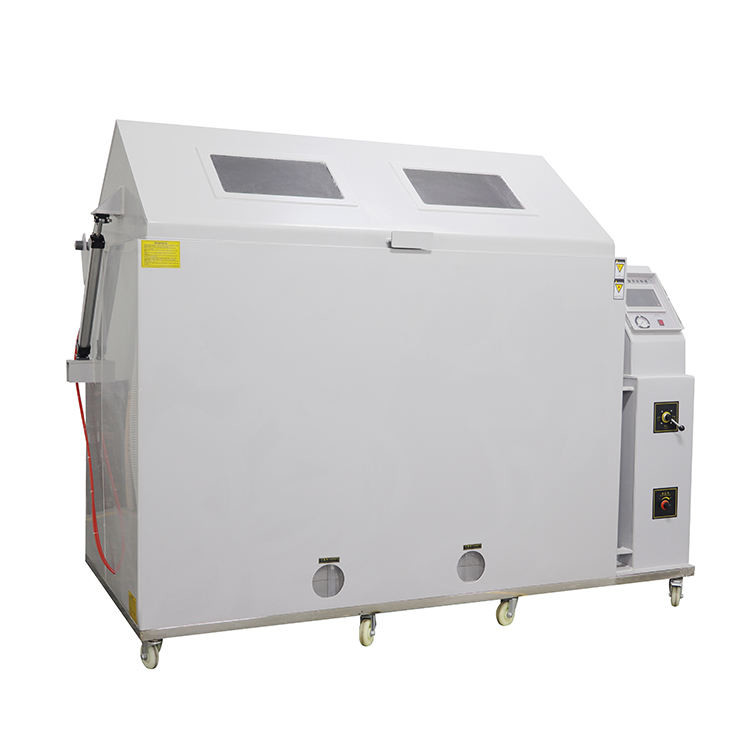

Composite Salt Spray Test Machine PID / LCD Touch Screen 220V 50HZ 4
