Home /Products/Salt Spray Test Chamber/LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing

LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing

1
MOQ
LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: 220V 50Hz
Voltage Options: 110 V, 240 V, 380 V, 220 V
Protection Class: IP56
Test Chamber Capacity: 108L, 270L, 600L, 750L, 1000L
Spray Quantity: 1.0~2.0ml/80cm2/h
PH Range: 6.5~7.2, 3.0~3.2
Test Chamber Temperature: NSS.ACSS 35°C±1°C, CASS 50°C±1°C
Saturated Air Temperature: NSS.ACSS 47°C±1°C, CASS 63°C±1°C
Test Chamber Size: 60*45*40cm, 90*60*50cm, 120*100*50cm, 150*100*50cm, 200*100*50cm
Max Liquid Capacity: 15L, 25L, 40L
Power Consumption: AC220V,10A; AC220V,15A; AC220V,30A
Spray Nozzle Type: Bo Nute Principle
Controller Type: Digital Microcomputer
Display Parameters: Temperature, Humidity, Pressure, Spray Capacity, Time
Design Standard: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Highlight:

480L Salt Spray Test Chamber

,

IP56 Protected Cyclic Corrosion Test Chamber

,

220V Salt Spray Test Chamber
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: liyi
Payment & Shipping Terms
Product Description
LIYI 108L 270L 480L Corrosion Salt Water Spray Testing Machine
The LIYI salt spray test machine evaluates the corrosion resistance of iron metals and their inorganic or organic coatings, including electroplating, anodizing, conversion coatings, and paints. This accelerated corrosion test predicts the protective finish's suitability by analyzing corrosion product formation over time.
Key Features
  • Bo Nute Principle spray nozzle prevents saline crystallization while creating fine atomization
  • Digital microcomputer controller ensures precise temperature regulation
  • Clear display shows temperature, humidity, pressure, spray capacity, and test duration
  • Complies with international testing standards worldwide
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Test chamber capacity (L) 108L 270L 600L 750L 1000L
Temperature range NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Chamber dimensions (L×W×D cm) 60×45×40 90×60×50 120×100×50 150×100×50 200×100×50
Test liquid capacity (L) 15 25 40 40 40
Power requirements AC220V, 10A AC220V, 15A AC220V, 30A AC220V, 30A AC220V, 30A

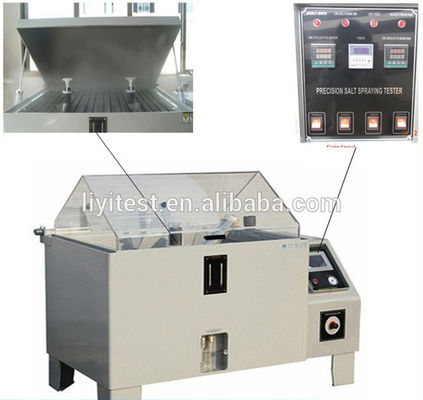

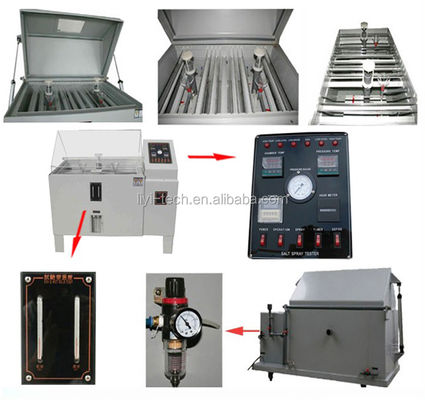

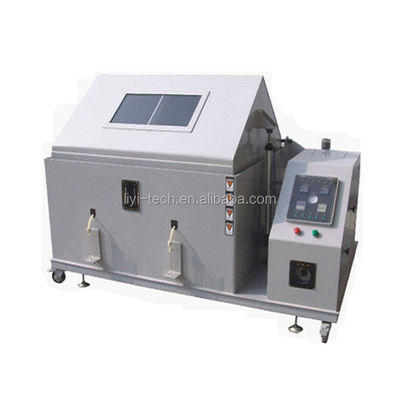

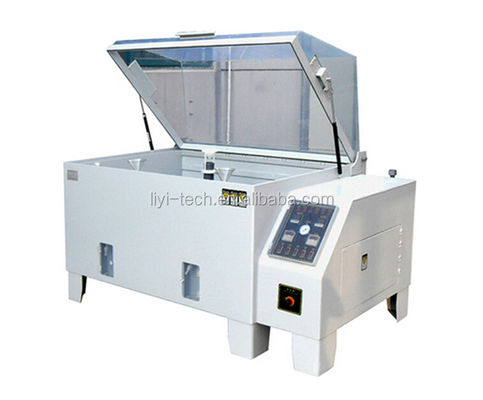

Product Images
LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing 0 LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing 1 LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing 2
Manufacturer Information
Dongguan Liyi Environmental Technology Co., Ltd specializes in developing and manufacturing environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries, offering comprehensive testing solutions for various industries.

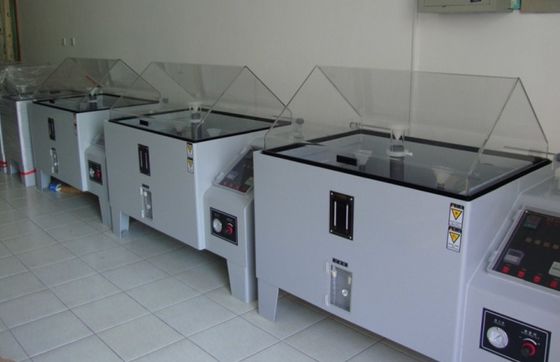

LIYI 480L IP56 Protected 220V Salt Spray Test Chamber Cyclic Corrosion Test Chamber for Corrosion Resistance Testing 3
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of environmental testing equipment. All machines include 12 months warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and technical support within 24-48 hours of problem identification.
2. What is the delivery time?
Standard machines typically ship within 15-20 working days after deposit. We can expedite production for urgent orders.
3. Do you offer customization and OEM services?
Yes, we provide both standard and customized machines, including OEM/ODM services with client branding.
4. How do I install and use the machine?
Most machines ship fully assembled - simply connect power to begin operation. We provide English operation videos and can assist with on-site installation when necessary.
