Liyi IPX1~4 IP Resistance Tester Waterproof Test Rain Spray Test Equipment
The Liyi IP test equipment is designed according to international standards including IEC60529, IEC 60598, GB2423.37-89, GB 4208-93, GB/T 4942.2-93, GB 7000.1-1996, GB 7001-1986, DIN40050 and IP5K0. This equipment is specifically applied for IP5X and IP6X testing of LED luminaires and other lighting products.
Specifications
| Product Name |
Liyi IP Test Equipment |
| Internal Dimensions (mm) |
900*900*900 D*W*H (customizable) |
| Overall Dimensions (mm) |
1120*1460*1660 D*W*H (customizable) |
| Oscillating Tube Radius |
400mm |
| Spraying Hole Diameter |
φ0.4mm |
| Hole Spacing |
50 mm |
| Oscillating Tube Range |
±45°, ±60°, ±90°, ±180° (theoretical value) |
| Turntable Rotation Speed |
1r/min, or stepless speed regulating (optional) |
| Controller |
Programmable color display touch screen controller, PC Link with software, R-232 interface |
| Water Pressure Control |
Flow meter |
| Observation Window |
Large viewing window with wiper |
| Water Supply System |
Storage water tank, booster pump, automatic water supply, water purification system, water saving |
| Safety Protection Device |
Electric leakage, short circuit, motor overheating, over-current protection |
| Interior Material |
SUS304 Stainless steel |
| Exterior Material |
Steel plate with protective coating |
| Power Supply |
380V, 50HZ |
| Standard |
ISO 20653, IEC 60529 |

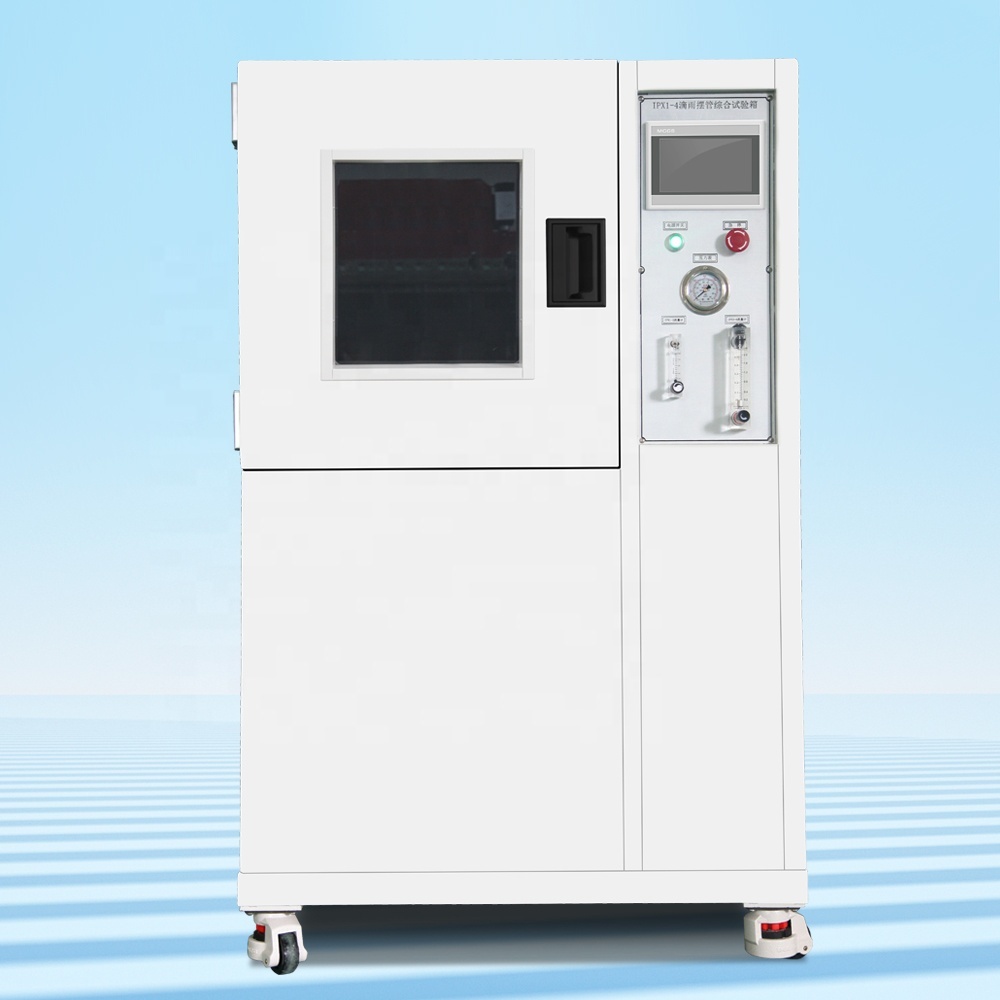

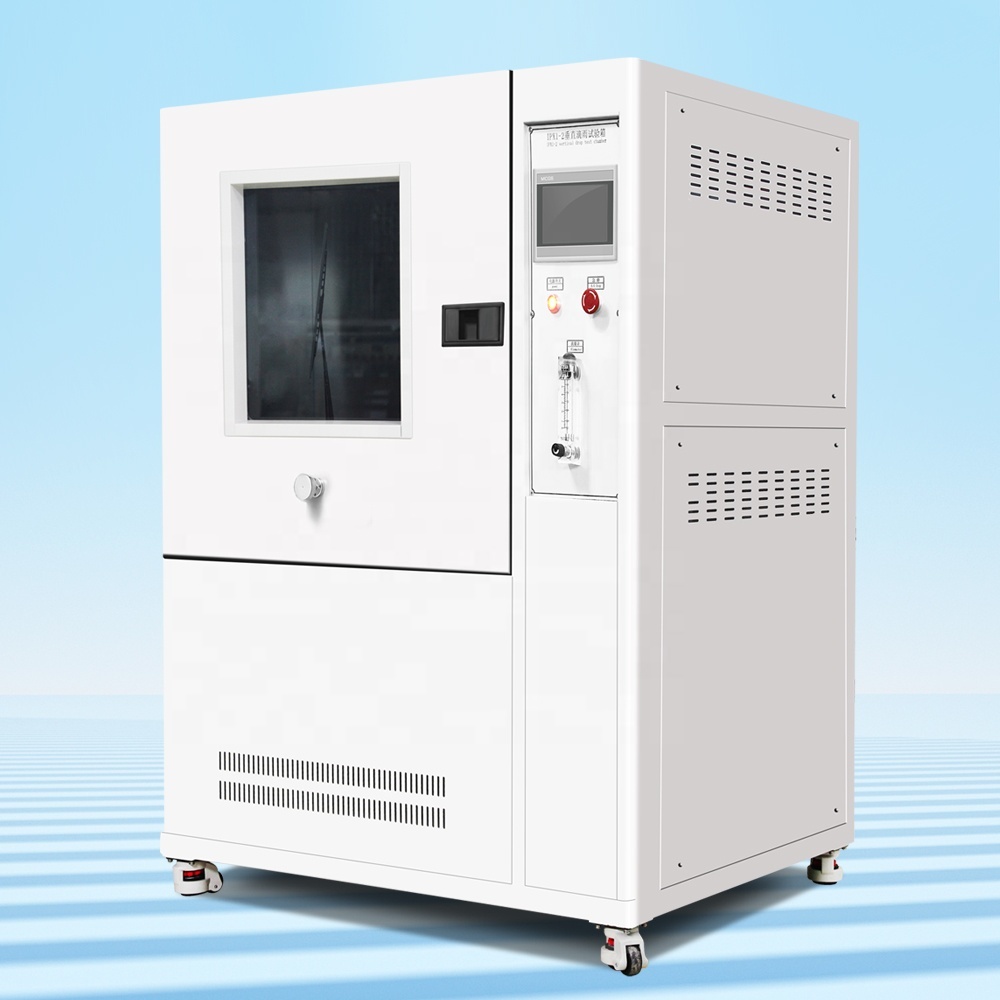

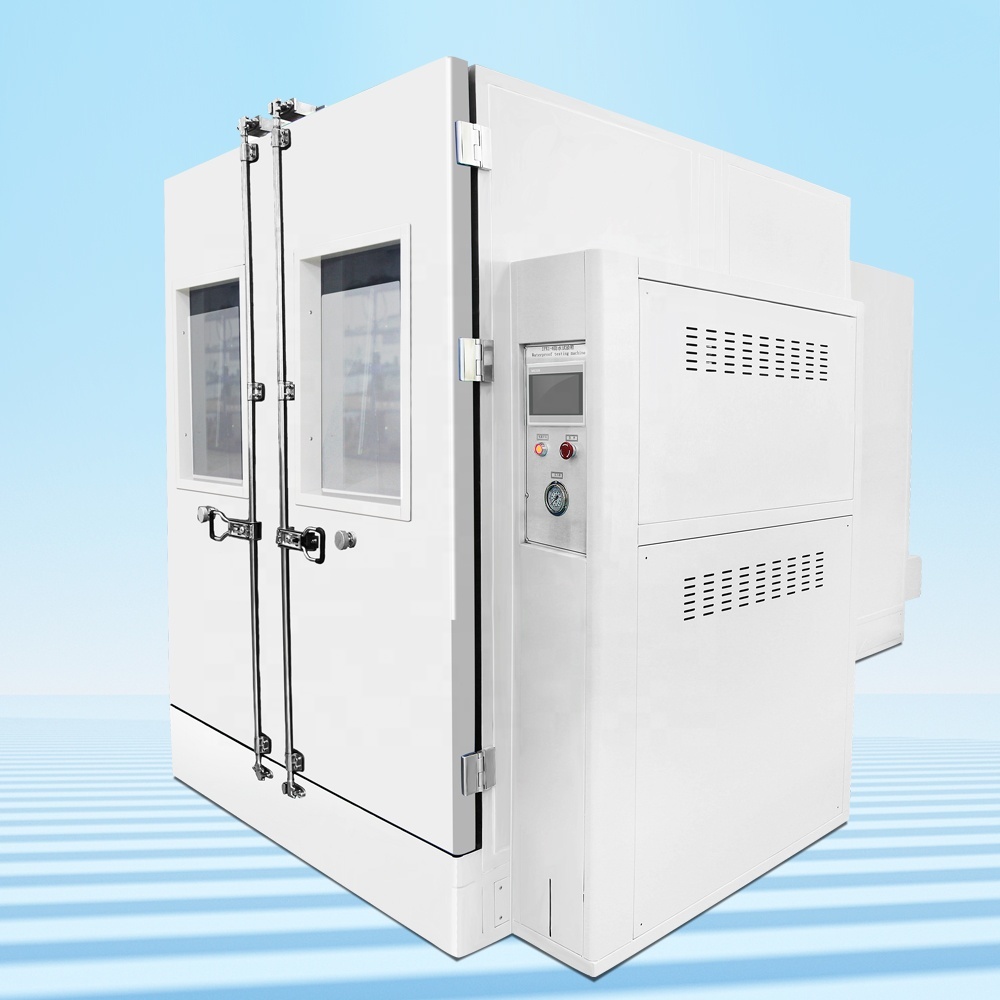

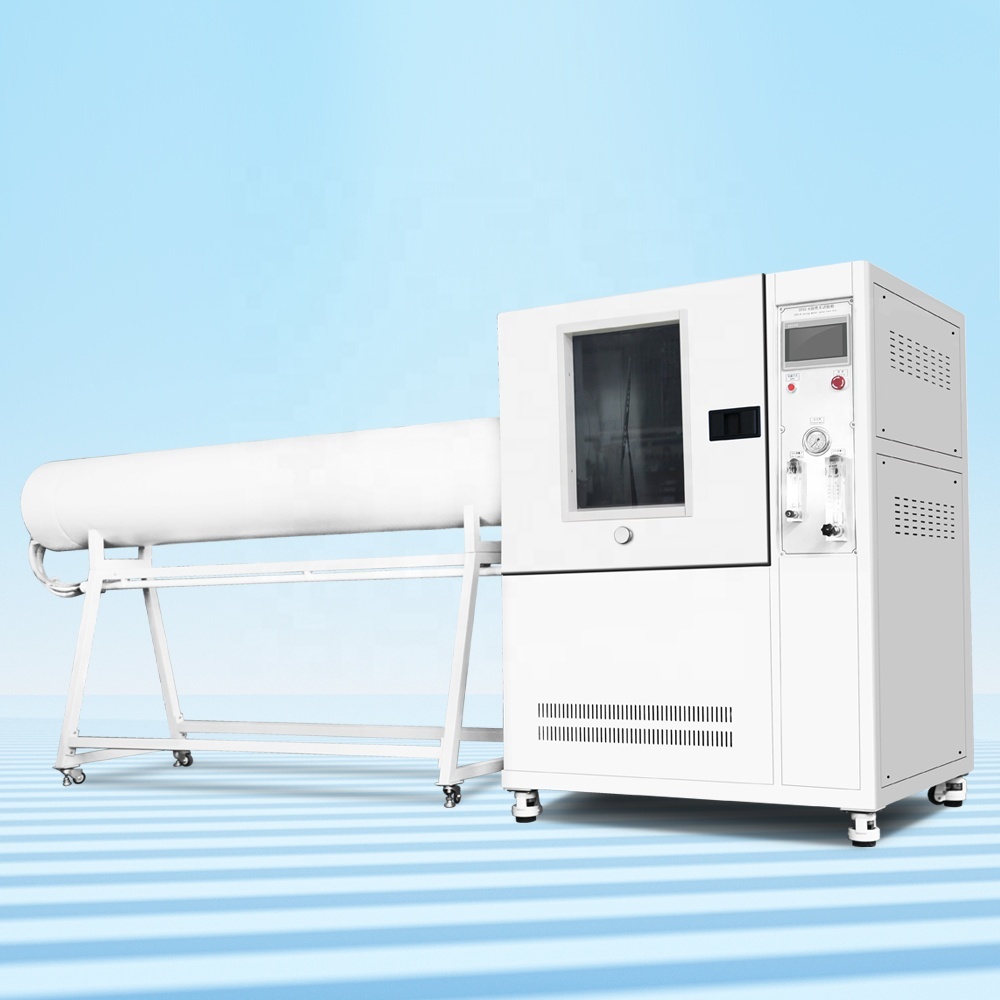

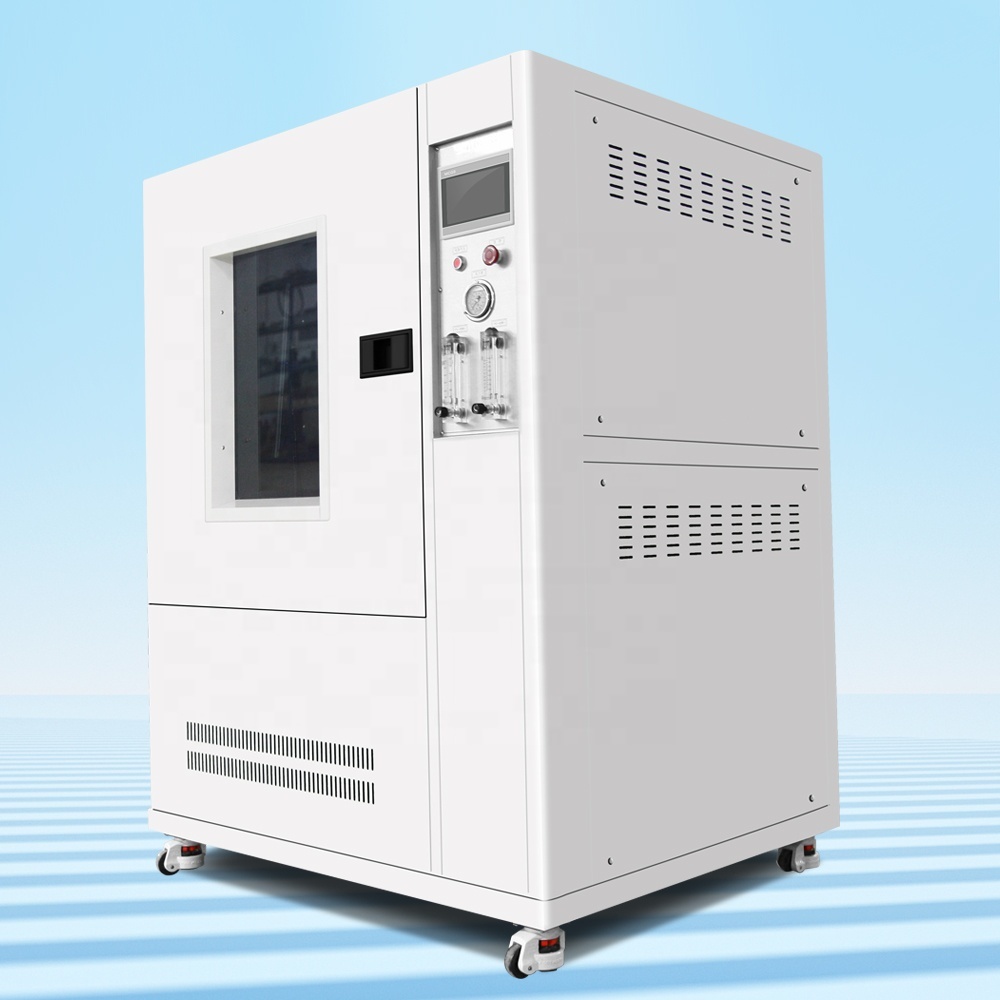

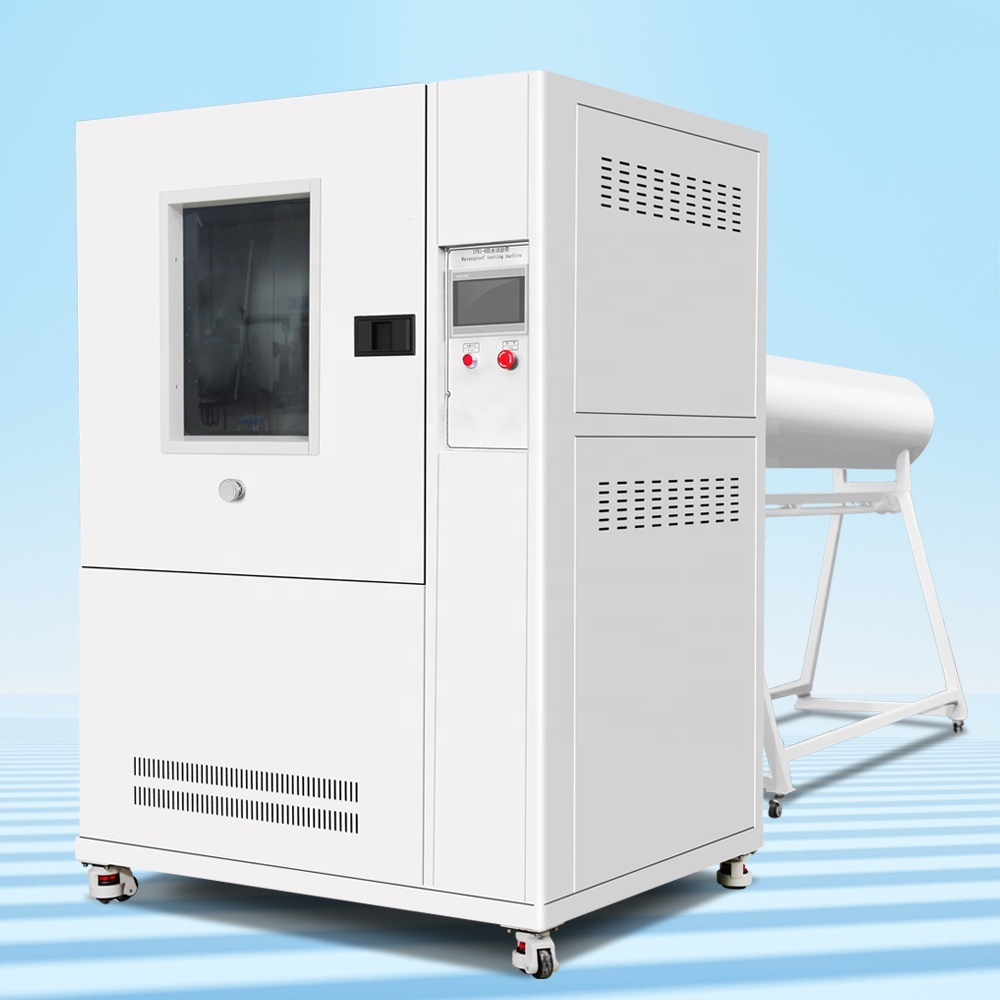

Product Images
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced technical personnel, and efficient professional service staff, we maintain fine quality management and a perfect after-sales service system.
Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province for Eastern China marketing and servicing. We serve customers from over 150 countries and regions, committed to helping customers establish testing labs to ensure product quality.
Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of environmental testing equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment, with free maintenance during this period. For overseas customers, we extend this to 14 months considering sea transportation time. If your machine requires service, you can contact us via email or phone, and we will provide solutions within 24 to 48 hours.
2. What's the delivery term?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can make special arrangements for urgent orders.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to customer requirements, including OEM and ODM services with your logo on the equipment.
4. How can I install and use the machine?
We provide English operation videos via email after purchase. Most machines are shipped fully assembled - you only need to connect the power cable to begin use. If necessary, we can assist with on-site installation.
