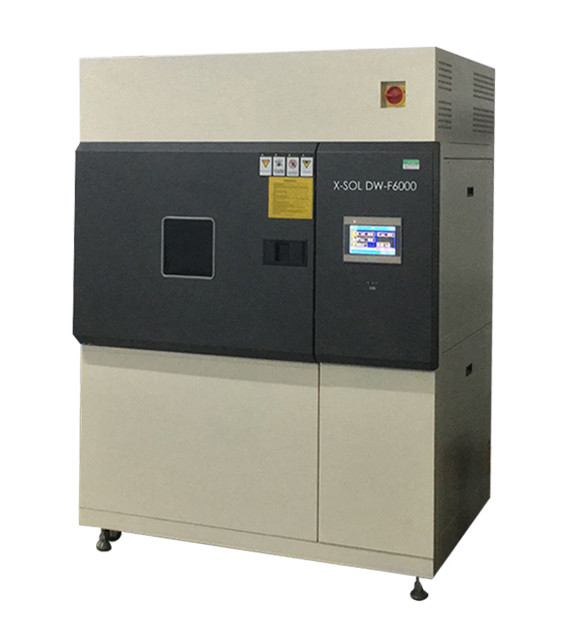

Accelerated UV Aging Chamber Stainless Steel UV Weathering Test Chamber
1Set
MOQ
10000~50000USD
Price
Accelerated UV Aging Chamber Stainless Steel UV Weathering Test Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-XD
High Light:

aging test machine

,

accelerated weathering tester

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets/month
Specifications
Temperature Range: RT~100℃
Humidity Range: 30%~95%
Xenon Lamp: 3PCS
Wavelength: 280~800nm
Irridiance: 550~1200W/m2
Material: Inner Stainless Steel
Controller: PLC
Cooling: Air Cooled
Product Description

Xenon Arc Lamp Accelerated Aging Test Chamber / Xenon Lamp Weathering Test Chamber



       Xenon Arc Lamp Accelerated Aging Test Chamber / Xenon Lamp Weathering Test Chamber is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;



Accelerated UV Aging Chamber Stainless Steel UV Weathering Test Chamber 0



Standards:

GB/T16422-2,GB/T1865-97,GB/T9344-88,ASTMG155,GB/T16422.2,GB/T2423.24-1995,ISO10SB02/B04,SAEJ2527,SAEJ2412



Features:

1. Inner chamber is made of advance stainless steel pate , outside skin is made of SUS304# stainless steel card pate .
2. Dynamic rotating sample frame, speed can be adjusted.
3. Using the imported intelligence temperature control instrument, with the PID adjustment ,fast auto-tuning ,can set up many kinds of technical parameters. Temperature direct digital display, reading is very convenient.
4. A filter light observation window, harmful gas vents.
5. Double metal the blackboard thermometer.
6. Variety of safety protection devices.



Accelerated UV Aging Chamber Stainless Steel UV Weathering Test Chamber 1

Accelerated UV Aging Chamber Stainless Steel UV Weathering Test Chamber 2



Specifications:

Test Chamber Size D×W×H(cm) 50x75x50 (All size customize)
Temperature range

Blackboard: 40~80℃(adjustable)

Test chamber: 35~60℃(adjustable)

Humidity range

Light cycle 20%~65% R.H

Dark cycle :50%~95%

Water spray time 1 to 9999min, abjustable
Wavelength

280nm ~ 800nm @ full spectrum

340nm, 420nm, 300-400nm optional

light source Full spectrum xenon lamp
Xenon lamp power 2.5 KW air cooled or 6KW water cooled (customize)





Accelerated UV Aging Chamber Stainless Steel UV Weathering Test Chamber 3



Accelerated UV Aging Chamber Stainless Steel UV Weathering Test Chamber 4





During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
