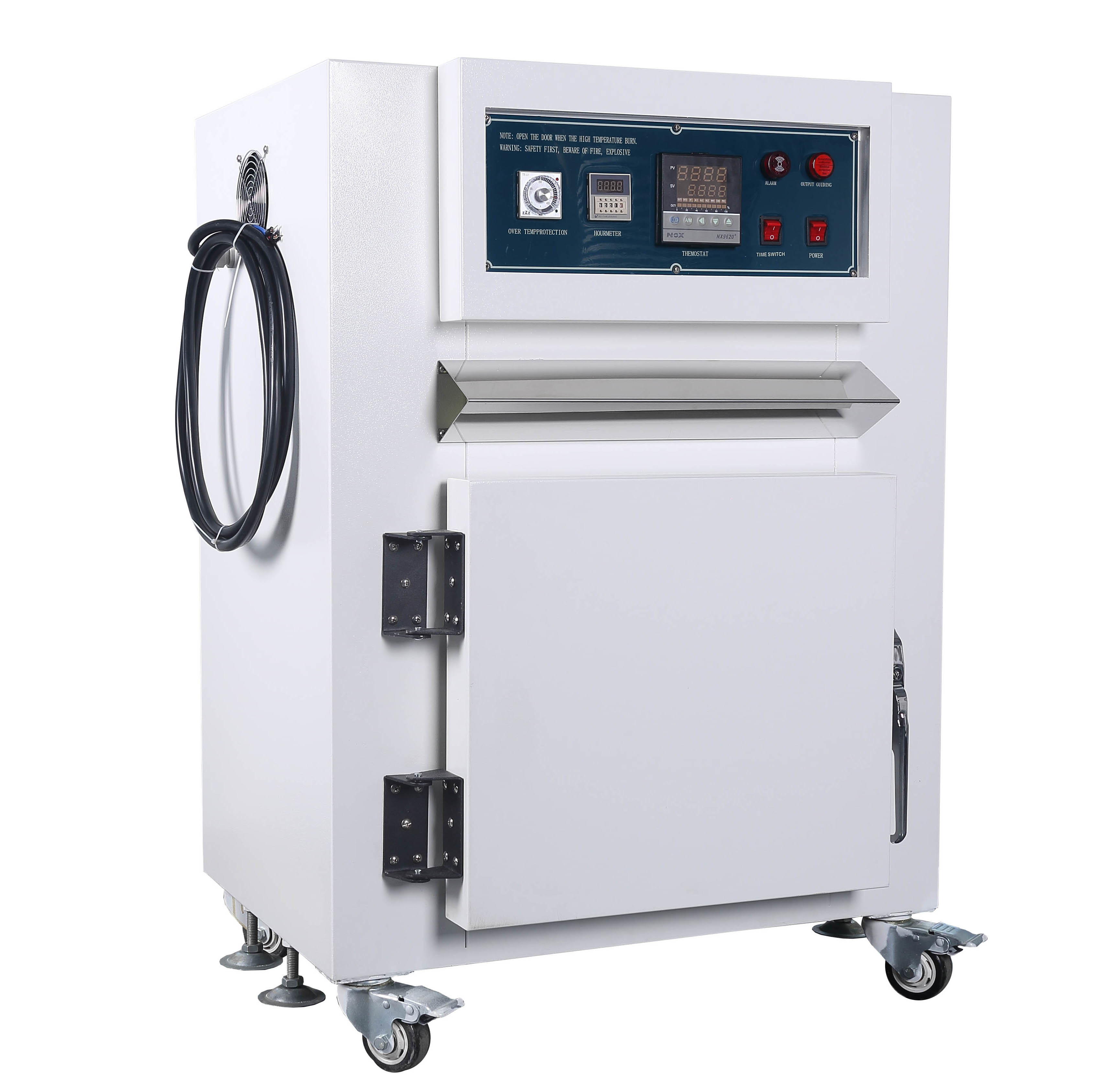

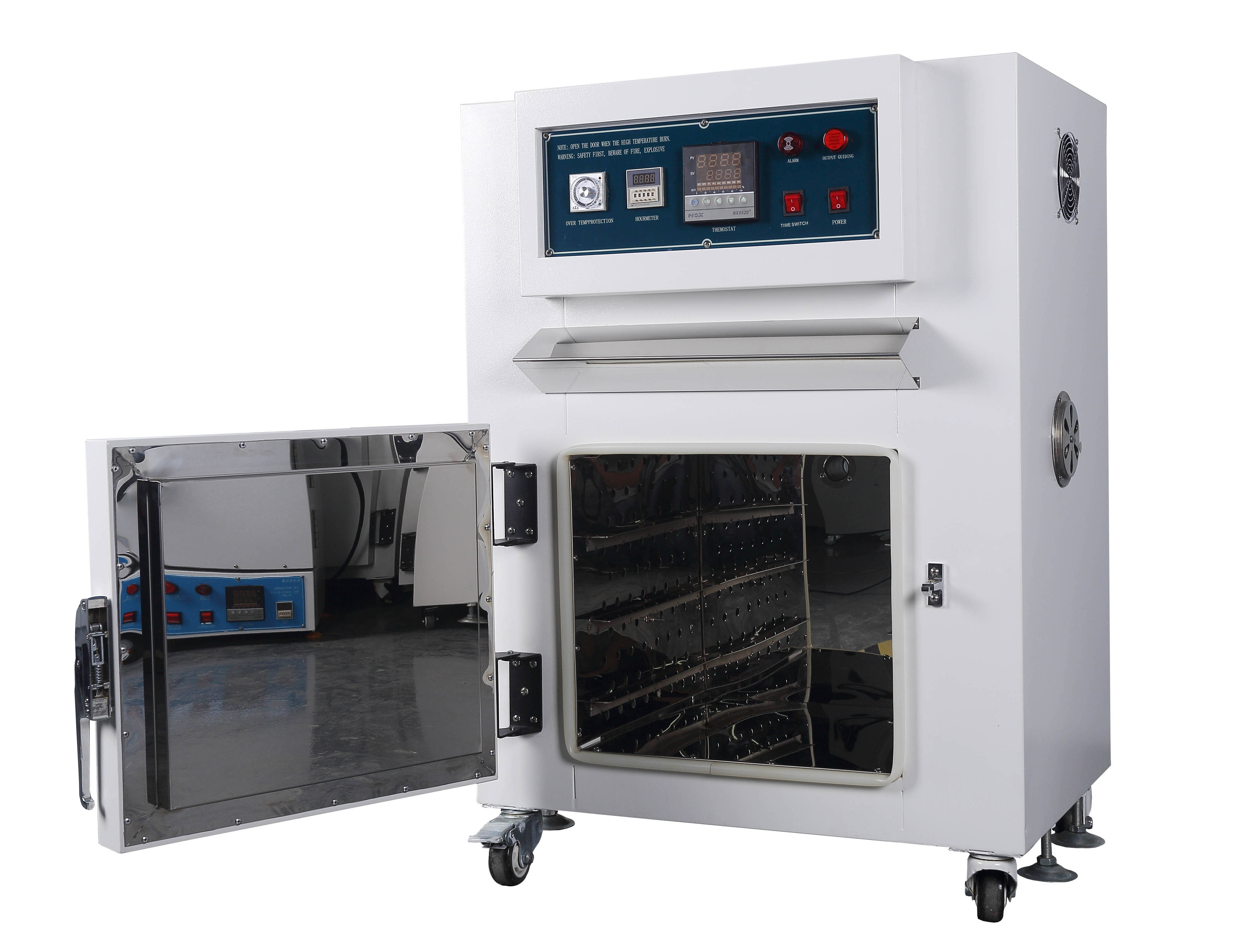

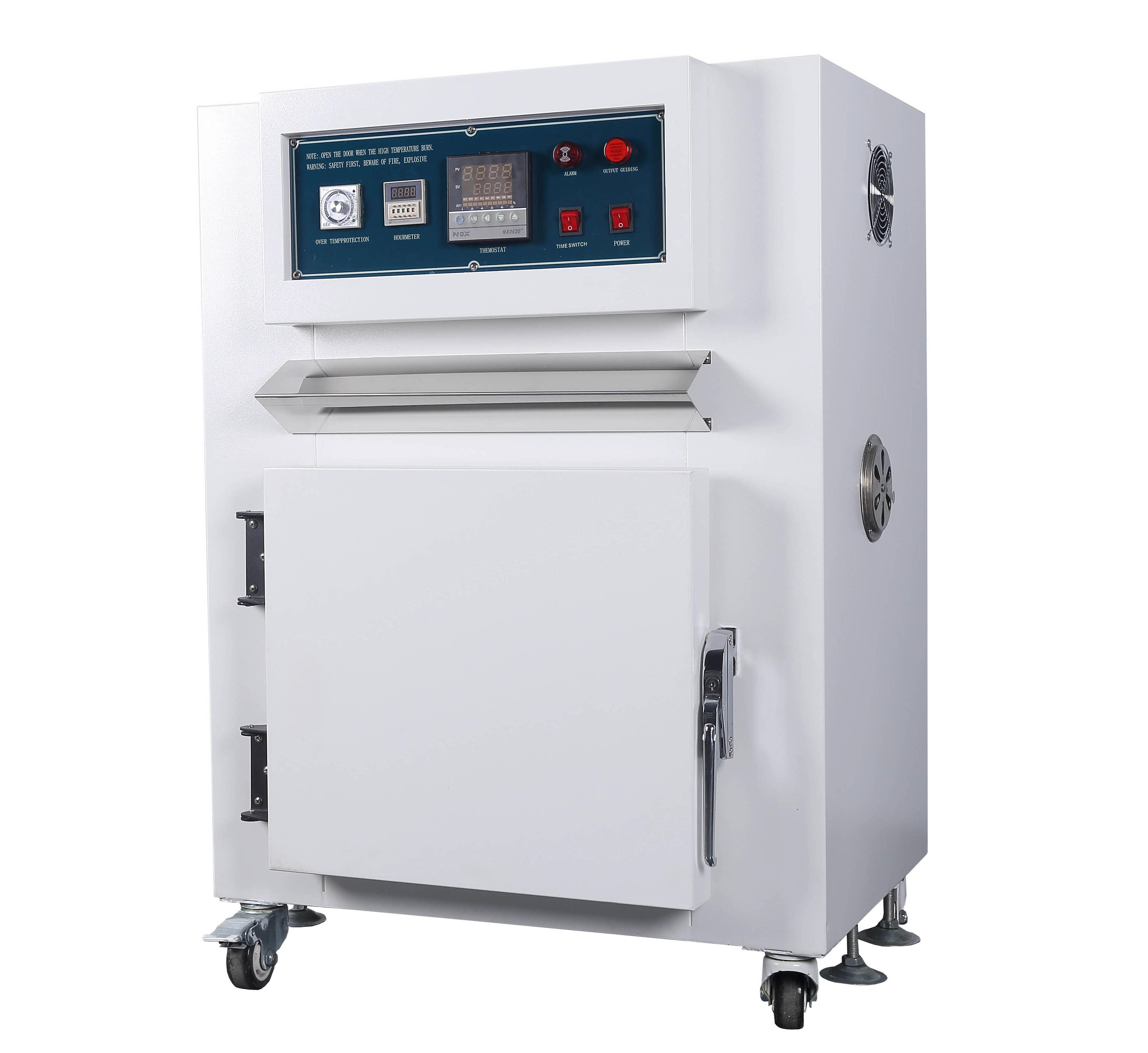

LIYI Small 72L Industrial Drying Oven 300 Degree Forced Air Drying Oven
Product description:
72L 300 Degree Heat Treatment Forced Air Circulation High Temperature Lab Oven Drying Oven can provide a stable testing space for pre-heating, drying, changes about physics and chemistry testing. It adopts precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution. It is applicable to a variety of products, materials, electric, instruments, meters, components, electronics, electricians and automobiles, aviations, plastics, machinery, chemicals, foods, chemicals, hardware tools for doing drying test and various constant adaptive tests at an constant temperature condition.
Characteristic:
1. The controller is located on the right part of the machine together with luxury stainless steel handle and explosion-proof lock .
2. Internal material is 304 SUS mirror stainless steel.All the internal material is low polluted and all internal barrels use argon arc welding.
3. External material is SECC steel plate witch is fine powder baking finished.
4. Heat preservation material for the imported high-density glass rock wool with perfect thermal insulation, maximize temperature heat preservation,use silica ge whitch can long time be under the high temperature of 500 degrees or above.
Customize parts:
1. Outer material stainless steel.
2. Temperature recorder.
3. PLC touch screen programmable controller
4. Automatic door switch.
5. Inner cart or stainless stell plate and layers.
6. External painted color.
7. Cable hole.
Other required parts.
Specifications:
| Model |
Inner Size W*H*D(cm) |
External Size W*H*D(cm)
|
Temperature Range(°C) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| LY-645 | 45×40×40 | 66×92×55 |
(A-D) A:200°C B:300°C C:400°C D:500°C
|
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| LY-660 | 50×60×50 | 70×125×65 | ±0.3 | ±1% | 4.5 | |||
| LY-690 | 60×90×50 | 80×156×65 | ±0.3 | ±1% | 5.5 | |||
| LY-6100 | 80×100×60 | 100×166×75 | ±0.3 | ±1% | 8 | |||
| LY-6120 | 90×120×60 | 110×186×75 | ±0.3 | ±1% | 10 | |||
| LY-6140 | 140×120×60 | 160×186×75 | ±0.3 | ±1% | 12 | |||
| LY-6160 | 160×140×80 | 180×206×97 | ±0.3 | ±1% | 14 | |||
| LY-6180 | 180×140×100 | 200×200×118 | ±0.3 | ±1% | 16 |
Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
