Reliability Climate Test Chamber Standard / Customized Solar Modules Test
1 Set
MOQ
4500~20000USD
Price
Reliability Climate Test Chamber Standard / Customized  Solar Modules Test
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-2408
High Light:

climate control chamber

,

environmental simulation chambers

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304# Stainless Steel
Volumn: 408L
Voltage: 3 Phase 380V
Warranty: 1 Year
Compressor: Tecumseh
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C/-70°C~150°C
Humidity Range: 20%~98% / 5%~98%
Product Description

Standard / Customized Reliability Environmental Climatic Test Chamber Temp Humidity Chamber For Solar Modules

      Standard / Customized Reliability Environmental Climatic Test Chamber Temp Humidity Chamber For Solar Modules is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.

Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

Specifications:

ModelLY-280LY-2150LY-2225LY-2408LY-2800LY-21000
Inner Size W×H×D(cm)40×50×4050×60×5050×75×6060×85×80100×100×80100×100×1000
External Size W×H×D(cm)93×155×95100×148×106117×166×118122×176×121158×186×148158×195×168
Volume(L)80 L150L225L408L800L1000L
Temp&Humi Control Range

Temp. Range: A: -20℃~100℃ humidity range: 20%~98%

B: -40℃~150℃

C: -70℃~150℃

(Other temperature and humidity range can be customized)

Temp&Humi Fluctuation±0.5℃;±2.5%RH
Temp&Hum Departure±0.5℃-±2℃;±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller Resolution±0.3℃;±2.5%RH
Controller BrandLCD touch screen controller
MaterialIn side wallSUS 304# stainless steel plate
HousingSteel plate surface fog processed or color painted
Heat Insulatorresistance to high temperature, high chlorine acid b vinegar foam insulation materials
Air Circulation Waycentrifugal fan-broadband type force air circulation
Refrigeration Waycascade type multiple refrigeration
Refrigeratorfully enclosed piston compressor Tecumseh France
RefrigerantsR4O4Aor American Dupont environmental protection cold media(R23+R404)
Condensing WayAir-cooling
Heaternickel chrome heating wire heater
Humidifiersemi-closed steam
Water Supply Wayautomatic cycle water supply
Standard Accessories

*50mm test hole on the left............................................................1PCS
*PL inner lamp................................................................................1PCS
*Adjustable clapboard.....................................................................2PCS
*Humidity cloth...............................................................................1Bag
*Fuses..............................................................................................3PCS
*Power line.......................................................................................1PCS
*Software CD....................................................................................1PCS
*Operation manual.............................................................................1PCS

Safety Devices

*Leakage current
*Overload
*Compressor overload
*Over temperature
*Ultra-wet/dry
*Humidification temperature protection.

PowerSingle phase 220V AC±10% 50/60HZ



What you will get:
1) Delicate touch and excellent user experience
2) Unique and compact design, top grade appearance, stable performance and easy operation.
3) Can simulate a wide range of temperature and humidity environments
4) Capable of testing large components, assemblies, and finished products
5) Customized sizes and configurations available
6) 1 year free warranty

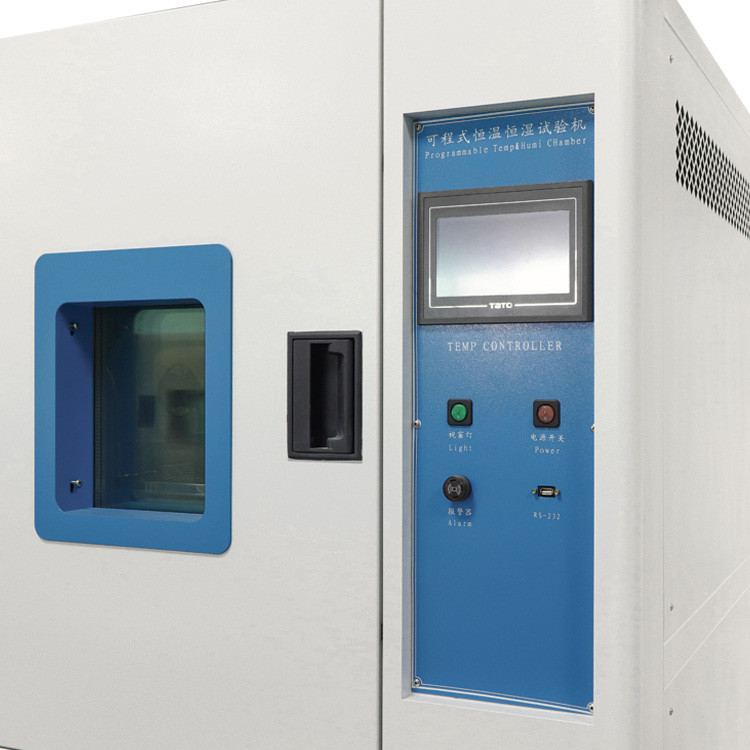

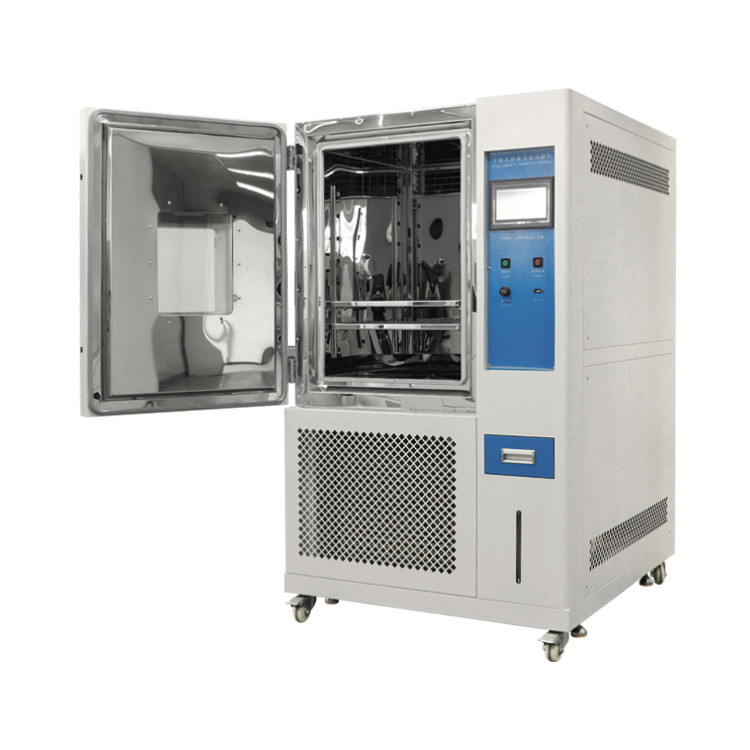

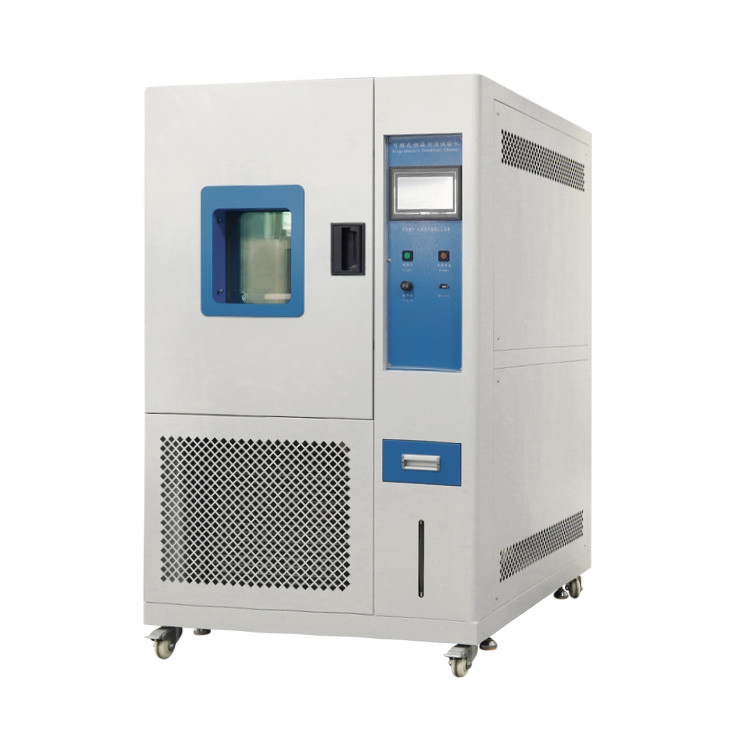

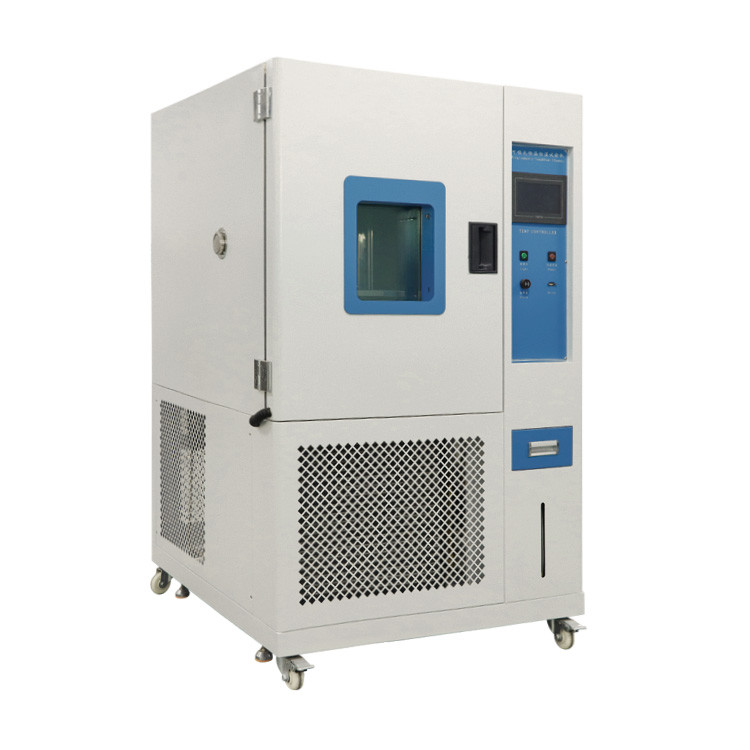

Reliability Climate Test Chamber Standard / Customized  Solar Modules Test 0
Reliability Climate Test Chamber Standard / Customized  Solar Modules Test 1

LIYI Showroom:

Reliability Climate Test Chamber Standard / Customized  Solar Modules Test 2
Reliability Climate Test Chamber Standard / Customized  Solar Modules Test 3
Reliability Climate Test Chamber Standard / Customized  Solar Modules Test 4



Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
