Climate Change Temperature And Humidity Chamber Automatic Cycling Water Supply
1 Set
Climate Change Temperature And Humidity Chamber Automatic Cycling Water Supply
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE ISO
High Light:

climate control chamber


temperature and humidity chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Temp. Range: -70/-40~150℃
Certificate: CE ISO
Power Supply: 220V 50Hz
Warranty: 1 Year
Fluctuation: ±0.5°C ±2.5%RH
Controller Accuracy: ±0.3°C ±2.5%RH
Capacity: 80L/150L/225L/408L/800L/1000L Or Customize
Customization: Acceptable
Product Description

Liyi Climate Change Temperature and Humidity Stability Chamber Environmental Chambers


Resist heat and resist cold test temperature and Humidity Cycle Chamber is for testing material heat, cold, dry resistance, humidity resistance. Manufactured samples, specimens, or components are placed inside the chamber and subjected to one or more of these environmental parameters to determine reliability or measure after-effects such as corrosion. In the case of machinery such as internal combustion engines, byproducts such as emissions are monitored.



Model LY-280 LY-2150 LY-2225 LY-2408 LY-2800

Inner Size


40×50×40 50×60×50 60×85×80 60×85×80 100×100×80
Volume (V) 80 L 150L 225L 408L 800L

Temp and Hum


A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C







Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)




±0.3°C ±2.5%RH
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Heater Nickel chrome heating wire heater
Humidifier Semi-closed steam and wet
Water Supplying Way Automatic cycling water supply

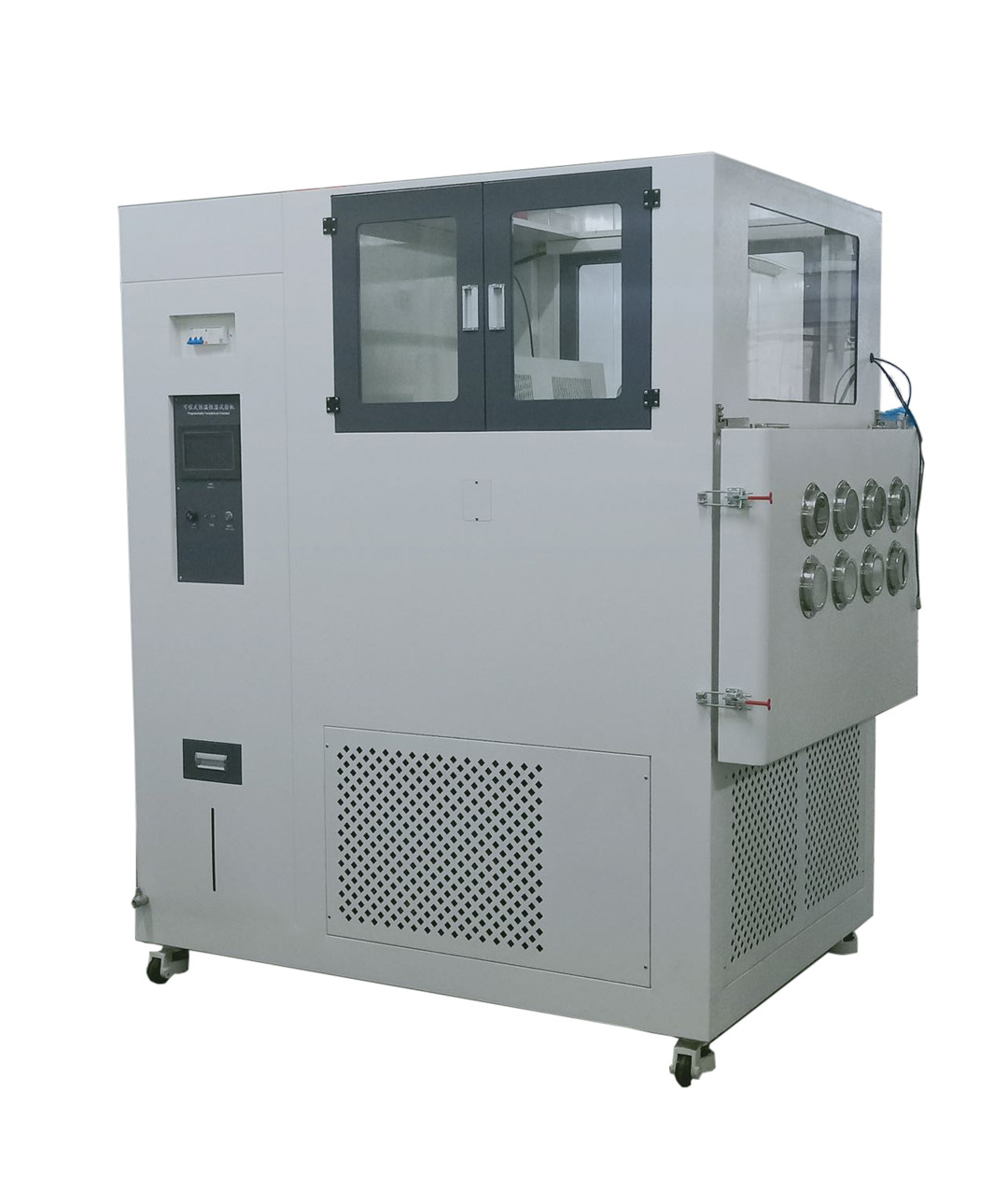

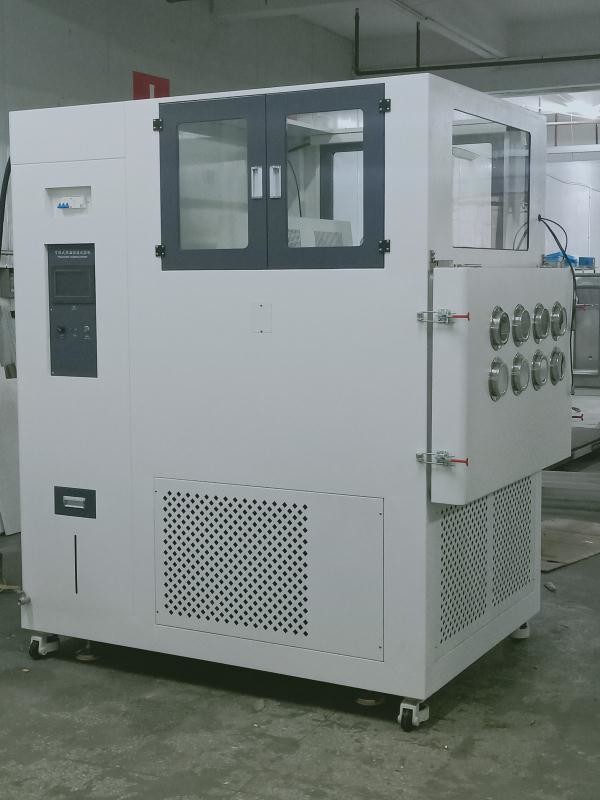

stability chamber.jpgClimate Change Temperature And Humidity Chamber Automatic Cycling Water Supply 1Climate Change Temperature And Humidity Chamber Automatic Cycling Water Supply 2

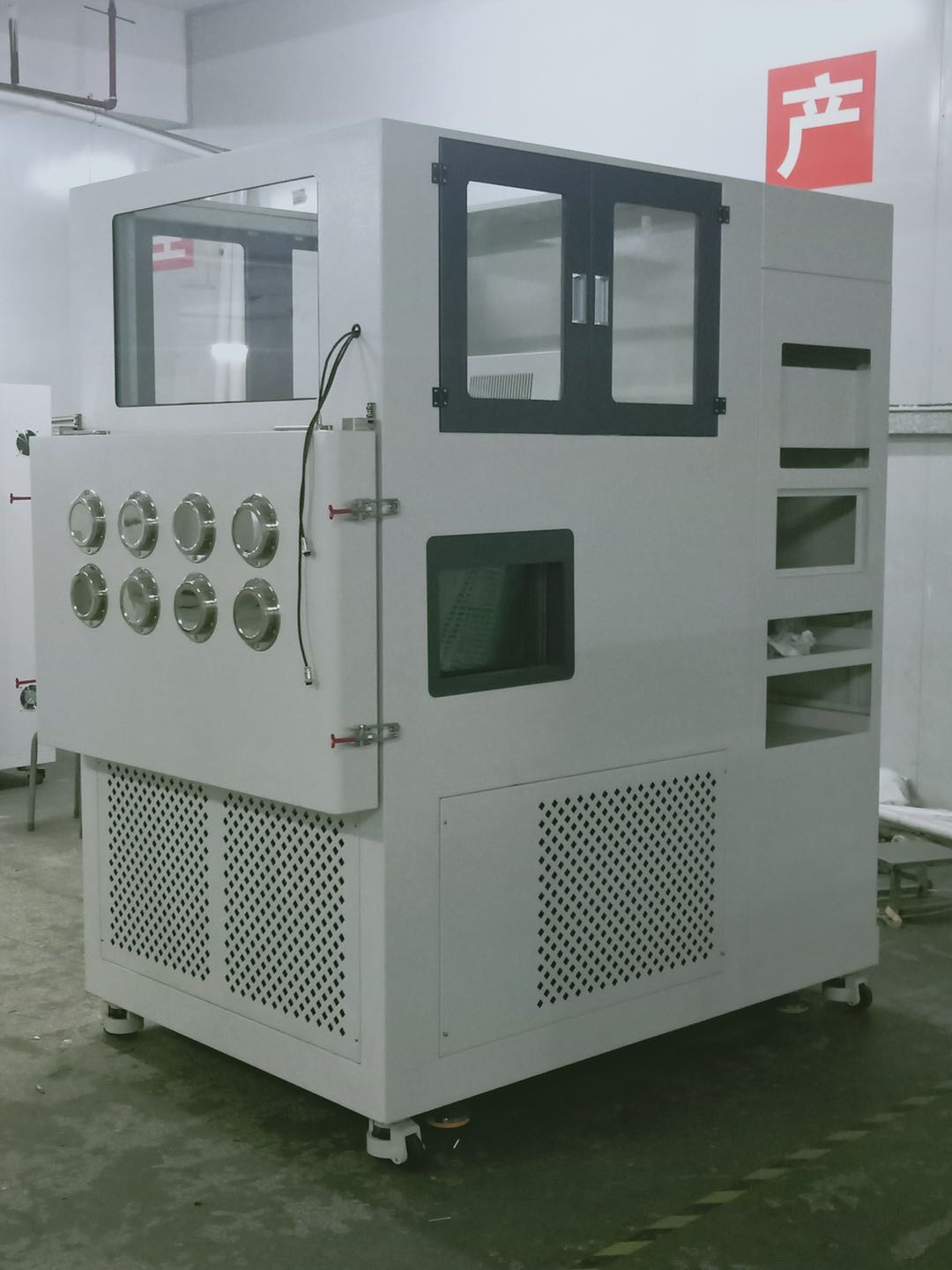

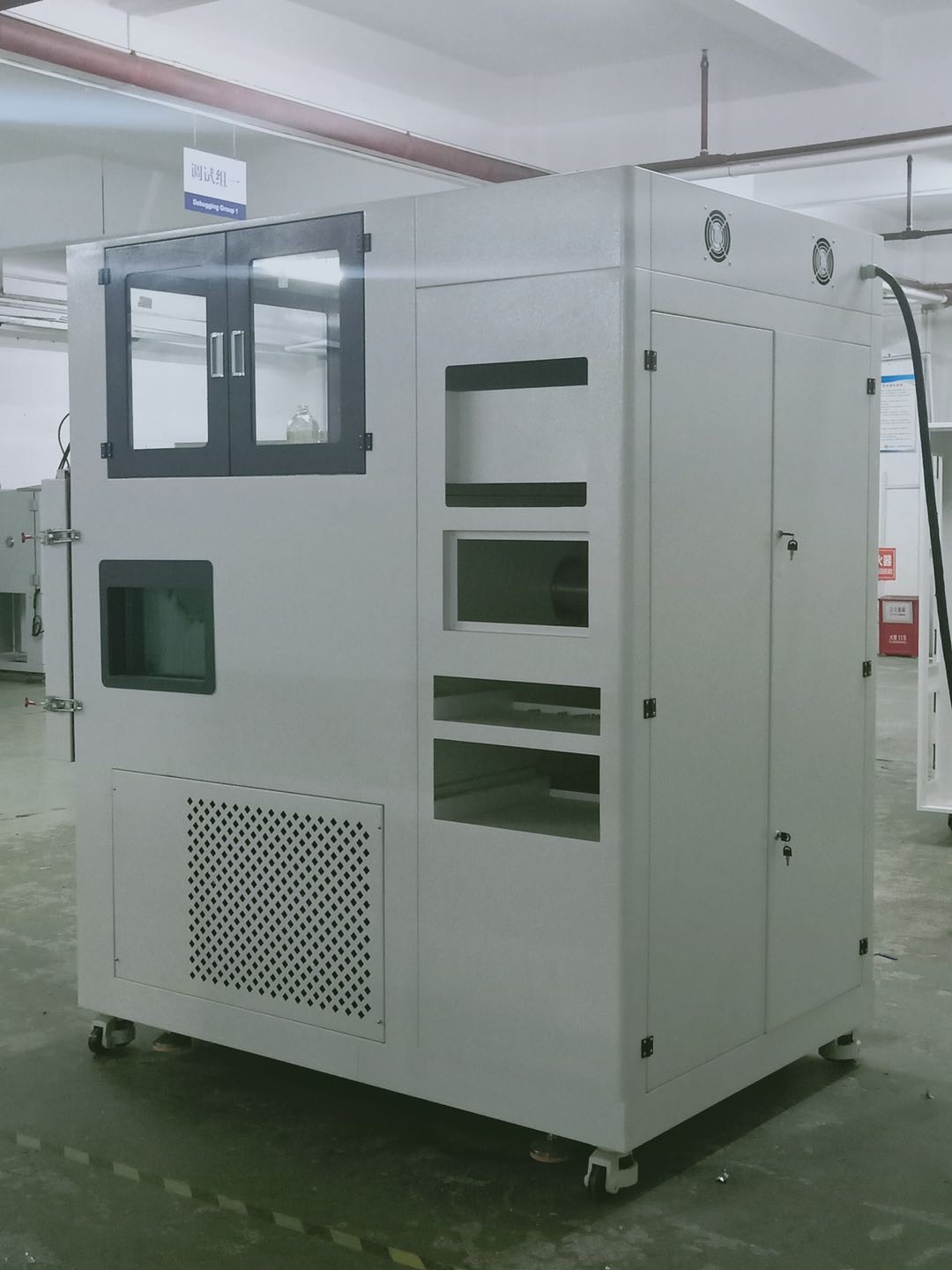

Climate Change Temperature And Humidity Chamber Automatic Cycling Water Supply 3


What you will get:

• LED Touch Screen

• PID Control of Temperature and Humidity

• Both Temperature and Humidity are Programmable (can have 100pattern, each pattern has 999 segment)

• With Humidity Sensor

• With RS485/232 output to computer

• Window Software

• Remote fault notification(opntional)

• With Viewing Window

• With thermostats (prevent overheat)

• Cable Ports(50mm diameter)

• With Data Storage fuction by USB Flash Memory

• Protection (phase protection, overheat, overcurrent etc)

• Water Tank with level detector

• Adjustable Shelf

• Anti-condensation technology of the workroom .(Optional)

• User friendly three color LED indicator lamp ,easy to read working condition



1. Are your a trading company or a factory?
Re: We are factory with 15 years manufacturing experience and export to more than 100 countries all over the world in past 9 years or exporting..

2. After an order is placed, when to deliver?
Re: Generally about 20-30 working days, standared products most of time we can arrange shipment within 3 working days.

3. What about the warranty with after - sales services?
Re: 12 months free warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

4. What about the services and product' quality?
Re:Service: OEM service,Design service,Buyer lable service.Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.

5. How to install and training?
Re: If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come LIYI factory to learn how to installation and use.

Customer can also choose to require our engineer to go for onsite installation if needed.
