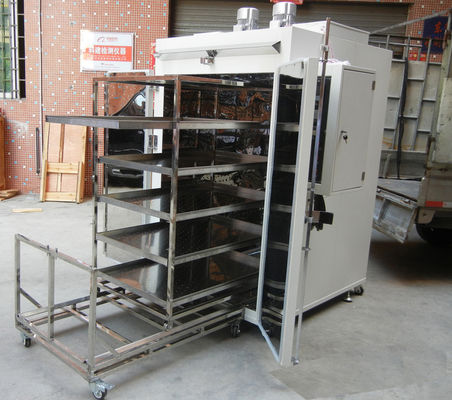

LIYI Rubber Secondary Vulcanization High Temp Oven With Gas Exhaust Fan Mother Child Cart
1. Inner size: width 1200 * depth 1000mm * height 1600mm;
2. Overall dimension: width 1640 * depth 1240mm * height 2100mm;
3. Temperature range: room temperature to + 250 ℃;
4. Temperature fluctuation: ± 1 ℃;
5. Heating rate: ≥ 10 ℃ / min;
6. Shell temperature: the temperature shall not exceed + 10 ℃ of the environment, except around the door;
7. Circulating air mode: left and right water wind, maximum 1200 m3 / h;
8. Power supply: three phase five wire system, 380V, 50Hz;
9. Total power: 25kW;
1. Outside SECC steel, fine powder coating treatment; Inner Teflon coating.
2. Use new high temperature resistant long shaft motor.
3. Turbine fan.
4. Silicone forced tight.
5. Overtemperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature,temperature quickly compensation function.
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specifie.
Specifications: (all requirements can be customized)
1. The controller is located on the right part of the machine together with luxury stainless steel handle and explosion-proof lock .
2. Internal material is 304 SUS mirror stainless steel.All the internal material is low polluted and all internal barrels use argon arc welding.
3. External material is SECC steel plate witch is fine powder baking finished.
4. Heat preservation material for the imported high-density glass rock wool with perfect thermal insulation, maximize temperature heat preservation,use silica ge whitch can long time be under the high temperature of 500 degrees or above.
Air supply system:
1. Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then inhalt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2. The motor is imported from Taiwan witch have long axis and can endure high temperature.
3. The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.
