LIYI UVA340 PVC Pipe Aging Test Chamber Water Spray And Condensation Function

1Set
MOQ
4000~8000USD
Price
LIYI UVA340 PVC Pipe Aging Test Chamber Water Spray And Condensation Function
Features Gallery Product Description Request A Quote
Features
Specifications
Power: Single Phase 220V
Material: All Stainless Steel
Controller: Touch Screen Programmable Controller
UV Light: UVA340 UVB313 UVA351
Lamp Quantity: 4pcs
Function: UV, Water Spray, Condensation
Irradiance Range: 0.1~1W/m2
Lamp Power: 40W/60W
High Light:

aging test machine

,

accelerated weathering tester

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-ZW
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Product Description

LIYI UVA340 PVC Pipe Aging Test Chamber Water Spray And Condensation Function



      UVA340 PVC Pipe UV Accelerated Weathering Tester with Water Spray and Condensation Function can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.

      Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.



Designing Standard:

(1) ASTM D4587: Standard Practice for Fluorescent UVCondensation Exposures of Paint and Related Coatings
(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials
(Fluorescent UV, Water Spray, and Condensation Method)
(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
(8) IEC 61345: UV Test for Photovaltalic (PV) Modules



Characteristics:

1.UVA340 PVC Pipe UV Accelerated Weathering Tester with Water Spray and Condensation Function is designed according to uses’ operation , it’s easy to operate, safe and reliable.

2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.

3.The door rotating up does not interfere with the operation and the tester takes a very small space only.

4.It’s unique condensation system can be contented by tap water.

5.The heater is under the container rather than in the water, which is long life, easy to maintain.

6.The water level controller is outside the box, easy to monitor.

7.The machine has truckles, convenient to move.

8.Computer programming is convenient, automatically alarming when incorrect operated or faulted.

9.It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).

10.It has Chinese and English instruction book, convenient to consult.

11.Divided into three types: common, light irradiance controlling, spraying





Specifications:

Internal Dimension WxHxD (mm) 1300x500x500
External Dimension WxHxD (mm) 1400x1600x750
Applicable Standard GB/T16422,GB/T5170.9
Temperature Range R.T.+15°C~+70°C
Temperature Fluctuation ±0.5°C
Humidity Range ≥95%R.H.
Environmental Temperature for Use +5°C~+35°C
Test Light Source UVA,UVB UV light
Wave Length of Test light Source (nm) 280~400
Center Distance between Sample and Tube (mm) 50±2
Center Distance Between Tubes (mm) 75±2
Material of Internal Case Stainless steel with sanding polish
Material of External Case Stainless steel with sanding polish or painting coated
Heating and Humidifier Electric-heat type steam generator ,heating and humidification
Safety System Operation Interface Digital smarts touch key input (Programmable)
Running Mode Program/constant running type
Input Black panel thermometer.PT-100 Sensor
Standard Configuration 1 pc Stainless steel shelves
Safety Configuration Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection
Power AC220V 1 phase 3 lines, 50HZ

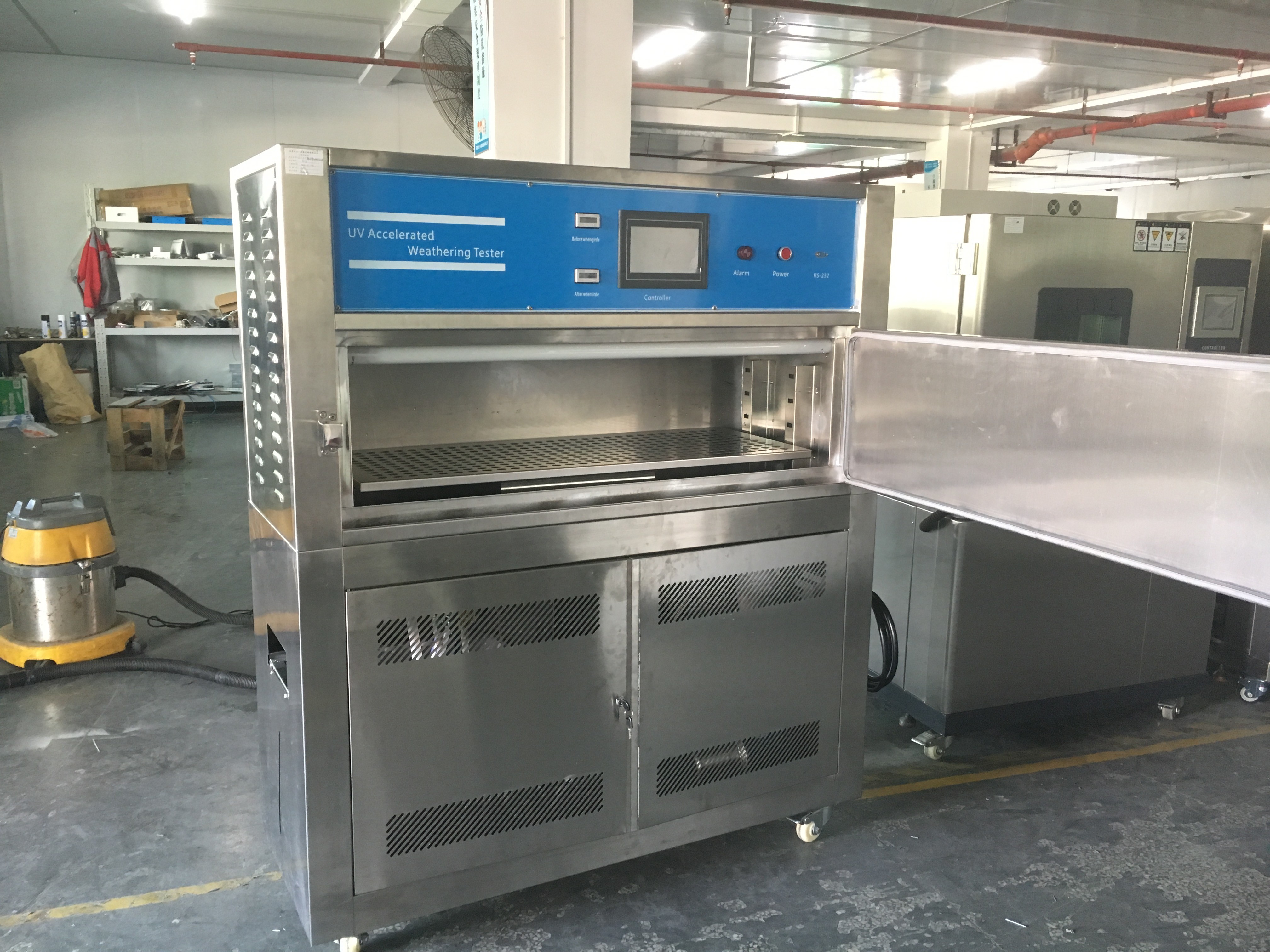

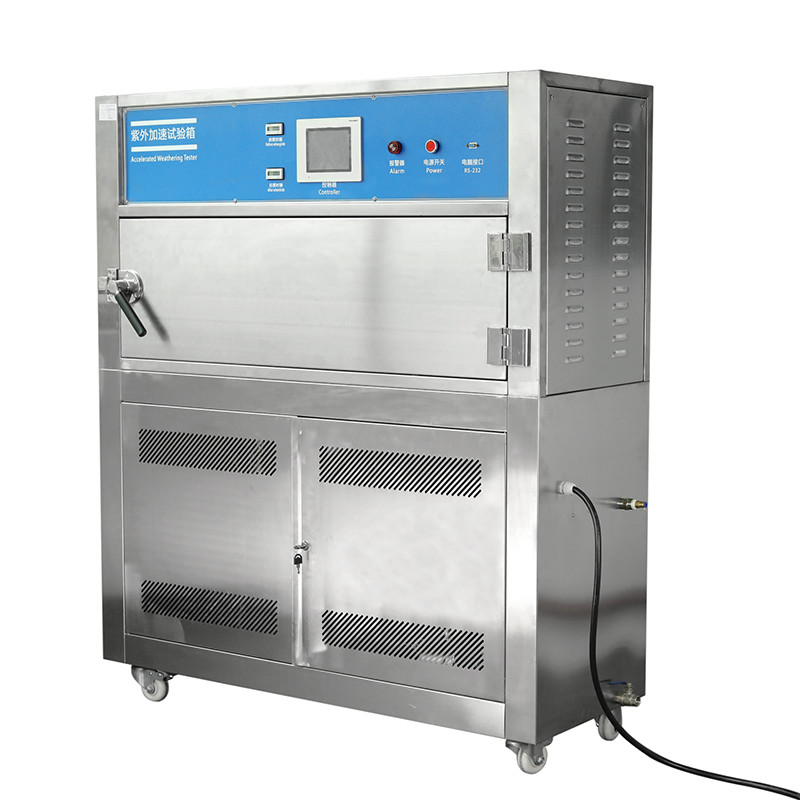

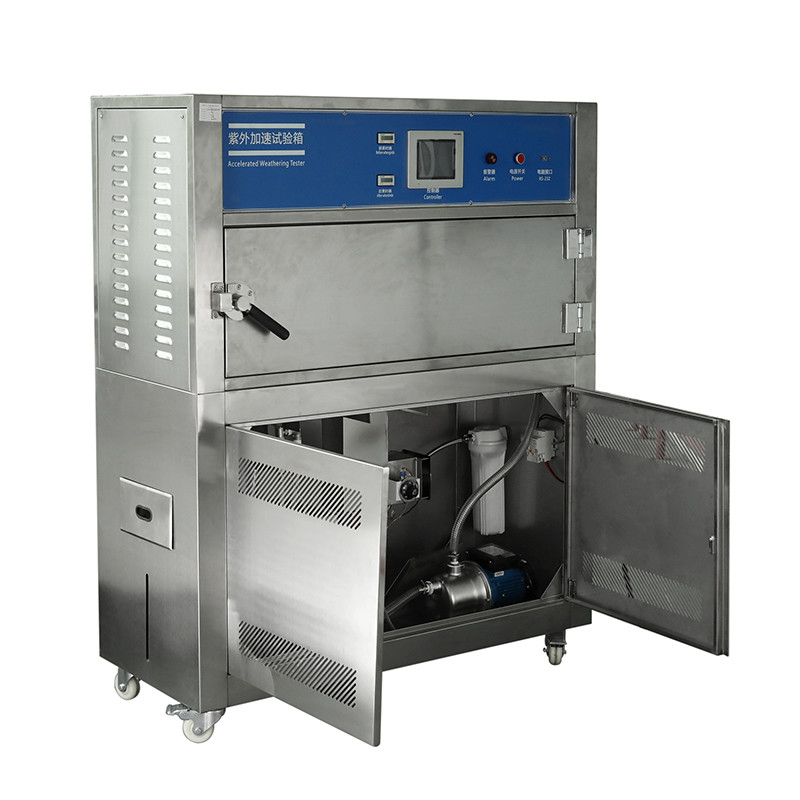

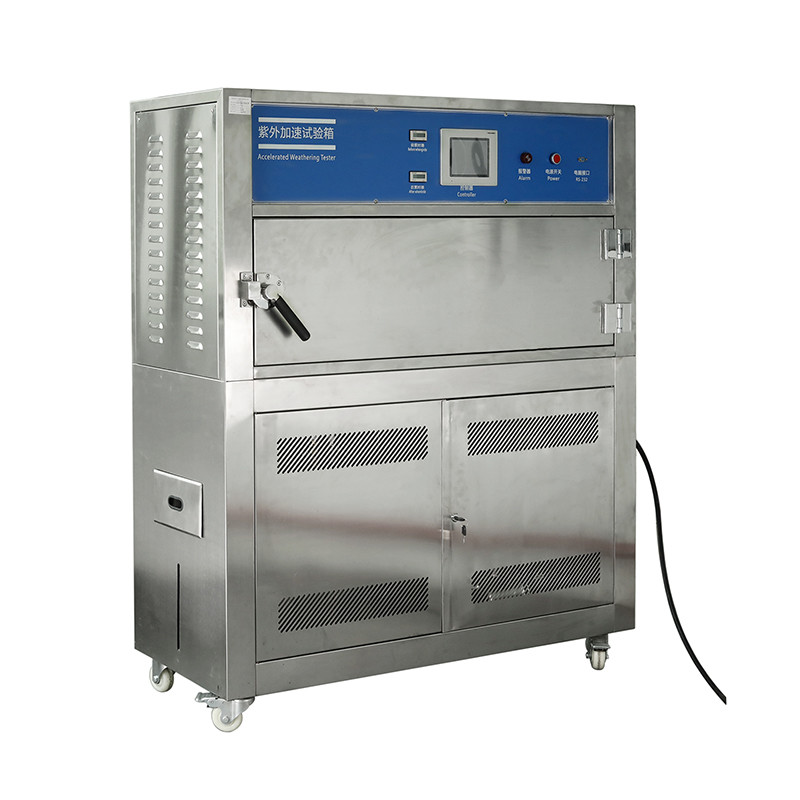

LIYI UVA340 PVC Pipe Aging Test Chamber Water Spray And Condensation Function 0LIYI UVA340 PVC Pipe Aging Test Chamber Water Spray And Condensation Function 1
