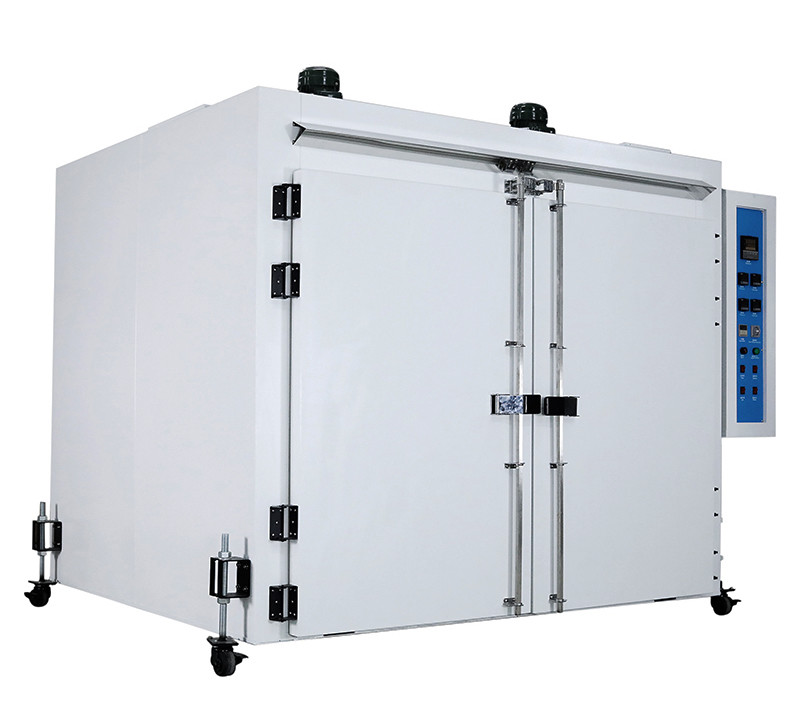

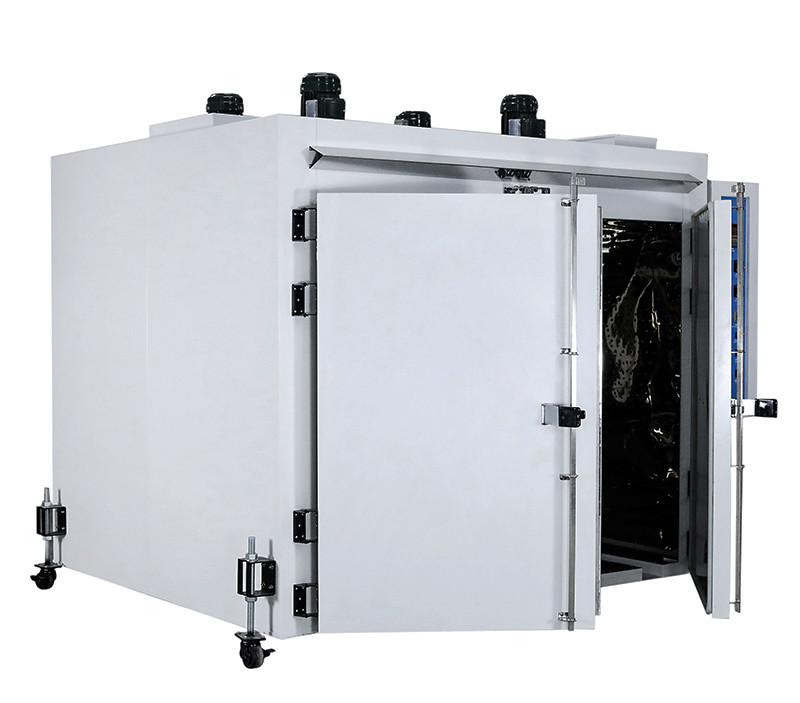

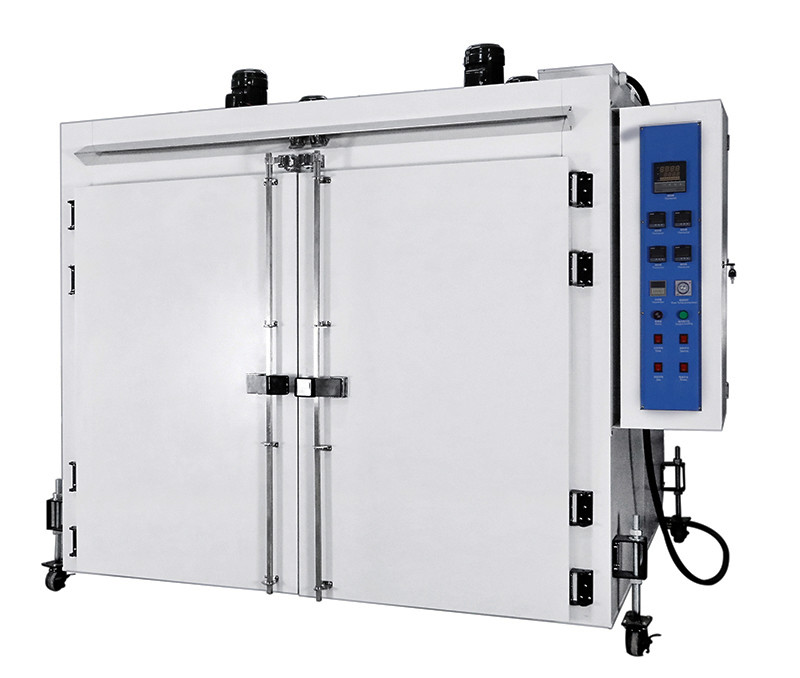

LIYI 3 Phase 380V 50HZ Hot Air Cycling Drying Chamber Digital Temperature Display
Digital Temperature Display High Temperature Economical Hot Air Cycling Drying Chamber can provide a stable testing space for pre-heating, drying, changes about physics and chemistry testing. It adopts precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution. It is applicable to a variety of products, materials, electric, instruments, meters, components, electronics, electricians and automobiles, aviations, plastics, machinery, chemicals, foods, chemicals, hardware tools for doing drying test and various constant adaptive tests at an constant temperature condition.
1. Automatic temperature control with digital thermal-sensor
2. Excellent thermal insulation property of ovens wall, lower energy consumption,
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating
High temperature control accuracy:
Using SUS304 stainless steel heater as the heating element, the intelligent temperature controller collects the temperature value in the test chamber in real time, compares it with the temperature setting value on the controller, and controls the on-off time of the SSR through PID calculation.
In this way, the output heat of the heater is controlled. At the same time, the forced hot air circulation mode is adopted to achieve the purpose of operating the temperature inside the box according to the setting program.
Operating mode:Fixed value operation
Leakage protection switch: The circuit breaker with leakage, short circuit and overcurrent protection is activated to effectively protect all electrical components;
Over-temperature protector: independent over-temperature protector, when the temperature is abnormally too high, the heater power supply is disconnected;
Safety device: grounding protection, heater short circuit protection, motor overload protection;
Air supply system:
1. Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then inhalt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2. The motor is imported from Taiwan witch have long axis and can endure high temperature.
3. The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.
Material of Construction:
(1) Interior material is SUS#304 stainless steel
(2) Exterior material is paint coated steel plate
(3) Insulation Material of imported fire-proof rock wool
(4) Heating Medium: electric heating tube
