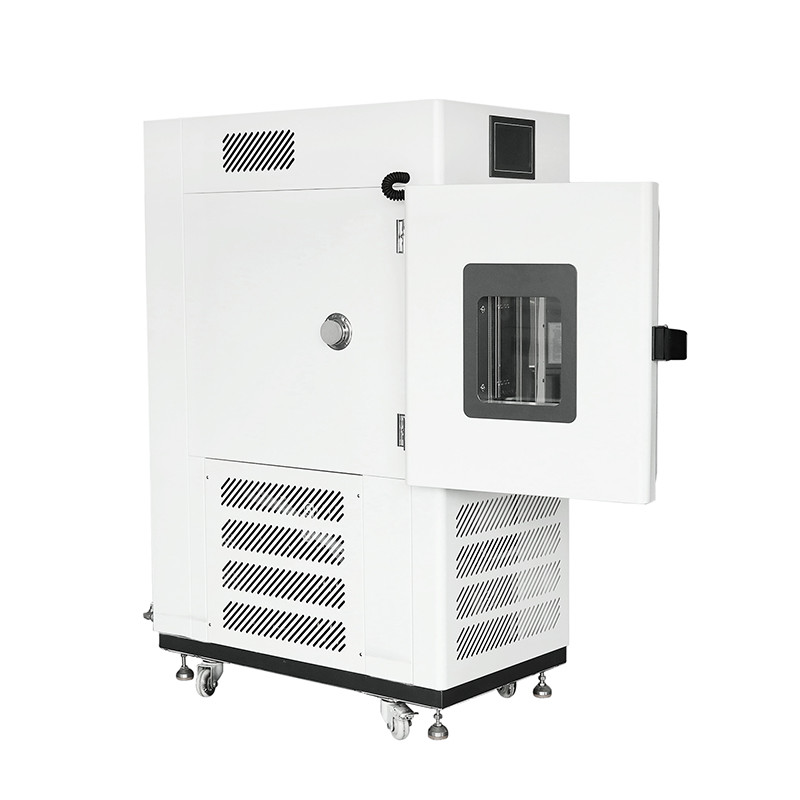

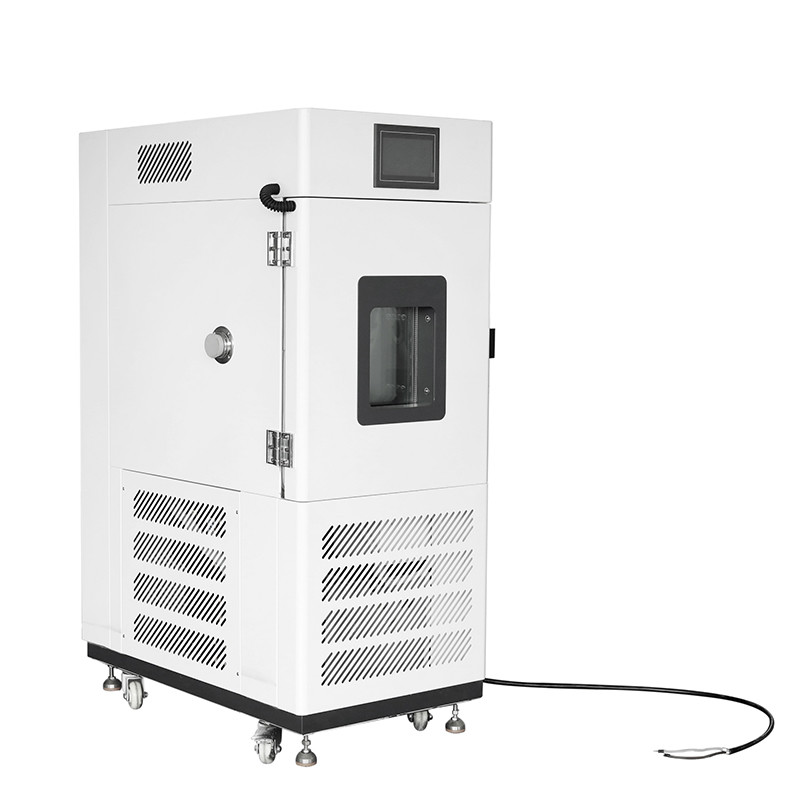

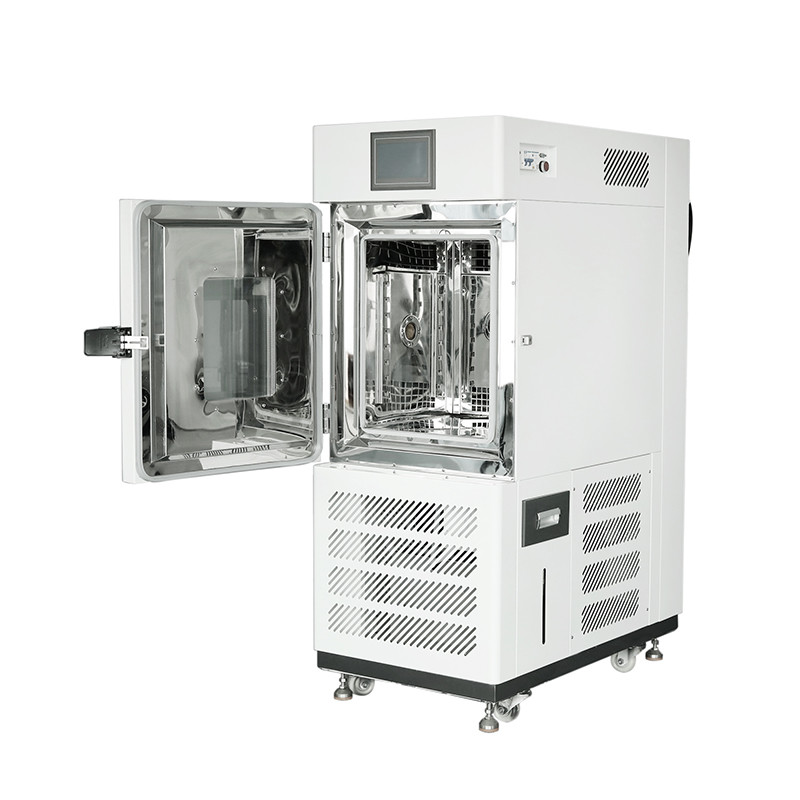

LIYI Electrical Temperature And Humidity Controlled Cabinets 1 Phase 220V 50HZ
Lab Temperature and Humidity Controlled Cabinets for Temperature and Humidity Testing can simulate the different indicators of constant temperature and humidity climate quickly and accurately for testing products which need to check their performance of temperature testing (-40℃~+150℃), humidity testing (20~98%R.H.),both of temerature and humidity testing at the same time.chamber power can be customized.
Constant Temperature Humidity Chamber which also call environment test chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test, cooling-off test, heating-up test, moistening test and drying test... Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes,EN 14511.
(not limited to the following):
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
IEC 60068-2-1, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-38
IEC 61215 - 10.11, 10.12, 10.13
|Inner size W×H×D(cm)||40×50×40||50×60×50||50×75×60||60×85×80||100×100×80||100×100×100|
|External size W×H×D(cm)||92×138×108||102×146×116||102×162×126||113×172×148||150×186×139||158×188×168|
|Temp & Humi Control Range||
Temp range: A:-20℃～150℃ B: -40℃～150℃ C: -60℃～150℃ D: -70℃～150℃
Humi range: RH20%-98%
|Heating & cooling speed||1.5℃/min (can customize from 1-20℃/min)|
|Controller||TEMI880, 990, 1500 or customize brands and models|
|Refrigerator||Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor)|
|Test hole||*50mm, 100mm or customize|
|Power||1φ 220V AC±10% 50Hz||3φ 380V AC±10% 50Hz|
Chamber Design Features
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy mantain
1. PIC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
Standard configuration :
●Stainless steel exterior
●Energy-efficient refrigeration with exclusive electronic expansion valve system
●Specialized humidity generation and control
●Unique thermal break construction for extreme testing
●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
●No fuse breaker, overpressure, overheat and over current protection for compressor, Over temperature protection, overload protection of the blower, dry heat protection
Optional accessories :
●Cable Port: Φ100mm cable port is available
●Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
