LIYI Powder Coating Large 400 Degrees Electric Drying Oven

1 Set
MOQ
2000~20000USD
Price
LIYI Powder Coating Large 400 Degrees Electric Drying Oven
Features Gallery Product Description Request A Quote
Features
Specifications
Keyword: Large Drying Oven
Temperature Range: RT~200C/300C/400C/500C
Accuracy(°C): ±0.3
Inner Material: SUS#304 Stainless Steel
Power: 220V Or 380V AC±10% 50/60Hz
Uniformity (°C): ±1%
High Light:

400 Degrees Electric Drying Oven

,

400c Electric Drying Oven

,

400 Degrees industrial hot air oven

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

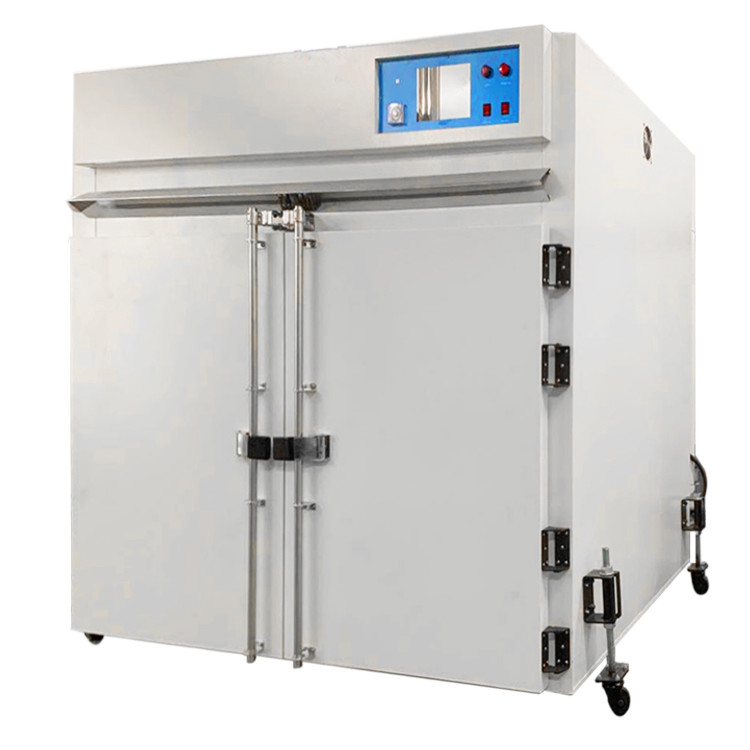

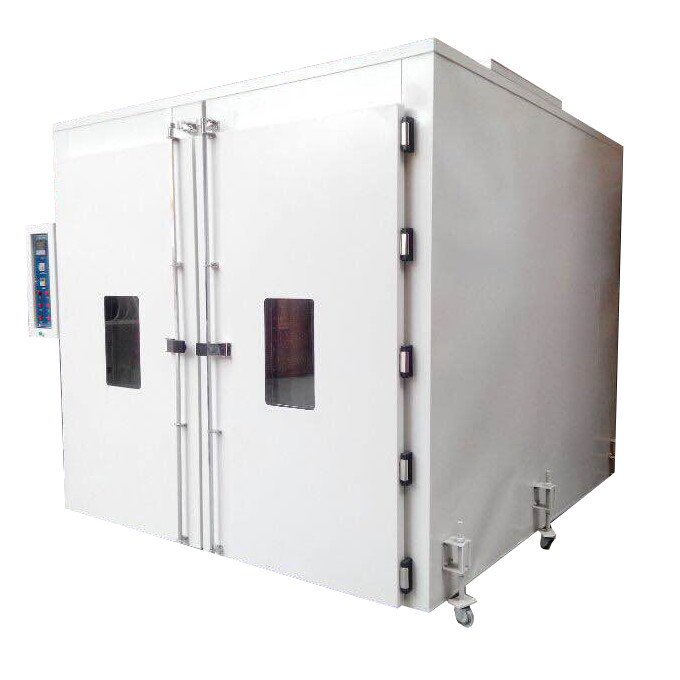

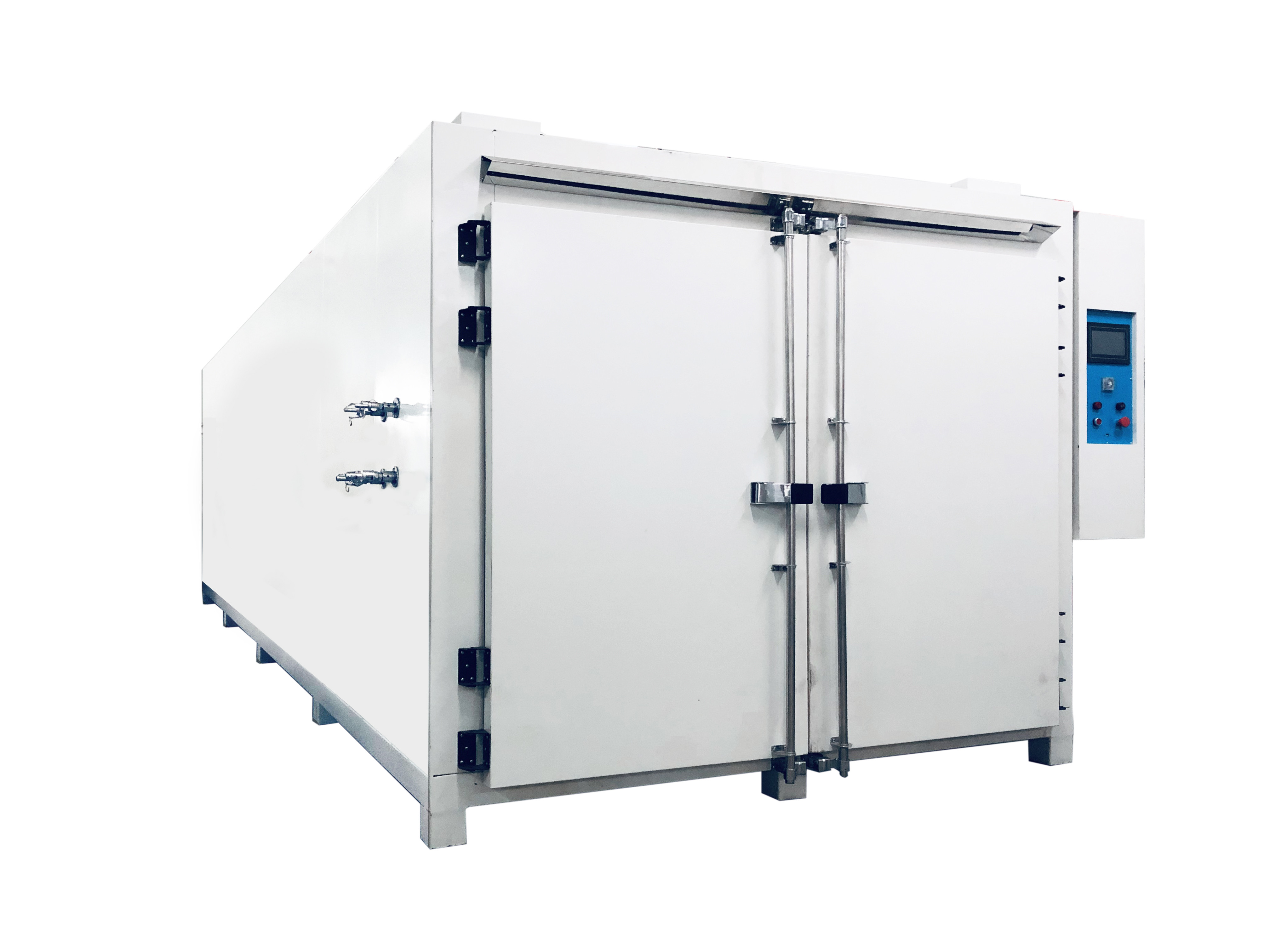

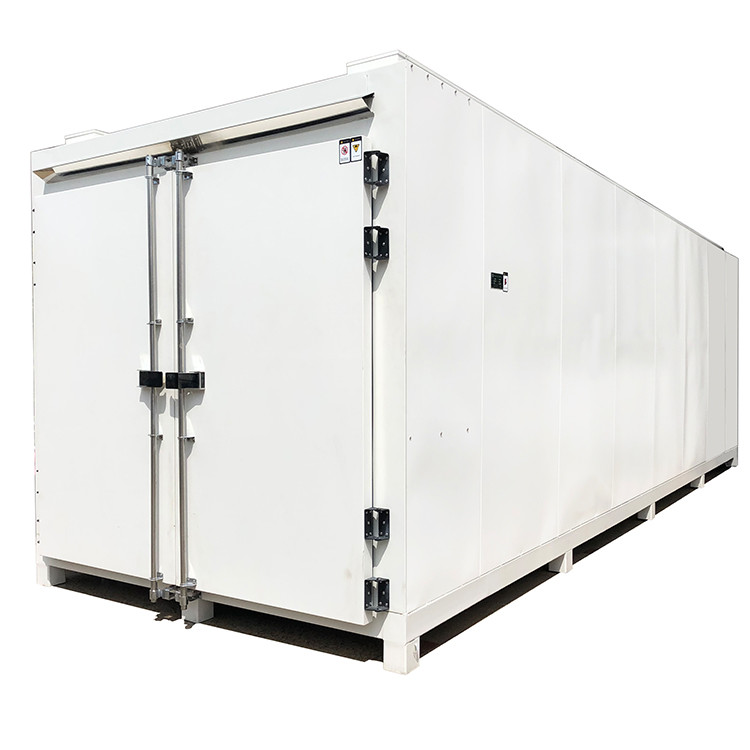

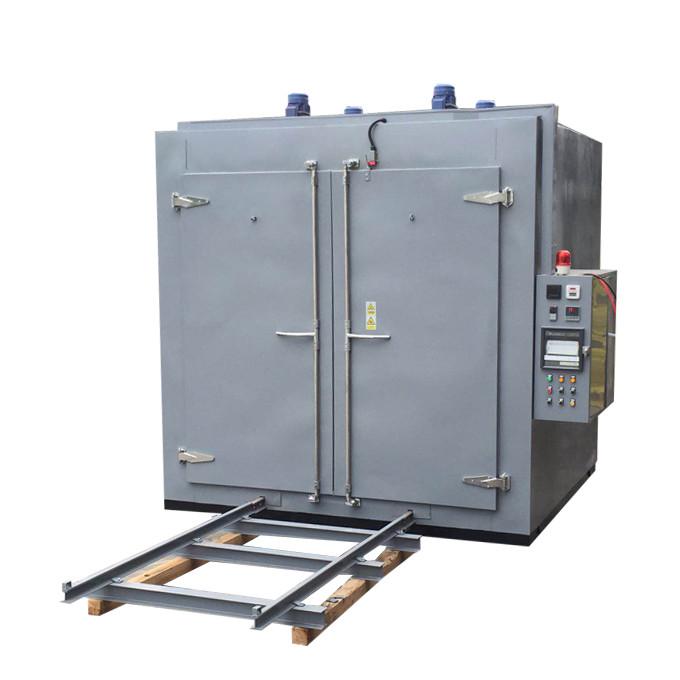

LIYI Powder Coating Large 400 Degrees Electric Drying Oven



Application:

Industrial hot air circulating drying oven for paint drying cabinet can provide a stable test space for preheating,drying, changes about physics and chemistry testing. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.



Characteristics:

1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. Big Volume Stainless Steel Electric Industrial Oven use new high temperature resistant long shaft motor
3 Turbine fan.

4.Silicone forced tight.
5.Overtemperature protection, super load automatic power system.
6.Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8.The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function.
9.Timer: temperature to time, when the power failure alarm indication.
10.According to customer demand matching glass window can be customized according to customer specifications specified.



Specification



Model

Inner Size

W*H*D(cm)

External Size

W*H*D(cm)

Temperature

Range(°C)

Heating

up Time

Accuracy

(°C)

Uniformity

(°C)

Power

Rate

of work

(kw)

LY-645 45×40×40 66×92×55





(A-D)

A:200°C

B:300°C

C:400°C

D:500°C





RT~100°C

About 10min

±0.3 ±1%

220V

Or

380V

3.5
LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16



LIYI Powder Coating Large 400 Degrees Electric Drying Oven 0



During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.



3)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
