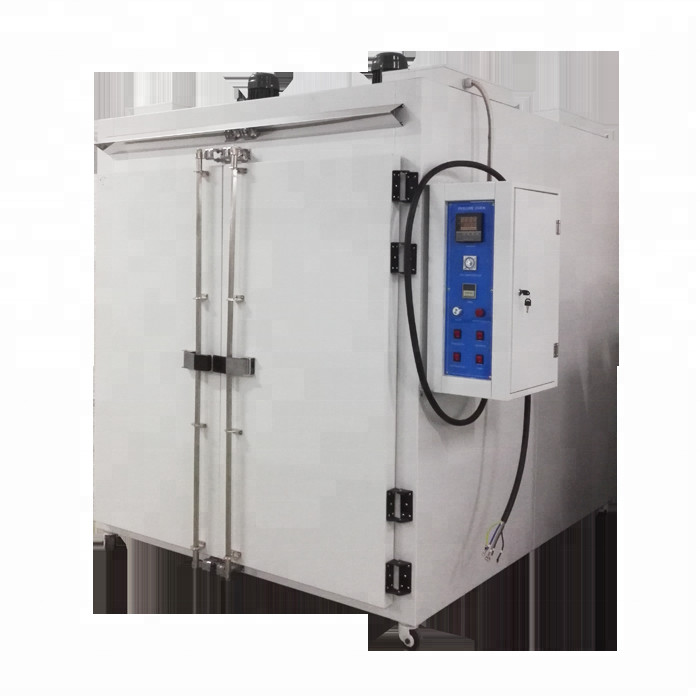

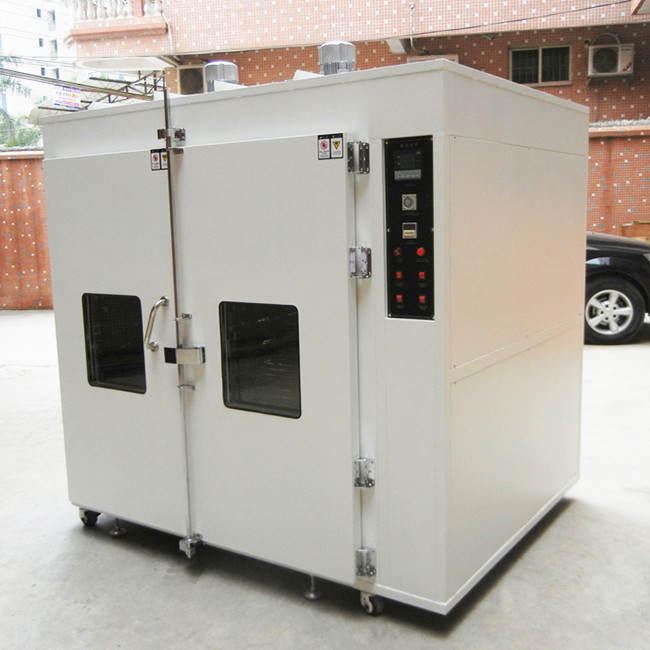

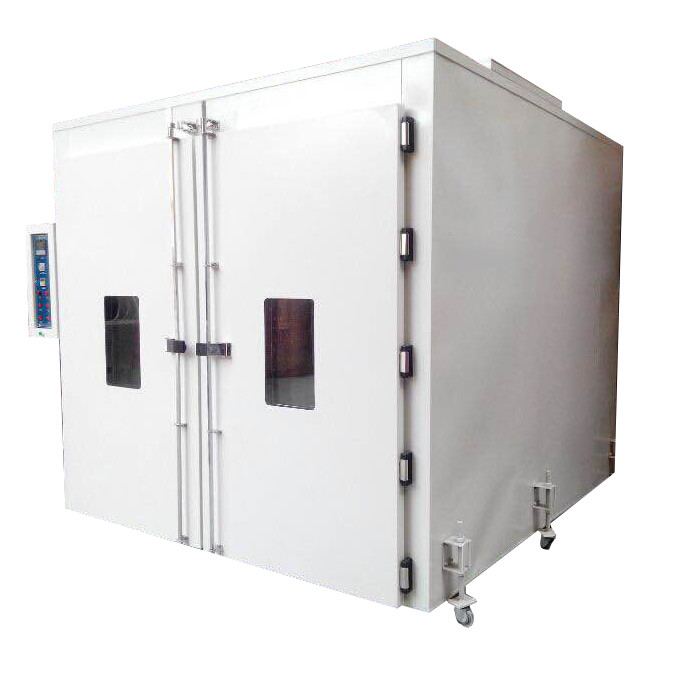

300C Industrial Drying Oven

1 Set
300C Industrial Drying Oven
Features Gallery Product Description Request A Quote
Material: 304# Stainless Steel
Inner Size: Any Size Can Be Customized
Max Temperature: RT~300C
Inner Structure: Customize Trays
Controller: Programmable Touch Screen Controller
Color: White (can Customize)
OEM: Offered
Heater: Electrical Heater
Voltage: 3 Phase 380V
Warranty: 1 Year
High Light:

300C Industrial Drying Oven


CE RT 300C Industrial Drying Oven


300C hot air circulation oven

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-6180
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-40 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

Customize Size High Temperature Double Door Big Oven Forced Air Circulation Drying Oven


Product description:

     LIYI produces a series of universal drying ovens for industrial and laboratory applications. This oven comes with the working chamber and housing made using high quality stainless steel. It's equipped with a fan to realize forced air circulation for completing physical drying jobs. The objects will be evenly heated due to forced air circulation, making the hot air oven ideally suitable for use in the fields like printing, electronics, and plastic hardware.
We provide customer centric services to fully understand the needs of our customers and satisfy their requirements regarding drying materials and other specs. We offer a variety of universal ovens available in desktop type, vertical type, single chamber type, and multiple chamber type. These heating and drying ovens can be modified according to size for simple delivery and installation. Their temperature ranges from 80 ℃ to 500 ℃.



Used for product's drying,curing and high temperature aging test. Mainly be applied in chemical,electronic communication,plastics,cable,electroplating,hardware,automotive,photoelectron, rubber products, molds,painting,printing.medical,aerospace and higher education industries.




1. Inner chamber material is SUS#304 stainless steel, outer material is well coated steel plates.
2. The door sealing uses silicone, which endures high temperation. View window attached. (Optional)
3. The centrigugal fan can provide greater cyclic airflow to avoid dead corner in the chamber so as to obtain uniform distribution of temperature.
4. PID controller, double sided overheating protection.
5. Multiple loading shelves to support the testing samples.
6. Floor standing with removeable casters, easy to move and adjust height.
7. Timer: temperature to timing, easily control the operation period.


Touch screen controller(optional):

* High precision (0.1%), high performance
* Support multi-input (T / C, RTD, DCV)
* Multi-output and simultaneous output (Max 4 points)
* Parameter operation is simple, the text can be set
* Supports suppression of Overshoot function
* Alarm output 1 point
* Operation display of auxiliary output status
* Input adjustment function for each zone (Max 4 Zone)
* Control the heating and cooling functions
* PID automatic adjustment function (AT Gain)
* Supports multiple communication protocols (Modbus, etc.)





Inner Size



External Size













Rate of



LY-645 45×40×40 66×92×55










About 10min

±0.3 ±1%




LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16



300C Industrial Drying Oven 0


300C Industrial Drying Oven 1



Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
