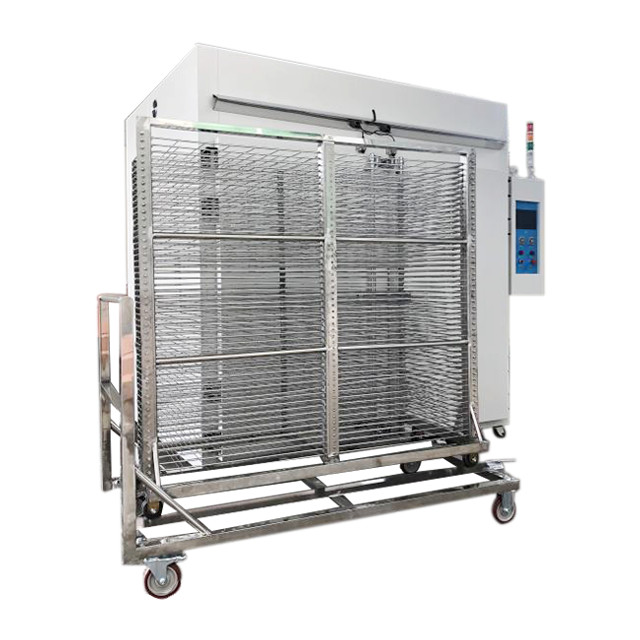

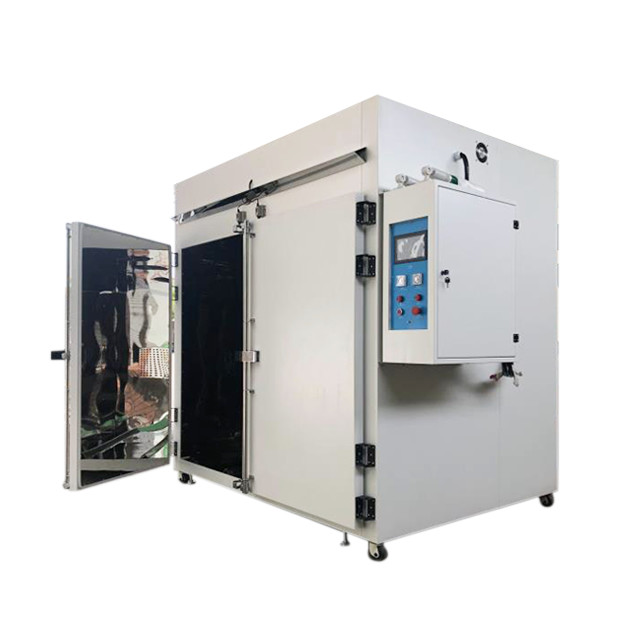

Multilayer Shelf Trolley PLC Controller 250C Hot Air Oven
1 Set
MOQ
2000~20000USD
Price
Multilayer Shelf Trolley PLC Controller 250C Hot Air Oven
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-6180
High Light:

250C Hot Air Oven

,

PLC 250C Hot Air Oven

,

250C Heat Treatment Oven

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-40 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304# Stainless Steel
Inner Size: Any Size Can Be Customized
Max Temperature: RT~250C
Inner Structure: Customize Trays
Controller: PLC
Color: White (can Customize)
OEM: Offered
Voltage: 3 Phase 380V
Product Description

Customize Multilayer Shelf Trolley Touch Screen PLC Controller Hot Air Oven Heat Treatment Oven​



Product description:

      Customize Multilayer Shelf Trolley Touch Screen PLC Controller Hot Air Oven Heat Treatment Oven comes with the working chamber and housing made using high quality stainless steel. It's equipped with a fan to realize forced air circulation for completing physical drying jobs. The objects will be evenly heated due to forced air circulation, making the hot air oven ideally suitable for use in the fields like printing, electronics, and plastic hardware.
We provide customer centric services to fully understand the needs of our customers and satisfy their requirements regarding drying materials and other specs. We offer a variety of universal ovens available in desktop type, vertical type, single chamber type, and multiple chamber type. These heating and drying ovens can be modified according to size for simple delivery and installation. Their temperature ranges from 80 ℃ to 500 ℃.



Application

Used for product's drying,curing and high temperature aging test. Mainly be applied in chemical,electronic communication,plastics,cable,electroplating,hardware,automotive,photoelectron, rubber products, molds,painting,printing.medical,aerospace and higher education industries.



Air supply system
Moter long axis thermostability is imported from Taiwan,rate of work is 1/2HP50Hz
The fan is leafiness turbine type,strong strength,has adjustable river diversion wind-plate Make the wind path smoothly.
Heating speed:RT~100℃ about 10minutes.



Accessories
superhigh temperature protection, non fuse-switch, porcelain fuse,motor overcurrent protection
Timer: 9999s~9999hour(can set by H.M.S)
Timer when the temperature is ok,outage when the time is ok,stop heating and alarm.





Characteristics:

1.The controller is located in the right side of the machine,opened in the centre with two doors, luxury handle is stainless steel,more important,the machine has the anti-explosion door holder.

2.Inner material is 304 mirror surface stainless steel. Lumen of the machine is clean and smooth,it’s easy to clean and do not keep residue, corrosion resistance function is very good.All the inner material is low- infectant material.Inner machine all has the non-trace argon arc welding

3.Outside material is SECC armor plate,thickness of plating is 1.2mm baking finish with Fine powder.

Heat preservation is imported high density glass rock wool, thermal insulation is very good,can resist the 150℃.



Temperature control system
1.Temperature controller is PID microcomputer auto-calculation,showing by PV/SV,Set the temperature you need,control the accuracy by PID parameter.
2.current controller is SSR,contactless Relay,keep the voltaic high stability.
3.Heating material is honeycomb stainless steel heating tube,and pollution-free with long using life. 4.Temperature range:RT~400℃(Customise),normal temperature RT~350℃(Customise),.
5.Accuracy:contral accuracy±0.5℃,distribution temperature ±2.0℃(no-load)





Specifications:

Model

Inner Size

W*H*D(cm)



External Size

W*H*D(cm)



Temperature

Range(°C)

Heating

up

Time

Accuracy

(°C)

Uniformity

(°C)

Power

Rate of

work

(kw)

LY-645 45×40×40 66×92×55



(A-D)

A:200°C

B:300°C

C:400°C

D:500°C





RT~100°C

About 10min

±0.3 ±1%

220V

Or

380V

3.5
LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16





Multilayer Shelf Trolley PLC Controller 250C Hot Air Oven 0



Multilayer Shelf Trolley PLC Controller 250C Hot Air Oven 1





Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
