Automatic Cycling Water Supply 304SS Climate Test Chamber
1 Set
MOQ
4000~10000USD
Price
Automatic Cycling Water Supply 304SS Climate Test Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-21000
High Light:

304SS Climate Test Chamber

,

1000L Climate Test Chamber

,

380v environmental simulation chambers

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304 SS
Volumn: 1000L
Voltage: 3 Phase 380V
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C/-70°C~150°C
Humidity Range: 20%~98% / 5%~98%
Heating Rate: Standard Around 3°C/min (can Customize)
Cooling Rate: Standard Around 1°C/min (can Customize)
Controller: Programmable 7′′ Colorfull Display
Power Supply: AC220V/AC380V
Product Description

CE Resist Heat Climate Test Chamber Automatic Cycling Water Supply



Temperature Humidity Test Machine Descroption



Temperature Humidity Test Machine are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing. In keeping with the needs of today's lab, we designed these temperature and humidity test chambers to have a compact exterior that maximizes the interior workspace.



Lowest temperature: -20 or -70°C (-4 or -100°F)
Highest temperature: 150°C (302°F)
Humidity range: 5% / 10% / 20% to 98% RH
Chamber size: 3.53 cubic feet
Touch-screen Watlow F4T programmer with Ethernet access


Standards:

● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

Specifications:

Temp&Humi Control Range

Temp. Range: A: -20℃~100℃ humidity range: 20%~98%

B: -40℃~150℃

C: -70℃~150℃

(Other temperature and humidity range can be customized)

Temp&Humi Fluctuation ±0.5℃;±2.5%RH
Temp&Hum Departure ±0.5℃-±2℃;±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller Resolution ±0.3℃;±2.5%RH
Controller Brand LCD touch screen controller
Material In side wall SUS 304# stainless steel plate
Housing Steel plate surface fog processed or color painted
Heat Insulator resistance to high temperature, high chlorine acid b vinegar foam insulation materials
Air Circulation Way centrifugal fan-broadband type force air circulation
Refrigeration Way cascade type multiple refrigeration
Refrigerator fully enclosed piston compressor Tecumseh France
Refrigerants R4O4Aor American Dupont environmental protection cold media(R23+R404)
Condensing Way Air-cooling
Heater nickel chrome heating wire heater
Humidifier semi-closed steam
Water Supply Way automatic cycle water supply
Power Single phase 220V AC±10% 50/60HZ

Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole
series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws

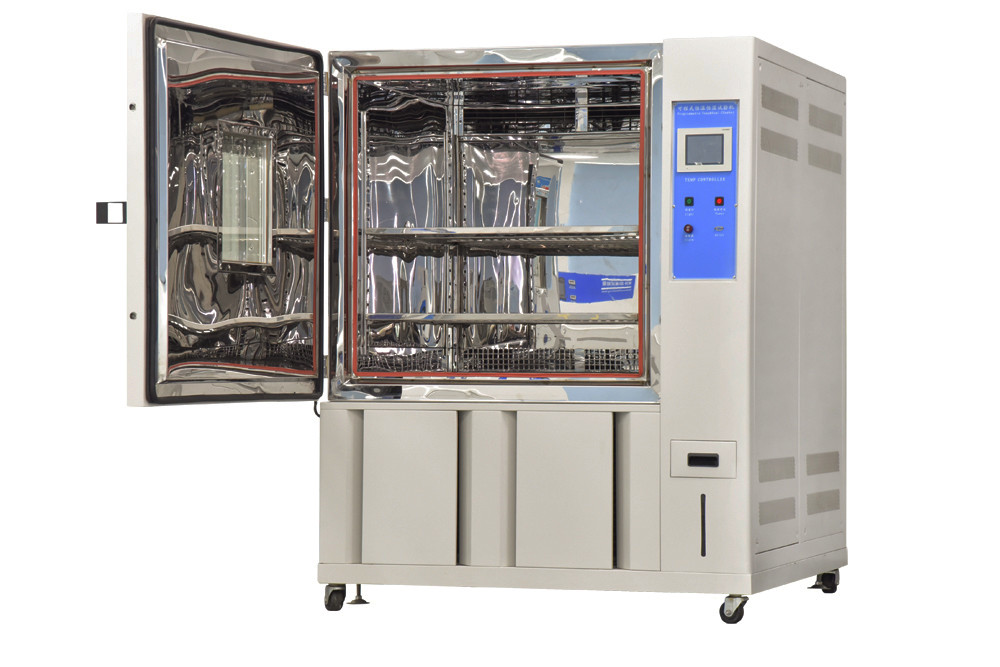

Automatic Cycling Water Supply 304SS Climate Test Chamber 0

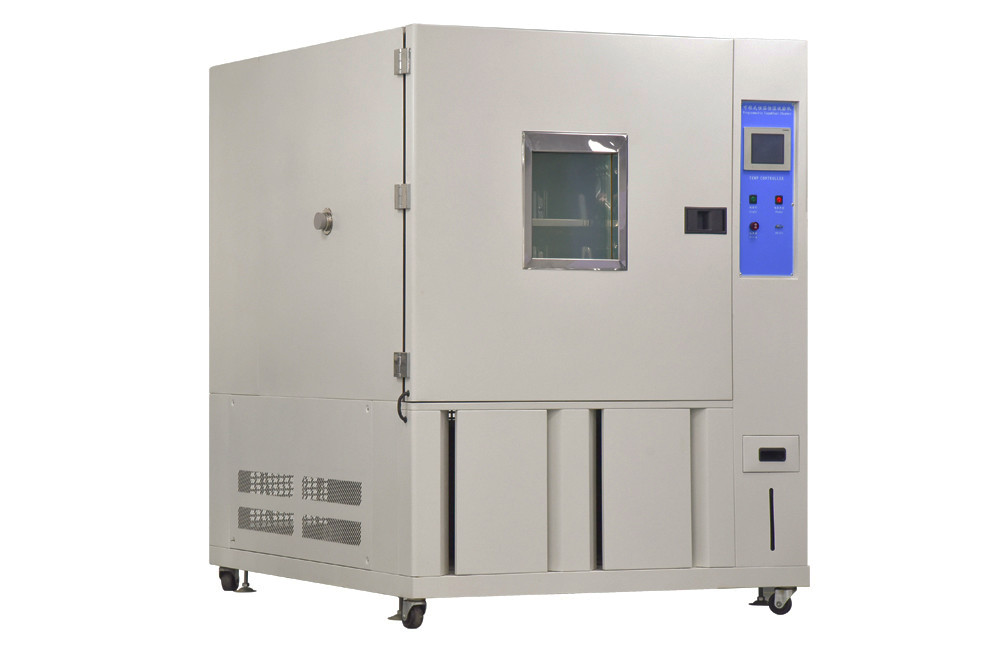

Automatic Cycling Water Supply 304SS Climate Test Chamber 1
What you will get:

• LED Touch Screen

• PID Control of Temperature and Humidity

• Both Temperature and Humidity are Programmable (can have 100pattern, each pattern has 999 segment)

• With Humidity Sensor

• With RS485/232 output to computer

• Window Software

• Remote fault notification(opntional)

• With Viewing Window

• With thermostats (prevent overheat)

• Cable Ports(50mm diameter)

• With Data Storage fuction by USB Flash Memory

• Protection (phase protection, overheat, overcurrent etc)

• Water Tank with level detector

• Adjustable Shelf

• Anti-condensation technology of the workroom .(Optional)

• User friendly three color LED indicator lamp ,easy to read working condition


Automatic Cycling Water Supply 304SS Climate Test Chamber 2
