Temperature And Humidity Climate Test Chamber CNS3625/12565/12566
1
MOQ
$3,099.00 - $5,680.00/Piece
Price
Temperature And Humidity Climate Test Chamber CNS3625/12565/12566
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: ISO
High Light:

CNS12566 Climate Test Chamber

,

CNS3625 Climate Test Chamber

,

CNS12565 climate control chamber

Payment & Shipping Terms
Packaging Details: Standard Export wooden case
Delivery Time: 10-15 work days
Payment Terms: T/T
Specifications
Heater:: Nickel Chrome Heating Wire Heater
Temperature Control Range:: A: -40℃~150℃,B: -60℃~150℃ ,C: -70℃~150℃
Controller Resolution:: ±0.3℃;±2.5%RH
Certificate:: CE ISO
Customized Support: OEM, ODM
Power:: Electronic, 380/ 220V AC±10% 50/60Hz
Humidity Control Range:: RH20%-98% (can Be Customized)
Temp&Humi Fluctuation:: ±0.5℃;±2.5%RH
Humidifier:: Semi-closed Steam
Condensing Way:: Air-cooling
Product Description

LIYI Control Temperature And Humidity Climatic Conditioning Test Chamber

Product Description



This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

Standards:

GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc.

Characteristics:

1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

2. Control temperature&humidity well-distributed, precisely and steady.

3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.



Specifications
Model LY-280 LY-2150 LY-2225 LY-2408 LY-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 60×85×80 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%

Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C ±2.5%RH
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Water Supplying Way Automatic cycling water supply
Standard Accessories

1 Observe window(double-deck cavity toughened glass),

1 50mm test hole in the left,

1 PL inner chamber lamp,

2 clapboards,

1 bag of wet and dry bulb,

3 fuses,

1 power line.

Safety device

Non- fuse-switch(compressor overload,

refrigerant high low voltage,

over-humidity and temperature protection,

Protection switch,fuse stoppage warning system





Product Effects

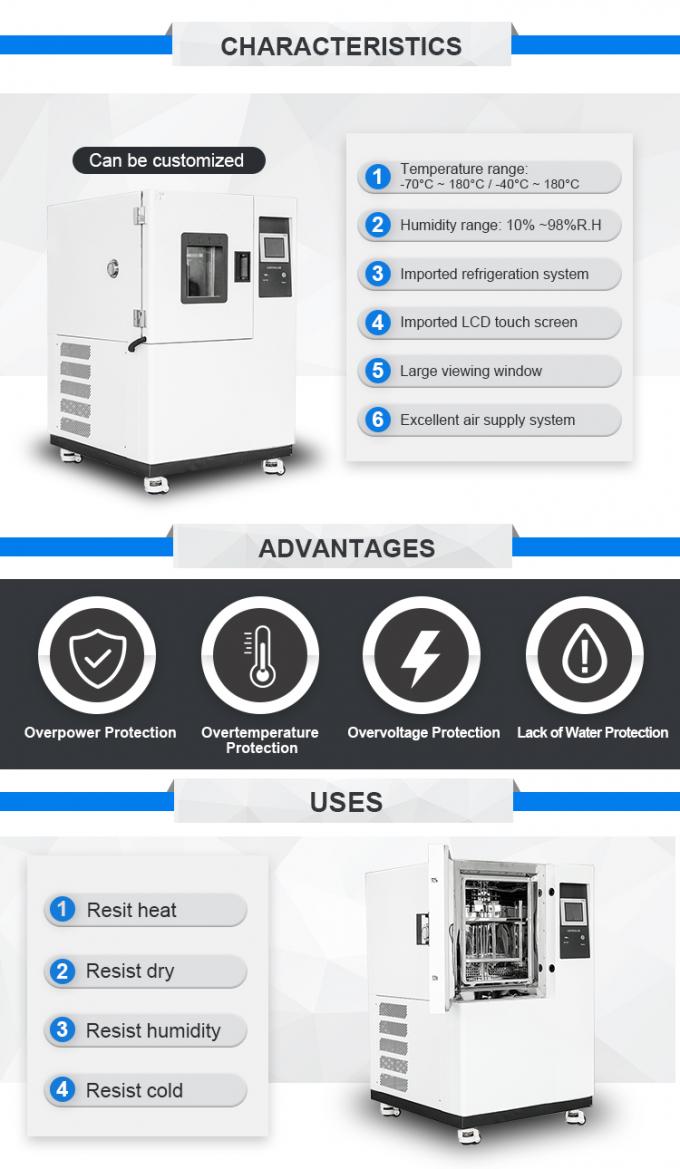

LIYI Control Temperature And Humidity Climatic Conditioning Test ChamberLIYI Control Temperature And Humidity Climatic Conditioning Test Chamber

More options
Company Information

LIYI Control Temperature And Humidity Climatic Conditioning Test ChamberLIYI Control Temperature And Humidity Climatic Conditioning Test Chamber

Our Services

During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.



3)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
