Walk In Climate Test Chamber R23 / R404A Refrigerant ODM
1
MOQ
$10,580.00 - $25,880.00/Set
Price
Walk In Climate Test Chamber R23 / R404A Refrigerant ODM
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: ISO
High Light:

R23 Climate Test Chamber

,

R404A Climate Test Chamber

,

ODM walk in test chamber

Payment & Shipping Terms
Packaging Details: Standard Export wooden case
Delivery Time: 10-15 work days
Payment Terms: T/T
Specifications
Warranty:: 12 Months
Place Of Origin:: Guangdong, China
Power:: Electronic
Accuracy:: ±0.5°C, ±2.5%RH
Heating Rate:: ≤3°C/min
Cooling Rate:: Average 1°C/min
Operating Interface:: Touch Screen
Certificate:: CE ISO
Ustomized Support:: OEM, ODM
Brand Name: Liyi
Product Name:: Walk In Climatic Temperature Humidity Stability Testing Chambers/Room Accuracy: ±0.5°C, ±2.5%RH
Refrigerant:: R23/R404A
Ontroller:: TATO
Resolution:: ±0.01°C, ±0.1%R.H
Compressor:: French Tecumseh
Certification:: ISO
Product Description

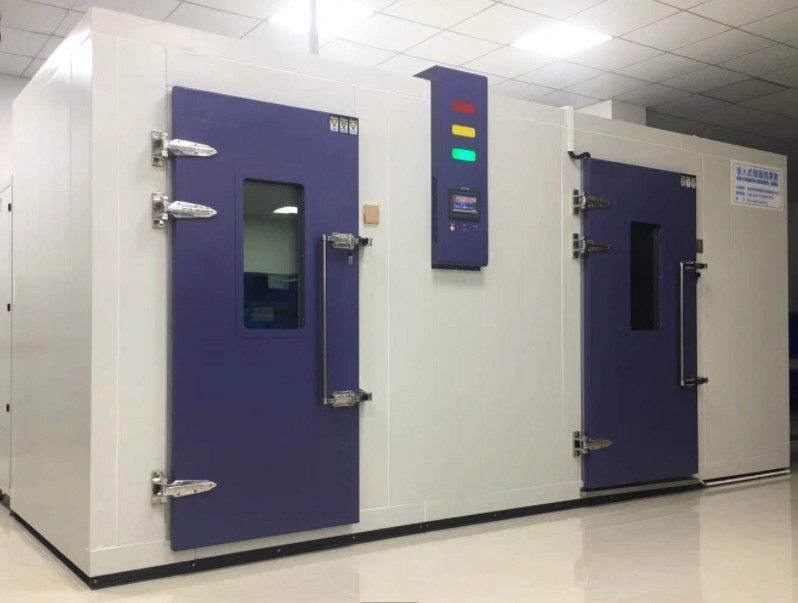

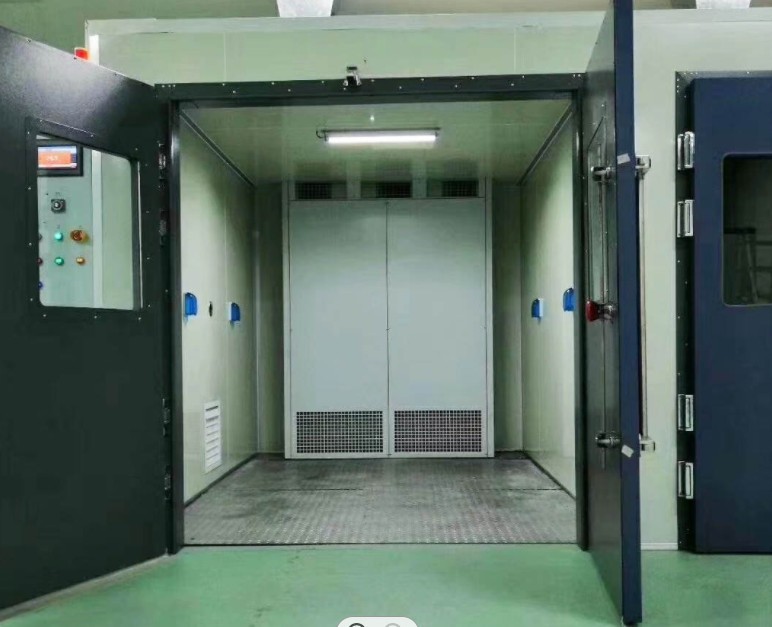

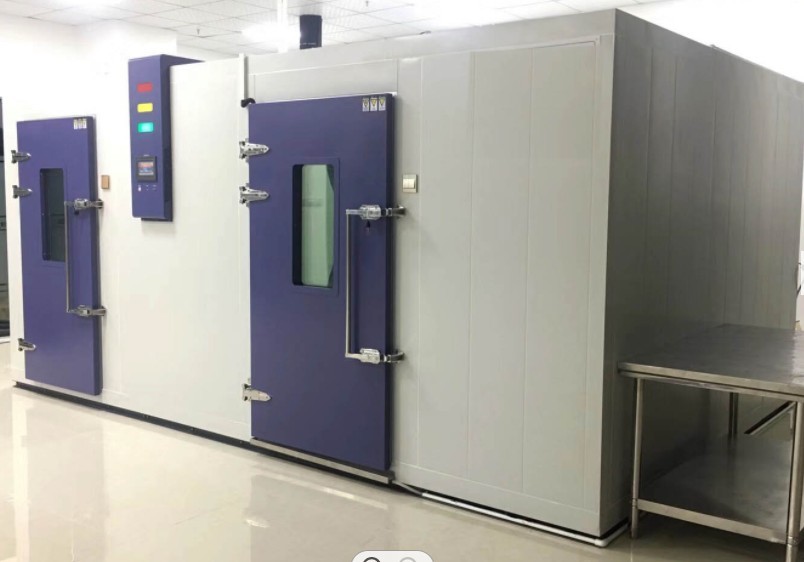

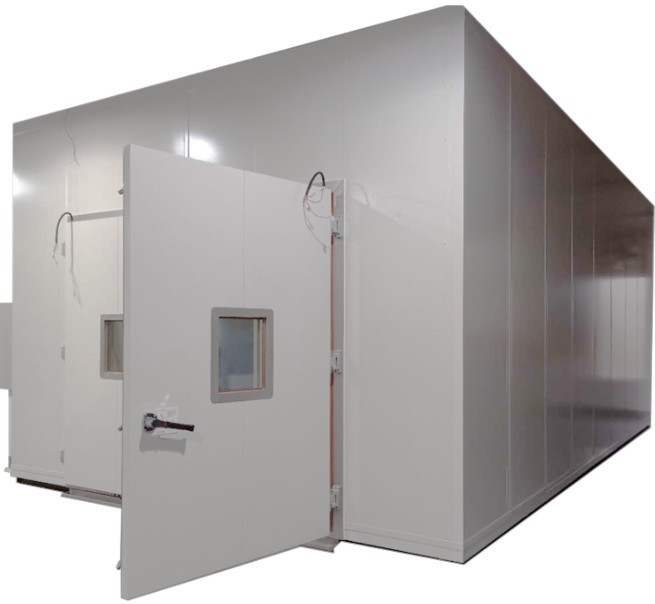

Large Capacity Walk In Climatic Temperature Humidity Stability Testing Chambers / Room





Product information

It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



Specification
System Balanced Temperature & Humidity Control System
Temp. range -70°C~150°C
Humid. range 20 ~ 98 percent R.H.
Temp. & Humid. accuracy ± 0.3°C; ± 2 percent R.H
Temp. & Humid. regularity ± 1°C; ± 3 percent RH
Resolution 0.1°C, 1 percent, P.I.D control
Heating up -40°C ~ +100°C within 45 min
Heating down 20°C~ -20°Cwithin 40min
Interior dimension(W×D×H) 60×80×85cm
Exterior dimension(W×D×H) 120×135×175cm
Interior material Stainless steel plate(SUS304)
Exterior material Stainless steel plate(SUS304)
Insulation Rigid foam
Refrigeration system Air cooled, Hermetic compressor, single stage refrigeration system.
Display LCD
Safety devices No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm
Accessories Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp.
Weight Approx. 400kg
Power AC220V±10 percent 50/60Hz

Product Effects


Large Capacity Walk In Climatic Temperature Humidity Stability Testing Chambers / RoomLarge Capacity Walk In Climatic Temperature Humidity Stability Testing Chambers / RoomLarge Capacity Walk In Climatic Temperature Humidity Stability Testing Chambers / Room

Related Products
Company Information

Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

Large Capacity Walk In Climatic Temperature Humidity Stability Testing Chambers / Room

FAQ
1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer for Customized Industrial Drying Oven, Hot Air Oven, Laboratory Oven, vacuum oven, Universal Tensile testing machine, Environmental Climatic chamber, Muffle furnace etc. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales
