Vacuum Atmosphere Liyi Sintering Muffle Furnace Oven 1700 Degree Heat Treatment
1 set
$2580- $4450
Vacuum Atmosphere Liyi Sintering Muffle Furnace Oven 1700 Degree Heat Treatment
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: ISO,CE
High Light:

Sintering Muffle Furnace Oven


Vacuum Atmosphere Muffle Furnace Oven


Sintering Industrial Drying Oven

Payment & Shipping Terms
Packaging Details: Packing in wooden cases
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets one month
Temperature Range: RT~1700C
Working Temperature: 1600 Degree
Temperature Precision: ±1℃
Heating Element: MoSi2 Heater
Heating Rate: 0-30 °C /min
Temperature Controller: 30 Programmable Segments
Temperature Measuring Element: B Type
Power Supply: AC220V 50/60HZ
Keywords: High Temperature Furnace
Chamber Material: High Quality Alumina Fiber Brick
Product Description

Liyi Sintering Furnace Muffle 1700 degree Heat Treatment Vacuum Atmosphere Furnace

Product Description
It is designed for material synthesis under controlled inert gas atmoshphere up to 1100 ºC with better temperature uniformity. The furnace consists of high quality alumina fiber brick and Fe-Cr-Al heating elements,It is an ideal tool for preparing new materials which requires a heat treatment under inert gas or oxidizing gas.

Can be customized:

Working voltage and frequency AC220V 50/60HZ
Rated power ≤2kw
Heating rate 0-30 °C /min



Product features

Cool can rise quickly, furnace temperature field is


Stable temperature control, simple operation,

low energyconsumption.

Heating element MoSi2 heater
Max. temperature 1700 °C (< 1 hour)
Continuous Working Temperature 1600℃



Temperature controller

PID automatic control and auto-tune function.

30 programmable segments for precise control.

Built in protection for over-heating and broken


Large digital control panel for easy operation.

Constant temperature precision ±1℃
The furnace shell Double air cooling structure

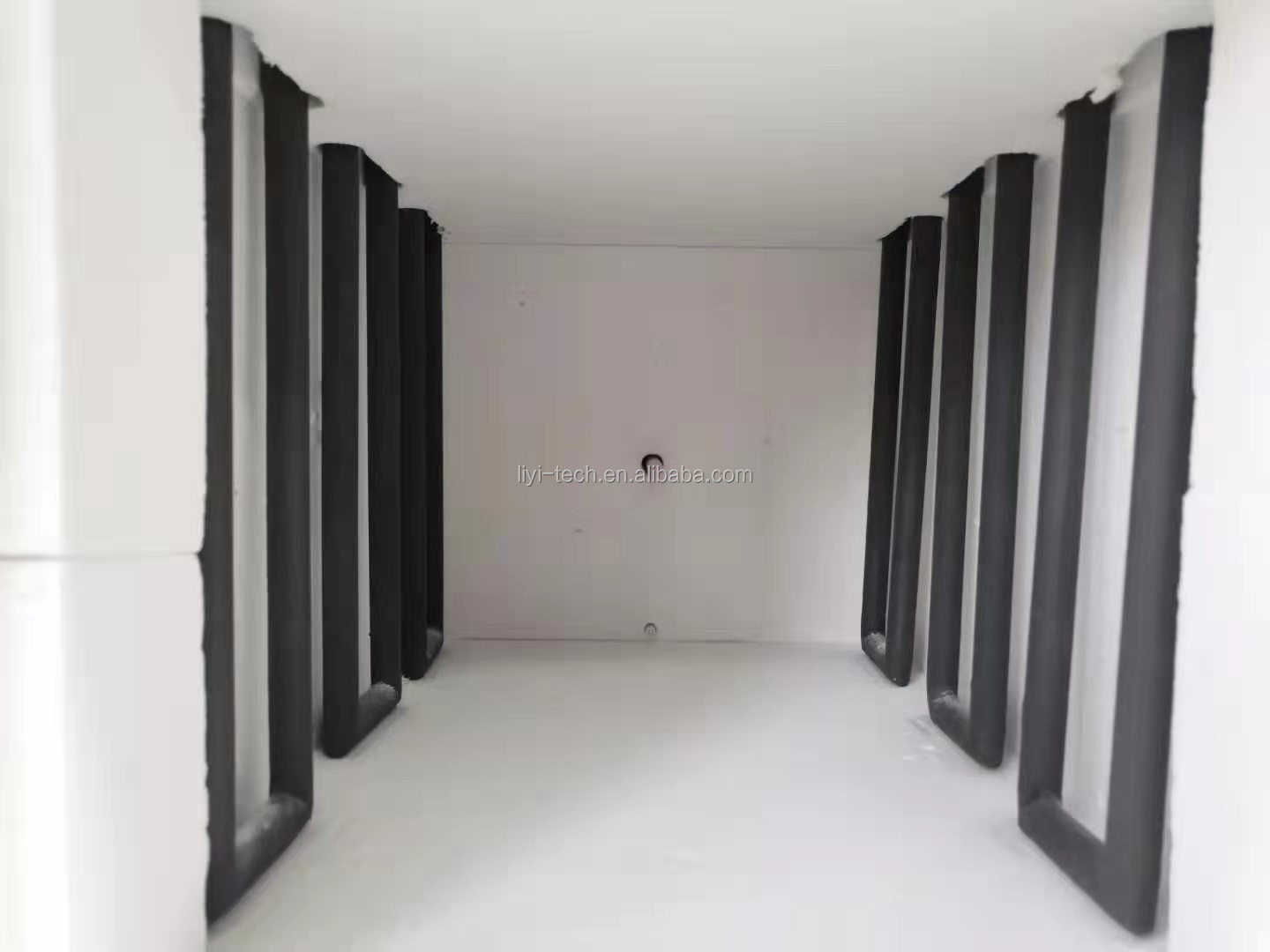

Furnace chamber

Type imported polycrystalline alumina fiber furnace,

reasonable design, durable, heat preservation

performance is good, saving energy

Temperature measuring element B Type double platinum rhodium thermocouple
Furnace door structure side-open
Main assembly

Asbestos gloves, crucible tongs, thermocouple,

brick block

More regular atmosphere

furnace size

100x100x100mm 200x150x150mm 300x200x200mm,

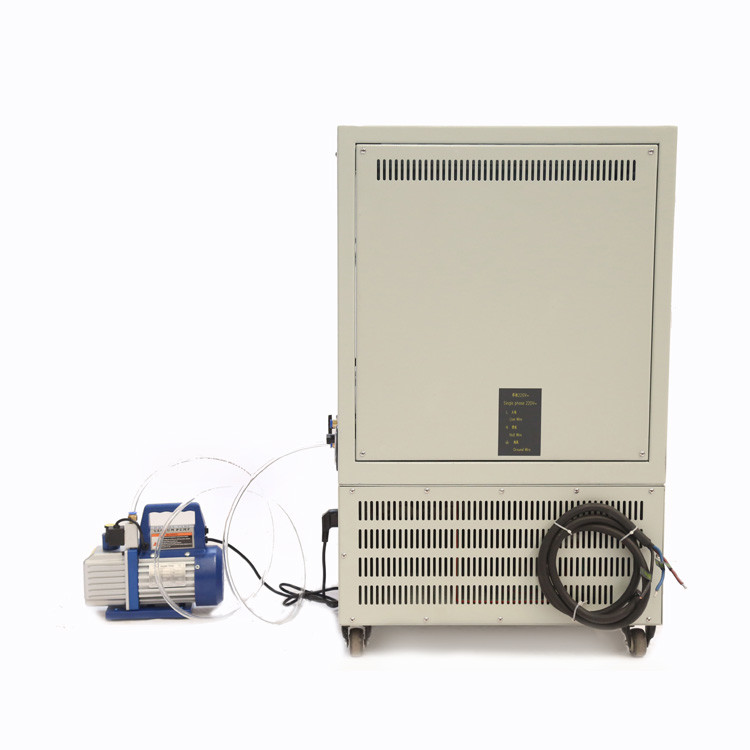

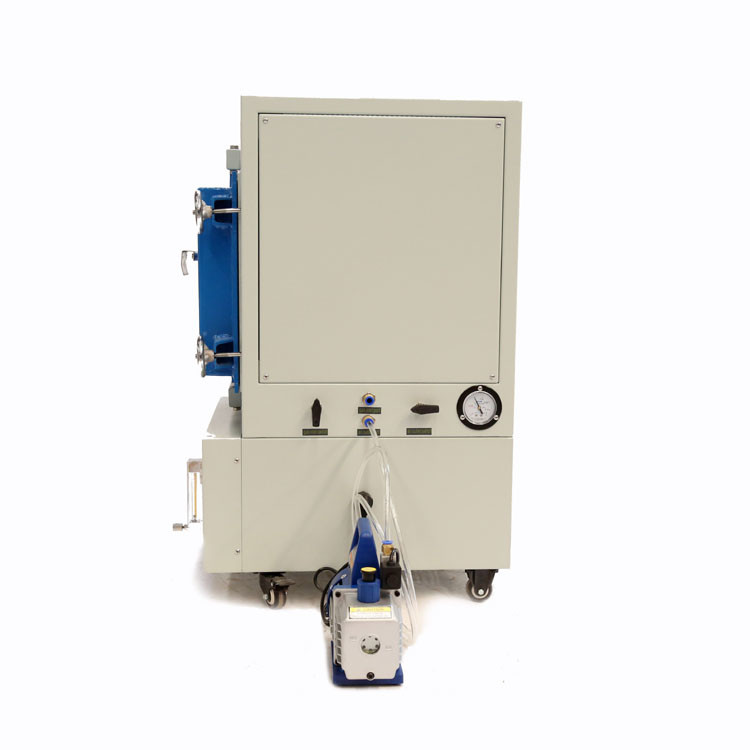

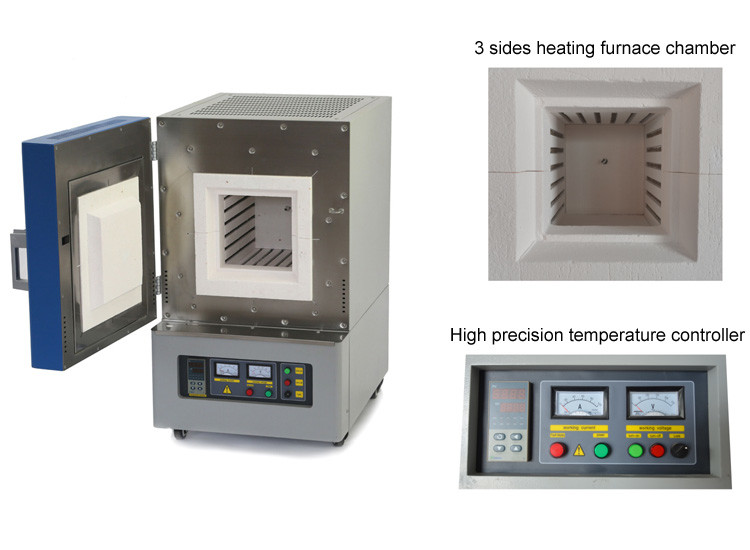

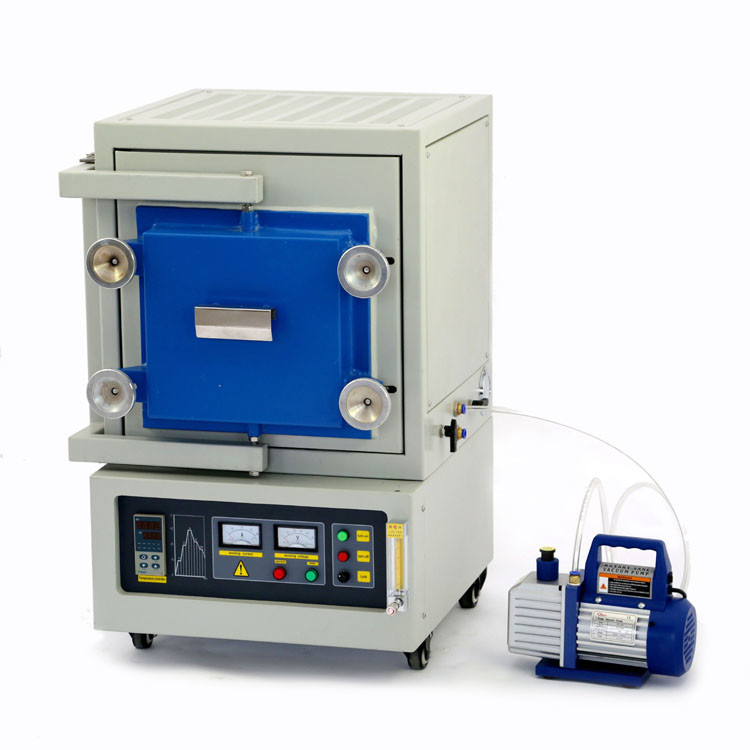

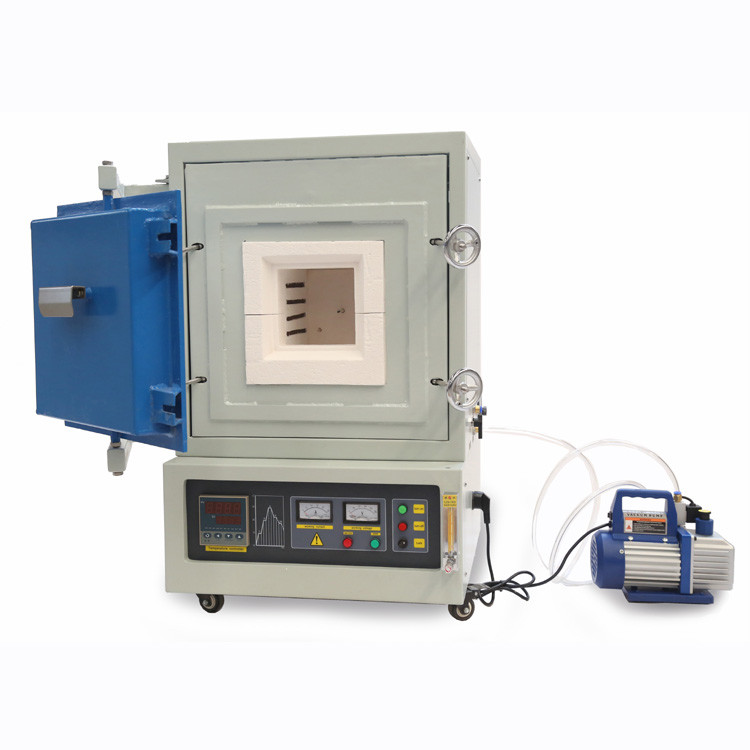

Product Effects


Vacuum Atmosphere Liyi Sintering Muffle Furnace Oven 1700 Degree Heat Treatment 0Vacuum Atmosphere Liyi Sintering Muffle Furnace Oven 1700 Degree Heat Treatment 1

Vacuum Atmosphere Liyi Sintering Muffle Furnace Oven 1700 Degree Heat Treatment 2

Vacuum Atmosphere Liyi Sintering Muffle Furnace Oven 1700 Degree Heat Treatment 3

Vacuum Atmosphere Liyi Sintering Muffle Furnace Oven 1700 Degree Heat Treatment 4
