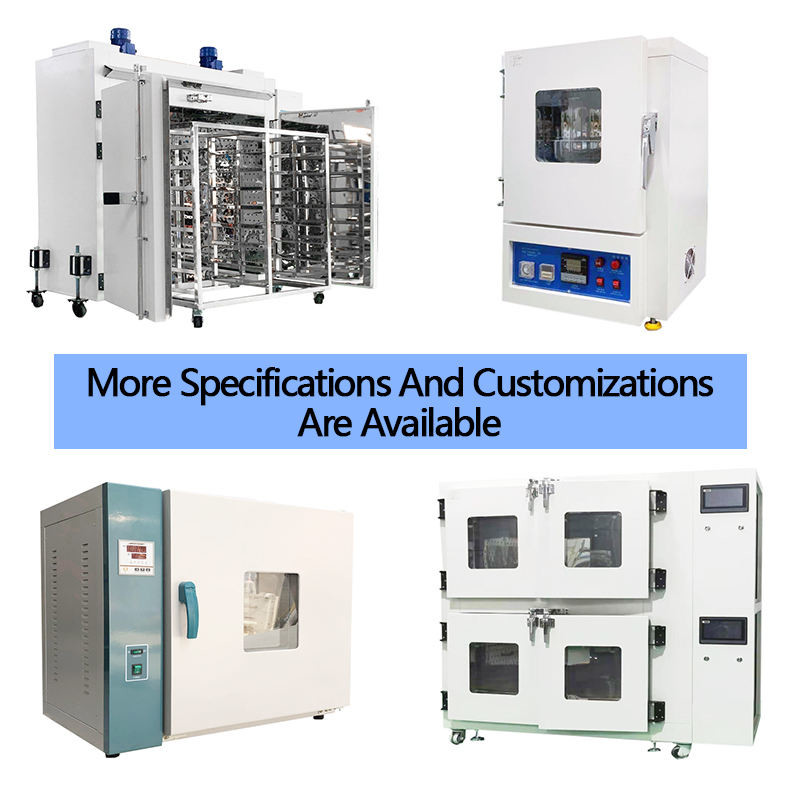

Liyi Stainless Steel Hot Air Oven Manufacturers Industrial Drying Oven Price

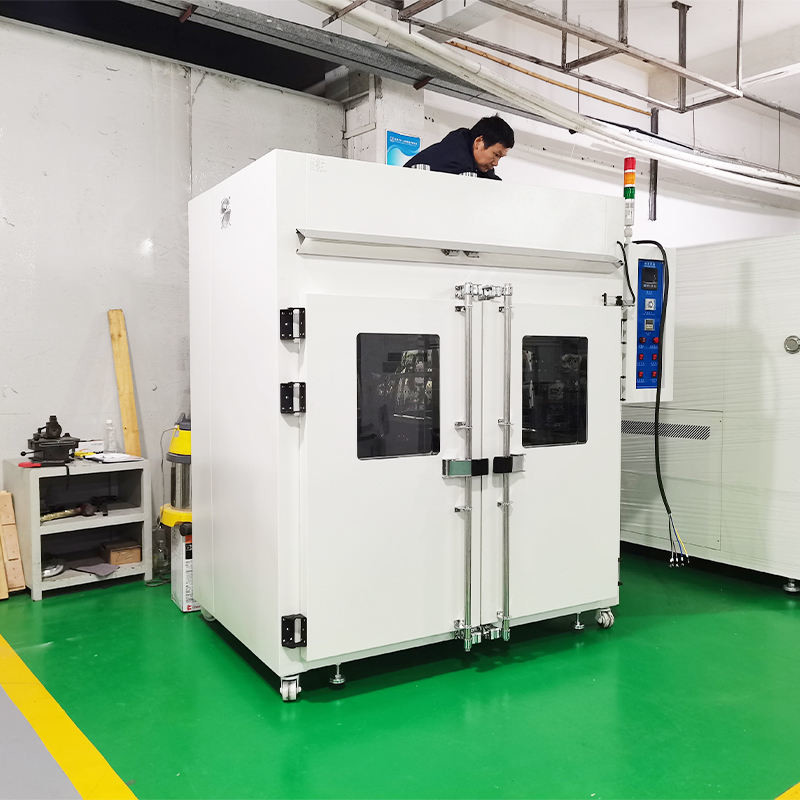

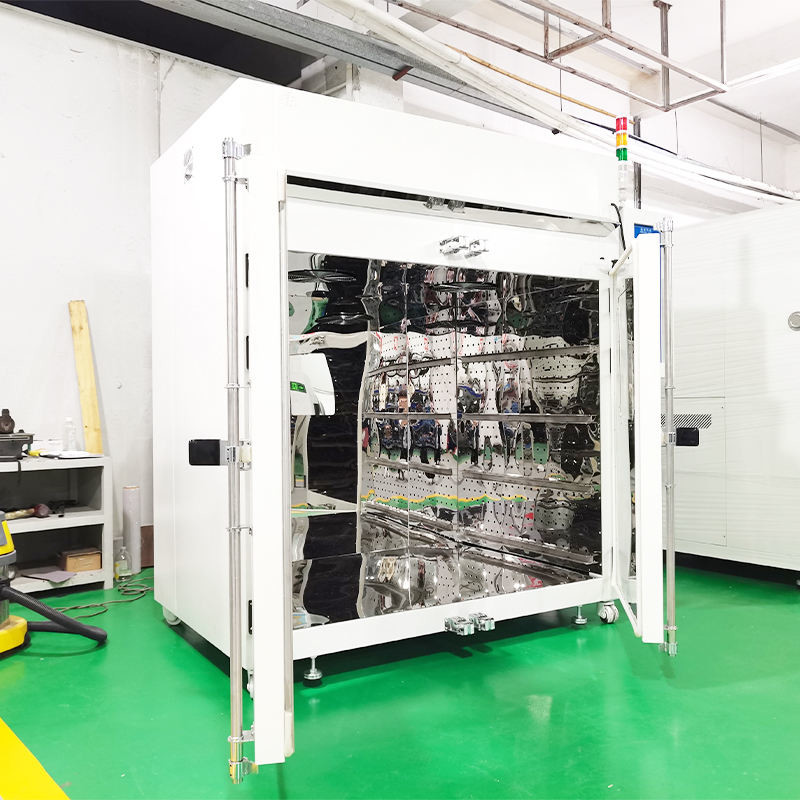

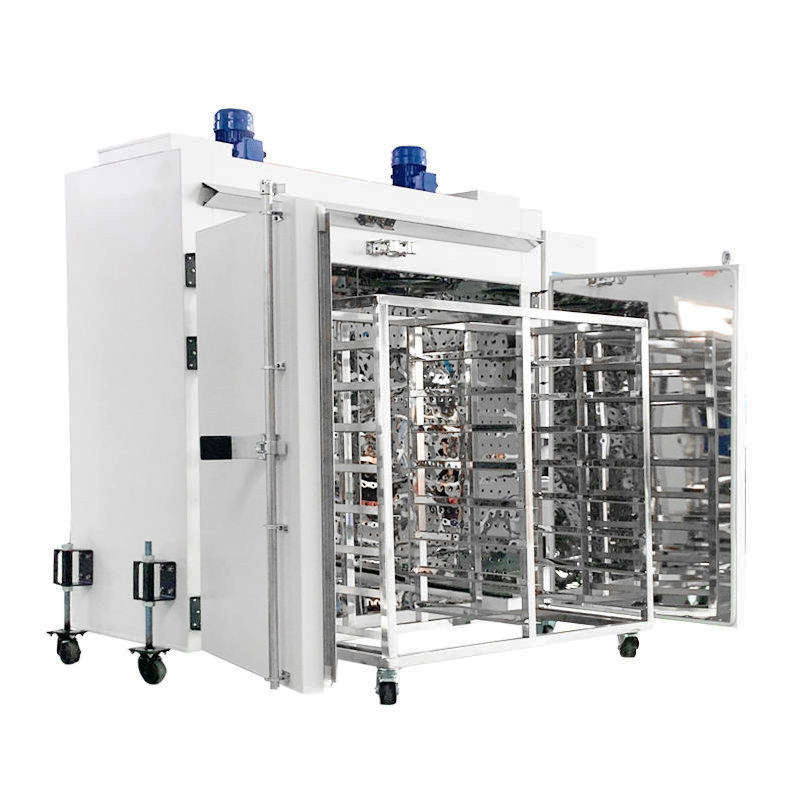

1400mm Width Double Door Hot Air Electric Powder Coating Drying Oven with 10 Layers Cart is used for environmental protection, sanitation epidemic prevention, drug inspection, crop-livestock, and aquatic products etc. which is applied in scientific research institutions, college, and manufacture department. It is a specialized constant-temperature equipment for water analyzing, BOD test, cultivation, and storage of bacteria, mold and microorganism, plant cultivation and seed-breeding test.
1. Outside SECC steel, fine powder coating treatment; Inner Teflon coating.
2. Use new high temperature resistant long shaft motor.
3. Turbine fan.
4. Silicone forced tight.
5. Overtemperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature,temperature quickly compensation function.
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specifie.
Specifications: (all requirements can be customized)
1. The controller is located on the right part of the machine together with luxury stainless steel handle and explosion-proof lock .
2. Internal material is 304 SUS mirror stainless steel.All the internal material is low polluted and all internal barrels use argon arc welding.
3. External material is SECC steel plate witch is fine powder baking finished.
4. Heat preservation material for the imported high-density glass rock wool with perfect thermal insulation, maximize temperature heat preservation,use silica ge whitch can long time be under the high temperature of 500 degrees or above.
Air supply system:
1. Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then inhalt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2. The motor is imported from Taiwan witch have long axis and can endure high temperature.
3. The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.
Material of Construction:
(1) Interior material is SUS#304 stainless steel
(2) Exterior material is paint coated steel plate
(3) Insulation Material of imported fire-proof rock wool
(4) Heating Medium: electric heating tube
(1) Touch screen programmable controller, with curve display and record function, can connect with PC and use USB to download curve and data.;
(2) 220V Solid state relay temperature output;
(3) Current Controller : SSR no contact relay
