Liyi Stainless Steel Hot Air Oven , PLC Controller Industrial Drying Oven

1 Set
Liyi Stainless Steel Hot Air Oven , PLC Controller Industrial Drying Oven
Features Gallery Product Description Request A Quote
Inside Material: 304 Stainless Steel
Inner Size: Customization
Max Temperature: RT~200C
Inner Structure: Customize Cart And Trays
Controller: PLC
Color: Can Customize
Heater: Electrical Heater
Voltage: 220、380V
High Light:

380V Hot Air Oven


SUS304 Hot Air Oven


PLC Industrial Drying Oven

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

Liyi Stainless Steel Hot Air Oven Manufacturers Industrial Drying Oven Price


Product description:

      1400mm Width Double Door Hot Air Electric Powder Coating Drying Oven with 10 Layers Cart is used for environmental protection, sanitation epidemic prevention, drug inspection, crop-livestock, and aquatic products etc. which is applied in scientific research institutions, college, and manufacture department. It is a specialized constant-temperature equipment for water analyzing, BOD test, cultivation, and storage of bacteria, mold and microorganism, plant cultivation and seed-breeding test.


1. Outside SECC steel, fine powder coating treatment; Inner Teflon coating.
2. Use new high temperature resistant long shaft motor.
3. Turbine fan.
4. Silicone forced tight.
5. Overtemperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature,temperature quickly compensation function.
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specifie.


Specifications: (all requirements can be customized)


Inner Size



External Size













Rate of



LY-645 45×40×40 66×92×55










About 10min

±0.3 ±1%




LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16


1. The controller is located on the right part of the machine together with luxury stainless steel handle and explosion-proof lock .
2. Internal material is 304 SUS mirror stainless steel.All the internal material is low polluted and all internal barrels use argon arc welding.
3. External material is SECC steel plate witch is fine powder baking finished.
4. Heat preservation material for the imported high-density glass rock wool with perfect thermal insulation, maximize temperature heat preservation,use silica ge whitch can long time be under the high temperature of 500 degrees or above.


Air supply system:
1. Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then inhalt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2. The motor is imported from Taiwan witch have long axis and can endure high temperature.
3. The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.


Material of Construction:
(1) Interior material is SUS#304 stainless steel
(2) Exterior material is paint coated steel plate
(3) Insulation Material of imported fire-proof rock wool
(4) Heating Medium: electric heating tube

Control System:
(1) Touch screen programmable controller, with curve display and record function, can connect with PC and use USB to download curve and data.;
(2) 220V Solid state relay temperature output;
(3) Current Controller : SSR no contact relay

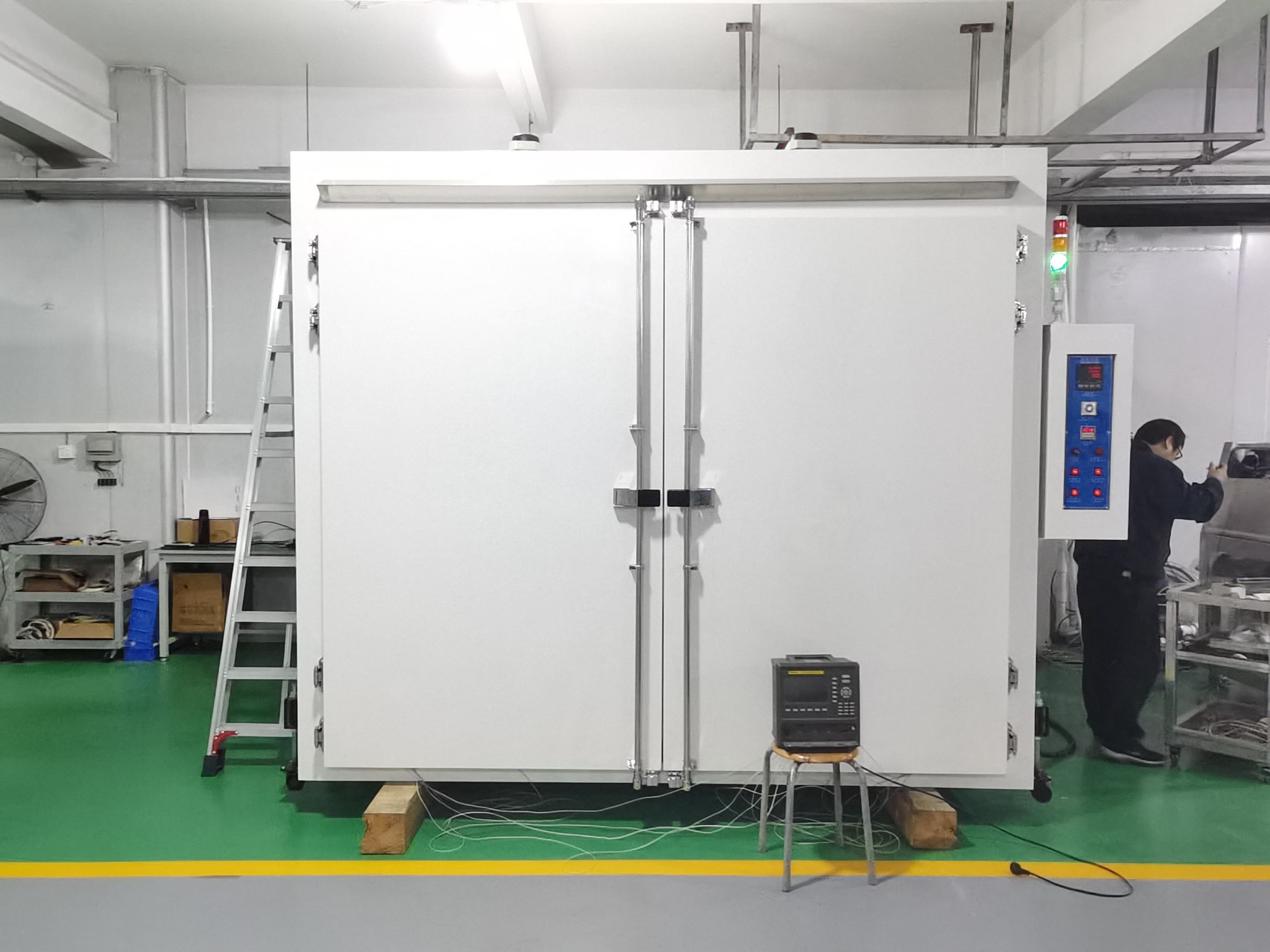

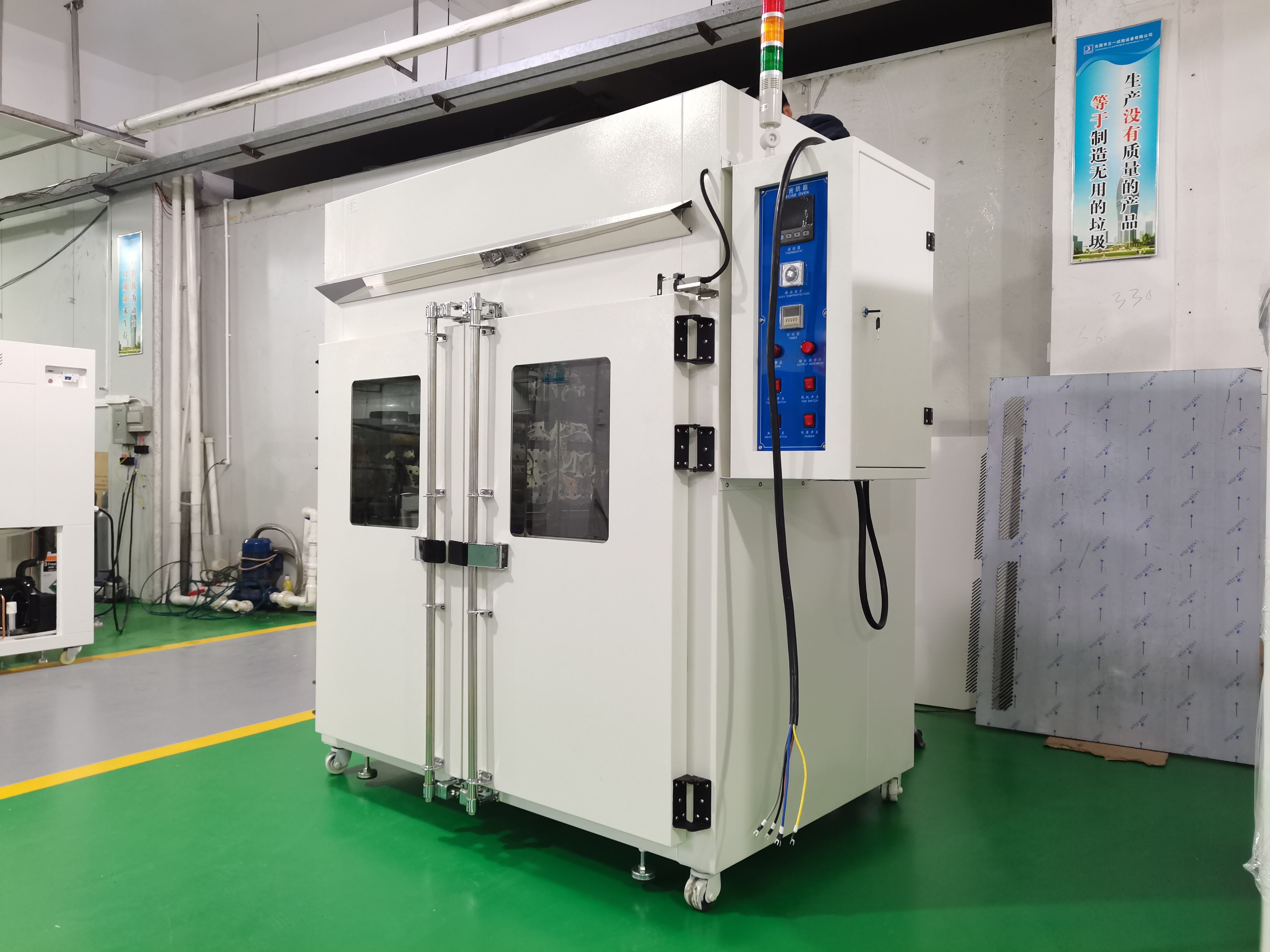

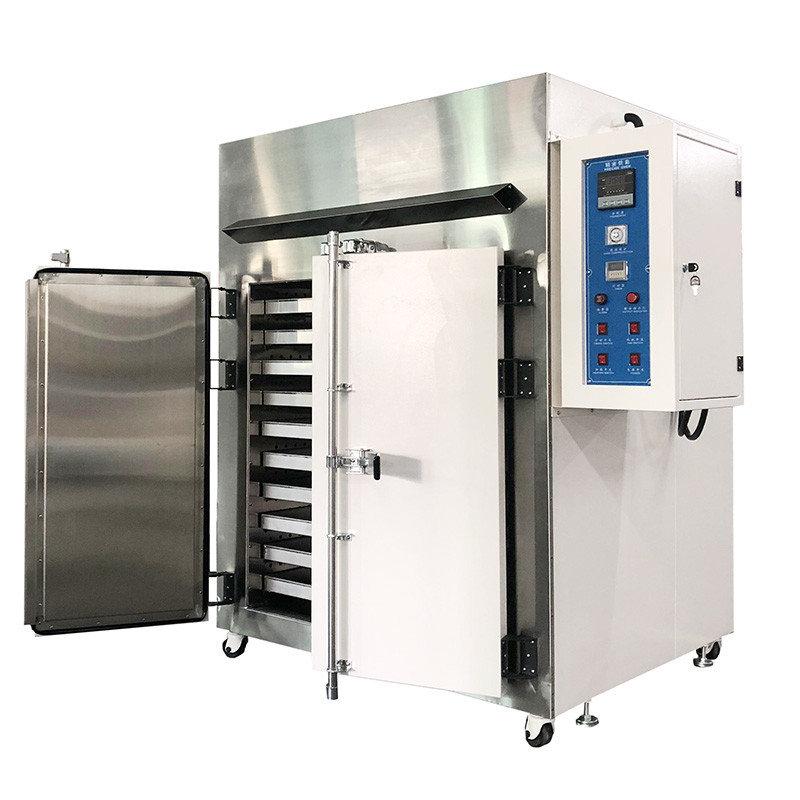

Liyi Stainless Steel Hot Air Oven , PLC Controller Industrial Drying Oven 0Liyi Stainless Steel Hot Air Oven , PLC Controller Industrial Drying Oven 1Liyi Stainless Steel Hot Air Oven , PLC Controller Industrial Drying Oven 2

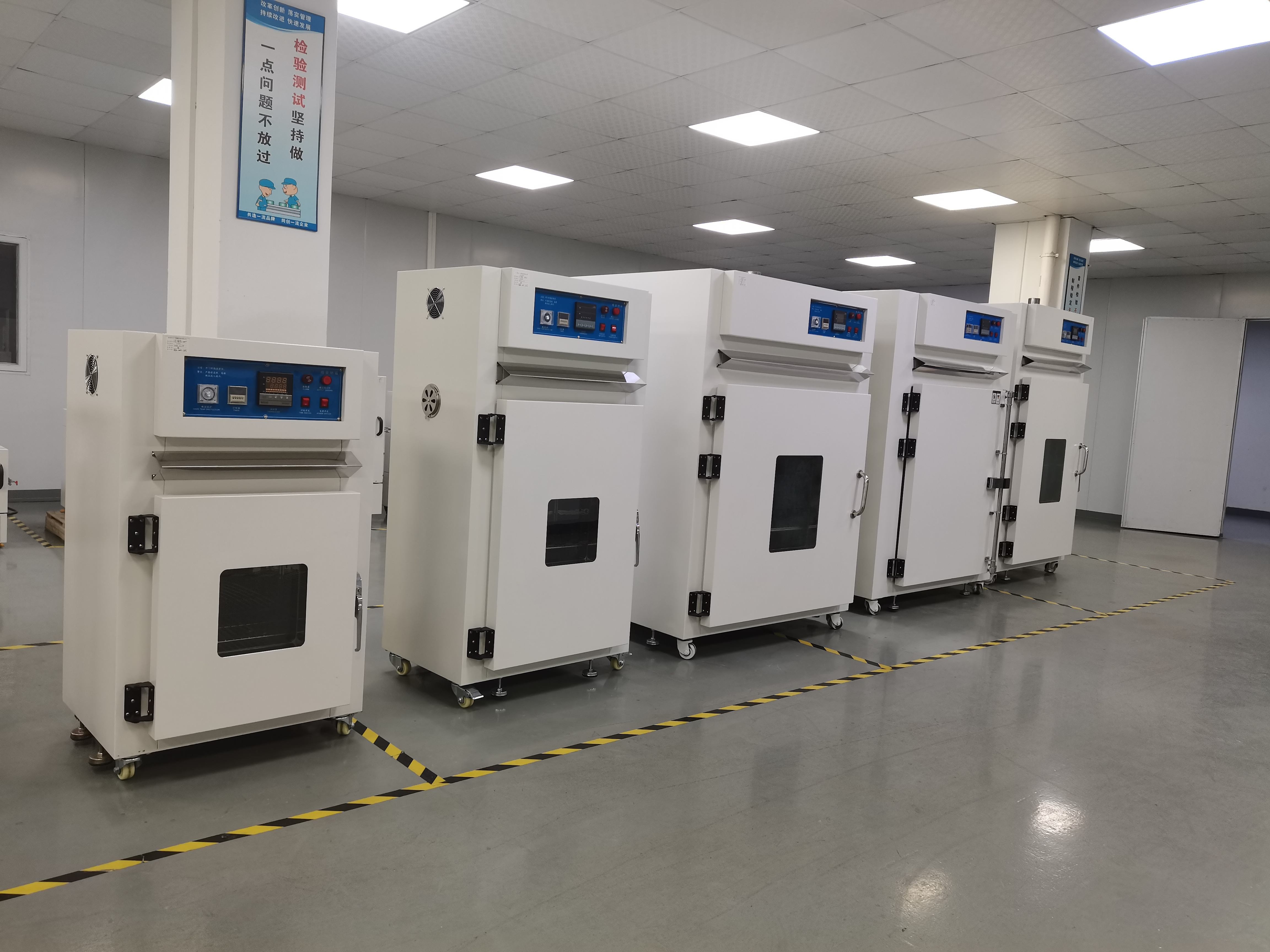

Liyi Stainless Steel Hot Air Oven , PLC Controller Industrial Drying Oven 3


Liyi Stainless Steel Hot Air Oven , PLC Controller Industrial Drying Oven 4


Our service:

During the whole business process, we offer Consultative Selling service.


1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
