Laboratory Liyi Small Industrial Drying Oven Professional Test Equipment

1 Set
Laboratory Liyi Small Industrial Drying Oven Professional Test Equipment
Features Gallery Product Description Request A Quote
Inside Material: 304 Stainless Steel
Inner Size: Customization
Max Temperature: 0-500 Centidegree
Inner Structure: Customize Cart And Trays
Heater: Electrical Heater
Voltage: 220V
High Light:

SSR Laboratory Drying Oven


SUS 304 Laboratory Drying Oven


Microcomputer Industrial Drying Oven

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

Liyi Cheap Small Laboratory Drying Oven


1. Microcomputer intelligent PID control technology, the system has temperature control, timing, over temperature alarm function;

2. The hot air circulation system consists of low noise fans and air ducts. Reasonable air duct and circulation system to stabilize the temperature in the working chamber;

3. The outer casing is made of high-quality cold-rolled steel plate treated by environmentally-friendly electrostatic spray. The overall design is beautiful and novel, and has a large viewing angle observation window;

4. The inner tank is divided into two types: mirror stainless steel and galvanized steel. The semi-arc shape is easy to clean.

5. The spacing of the shelves in the working room and the number of shelves can be adjusted to facilitate access to samples of different specifications;

6. Use high temperature resistant silica gel as the sealing door edge and high temperature heating pipe as heating element to ensure safety and longer service life;

7. Ergonomic fastening handle for easy handling and tightness.

Specifications: (all requirements can be customized)


Inner Size



External Size













Rate of



LY-645 45×40×40 66×92×55










About 10min

±0.3 ±1%




LY-660 50×60×50 70×125×65 ±0.3 ±1% 4.5
LY-690 60×90×50 80×156×65 ±0.3 ±1% 5.5
LY-6100 80×100×60 100×166×75 ±0.3 ±1% 8
LY-6120 90×120×60 110×186×75 ±0.3 ±1% 10
LY-6140 140×120×60 160×186×75 ±0.3 ±1% 12
LY-6160 160×140×80 180×206×97 ±0.3 ±1% 14
LY-6180 180×140×100 200×200×118 ±0.3 ±1% 16


1. The controller is located on the right part of the machine together with luxury stainless steel handle and explosion-proof lock .
2. Internal material is 304 SUS mirror stainless steel.All the internal material is low polluted and all internal barrels use argon arc welding.
3. External material is SECC steel plate witch is fine powder baking finished.
4. Heat preservation material for the imported high-density glass rock wool with perfect thermal insulation, maximize temperature heat preservation,use silica ge whitch can long time be under the high temperature of 500 degrees or above.


Air supply system:
1. Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then inhalt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2. The motor is imported from Taiwan witch have long axis and can endure high temperature.
3. The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.


Material of Construction:
(1) Interior material is SUS#304 stainless steel
(2) Exterior material is paint coated steel plate
(3) Insulation Material of imported fire-proof rock wool
(4) Heating Medium: electric heating tube

Control System:
(1) Touch screen programmable controller, with curve display and record function, can connect with PC and use USB to download curve and data.;
(2) 220V Solid state relay temperature output;
(3) Current Controller : SSR no contact relay

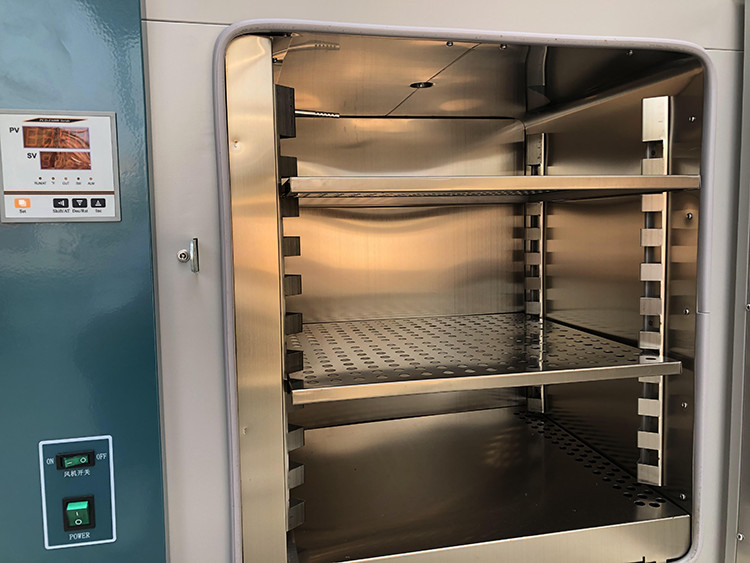

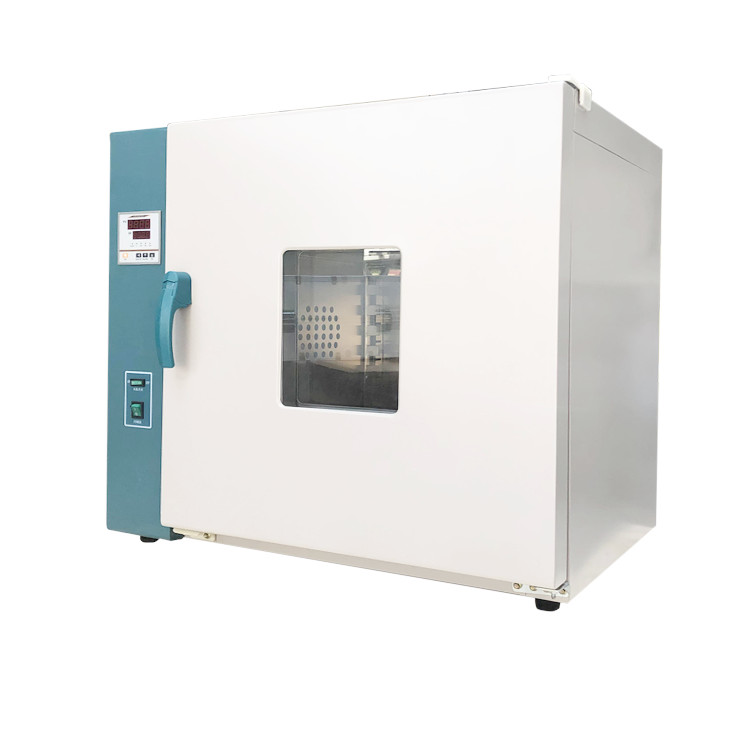

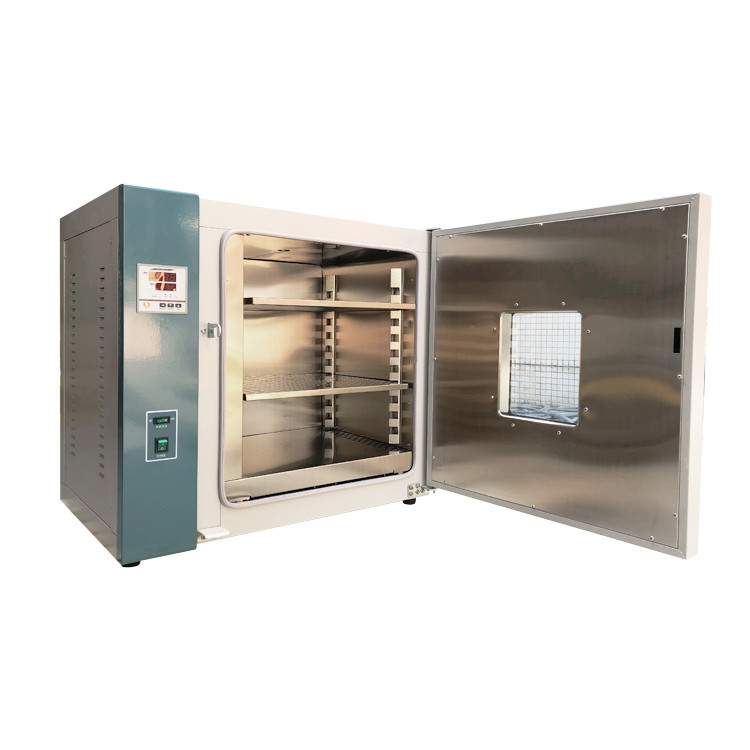

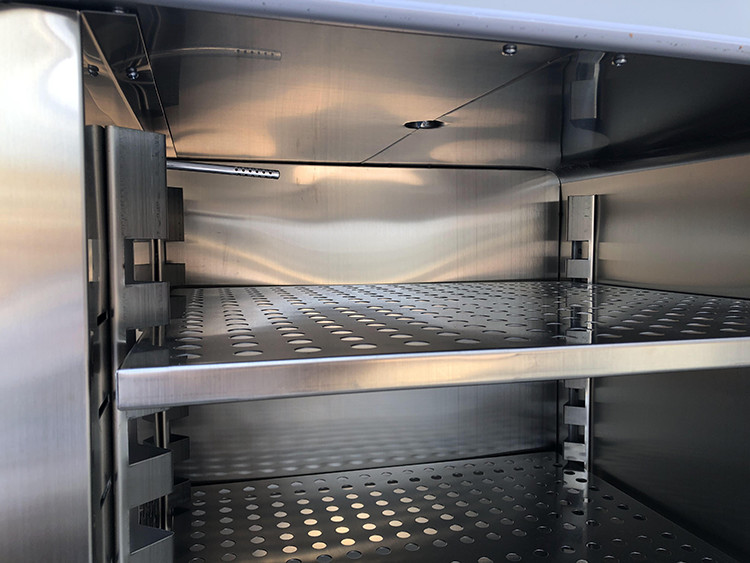

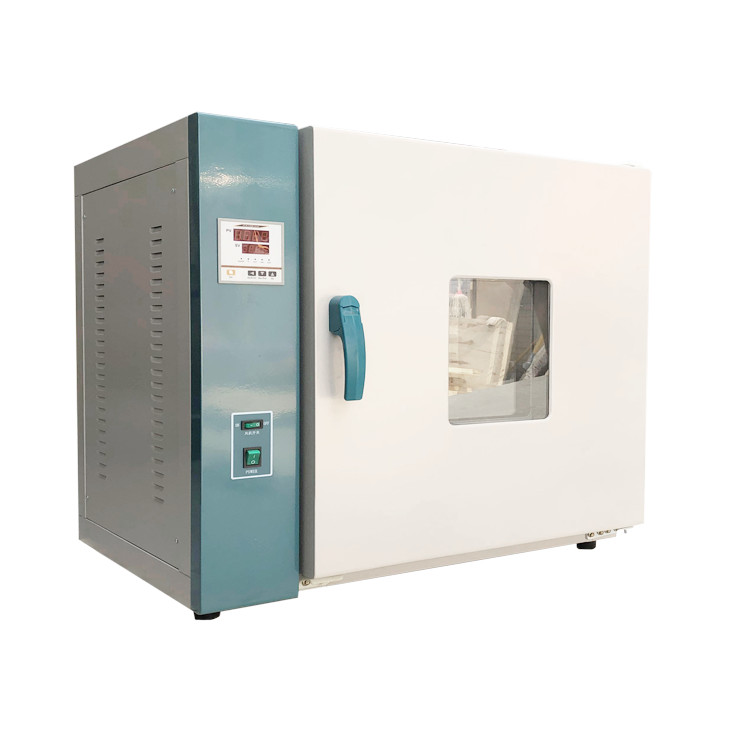

Laboratory Liyi Small Industrial Drying Oven Professional Test Equipment 0Laboratory Liyi Small Industrial Drying Oven Professional Test Equipment 1Laboratory Liyi Small Industrial Drying Oven Professional Test Equipment 2




Laboratory Liyi Small Industrial Drying Oven Professional Test Equipment 3


Laboratory Liyi Small Industrial Drying Oven Professional Test Equipment 4
