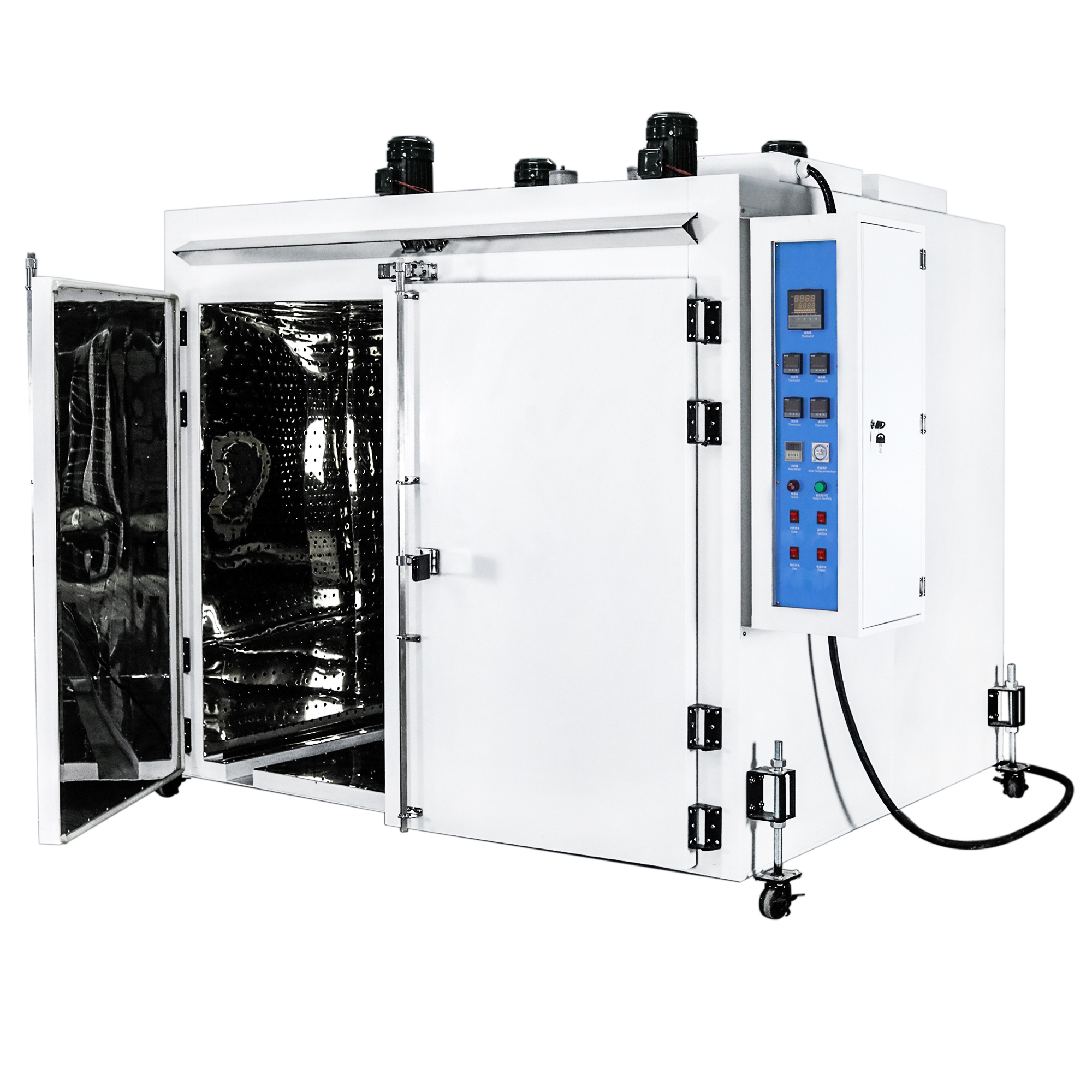

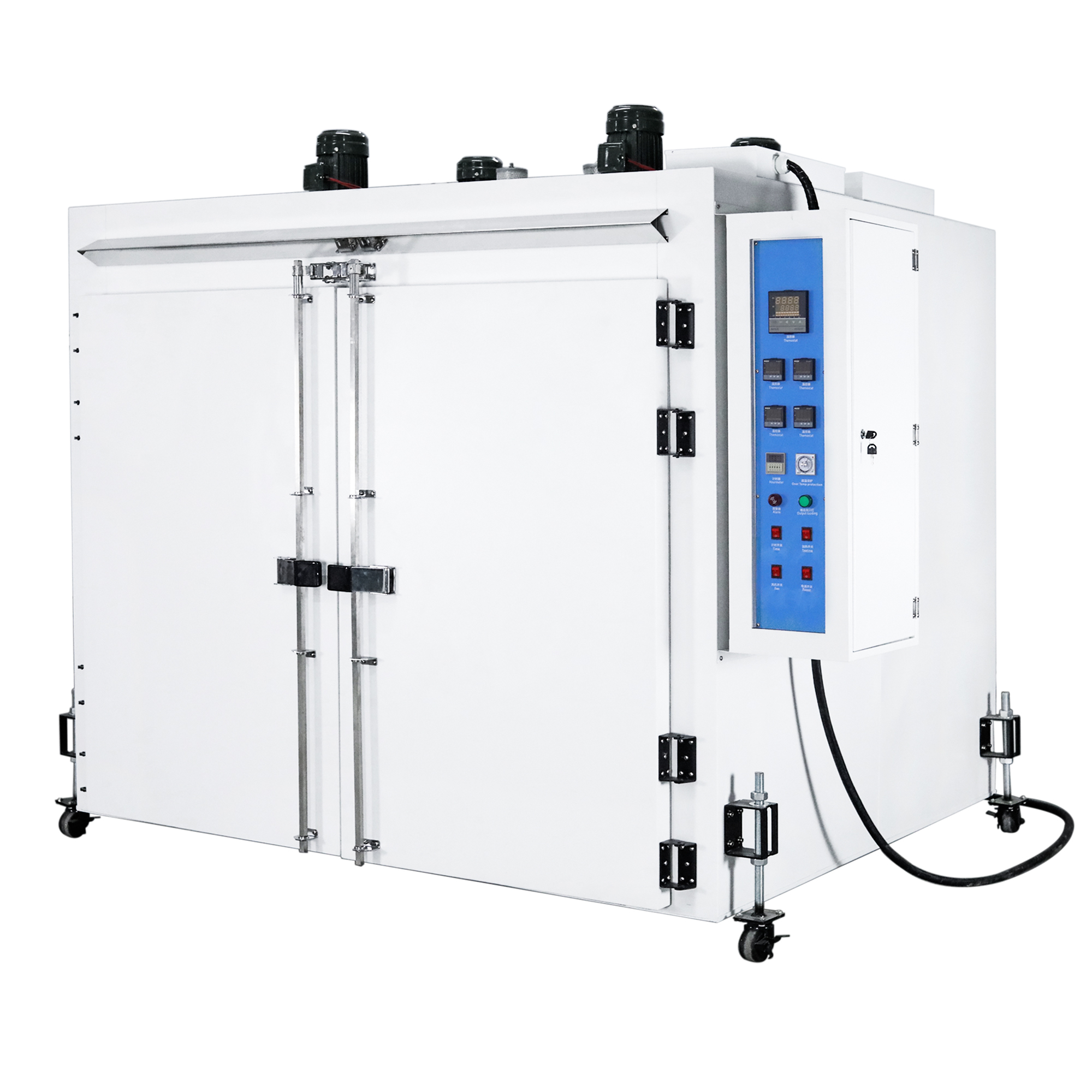

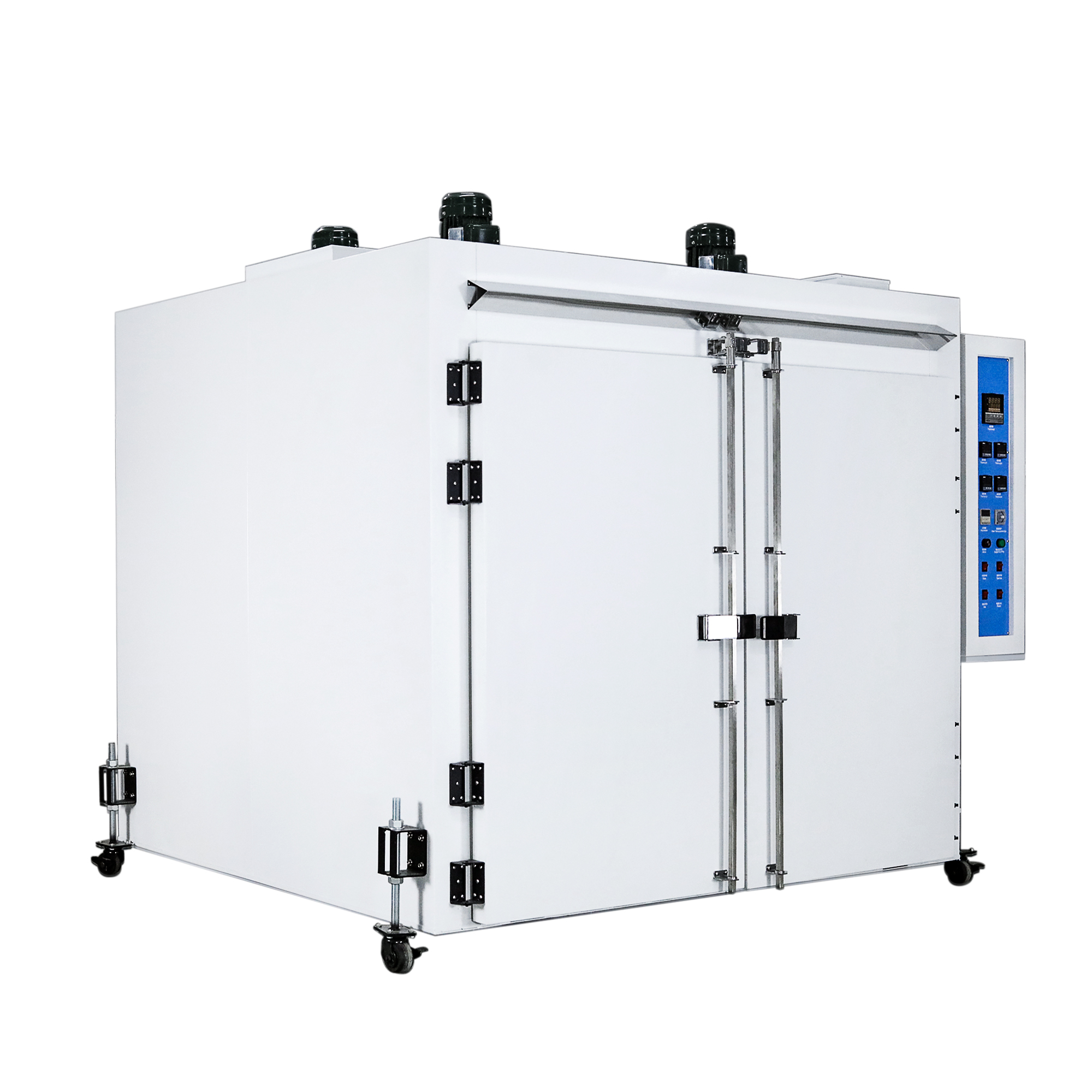

Our industrial ovens are designed to heat up to 800℃ and are used for a wide variety of heat processes including drying, curing, aging, annealing, stress relieving, bonding, tempering, pre-heating and forming. These heated boxes with insulated doors process products one at a time.
Standard industrial ovens are offered in many sizes, with multiple options available upon request. We also supply custom engineered industrial ovens to meet specific requirements.
Type | Drying Oven |
Applications | Chemicals Processing, Plastics Processing |
Heating Method | Electric Heating |
Material | SUS304 (Inside), SECC steel with powder coating (Outside) |
Power | 220V |
Circulation System | Forced horizontal air circulation |
Accuracy | ±0.3°C |
Uniformity | ±1%°C |
Heating Time | RT~100°C in about 10 minutes |
Weight | 258 kg |
Warranty | 1 Year (including core components) |
Model | Inner Size (W×H×D cm) | External Size (W×H×D cm) | Power | Power Rating (KW) |
---|---|---|---|---|
LY-645 | 45×40×40 | 66×92×55 | 220V or 380V | 3.5 |
LY-660 | 50×60×50 | 70×125×65 | 4.5 | |
LY-690 | 60×90×50 | 80×156×65 | 5.5 | |
LY-6100 | 80×100×60 | 100×166×75 | 8 | |
LY-6120 | 90×120×60 | 110×186×75 | 10 | |
LY-6140 | 140×120×60 | 160×186×75 | 12 | |
LY-6160 | 160×140×80 | 180×206×97 | 14 | |
LY-6180 | 180×140×100 | 200×200×118 | 16 | |
LY-OEM | Custom sizes and specifications available |
Yes, we are professional manufacturers of environmental chambers and testing equipment. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer free maintenance during the warranty period, extended by 2 months to account for sea transportation time.
If your machine requires service, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary, and provide a solution within 24 to 48 hours of confirmation.
For standard machines in stock, we can ship immediately. For out-of-stock standard machines, delivery typically takes 15-20 working days after receiving deposit. We can make special arrangements for urgent orders.
Yes, we offer both standard and customized machines according to your requirements. We can also apply your logo to the equipment (OEM/ODM service).
Most machines are shipped fully assembled - you only need to connect the power cable to begin operation. We provide English-language operation videos via email with each order. If needed, we can also assist with on-site installation.
