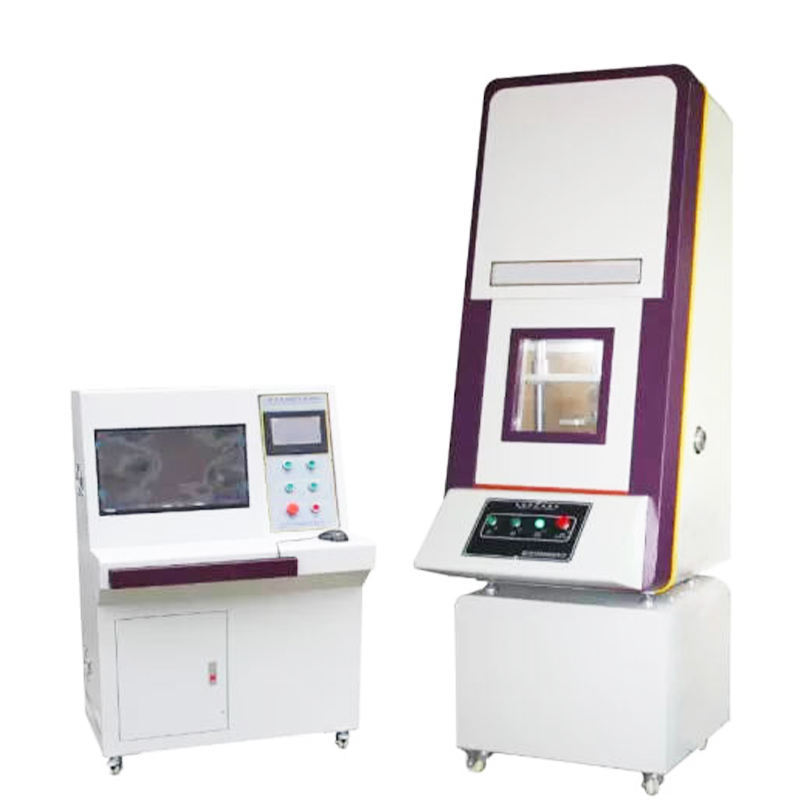

Liyi Batteries Crush Test Equipment - Lithium Safety Battery Nail Penetration Tester
Professional testing equipment designed for lithium battery safety evaluation through controlled nail penetration and crush testing procedures.
Key Features
- Metal fire-proof wire enclosure prevents flame exposure during testing
- Integrated lighting system for clear observation of internal testing process
- Adjustable penetration/crush velocity range: 1-40mm/s
- Controllable crush force range: 20T to 50T to meet various standards
- Wire hole for internal temperature/air pressure monitoring with exhaust ventilation
- Separate control cabinet positioned 1-2 meters from test chamber for noise reduction and safety
Technical Specifications
| Display |
PLC Touch screen display |
| Electric Control |
Controlled by PLC program |
| Penetration Mode |
Vertical direction |
| Steel Nail Diameter |
2mm~10mm, 20mm for option |
| Inner Box Material |
SUS304 stainless steel with iron and fluorine melted tape insulation |
| Outer Box Material |
Cold rolled sheet baking treatment |
| Exhaust Device |
120mm diameter duct with exhaust fan |
| Test Mode |
Single test |
| Observation Window |
250*250*5mm tempered explosion-proof glass with protective iron gauze |
| Protective Device |
Safety door switch with automatic sensor operation |
| Max. Battery Test Size |
300*300*100mm (L*W*H) |
| Power Requirements |
AC220V±10%, 10A 50Hz 1phase |
| Power Consumption |
2.2 kW |
| Weight |
Approximately 320kg |

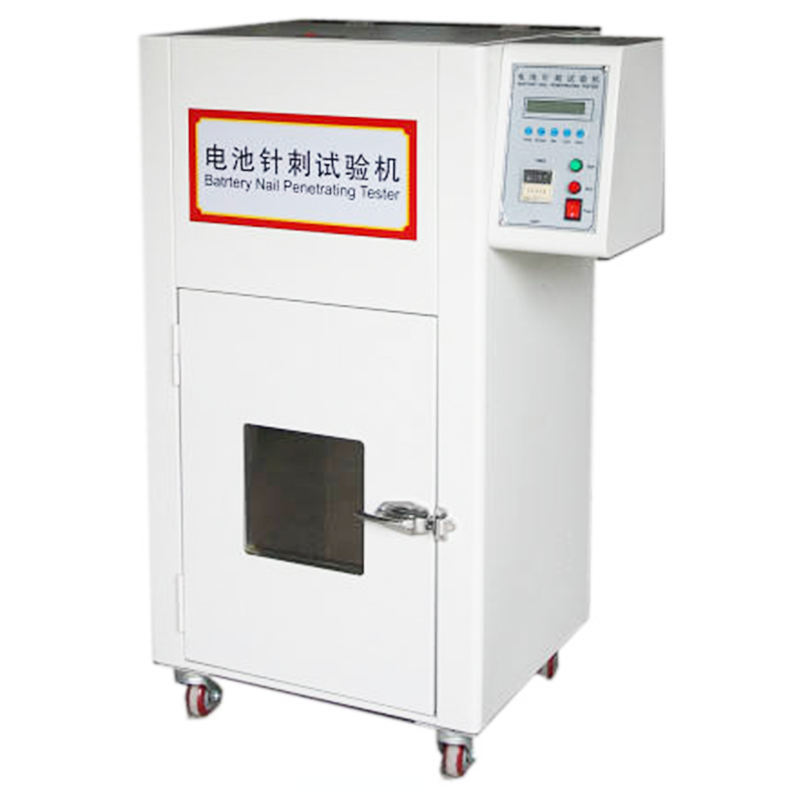

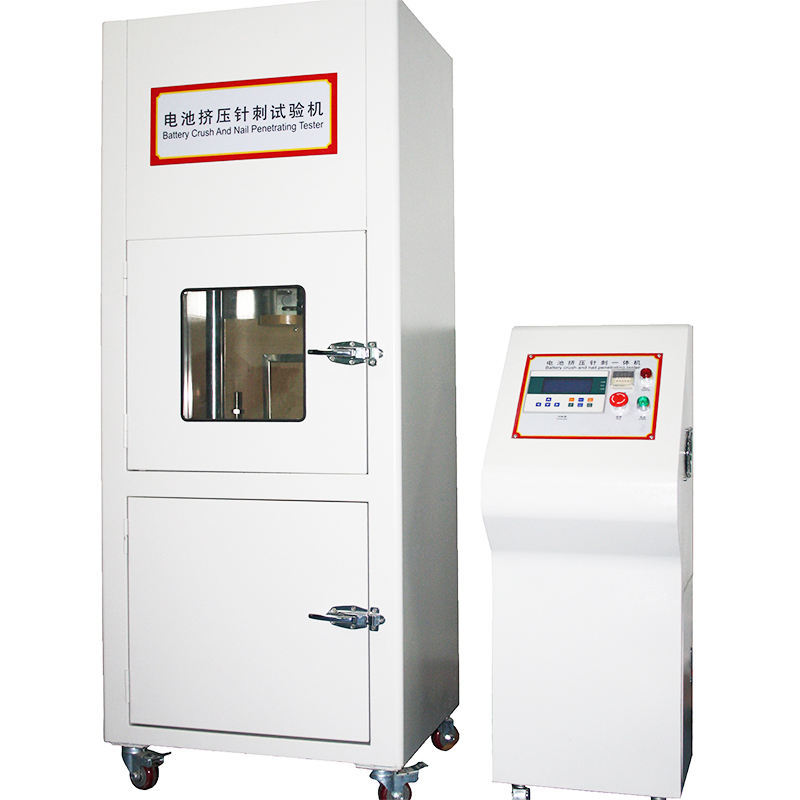

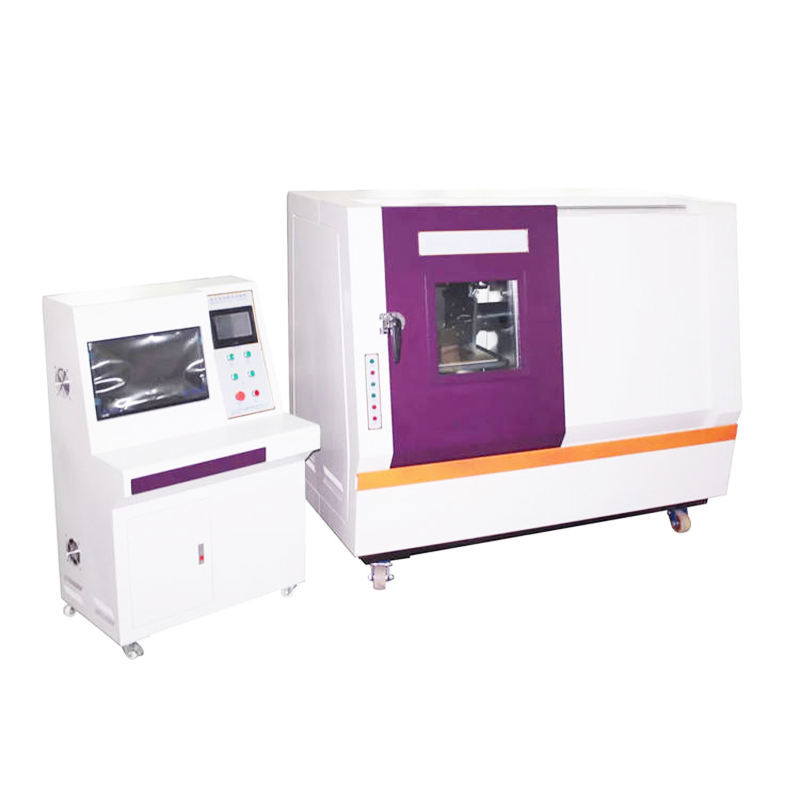

Product Images
Manufacturer Information
Dongguan Liyi Environmental Technology Co., Ltd is a high-technology production enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology and experienced technical management, we maintain fine quality management and comprehensive after-sales service systems.
Our product range includes simulated environmental testers and plastic/rubber testing equipment for various materials testing industries. Located in Dongguan, Guangdong province, China's manufacturing center, we also maintain an office in Kunshan, Jiangsu province to better serve customers in Eastern China.
Liyi serves customers from over 150 countries and regions, committed to cooperating with international dealers to provide superior service. Our mission is helping customers establish testing laboratories to ensure product quality through continuous development, innovation, and adherence to international testing standards.
Frequently Asked Questions
Are you a trading company or factory?
We operate both as a factory and trading company with over 18 years in test instruments and 15 years exporting experience. As a top supplier in Dongguan, we welcome OEM/ODM projects based on your requirements.
How to choose suitable products?
Our professional team provides optimal suggestions based on your testing requirements and specifications.
What's the delivery timeframe?
We typically maintain factory stock. For custom orders, delivery is 15-20 working days after deposit, with expedited arrangements available for urgent needs.
Do you accept customization?
Yes, we offer both standard and customized machines. Please share your requirements for tailored solutions.
Can we visit your factory?
We warmly welcome factory visits and can assist with hotel arrangements and airport transfers.
What is your warranty policy?
Standard warranty is one year, including technical support and parts replacement. Engineer site visits available when necessary.
What is the order process?
Inquiry → Quotation → Requirements Confirmation → Order Confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-Sales Service
How to install and use the product?
We provide English-speaking operation videos for installation and usage guidance. On-site training available with advance notice.
