LIYI 2.2KW SUS304 Lithium Ion Battery Testing Equipment , LIYI 1682 Nail Penetration Test Equipment

1 Set
USD 3580-5000
LIYI 2.2KW SUS304 Lithium Ion Battery Testing Equipment , LIYI 1682 Nail Penetration Test Equipment
Features Gallery Product Description Request A Quote
Power: 2.2 KW
Product Name: Testing Machine
Warranty: 12 Months
Application: Package
Power Supply: 50/60Hz
Steel Nail Diameter: 2mm~10mm, 20mm For Option
Outer Box Material: Cold Rolled Sheet Baking Treatment
Inner Box Material: SUS304 Stainless Steel, Iron And Fluorine Melted Tape Attached To The Box, Insulated, High Temperature And Flame Resistant, Easy To Clean And Maintain
Max. Battery Tested Size: 300*300*100mm (L*W*H)
Weight: About 320kg
Using Electric: AC220V±10%, 10A 50Hz 1phase
High Light:

2.2KW lithium ion battery testing equipment


LIYI lithium ion battery testing equipment


LIYI nail penetration test equipment

Basic Infomation
Place of Origin: Dongguan Guangdong China
Brand Name: LIYI
Certification: ISO
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 25-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50
Product Description

LIYI 2.2KW SUS304 Lithium Ion Battery Testing Equipment , LIYI 1682 Nail Penetration Test Equipment

Product Description


   1. The wire enclosed with metal fire-proof cover, which is available to prevent the flame during testing process.

   2. Lighting system is designed to observe the internal testing process;

   3. Nail Penetration/Crush Velocity with controllable range of 1~40mm/s;

   4. Nail Penetration/Crush Force controllable within range from 20T to 50T ,meet different standards;

   5. Wire hole provides a possibility to test internal temperature or air pressure while vent hole with air blower can discharge the exhaust air.

   6. Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety.

Product Parameters
Display PLC Touch screen display
Electric control Controlled by PLC program
penetration mode vertical direction
steel nail diameter 2mm~10mm, 20mm for option
Inner box material SUS304 stainless steel, iron and fluorine melted tape attached to the box, insulated, high temperature and flame resistant, easy to clean and maintain
Outer box material Cold rolled sheet baking treatment
Exhaust device Located at the rear of the cabinet, exhaust fan, duct diameter 120mm, length 100mm, convenient to connect with external laboratory high-power exhaust fan
Test mode Single test
Observation window tempered glass explosion-proof observation window, the size is 250*250*5mm, and with iron gauze between the glass in case of battery explosion splash and avoid to injury operator.
Protective device Safety door switch, Automatic sensor door, the door closed when start to test, opened after testing finished
Max. Battery tested size 300*300*100mm (L*W*H)
Using electric AC220V±10%, 10A 50Hz 1phase
Power 2.2 kW
Weight About 320kg


Detailed Images

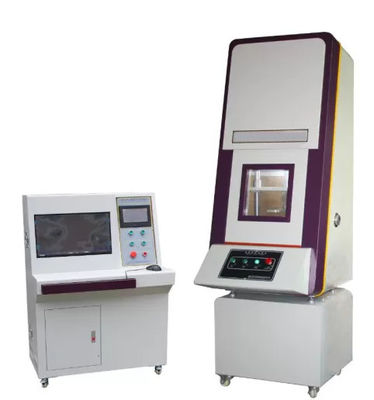

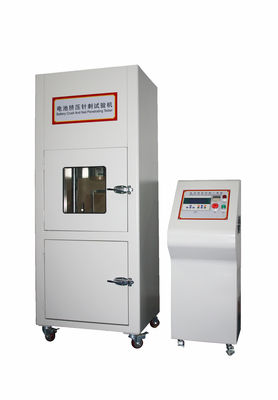

LIYI 2.2KW SUS304 Lithium Ion Battery Testing Equipment , LIYI 1682 Nail Penetration Test Equipment 0LIYI 2.2KW SUS304 Lithium Ion Battery Testing Equipment , LIYI 1682 Nail Penetration Test Equipment 1

More options
Company Information

Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.


1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer for Customized Industrial Drying Oven, Hot Air Oven, Laboratory Oven, vacuum oven, Universal Tensile testing machine, Environmental Climatic chamber, Muffle furnace etc. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3) Order process:

We offer below business term:

Accepted Delivery Terms FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency USD, EUR, HKD, CNY
Accepted Payment Type T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
